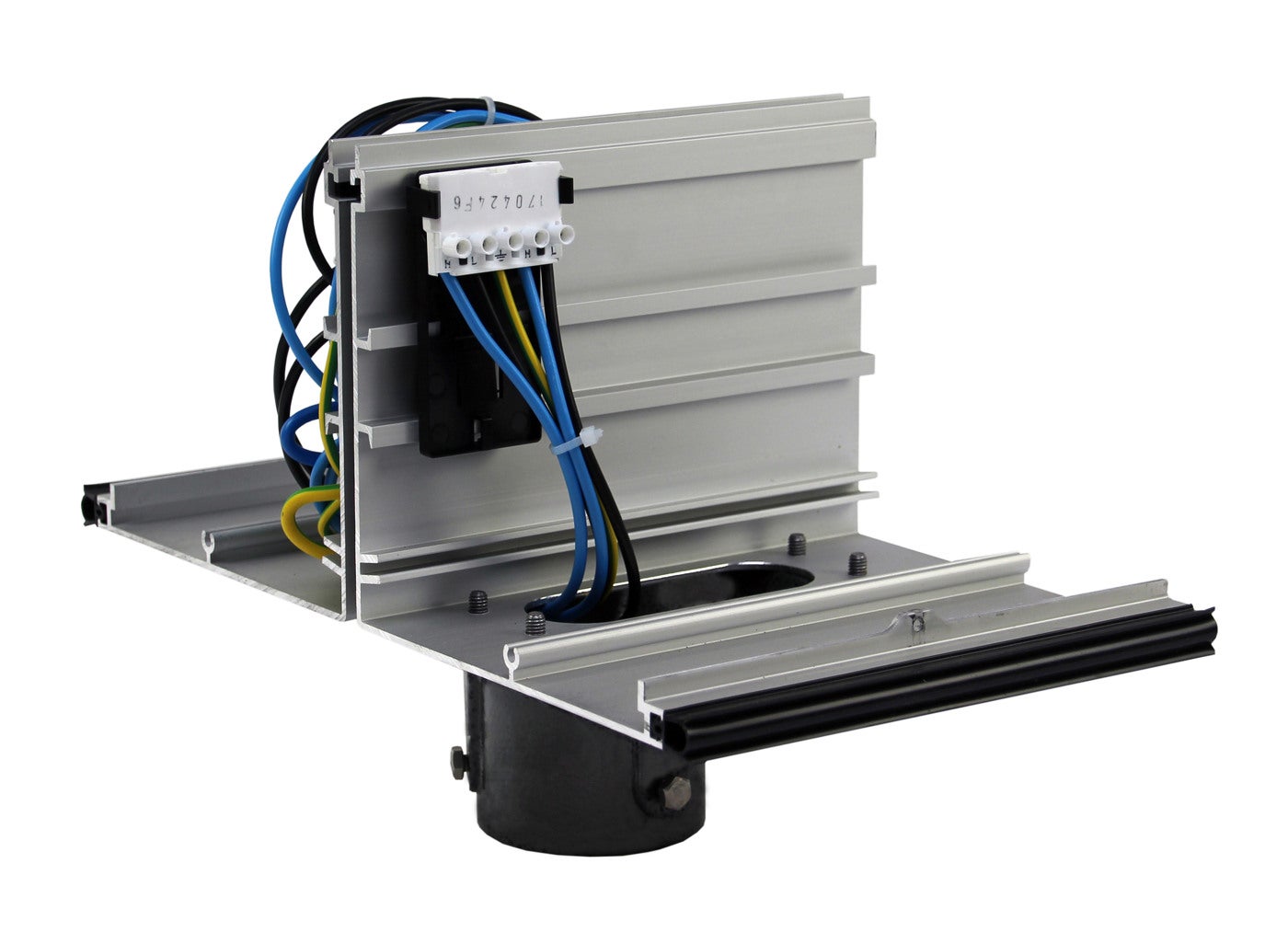

• TERMINALPROFILE TUBE60 D PN - 1

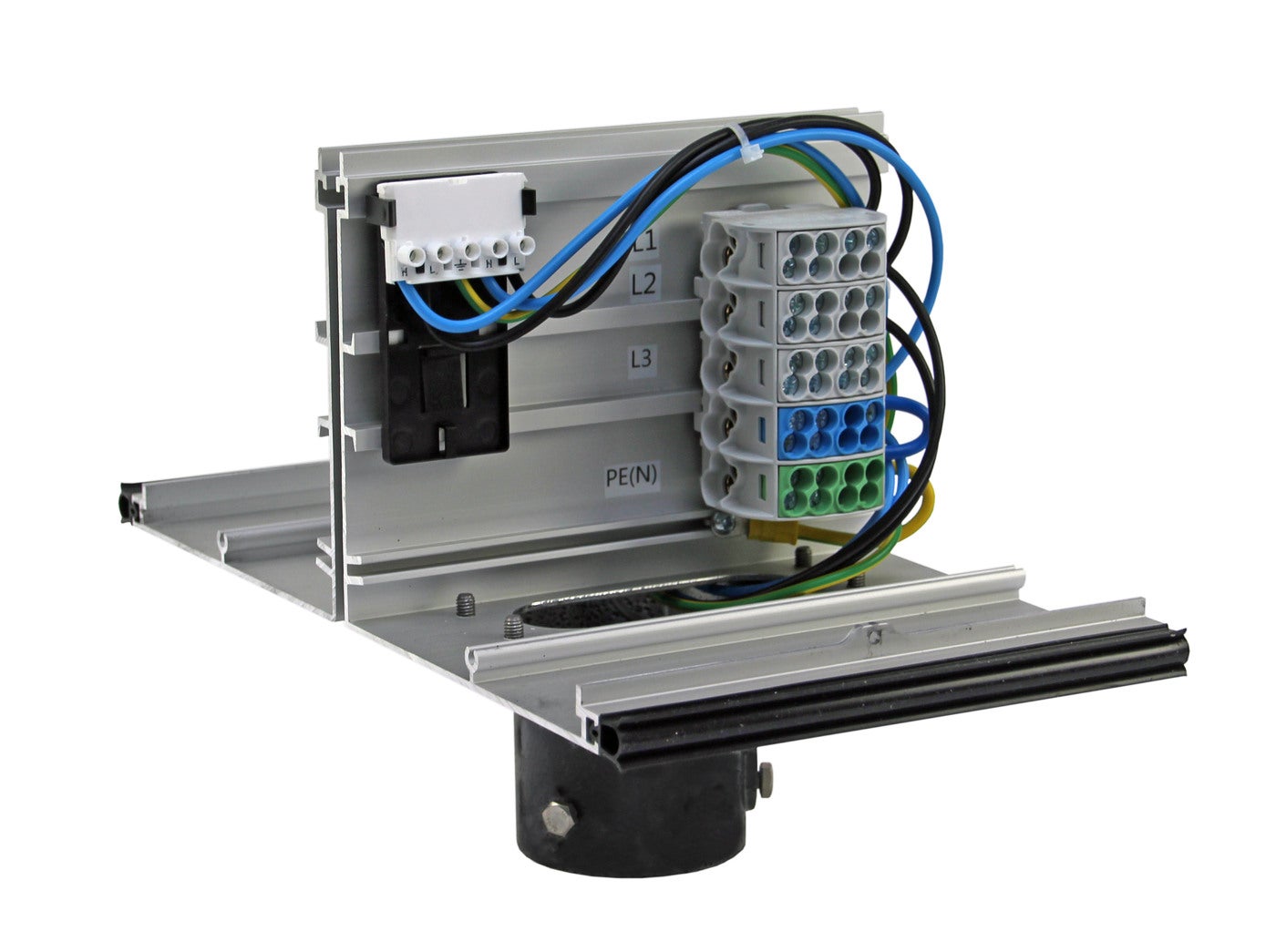

  • TERMINALPROFILE TUBE60 D PN - 2

Terminal profiles tube Ø60 double

Terminal block section for oval posts where two enclosures are to be mounted on the section. In the terminal block, all the cables needed to connect the insert to electricity. The terminal block is mounted on the post, the enclosure is mounted on the terminal block and finally the insert is assembled with a quick connection. Equipped with an installation friendly terminal 25mm2 prepared for outgoing electrical feed 16mm2 Al/Cu. The terminal block does not fit for older versions of P100 enclosure Terminal profile tube post 60 double PN
E-number
E2449205
Article number
353009
Support
Type designation PNFD-60
Standard EN61439-3
Housing material Aluminium
Color Grey
Wire flexible [mm²] 1x25mm²+1x16mm²
Mounting method On pole
Modelltype PN100 Terminal profiles
NetProductWeight 1.8
Name TERMINALPROFILE TUBE60 D PN
E-number E2449205
Article number 353009

Accessories for Terminal profiles tube Ø60 double

Name E-number Article number Type designation Description
TERMINAL 5P AL/CU MVC TERMINAL 5P AL/CU MVC E2670477 353155 P5-N Terminal 5-pole Al/Cu MVC
