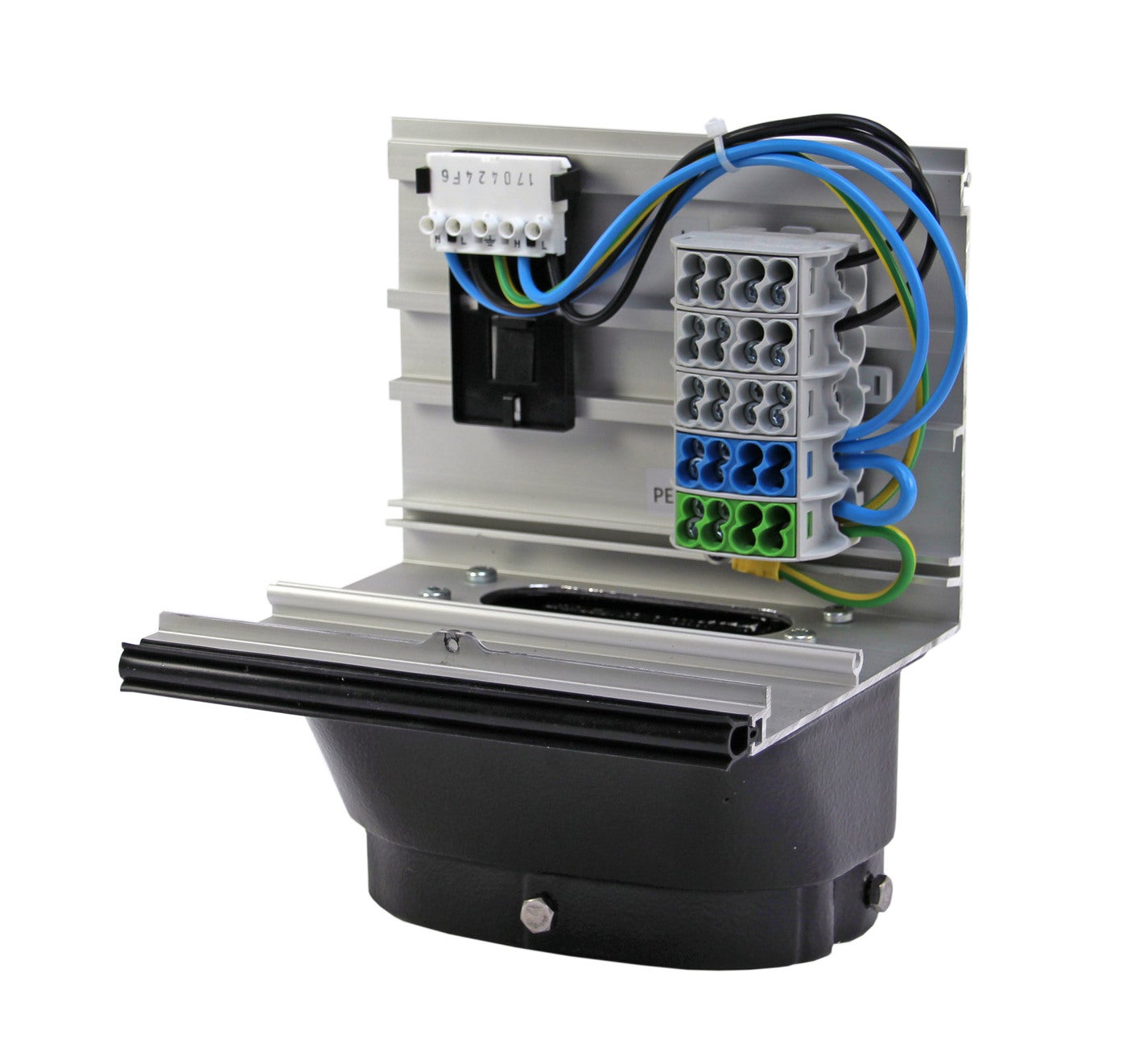

• TERMINALPROFILE OVAL S PN - 1

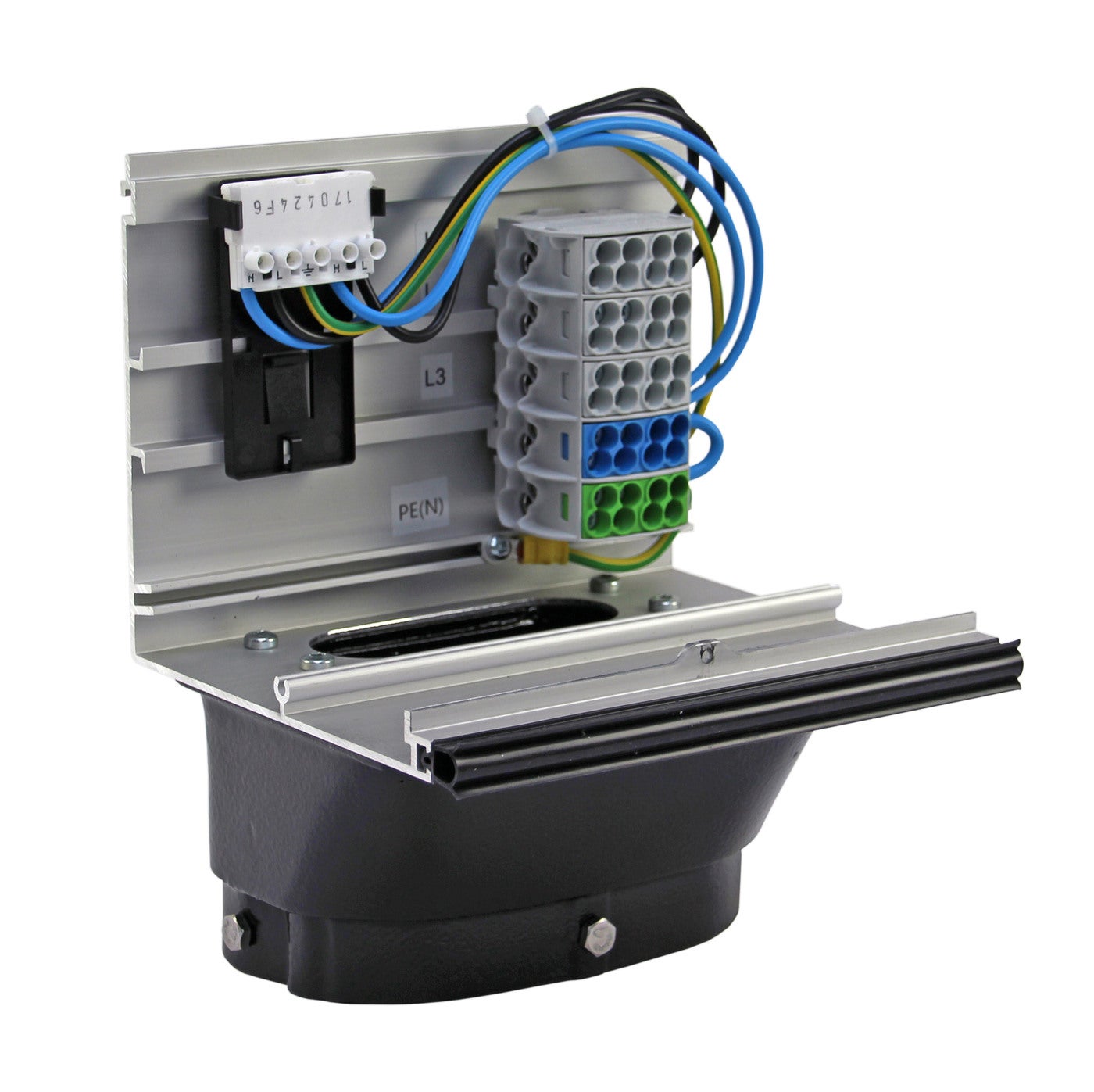

  • TERMINALPROFILE OVAL S PN - 2

Terminal profiles oval single

Terminal block section for oval posts where one enclosure is to be mounted on the section. In the terminal block, all the cables needed to connect the insert to electricity. The terminal block is mounted on the post, the enclosure is mounted on the terminal block and finally the insert is assembled with a quick connection. Equipped with an installation friendly terminal 25mm2 prepared for outgoing electrical feed 16mm2 Al/Cu. The terminal block does not fit for older versions of P100 enclosure Terminal profile oval single PN
E-number
E2449207
Article number
353011
Support
Type designation PNFE-A
Standard EN61439-3
Housing material Aluminium
Color Grey
Wire flexible [mm²] 1x25mm²+1x16mm²
Mounting method On pole
Modelltype PN100 Terminal profiles
NetProductWeight 1.7
Name TERMINALPROFILE OVAL S PN
E-number E2449207
Article number 353011

Accessories for Terminal profiles oval single

Name E-number Article number Type designation Description
TERMINAL 5P AL/CU MVC TERMINAL 5P AL/CU MVC E2670477 353155 P5-N Terminal 5-pole Al/Cu MVC
