INSERT CAR 6A WM INDIVID PN2

Inserts Car individuell adapation with meter

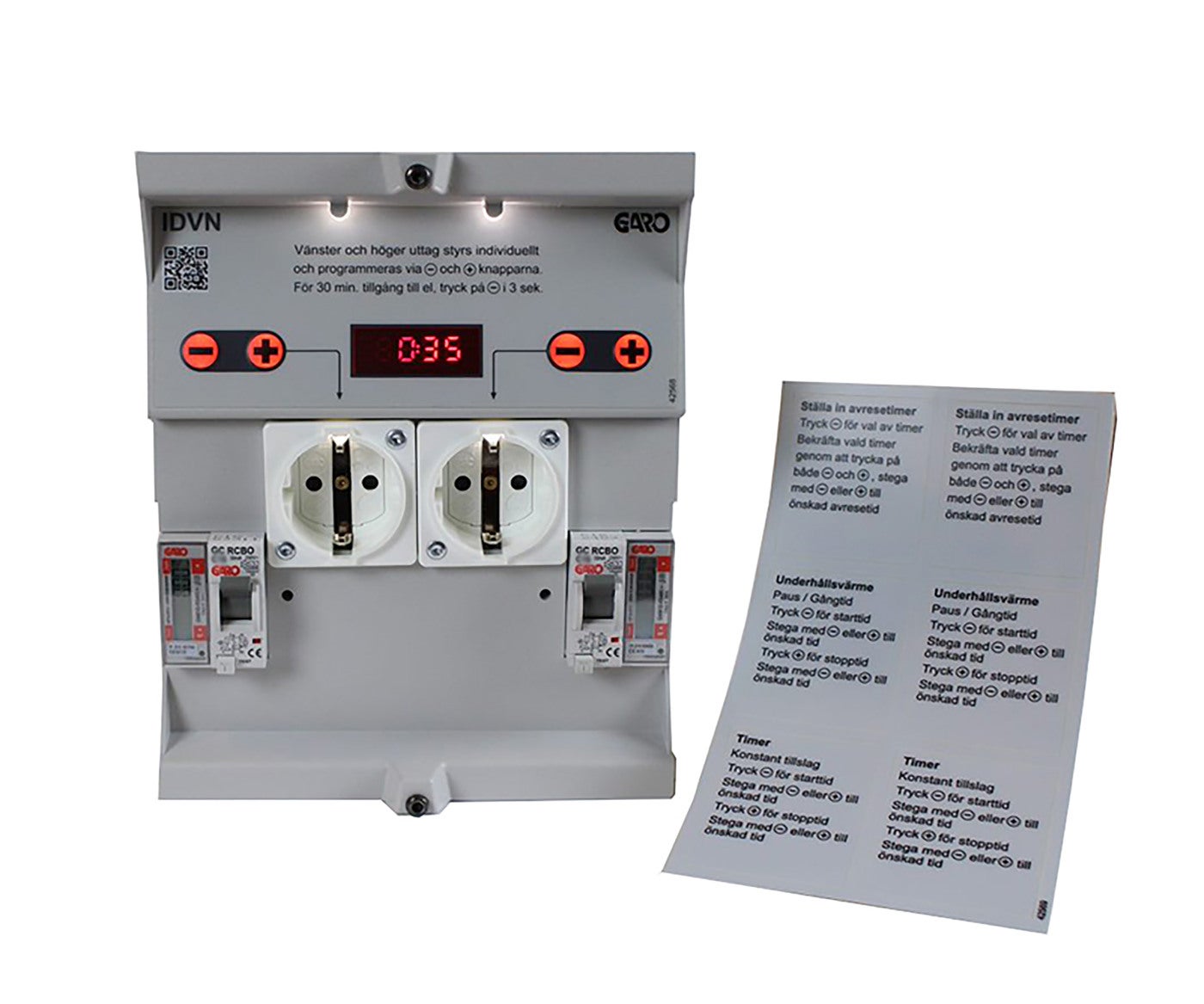

GARO's insert IDVN is easily customized with an app according to your wishes. The insert is equipped with 2 RCBO switches 2 schukooutlets time- and temperature controlled. The insert can be programmed for switch-on before departure time, where up to three departure times with adjustable temperature curve can be set. When programming Maintenance Heat, the insert can be set for the period on and the temperature curve. In the Timer mode, the switch-on time can be set for the socket for a selected time period b Insert car individuell adjustment 6A with RCBO and meter
E-number
E2445594
Article number
356123
Support
Standard EN61439-3
Short-circuit current [kA] 6kA
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Number of MCB 1P (1) No
Number of Schuko[pcs] 2pcs
Number of RCCB [pcs] 1 No
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 120
Name INSERT CAR 6A WM INDIVID PN2
E-number E2445594
Article number 356123
Type designation IDVNM 206-2
Energymeter Yes
Number of RCBO [pcs] 2pcs C2P 6A

Instruction Sheet

Manual

More variants of Inserts Car individuell adapation with meter

E-number Article number Type designation Energymeter Number of RCBO [pcs]
INSERT CAR 6A WM INDIVID PN2 E2445594 356123 IDVNM 206-2 Yes 2pcs C2P 6A
INSERT CAR 10A WM INDIVID PN2 E2445595 356124 IDVNM 210-2 Yes 2pcs C2P 10A
INSERT CAR 16A WM INDIVID PN2 356125 IDVNM 216-2 2pcs C2P 16A

Accessories for Inserts Car individuell adapation with meter

Name E-number Article number Type designation Description
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 13A 2P GS RCBO C 13A 2P GS E2163249 2163249 RCBO C2P 13A 10kA GS RCBO GS C-Characteristic 13A 10kA 2-pole
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole
RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P E2163284 2163284 RCBO C10A 2P 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO C16A 2P 6kA 1M GS RCBO GC C-Characteristic 16A 6kA 2-pole
SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50
TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
