INSERT CAR 6A INDIVID PN2

Inserts Car individuell adapation without meter

GARO's insert IDVN is easily customized with an app according to your wishes. The insert is equipped with 2 RCBO switches 2 schukooutlets time- and temperature controlled. The insert can be programmed for switch-on before departure time, where up to three departure times with adjustable temperature curve can be set. When programming Maintenance Heat, the insert can be set for the period on and the temperature curve. In the Timer mode, the switch-on time can be set for the socket for a selected time period b Insert car individuell adjustment 6A with RCBO.
E-number
E2449223
Article number
353032
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter No
Number of MCB 1P (1) No
Number of Schuko[pcs] 2pcs
Number of RCCB [pcs] 1 No
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 120
Name INSERT CAR 6A INDIVID PN2
E-number E2449223
Article number 353032
Type designation IDVN 206-2
Short-circuit current [kA] 10kA
Number of RCBO [pcs] 2pcs C2P 6A

Instruction Sheet

Manual

More variants of Inserts Car individuell adapation without meter

E-number Article number Type designation Short-circuit current [kA] Number of RCBO [pcs]
INSERT CAR 6A INDIVID PN2 E2449223 353032 IDVN 206-2 10kA 2pcs C2P 6A

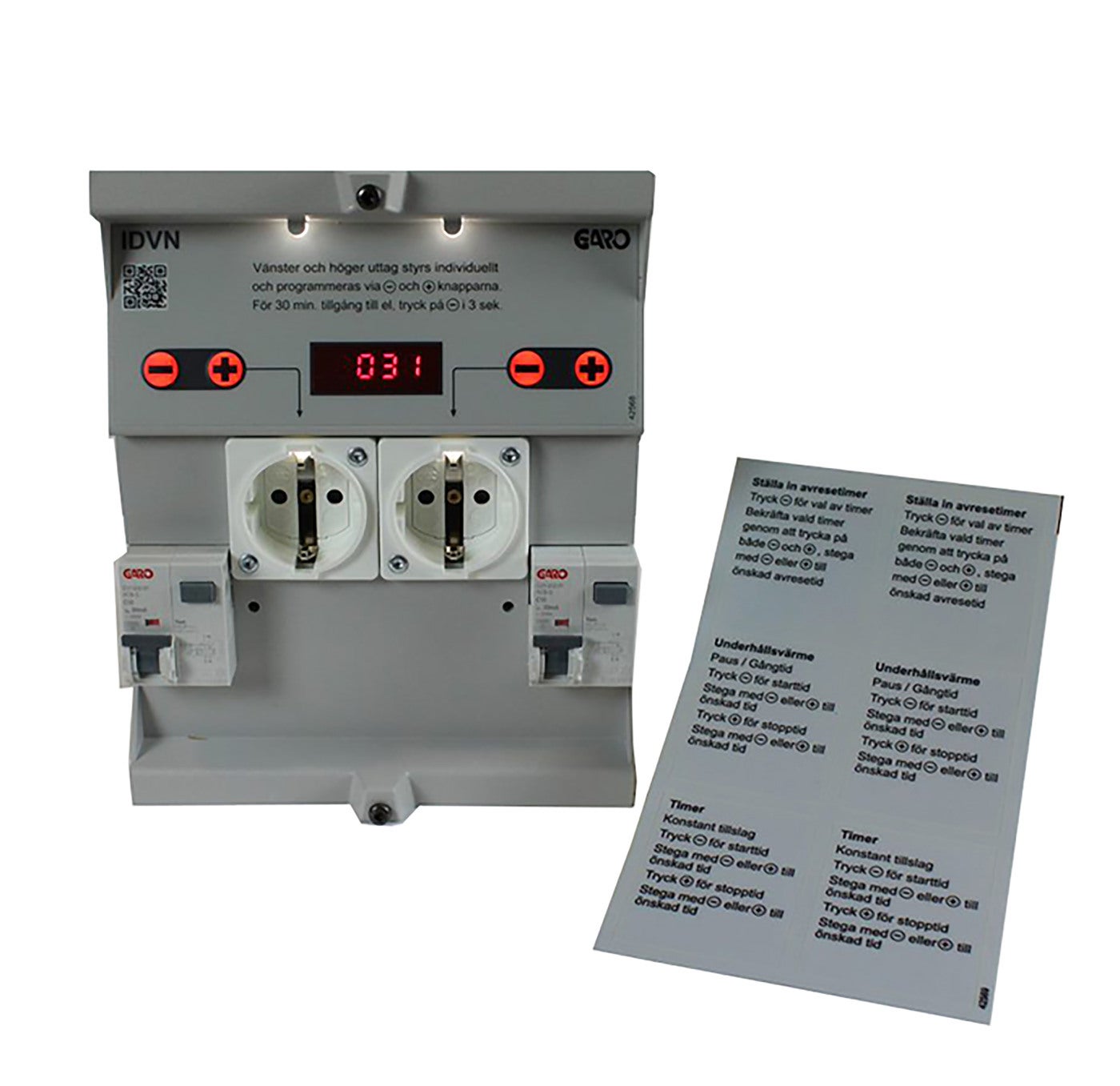

INSERT CAR 10A INDIVID PN2 E2449224 353033 IDVN 210-2 6kA 2pcs C2P 10A
INSERT CAR 16A WOM INDIVID PN2 356122 IDVN 216-2 6kA 2pcs C2P 16A

Accessories for Inserts Car individuell adapation without meter

Name E-number Article number Type designation Description

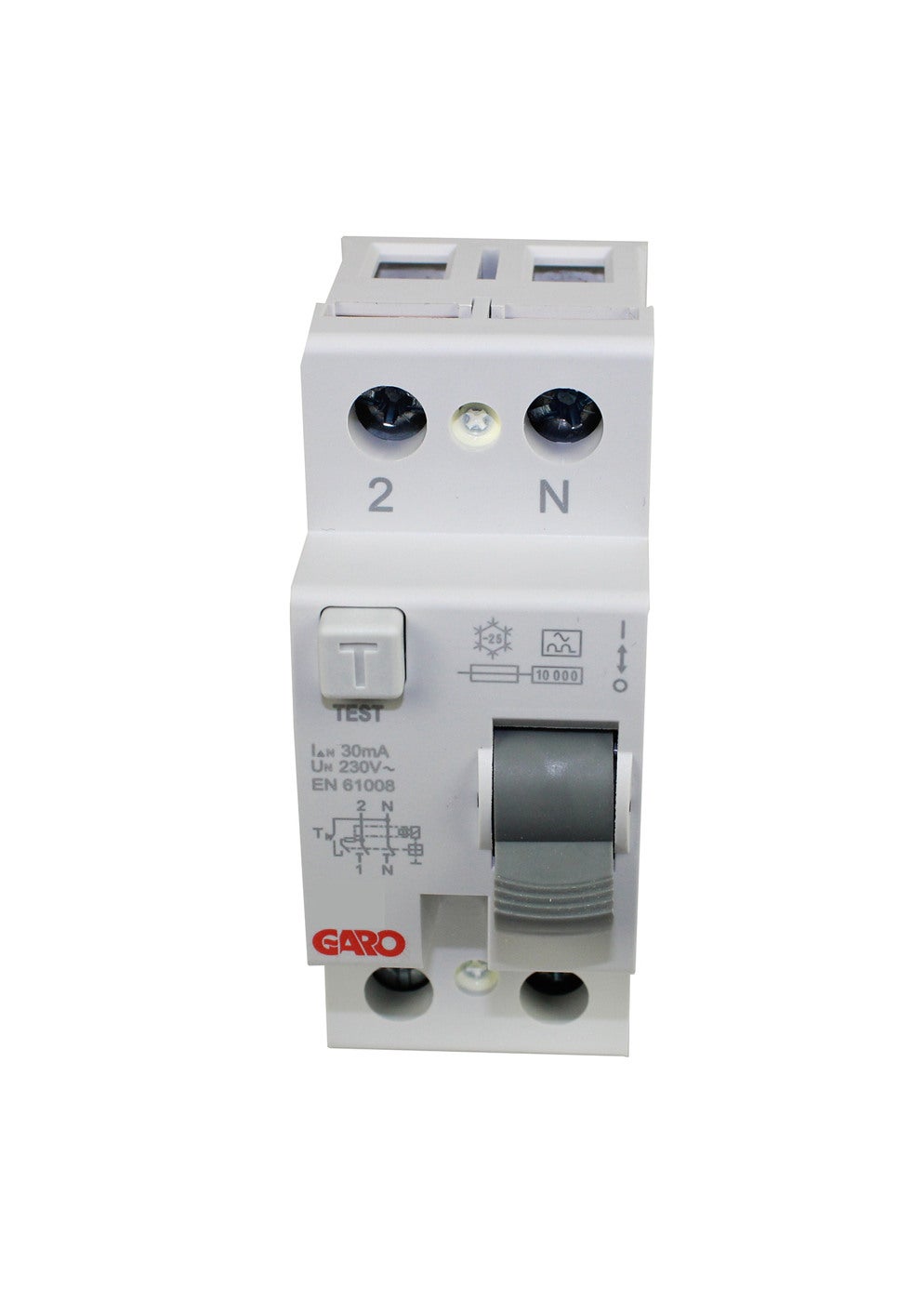

RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole

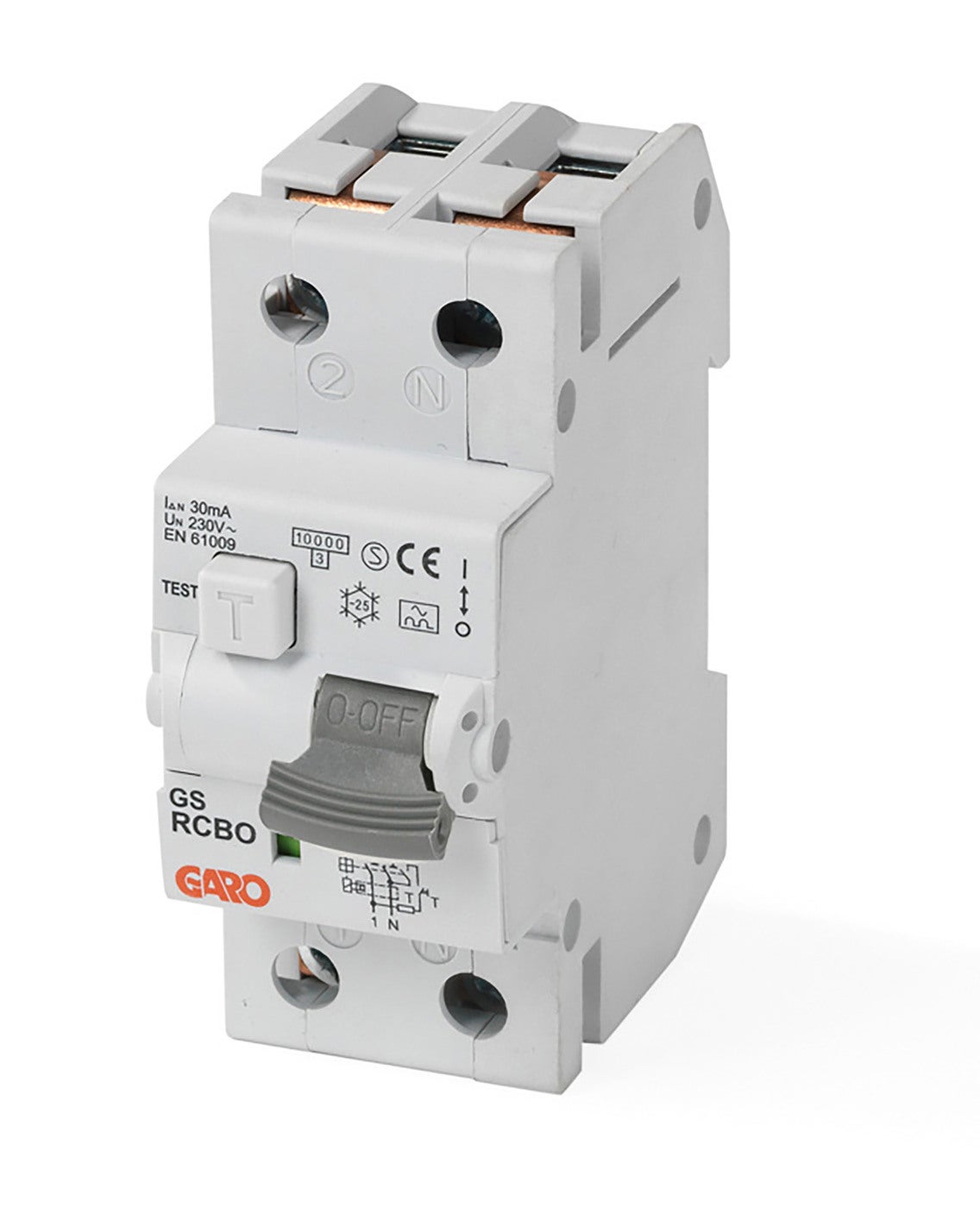

RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 13A 2P GS RCBO C 13A 2P GS E2163249 2163249 RCBO C2P 13A 10kA GS RCBO GS C-Characteristic 13A 10kA 2-pole
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole

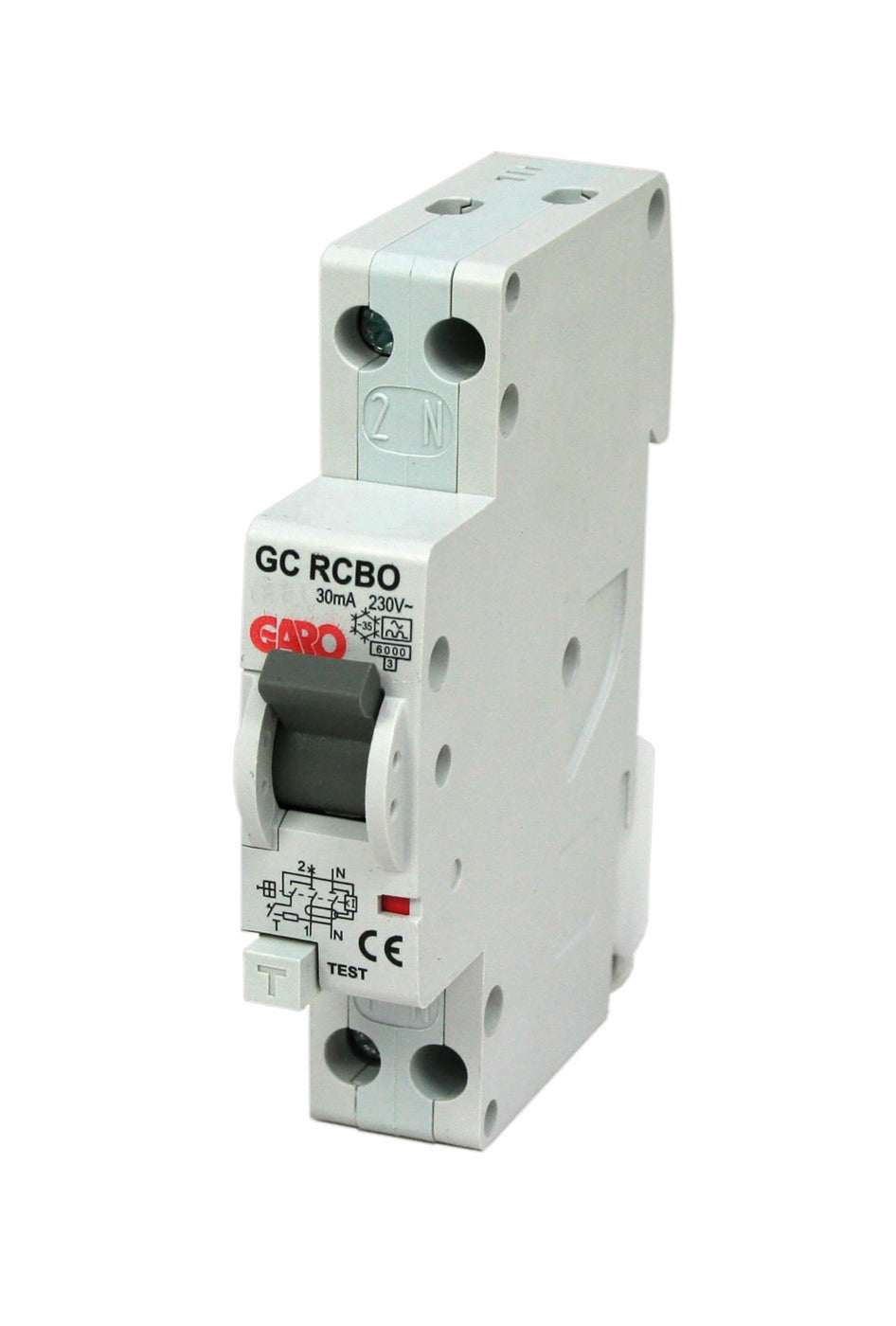

RCBO GC C-CHAR 6A 2P RCBO GC C-CHAR 6A 2P 2163283 2163283 RCBO C6A 2P 6kA 1M GS RCBO GC C-Characteristic 6A 6kA 2-pole

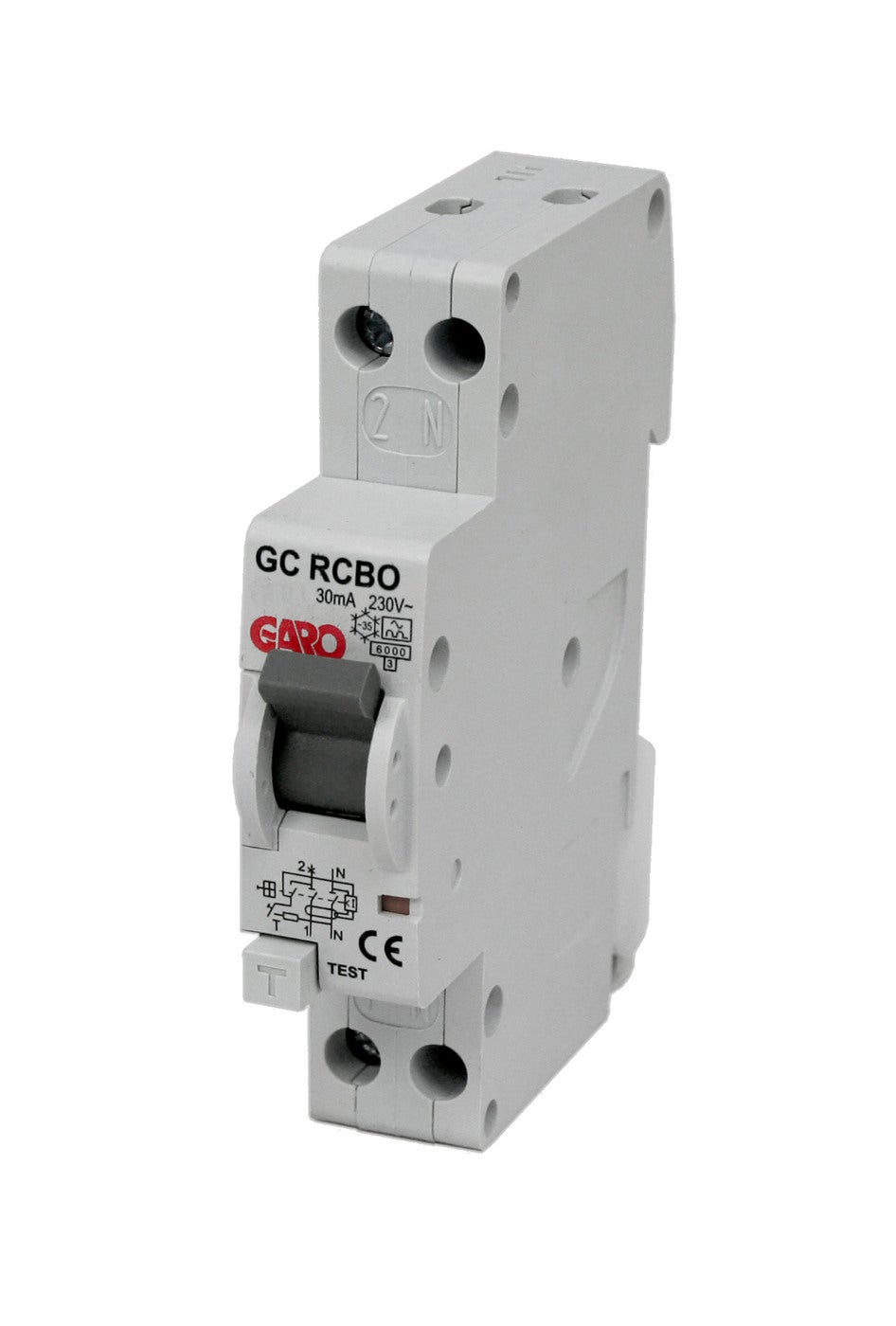

RCBO GC C-CHAR 10A 2P RCBO GC C-CHAR 10A 2P E2163284 2163284 RCBO C10A 2P 6kA 1M GS RCBO GC C-Characteristic 10A 6kA 2-pole
RCBO GC C-CHAR 13A 2P RCBO GC C-CHAR 13A 2P 2163285 2163285 RCBO C13A 2P 6kA 1M GS RCBO GC C-Characteristic 13A 6kA 2-pole
RCBO GC C-CHAR 16A 2P RCBO GC C-CHAR 16A 2P 2163286 2163286 RCBO C16A 2P 6kA 1M GS RCBO GC C-Characteristic 16A 6kA 2-pole

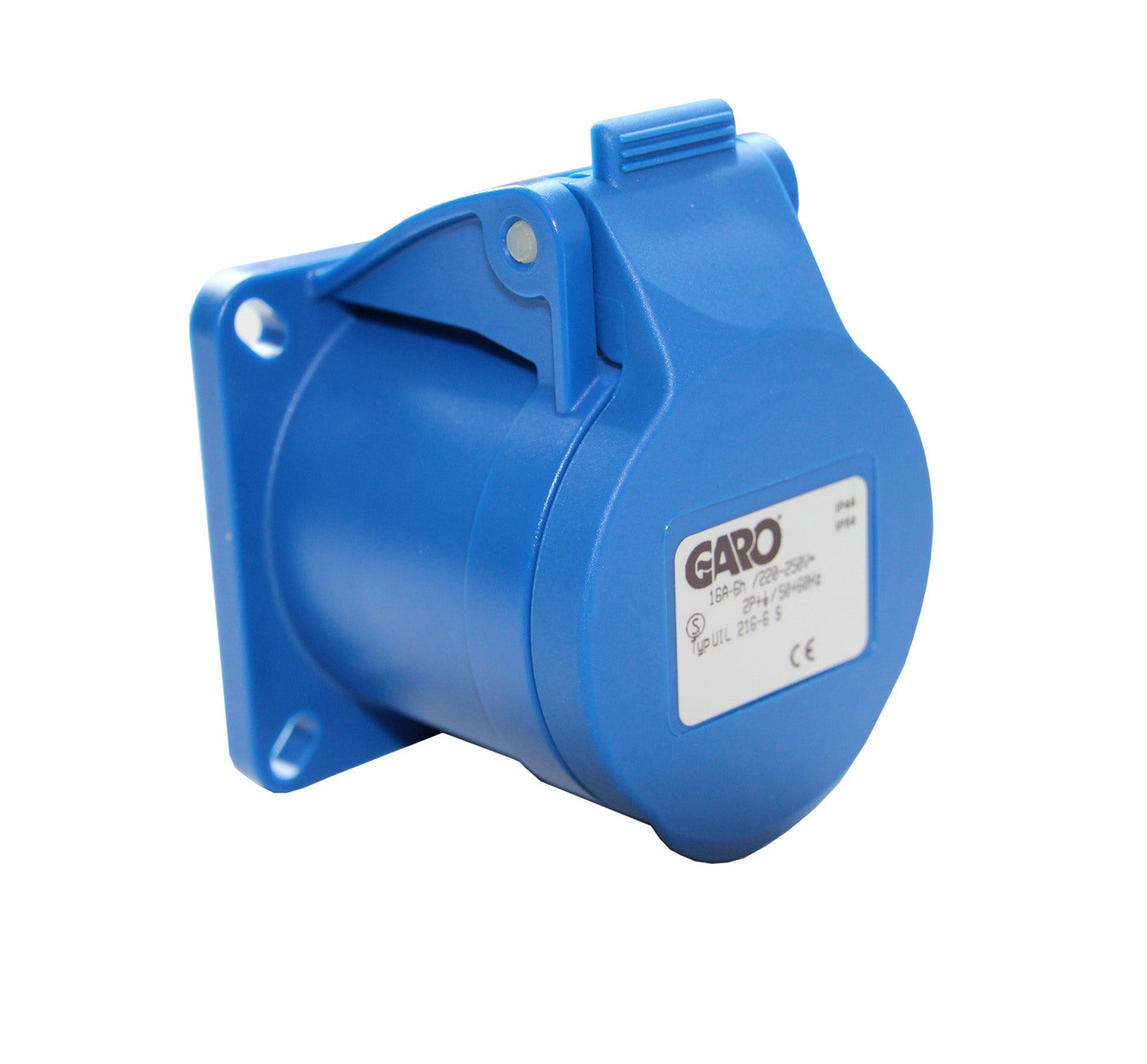

SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50

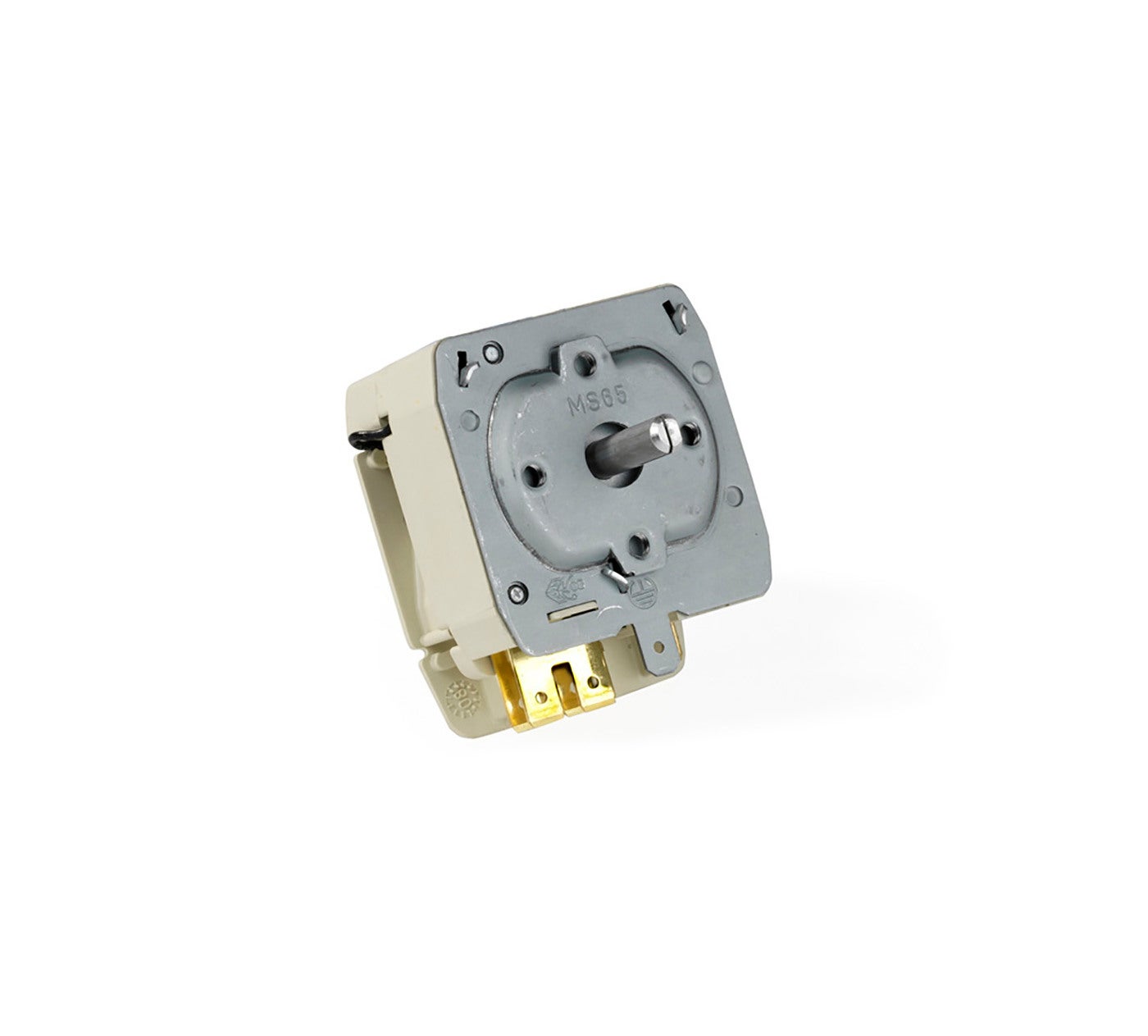

TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
