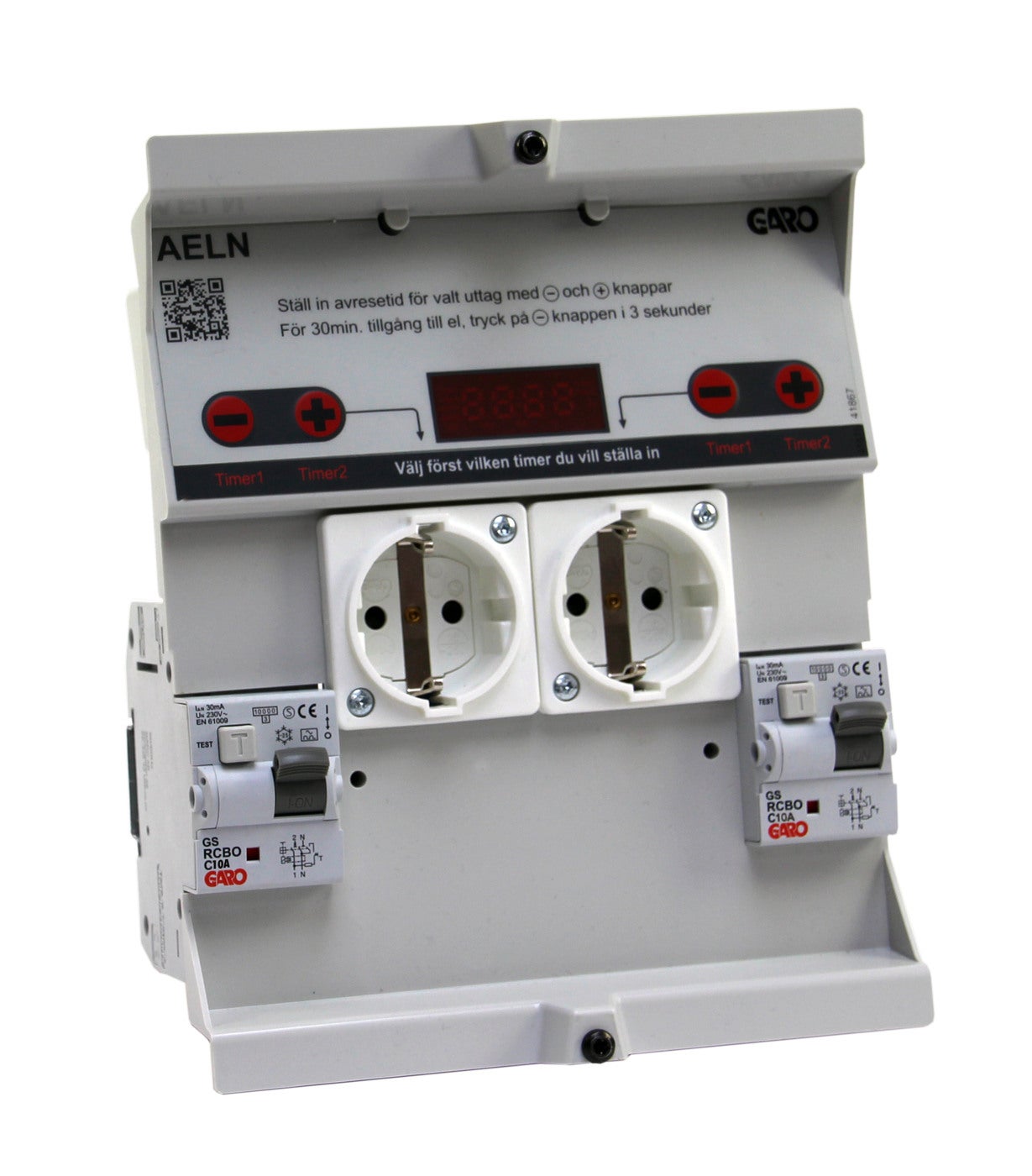

  • INSERT CAR 10A WOM TT PN - 2

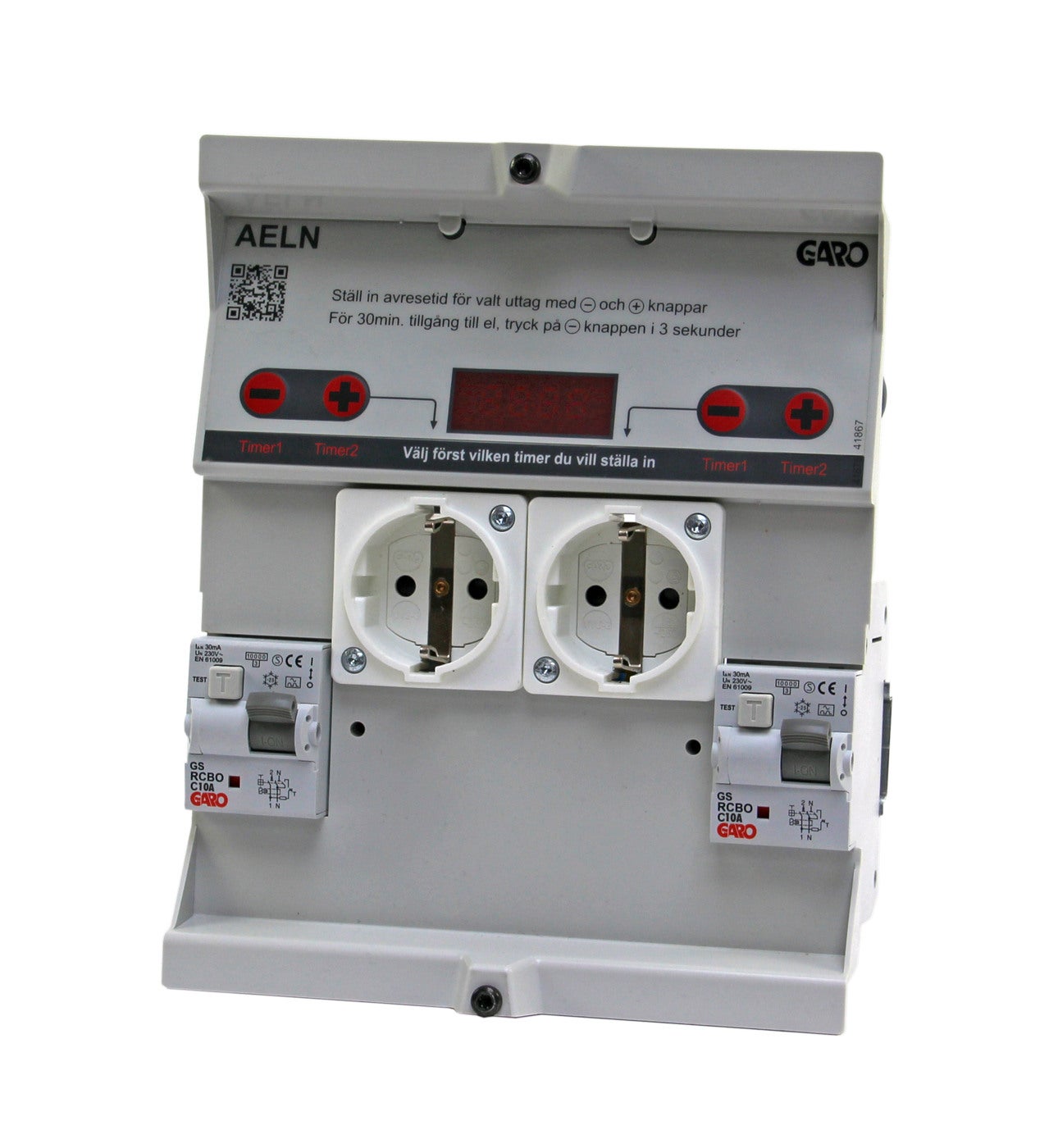

  • INSERT CAR 10A WOM TT PN - 3

Inserts Car time & temperature controll without meter

GAROs insert AELN with repeating time-and temperature controlled socket. The inserts are equipped with 2 Schuko sockets and 2 RCBOs and with illuminated overlay, outlets and setting buttons. The time-and temperature-controlled socket is controlled by the set departure time and the current outdoor temperature and a maintenance-free capacitor backup, which means that they can withstand power failures of up to 48 hours without losing their setting. The components are mounted on a DIN rail, making replacement v Insert car without meausuring 10A fits PN-system, time&temperatur controlled, with RCBO
E-number
E2449216
Article number
352988
Support
Standard EN61439-3
Short-circuit current [kA] 10kA
Frequency [Hz] 50Hz
Housing material Plastic
Color Grey
Rated current [A] 16A
Rated voltage [V AC] 230V AC
Modelltype PN100 Insert
Energymeter No
Number of Schuko[pcs] 2pcs
Response time [h] Max 180min
Degree of protection [IP] IP44
EngineerWidth 175
EngineerHeight 220
EngineerDepth 100
Name INSERT CAR 10A WOM TT PN
E-number E2449216
Article number 352988
Type designation AELN 210-2
Number of MCB 1P (1) No
Number of RCCB [pcs] 1 No
Number of RCBO [pcs] 2pcs C2P 10A

Instruction Sheet

Manual

More variants of Inserts Car time & temperature controll without meter

E-number Article number Type designation Number of MCB 1P (1) Number of RCCB [pcs] 1 Number of RCBO [pcs]
INSERT CAR 10A WOM TT PN E2449216 352988 AELN 210-2 No No 2pcs C2P 10A
INSERT CAR 6A WOM TIMETEMP E2449213 353023 AELN 206-1 2pcs C106 1pcs 2P 25A No
INSERT CAR 10A WOM TIMETEMP E2449214 353024 AELN 210-1 2pcs C110 1pcs 2P 25A No
INSERT CAR 6A WOM TIMETEMP E2449215 353025 AELN 206-2 No 2pcs C2P 6A

Accessories for Inserts Car time & temperature controll without meter

Name E-number Article number Type designation Description
RCCB 25A 30mA 10kA 2P RCCB 25A 30mA 10kA 2P E2163321 110092 RCCB 2P 25A 10kA 30mA GS RCCB type GS 25A 2-pole 30mA
MCB C 1P 4A 10kA GS MCB C 1P 4A 10kA GS E2142704 2142704 MCB GS C104 MCB GS C-Characteristic 4A 10kA 1-pole
MCB C 1P 6A 10kA GS MCB C 1P 6A 10kA GS E2142705 2142705 MCB GS C106 MCB GS C-Characteristic 6A 10kA 1-pole
MCB C 1P 10A 10kA GS MCB C 1P 10A 10kA GS E2142706 2142706 MCB GS C110 Miniature cirucit breaker C-characteristic 1-pole 10A 10kA GS
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
LOCKING PIN LOCKING PIN E2163136 2163136 LB 2 Locking pin suitable MCB GS,RCCB GS,RCBO GS,GCB ,GCBO and most other components.
RCBO GS C-CHAR 6A 2P RCBO GS C-CHAR 6A 2P E2163247 2163247 RCBO C2P 6A 10kA GS RCBO GS C-Characteristic 6A 10kA 2-pole
RCBO C 2P 10A 10kA RCBO C 2P 10A 10kA E2163248 2163248 RCBO C2P 10A 10kA GS Residual current circuit breaker with overcurrent protection (RCBO) C-characteristic 2-poles 10A 10kA
RCBO C 13A 2P GS RCBO C 13A 2P GS E2163249 2163249 RCBO C2P 13A 10kA GS RCBO GS C-Characteristic 13A 10kA 2-pole
RCBO C 16A 2P GS RCBO C 16A 2P GS E2163250 2163250 RCBO C2P 16A 10kA GS RCBO GS C-Characteristic 16A 10kA 2-pole
SOCKET STRAIGHT 3P 16A 6h S SOCKET STRAIGHT 3P 16A 6h S E2424890 2424890 UIL 216-6 S Socket straight small basic 3-poles 16A 6h
OUTLET INSERT MVU OUTLET INSERT MVU E2449413 2449413 MVU Outlet inserts B50xH50
CONTACT PLUG P100 CONTACT PLUG P100 E2449505 2449505 KD-P Contactplug fits P100 MVC
HANDLE MVAT 5-PAC HANDLE MVAT 5-PAC E2449507 2449507 VT Handle MVAT 5-pac
INSERT OUTLET ROUND PET MVV INSERT OUTLET ROUND PET MVV E2449524 2449524 MVV Childproof schuko socket PET round.
TIMER CAR HEATER TIMER CAR HEATER E2449525 2449525 TIMER Timer for carheather. 24H
