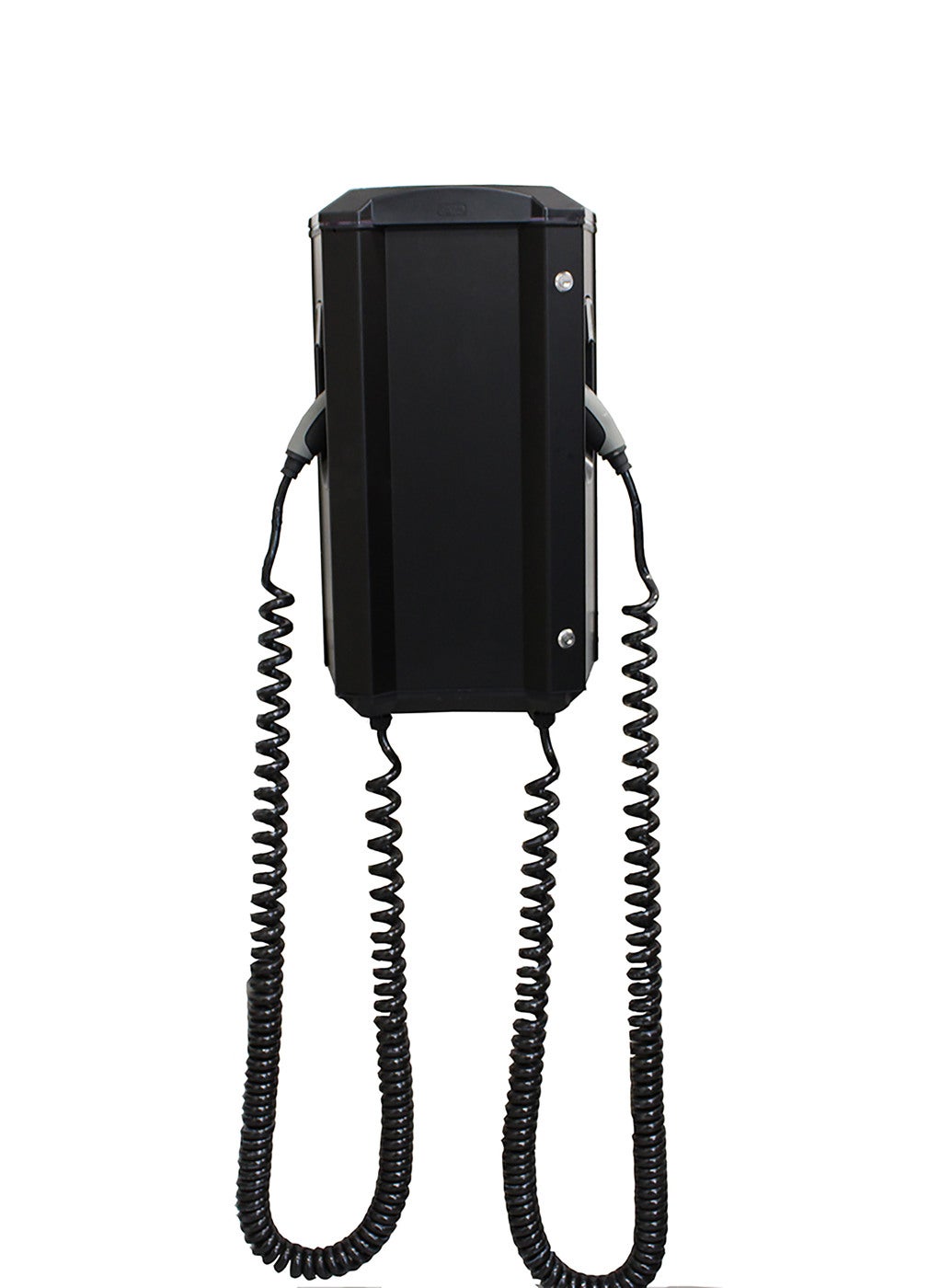

Wallbox with fixed cable MC Twin+
Wallbox with two charging points. Each charging point is individually protected by DC fault protection, earth fault circuit breaker and integrated fuse, and is equipped with MID-approved energy meter. TWIN + supports OCPP communication. Connection is via 4G. TWIN + can be load balanced individually or in groups against external meters. Wallbox 2 type2 fixed cable 5meter Helix, 11kW connectable via 4G, with meter and RFID
| Type designation | GTB-B-DCM-T211FC-A-R-MC |
|---|---|
| Standard | EN61851-1 IEC 61439-7 AEVCS |
| Storage temperature [C] | -40C...+50C |
| Operation Temperature [C] | -25C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Aluminium |
| Color | Black |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 400V AC |
| Mounting method | Wall mounting |
| Modelltype | Twin+ |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH |
| Length of cable [m] | Not included |
| Lock | Yes |
| Networkable LAN | No |
| Networkable WiFi | Yes |
| AC/DC output 1 | Type 2 Cable Helix |
| AC/DC output 2 | Type 2 Cable Helix |
| DC-fault protection | Yes |
| Power per charging point [kW] | 11kW |
| Number of RCCB-A [pcs] | 2pcs 4P 40A |
| Degree of protection [IP] | IP44 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 15 |
| EngineerWidth | 377 |
| EngineerHeight | 660 |
| EngineerDepth | 213 |
| Name | WALLBOX TWIN+ T2FC 11kW M R MC |
|---|---|
| E-number | E2480318 |
| Article number | 353983 |
