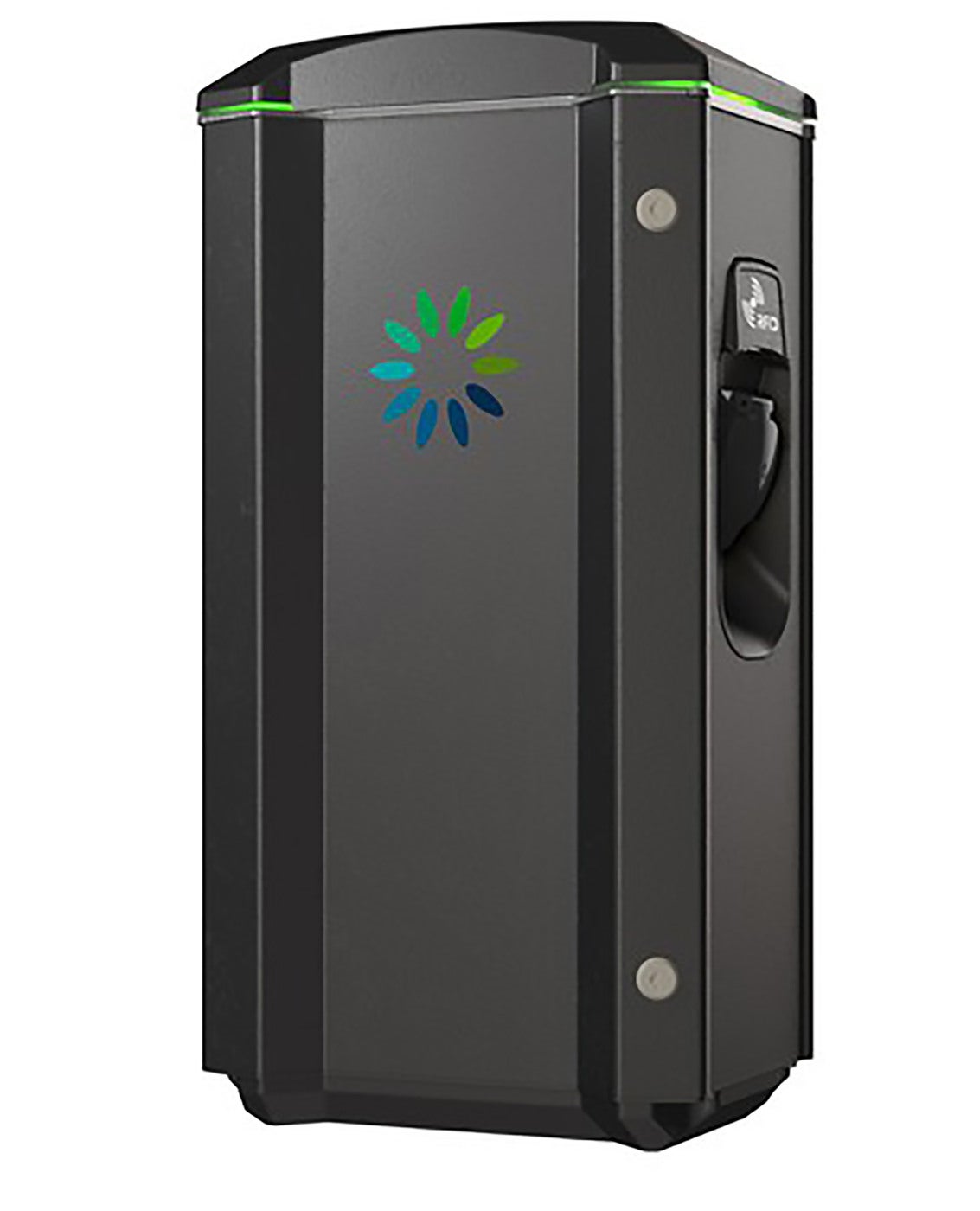

Wallbox with outlet LAN Twin+
Twin+ Outlet LAN Wallbox 2 type2 EV-outlet 22kW connectable via LAN, with meter and RFID.
| Standard | EN61851-1 IEC 61439-7 AEVCS |
|---|---|
| Storage temperature [C] | -40C...+50C |
| Operation Temperature [C] | -25C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Aluminium |
| Color | Black |
| Rated current [A] | 63A |
| Mounting method | Wall mounting |
| Modelltype | Twin+ |
| Length of cable [m] | Not included |
| Lock | Yes |
| Networkable LAN | Yes |
| Networkable WiFi | No |
| AC/DC output 1 | Type 2 Outlet |
| AC/DC output 2 | Type 2 Outlet |
| DC-fault protection | Yes |
| Degree of protection [IP] | IP44 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 14 |
| EngineerWidth | 277 |
| EngineerHeight | 660 |
| EngineerDepth | 213 |
| Name | WALLBOX TWIN+ T2EV 22kW M R L |
|---|---|
| E-number | E2701327 |
| Article number | 354668 |
| Type designation | GTB-B-DCM-T222WO-A-R-LAN |
| Rated voltage [V AC] | 400V AC |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH |
| Power per charging point [kW] | 22kW |
| Number of RCCB-A [pcs] | 2pcs 4P 40A |
