Entity flex without payment

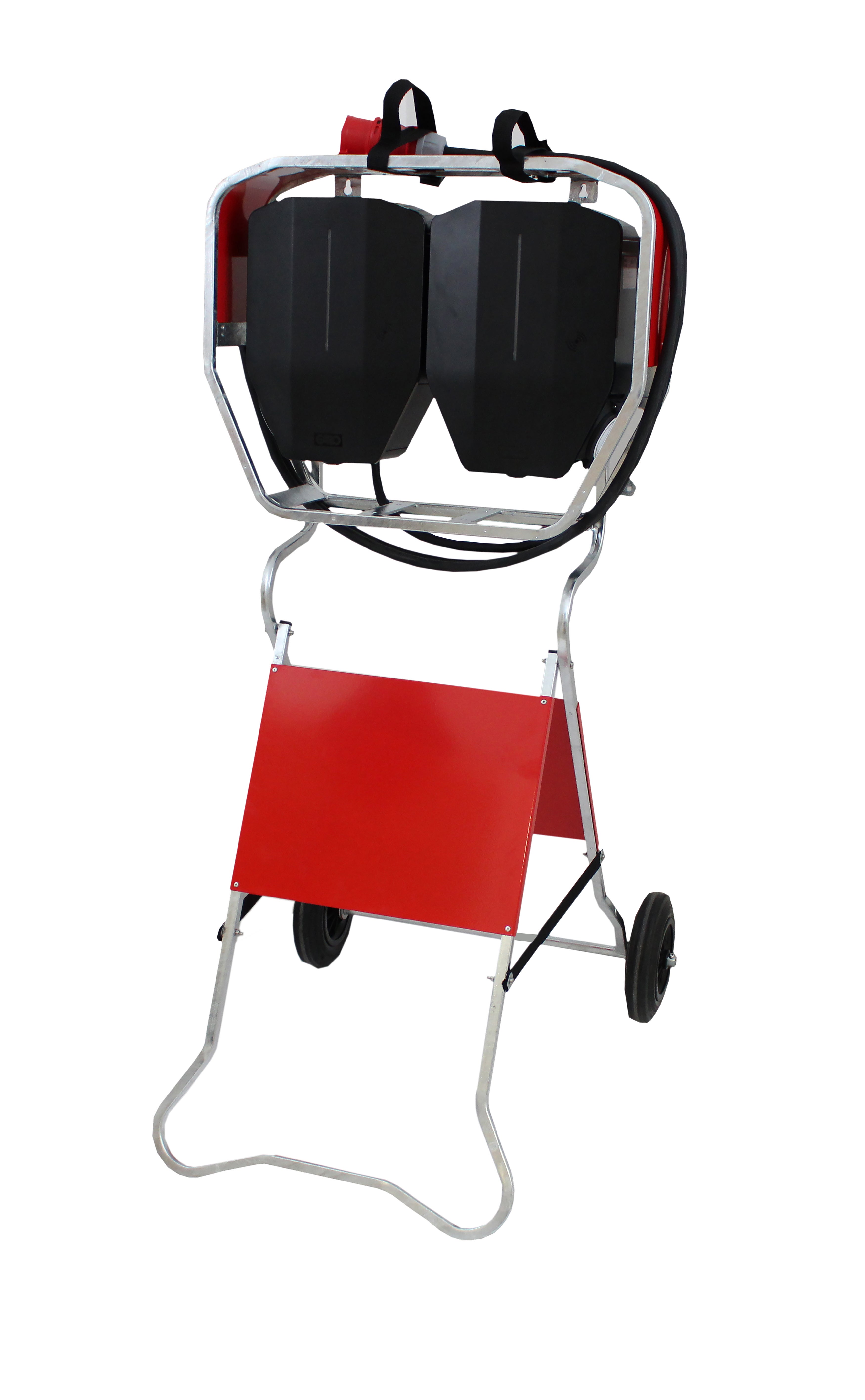

GARO Entity Flex is a flexible solution with 3-phase charging 16A, built-in load balancing and a flexible payment solution. The charging boxes can either be screwed to a wall (e.g. on a construction shed) or mounted on stands that are available as accessories. Connection takes place through a cable with CEE socket 32A which is quick and easy to connect. If you wish to connect several GARO Entity Flex in series in your charging solution, you simply set the maximum available current in the GARO Connect app an Temporary charging box Entity Pro double 2x11kW EV-outlet, load and phase balancing and modem with SIM GARO connect
E-number
E2700634
E2700634
Article number
354396
354396
| Type designation | EFCSO0316SIGI |
|---|---|
| Standard | EN61851-1, IEC62955, IEC61439-7, EN61008-1, EN60898-1, ISO15118 |
| Short-circuit current [kA] | 10kA |
| Storage temperature [C] | -40C...+40C |
| Operation Temperature [C] | -40C...+40C |
| Frequency [Hz] | 50Hz |
| Housing material | Plastic |
| Color | Black |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 230/400V AC |
| Mounting method | Portable |
| Modelltype | Entity Pro |
| Energymeter | Built-in meter |
| Phases [PH] | 3PH+3PH |
| Length of cable [m] | Not included |
| Lock | Yes |
| AC/DC output 1 | Type 2 Outlet |
| AC/DC output 2 | Type 2 Outlet |
| Power per charging point [kW] | 11kW |
| RAL-number | RAL9011 |
| Dynamic load management | Yes |
| Charging current [A] | 0-32 |
| Residual Current Limit AC [A] | IΔdc=0,006A |
| Residual Current Limit DC [A] | IΔN 30mA |
| Degree of protection [IP] | IP54 |
| Impact strength [IK] | IK10 |
| NetProductWeight | 19 |
| EngineerWidth | 555 |
| EngineerHeight | 414 |
| EngineerDepth | 170 |
| Name | CHARGINGBOX 2x11kW ENTITYFLEX |
|---|---|
| E-number | E2700634 |
| Article number | 354396 |
