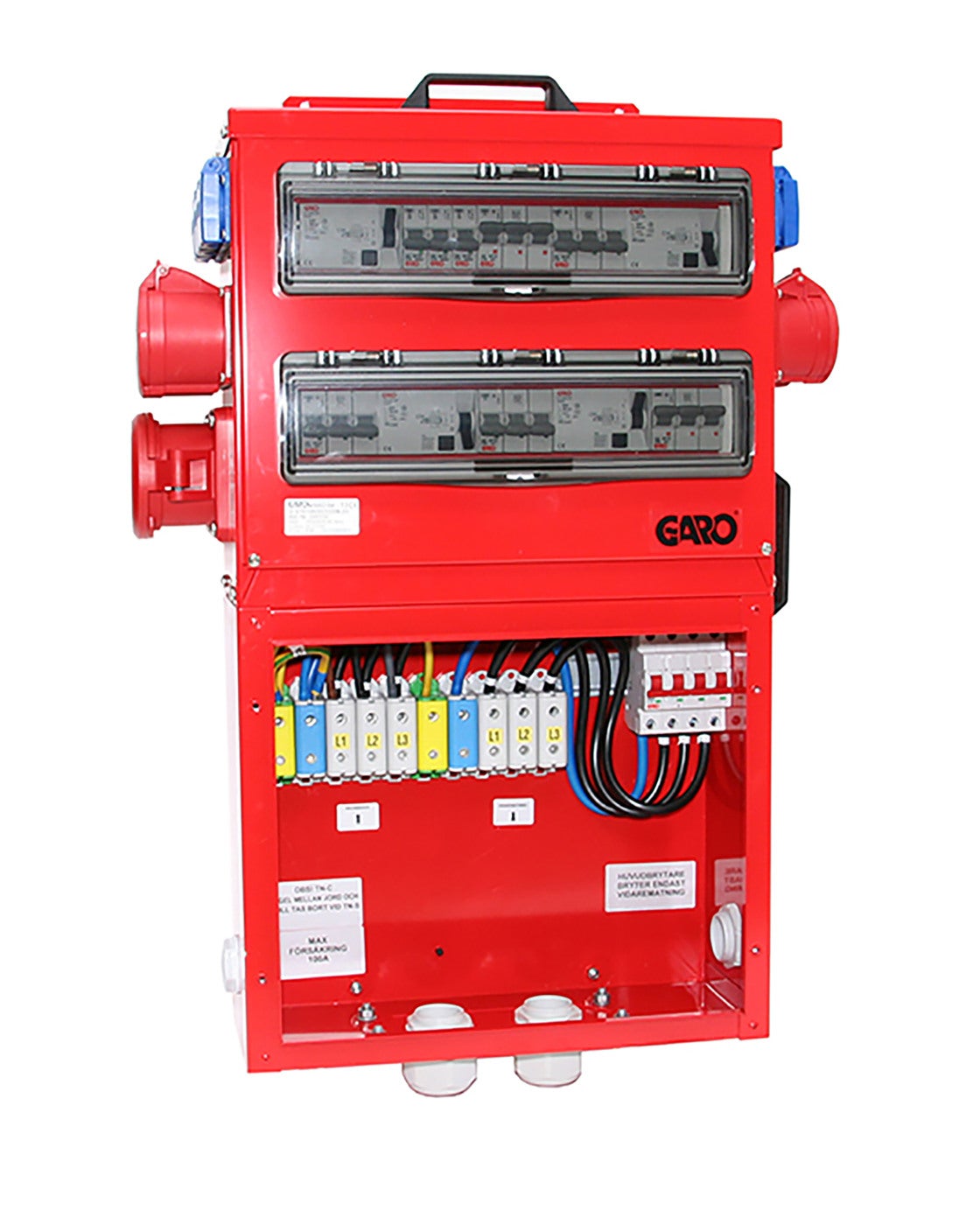

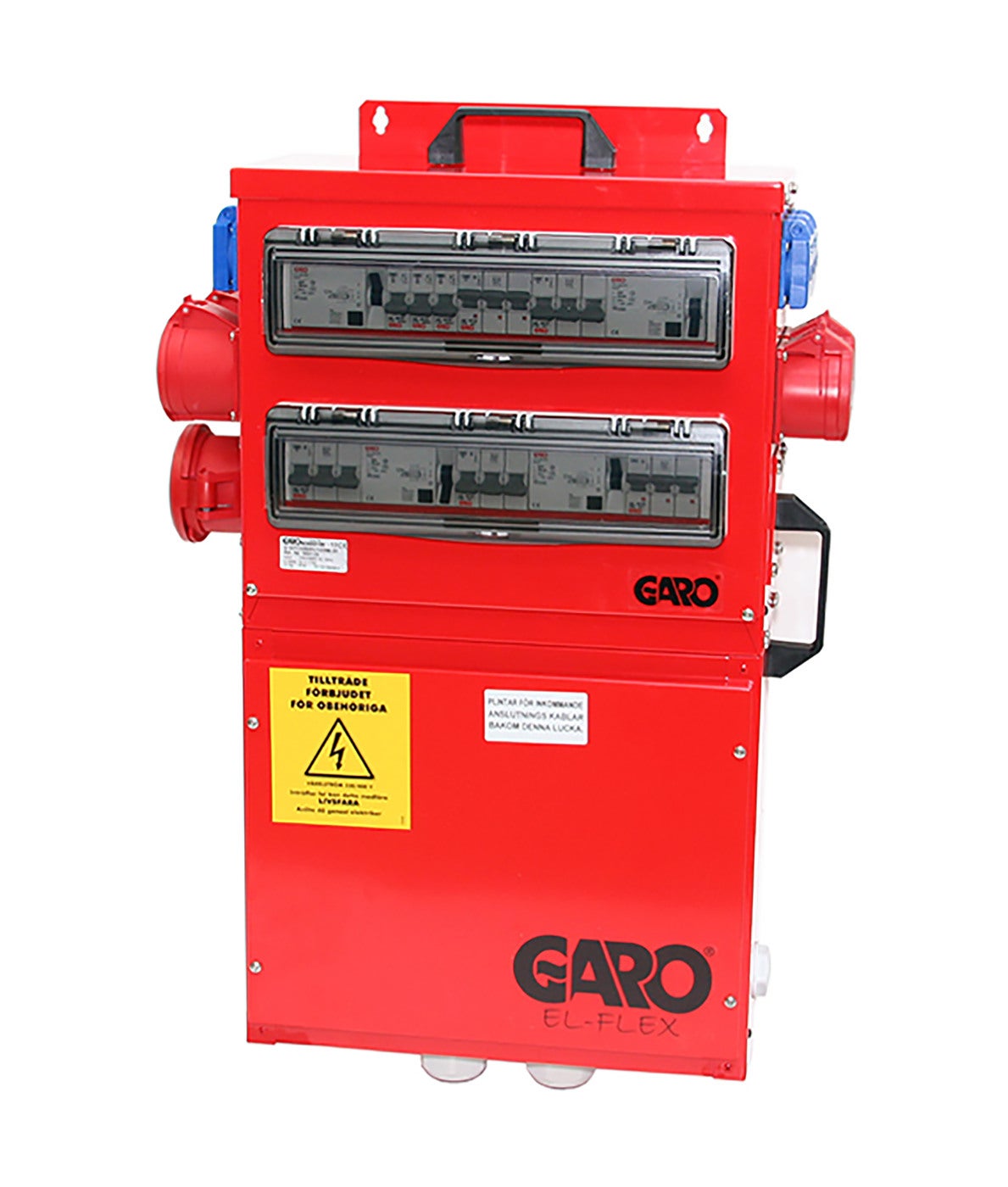

Staircase cabinets 100A schuko/CEE
Staircase panel 100A for permanent connection via terminal block for easy handling, placement on the floor or wall mounted. Staircase cabinet 100A 4xRCCB 6xschuko 2x16A outlet 2x32A outlet
E-number
E2469116
E2469116
Article number
2469116
2469116
| Type designation | U GTC100/01/12206-31 |
|---|---|
| Standard | EN61439-4 |
| Short-circuit current [kA] | 17kA |
| Frequency [Hz] | 50Hz |
| Housing material | Aluminium |
| Color | Red |
| Rated current [A] | 100A |
| Rated voltage [V AC] | 230/400V AC |
| Further feeding [A] | 100A |
| CEE socket outlet 16A | 2pcs 5P 16A 230/400V |
| Number of MCB 1P (1) | 3pcs C113 |
| Number of MCB 1P (2) | 2pcs C332 |
| Number of MCB 3P (1) | 1pcs C363 |
| Number of Schuko[pcs] | 6pcs |
| Number of RCCB [pcs] 1 | 2pcs 4P 40A |
| CEE socket outlet 32A | 2pcs 5P 32A 230/400V |
| Number of RCCB [pcs] 2 | 1pcs 4P 63A |
| Number of RCCB [pcs] 3 | 1pcs 4P 63A 300mA |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 19 |
| EngineerWidth | 540 |
| EngineerHeight | 625 |
| EngineerDepth | 220 |
| Name | STAIRCASE POWER DISTR 100A 4xRCB |
|---|---|
| E-number | E2469116 |
| Article number | 2469116 |
