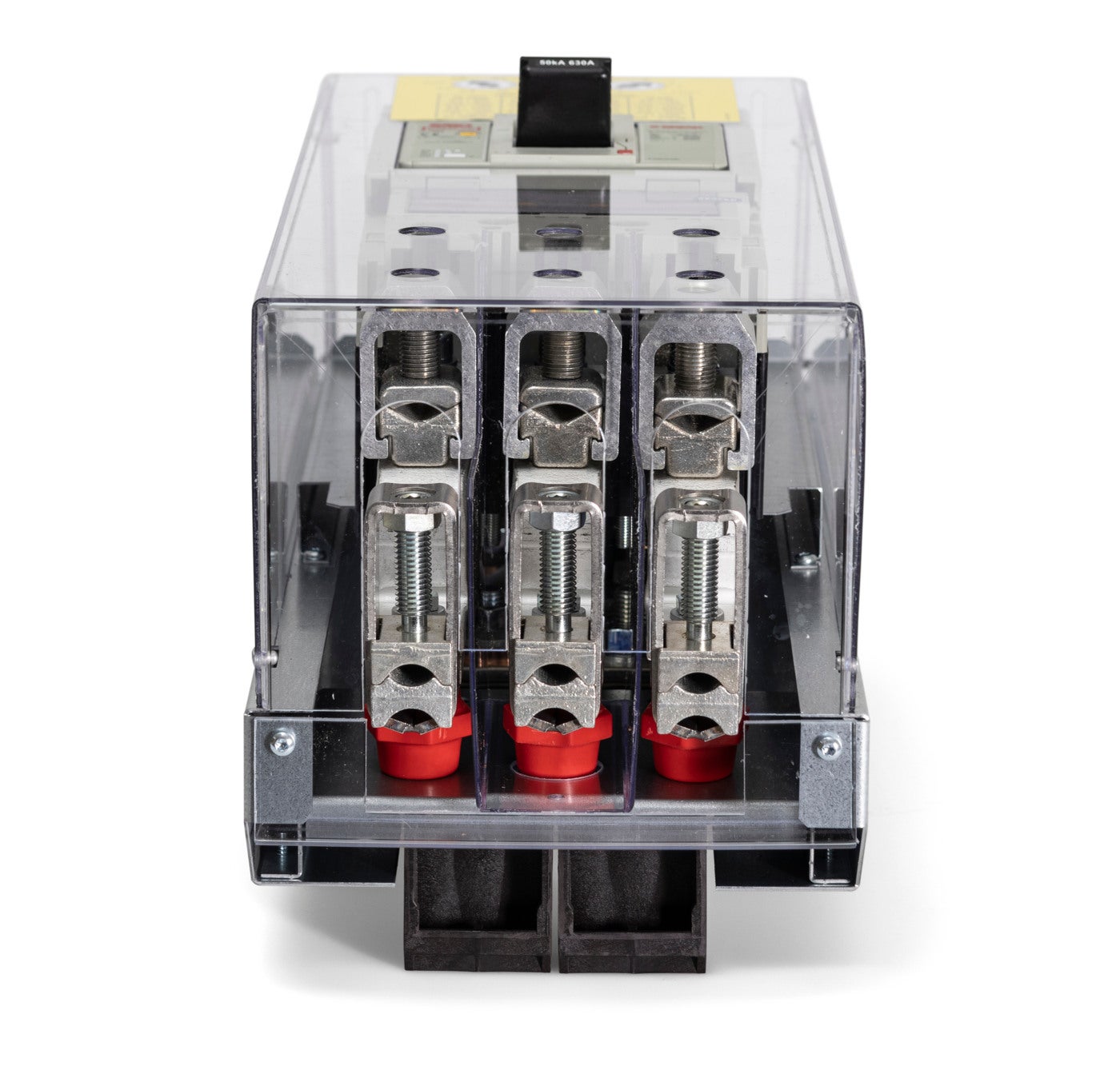

  • BREAKERS GPI 630A - 2

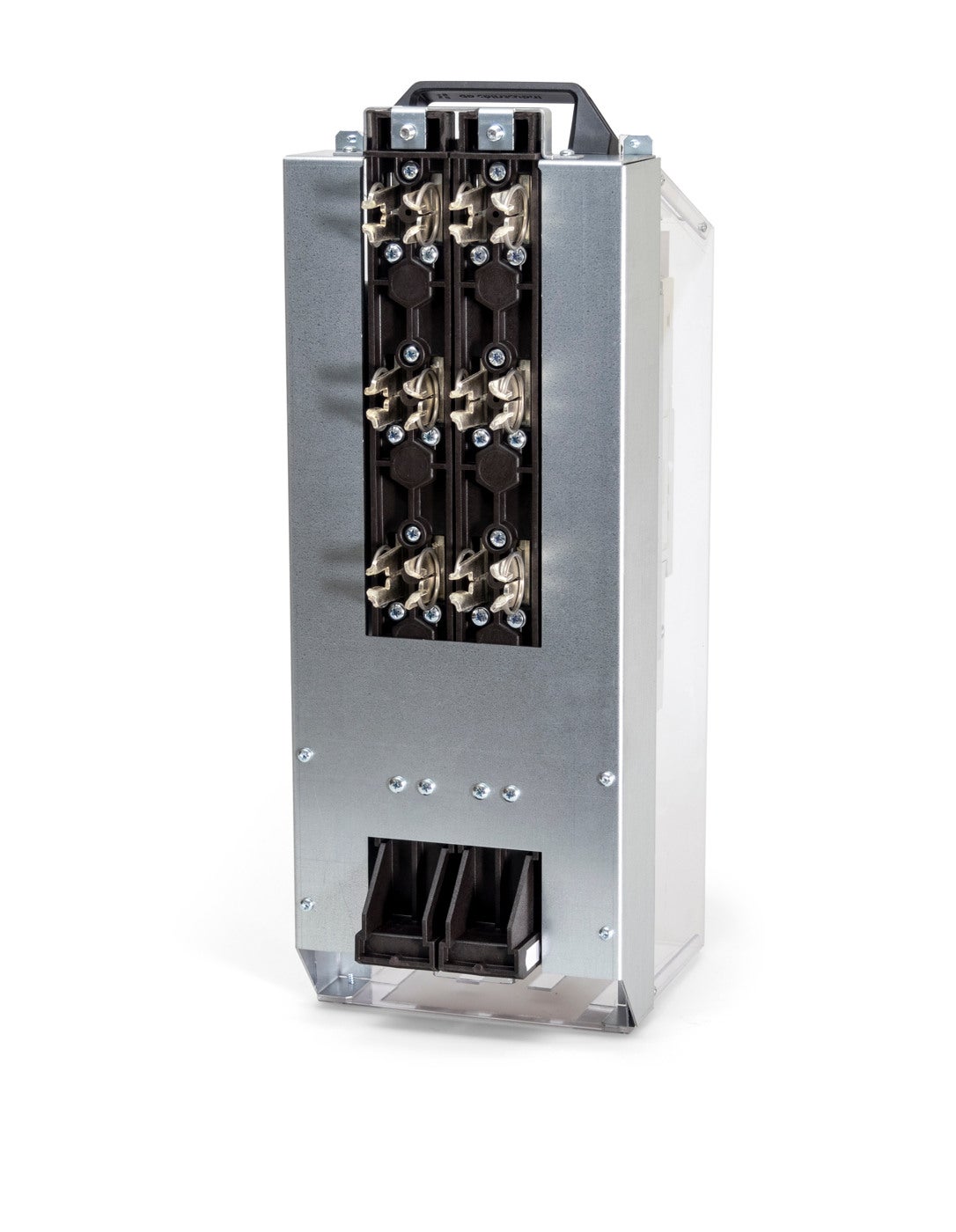

  • BREAKERS GPI 630A - 3

Switches 630A

Switches 630A Circuit breakers GPI 630A
E-number
E2466523
Article number
352873
Support
Materials Plastic/Hot-dip galvanized
Standard EN61439-4
Frequency [Hz] 50Hz
Color Grey
Rated current [A] 630A
Rated voltage [V AC] 400V
Fuse size EB 630A Adjustable down to 252A
Rated current AC23 400V [A] 630A
Rated current AC22 400V [A] 630A
Degree of protection [IP] IP23
Name BREAKERS GPI 630A
E-number E2466523
Article number 352873
Type designation GEB 630
Number of modules 4
Intergrated current transformers No
NetProductWeight 14

More variants of Switches 630A

E-number Article number Type designation Number of modules Intergrated current transformers NetProductWeight
BREAKERS GPI 630A E2466523 352873 GEB 630 4 No 14
BREAKERS GPI 630A 352874 GEB/TPI-S 630 6 Yes

Accessories for Switches 630A

Name E-number Article number Type designation Description
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 E2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 E2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
