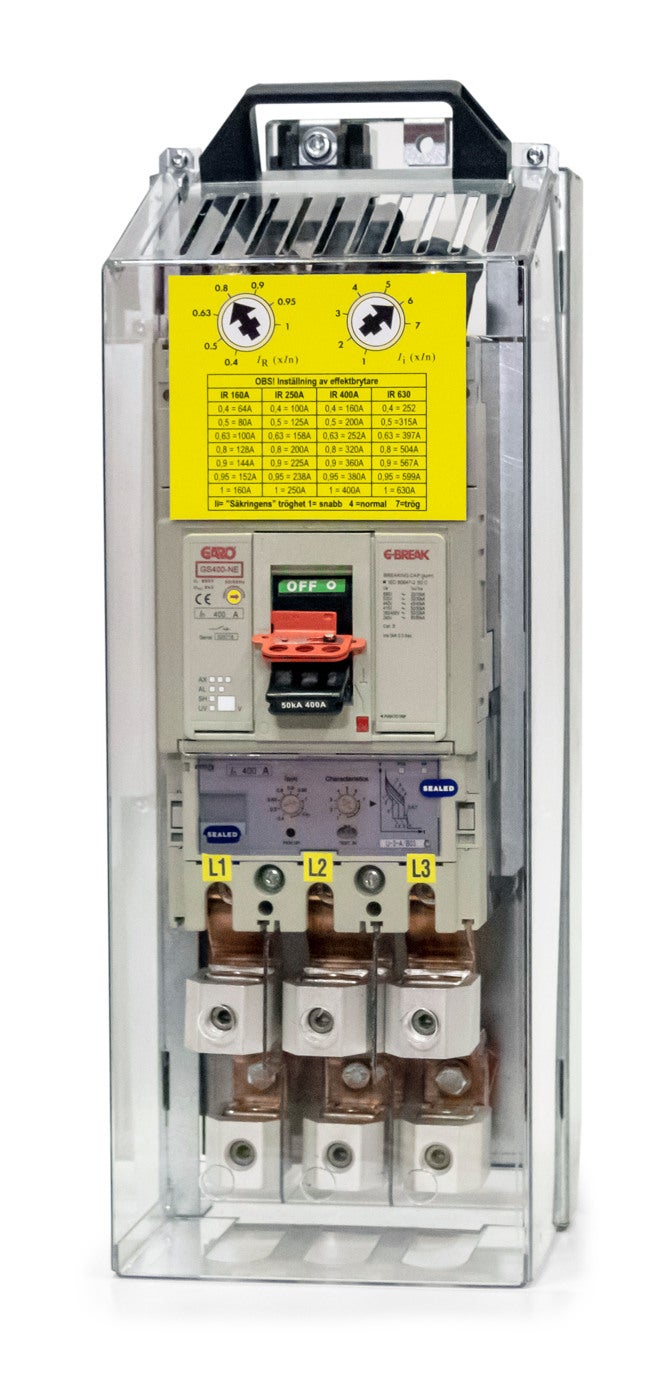

BREAKERS GPI 400A-2

Switches 400A

Switches 400A Circuit breakers GPI 400A-2
E-number
E2466522
Article number
352871
Support
Name BREAKERS GPI 400A-2
E-number E2466522
Article number 352871
Type designation GEB 400-2
Materials Plastic/Hot-dip galvanized
Standard EN61439-4
Frequency [Hz] 50Hz
Color Grey
Rated current [A] 400A
Rated voltage [V AC] 400V
Number of modules 4
Fuse size EB 400A Adjustable down to 160A
Rated current AC23 400V [A] 400A
Rated current AC22 400V [A] 400A
Intergrated current transformers No
Degree of protection [IP] IP23
NetProductWeight 13

More variants of Switches 400A

E-number Article number Type designation Materials Standard Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of modules Fuse size Rated current AC23 400V [A] Rated current AC22 400V [A] Intergrated current transformers Degree of protection [IP] NetProductWeight

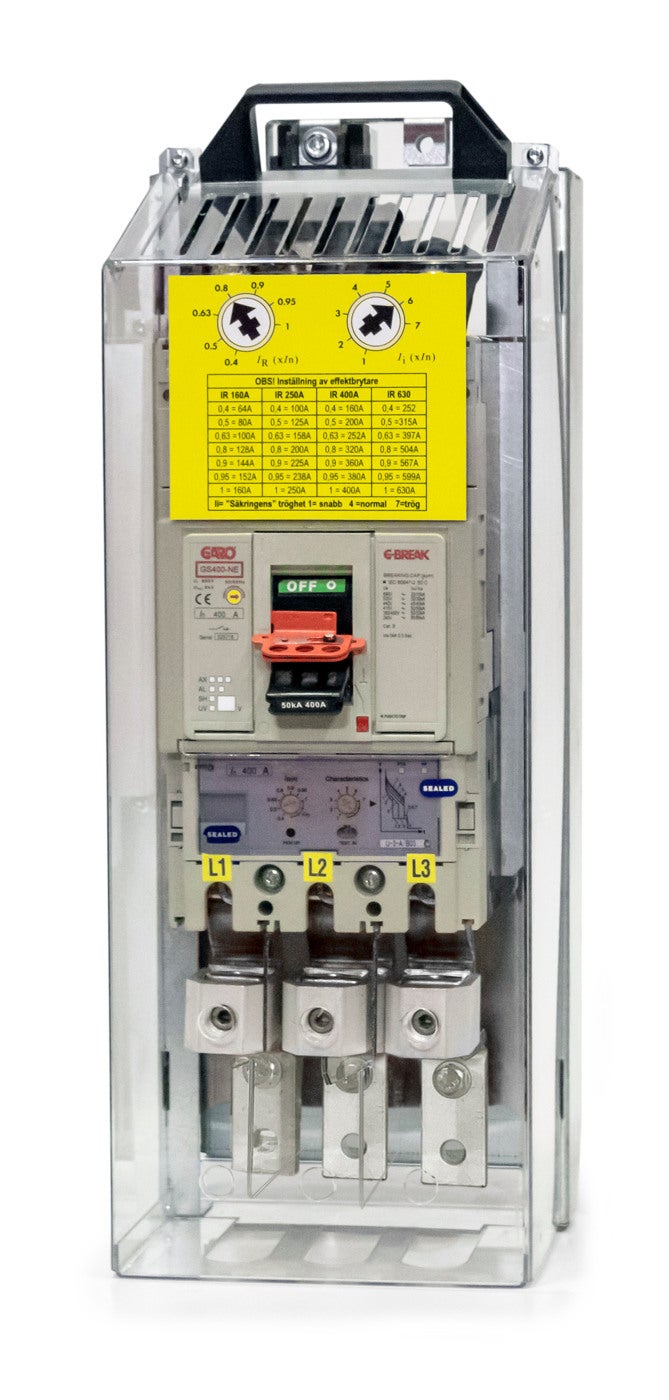

BREAKERS GPI 400A-1 E2466521 352870 GEB 400-1 12
BREAKERS GPI 400A-2 E2466522 352871 GEB 400-2 Plastic/Hot-dip galvanized EN61439-4 50Hz Grey 400A 400V 4 EB 400A Adjustable down to 160A 400A 400A No IP23 13
GEB/TPI-S 400A BREAKER GPI 352872 GEB/TPI-S 400 Plastic/Hot-dip galvanized EN61439-4 50Hz Grey 400A 400V 6 EB 400A Adjustable down to 160A 400A 400A Yes IP23

Accessories for Switches 400A

Name E-number Article number Type designation Description
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 E2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 E2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
