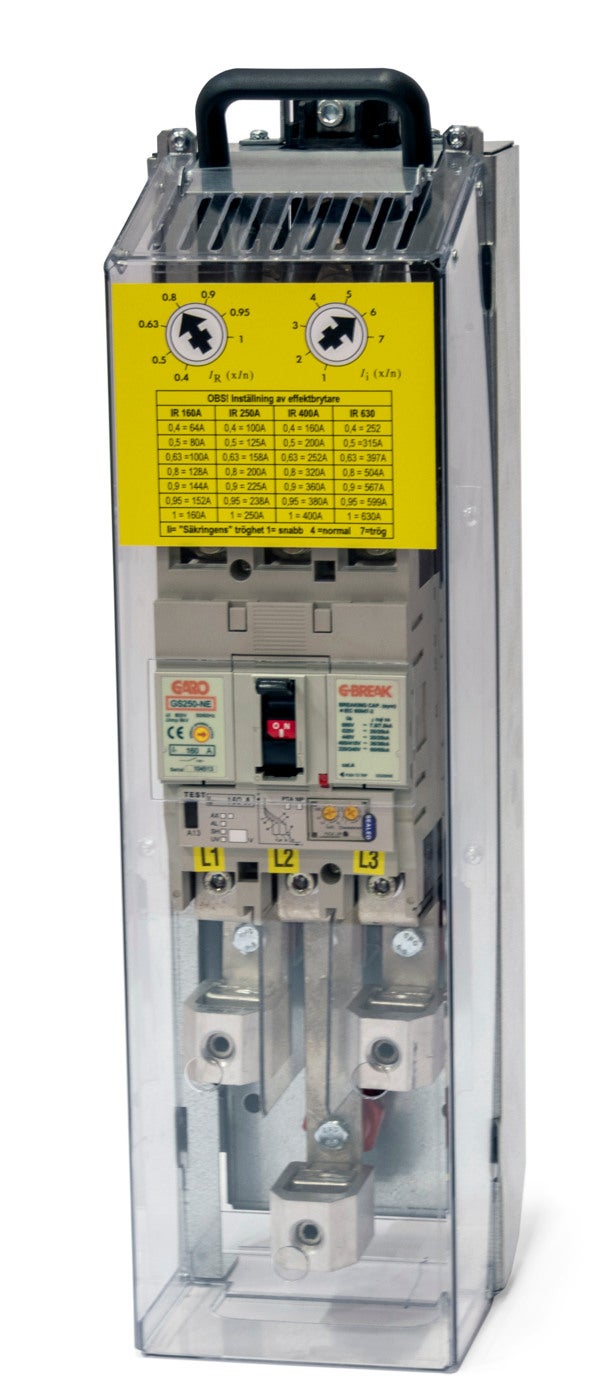

BREAKER S GPI 250A

Switches 250A

Switches 250A Circuit breaker mini GPI 250A
E-number
E2466473
Article number
353529
Support
Materials Plastic/Hot-dip galvanized
Standard EN61439-4
Frequency [Hz] 50Hz
Color Grey
Rated current [A] 250A
Rated voltage [V AC] 400V
Incoming [mm²] 3x95-240mm²
Rated current AC23 400V [A] 250A
Rated current AC22 400V [A] 250A
Degree of protection [IP] IP23
Name BREAKER S GPI 250A
E-number E2466473
Article number 353529
Type designation GEB 250 MINI
Number of modules 3
Incoming terminal [mm²] 3x95-240mm²
Intergrated current transformers No
NetProductWeight 7
EngineerWidth 150
EngineerHeight 530
EngineerDepth 225

More variants of Switches 250A

E-number Article number Type designation Number of modules Incoming terminal [mm²] Intergrated current transformers NetProductWeight EngineerWidth EngineerHeight EngineerDepth

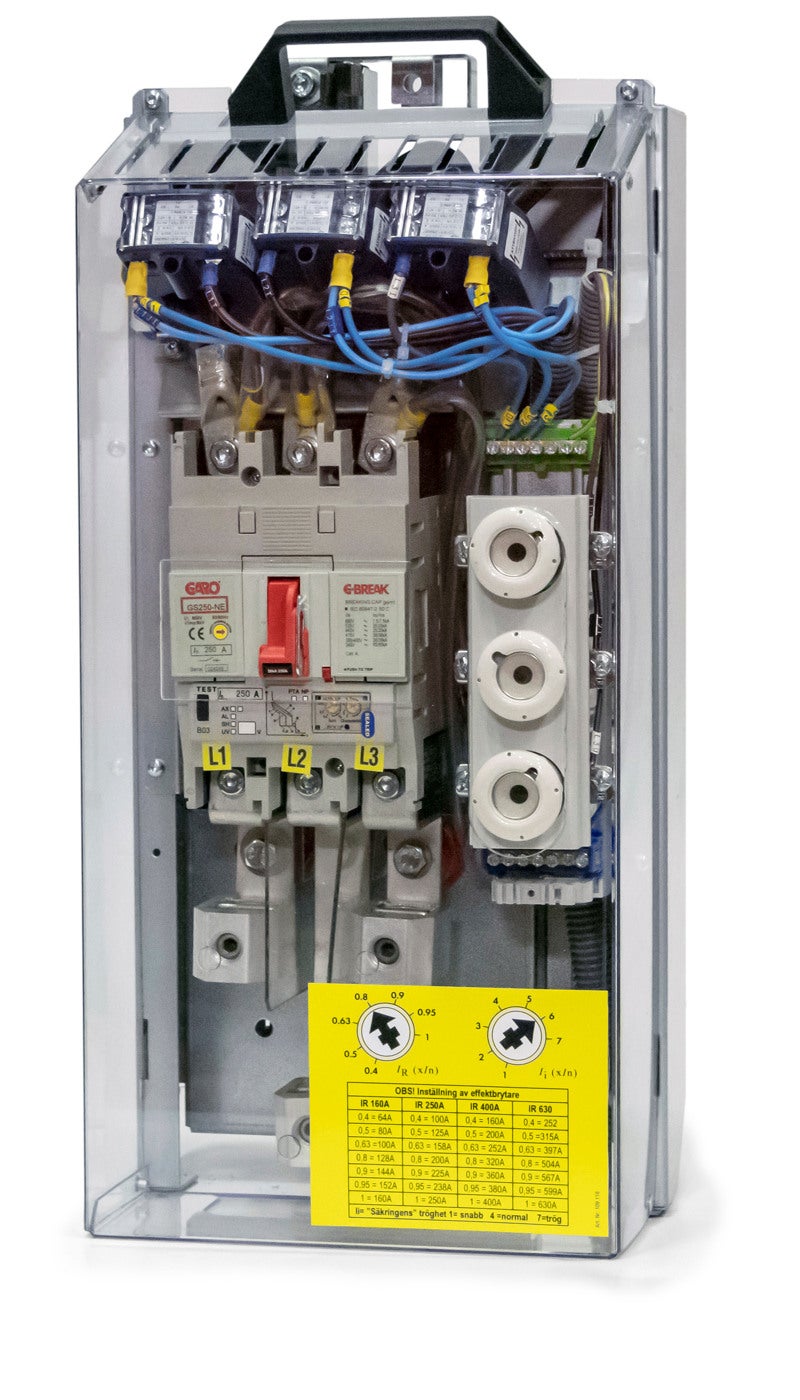

BREAKER GPI 250A 352869 GEB/TPI 250 5 Yes 9
BREAKER S GPI 250A E2466473 353529 GEB 250 MINI 3 3x95-240mm² No 7 150 530 225

Accessories for Switches 250A

Name E-number Article number Type designation Description
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 E2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 E2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
