Switches 160A

Switches 160A Circuit breaker mini 160A GPI

E-number
E2466472

Article number
353509

Name	BREAKER MINI 160A GPI
E-number	E2466472
Article number	353509
Type designation	GEB 160 MINI
Materials	Plastic/Hot-dip galvanized
Standard	EN61439-4
Frequency [Hz]	50Hz
Color	Grey
Rated current [A]	160A
Rated voltage [V AC]	400V
Number of modules	3
Incoming terminal [mm²]	3x95-240mm²
Incoming [mm²]	3x95-240mm²
Fuse size	EB 160A Adjustable down to 64A
Rated current AC23 400V [A]	160A
Rated current AC22 400V [A]	160A
Intergrated current transformers	No
Degree of protection [IP]	IP23
NetProductWeight	7
EngineerWidth	150
EngineerHeight	530
EngineerDepth	225

More variants of Switches 160A

E-number	Article number	Type designation	Materials	Standard	Frequency [Hz]	Color	Rated current [A]	Rated voltage [V AC]	Number of modules	Incoming terminal [mm²]	Incoming [mm²]	Fuse size	Rated current AC23 400V [A]	Rated current AC22 400V [A]	Intergrated current transformers	Degree of protection [IP]	NetProductWeight	EngineerWidth	EngineerHeight	EngineerDepth

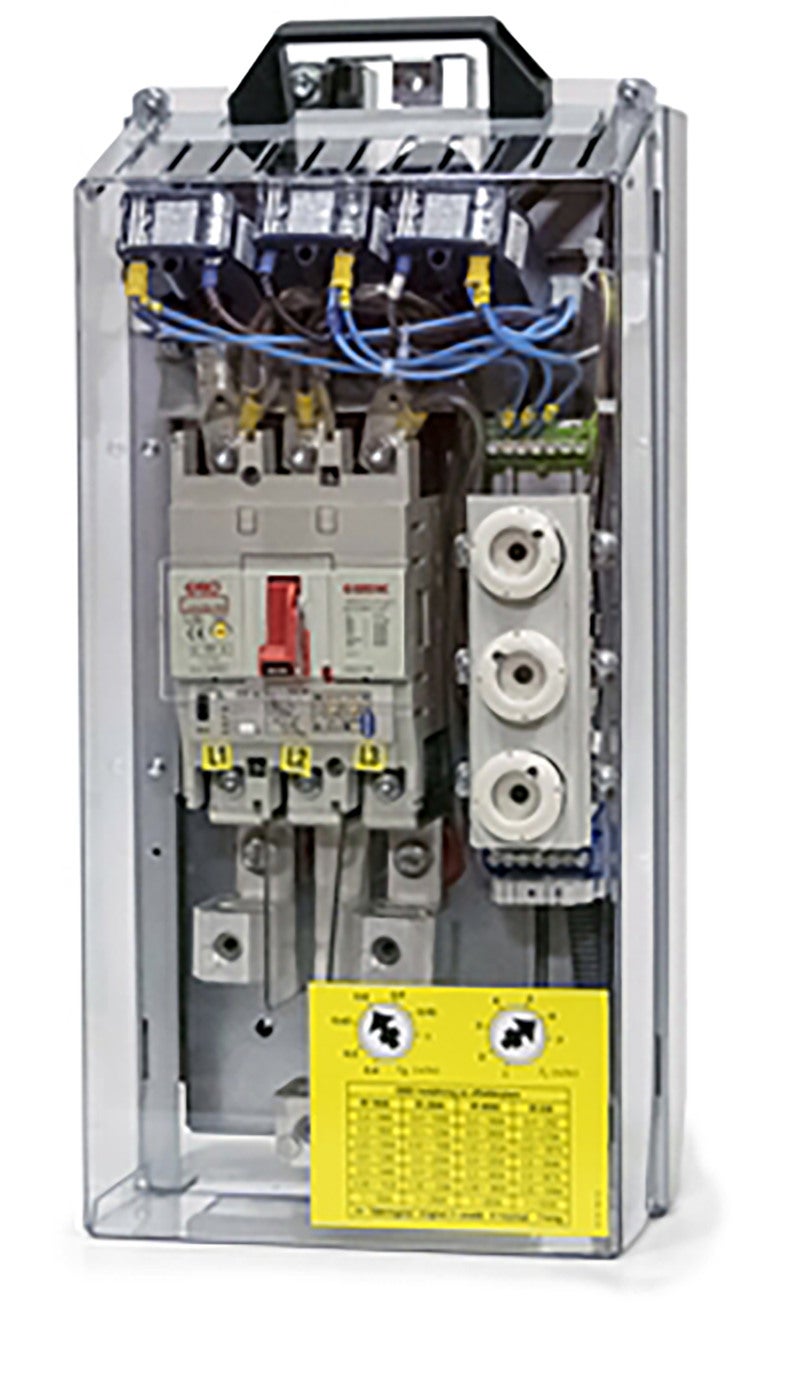

	352867	GEB/TPI 160															8
E2466472	353509	GEB 160 MINI	Plastic/Hot-dip galvanized	EN61439-4	50Hz	Grey	160A	400V	3	3x95-240mm²	3x95-240mm²	EB 160A Adjustable down to 64A	160A	160A	No	IP23	7	150	530	225

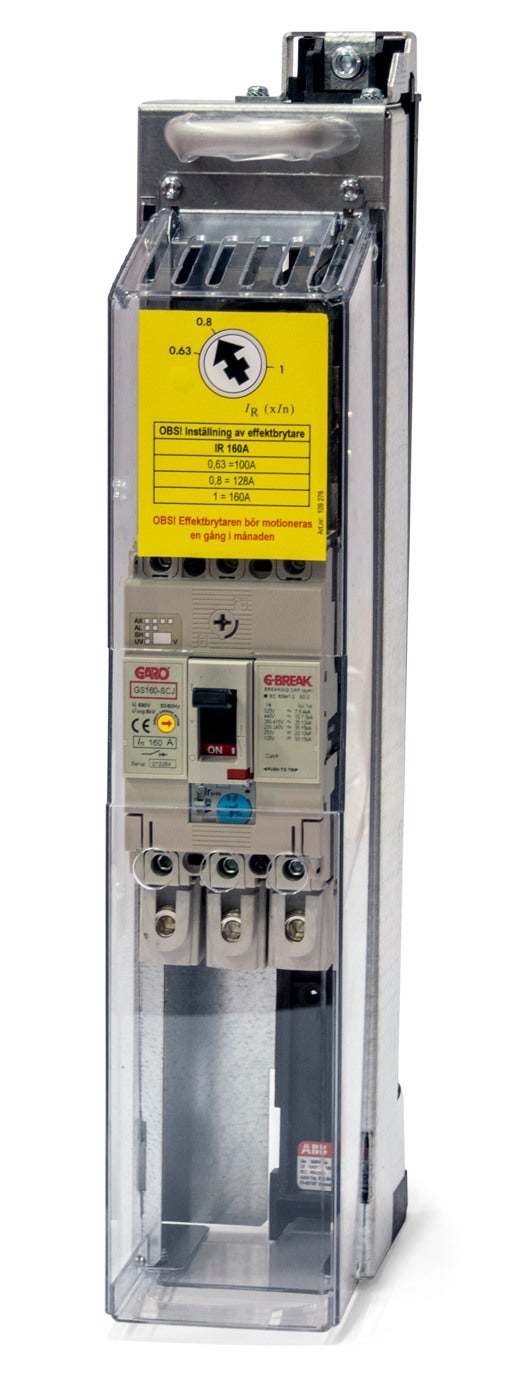

E2466520	353550	GEB 160 MICRO	Plastic/Hot-dip galvanized	EN61439-4	50Hz	Grey	160A	400V	2		3x10-95mm²	EB 160A Adjustable down to 101A	160A	160A	No	IP23	6	200	485	100

	Name	E-number	Article number	Type designation	Description
	DIVISIBLE TERMINAL KIT 10-95	E2466339	351982	PE/N 10-95	Divisible terminal kit PE/N 10-95mm² GPI.
	DIVISIBLE TERMINAL KIT 95-240	E2466340	351983	PE/N 95-240	Divisible terminal kit PE/N 95-240mm²
