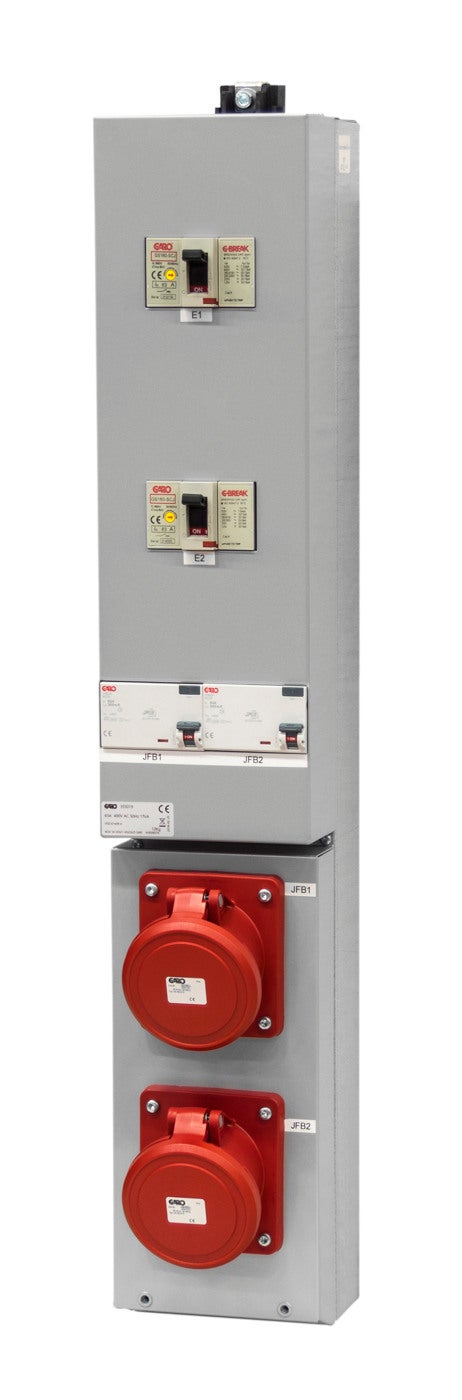

OUTLET MODULE GPI 2X63 CIRC B

Outlet modules without Schuko

Outlet modules with sockets wihout Schuko GPI outlet modules 2x63A with circuit breaker 2x63A outlet 3moduleplaces

E-number
E2469117

Article number
2469117

Materials	Sheet metal
Standard	EN61439-4
Short-circuit current [kA]	17kA
Frequency [Hz]	50Hz
Color	Grey
Rated voltage [V AC]	400V
Number of modules	3
Degree of protection [IP]	IP20
EngineerWidth	150
EngineerHeight	886
EngineerDepth	250

Name	OUTLET MODULE GPI 2X63 CIRC B
E-number	E2469117
Article number	2469117
Type designation	UPI EB 0002-02
Number of RCCB [pcs] 1	2pcs 4P 63A 300mA
CEE socket outlet 63A	2pcs 5P 63A 230/400V
NetProductWeight	10

More variants of Outlet modules without Schuko

	E-number	Article number	Type designation	Rated current [A]	Number of RCCB [pcs] 1	CEE socket outlet 63A	NetProductWeight
	E2469117	2469117	UPI EB 0002-02		2pcs 4P 63A 300mA	2pcs 5P 63A 230/400V	10

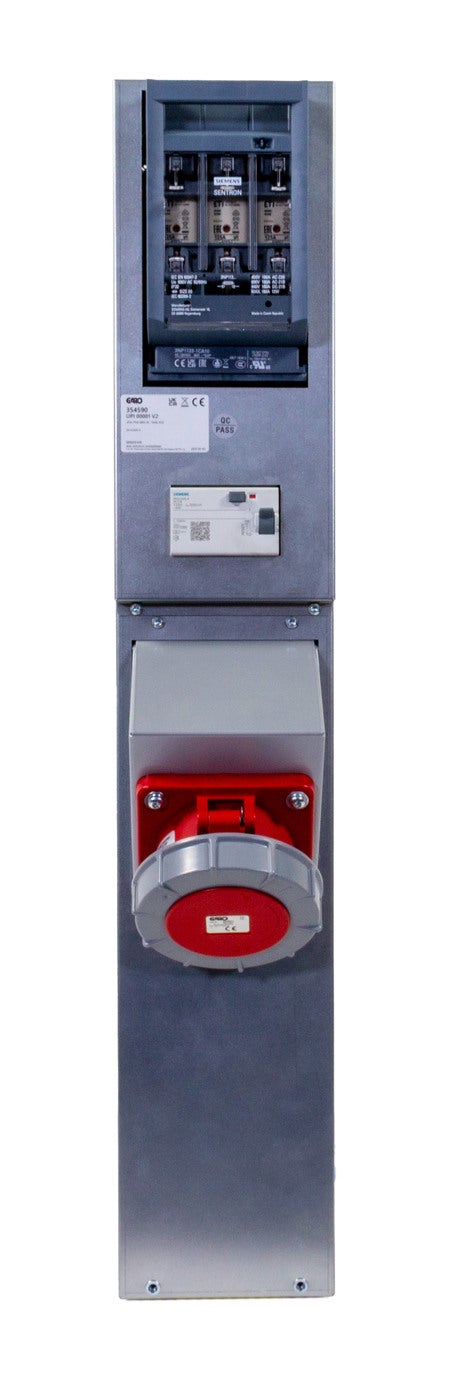

	E2466524	354590	UPI 00001 V2	125A

Accessories for Outlet modules without Schuko

	Name	E-number	Article number	Type designation	Description
	RCCB 4P 63A 10kA 30mA		107978		Residual current circuit breaker 4-poles 63A 10kA 30mA GD
	RCCB 4P 63A 10kA 300mA		108029		Residual current circuit breaker 4-poles 63A 10kA 300mA GD
	OUTLET SCHUKO 10/16A	E1896880	1896880	UIF 10/16	Outlet schuko 10/16A
	MCB C 1P 13A 10kA GS	E2142707	2142707	MCB GS C113	MCB GS C-Characteristic 13A 10kA 1-pole
	MCB C 2P 2A 10kA GS	E2142733	2142733	MCB GS C202	MCB GS C-Characteristic 2A 10kA 2-pole
	MCB C 3P 32A 10kA GS	E2142756	2142756	MCB GS C332	MCB GS C-Characteristic 32A 10kA 3-pole
	SOCKET STRAIGHT 5P 16A 6h	E2424909	2424909	UI 416-6 S	Socket straight basic 5-poles 16A 6h
	SOCKET STRAIGHT 5P 32A 6h	E2424930	2424930	UI 432-6 S	Socket straight basic 5-poles 32A 6h
	SOCKET SLOPING 5P 63A 6h	E2425071	2425071	UIS 463-6 S	Socket sloping basic 5-poles 63A 6h
