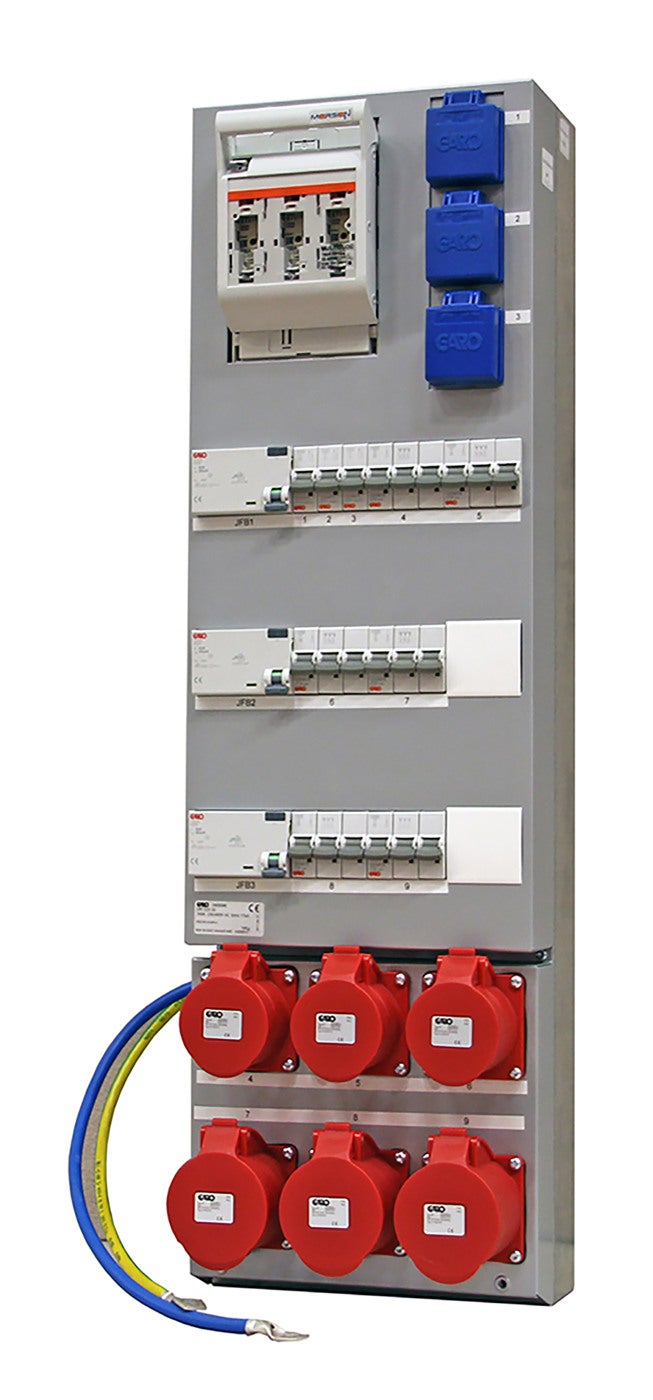

• GPI-MODULE 3X13 2X16 3X32 - 1

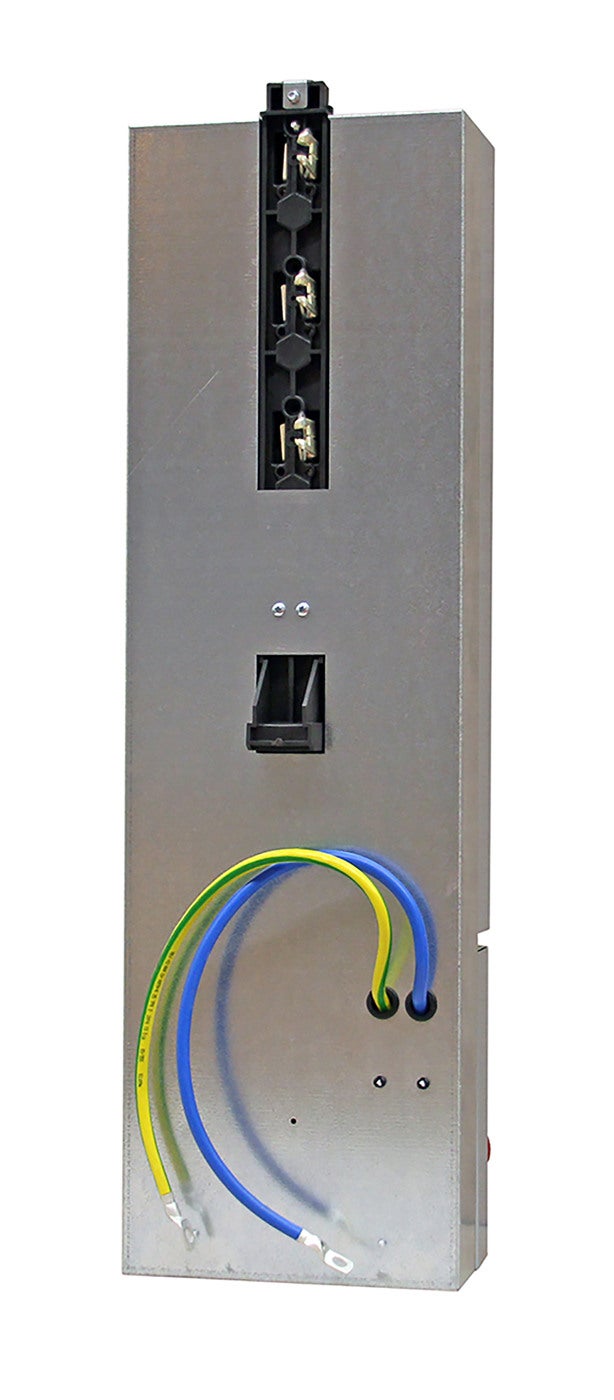

  • GPI-MODULE 3X13 2X16 3X32 - 2

Outlet modules with schuko and outlet sockets

Outlet modules with schuko and outlet sockets GPI outlet modules 100A RCCB 3xschuko 3x16A outlet 3x32A outlet 5modules
E-number
E2469088
Article number
2469088
Support
Materials Sheet metal
Standard EN61439-4
Short-circuit current [kA] 17kA
Frequency [Hz] 50Hz
Color Grey
Rated voltage [V AC] 230/400V AC
Number of Schuko[pcs] 3pcs
Degree of protection [IP] IP20
EngineerHeight 886
EngineerDepth 250
Name GPI-MODULE 3X13 2X16 3X32
E-number E2469088
Article number 2469088
Type designation UPI 333-30
Rated current [A] 100A
Number of modules 5
CEE socket outlet 16A 3pcs 5P 32A 230/400V
Number of MCB 3P (1) 3pcs C113
Number of MCB 3P (2) 3pcs C316
Number of RCCB [pcs] 1 3pcs 4P 63A
Number of MCB 3P (3) 3pcs C332
EngineerWidth 250

More variants of Outlet modules with schuko and outlet sockets

E-number Article number Type designation Rated current [A] Number of modules CEE socket outlet 16A Number of MCB 1P (1) Number of MCB 1P (2) Number of MCB 3P (1) Number of MCB 3P (2) Number of RCCB [pcs] 1 CEE socket outlet 32A CEE socket outlet 63A Number of RCCB [pcs] 2 Number of MCB 1P (3) Number of MCB 3P (3) NetProductWeight EngineerWidth
GPI-MODULE 3X13 2X16 3X32 E2469088 2469088 UPI 333-30 100A 5 3pcs 5P 32A 230/400V 3pcs C113 3pcs C316 3pcs 4P 63A 3pcs C332 250

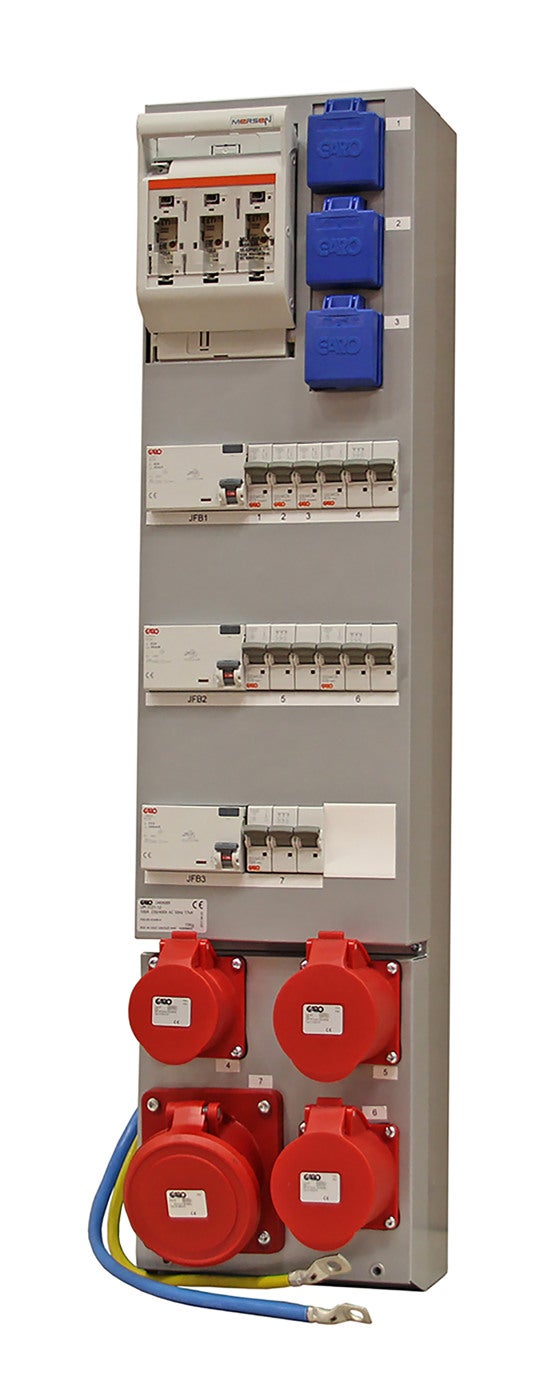

GPI-MODULE 3X13 1X16 2X32 1X63 E2469089 2469089 UPI 3121-12 100A 4 1pcs 5P 16A 230/400V 3pcs C113 1pcs C316 1pcs C363 1pcs 4P 40A 2pcs 5P 32A 230/400V 1pcs 5P 63A 230/400V 1pcs 4P 63A 2pcs C332 15 200

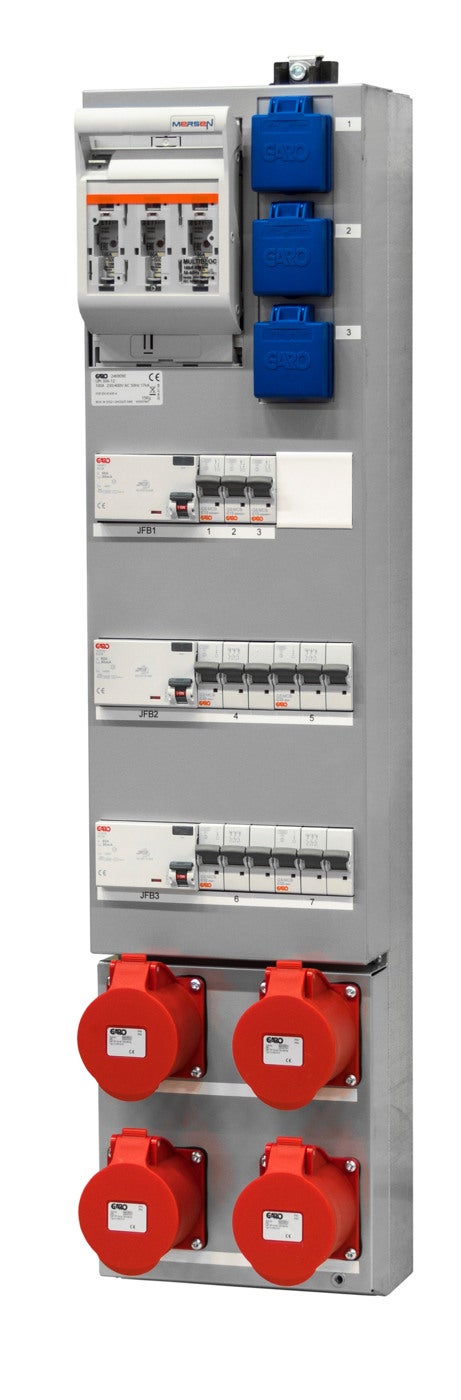

GPI-MODULE 2X13 4X32 E2469090 2469090 UPI 304-12 100A 4 3pcs C113 1pcs 4P 40A 4pcs 5P 32A 230/400V 2pcs 4P 63A 250

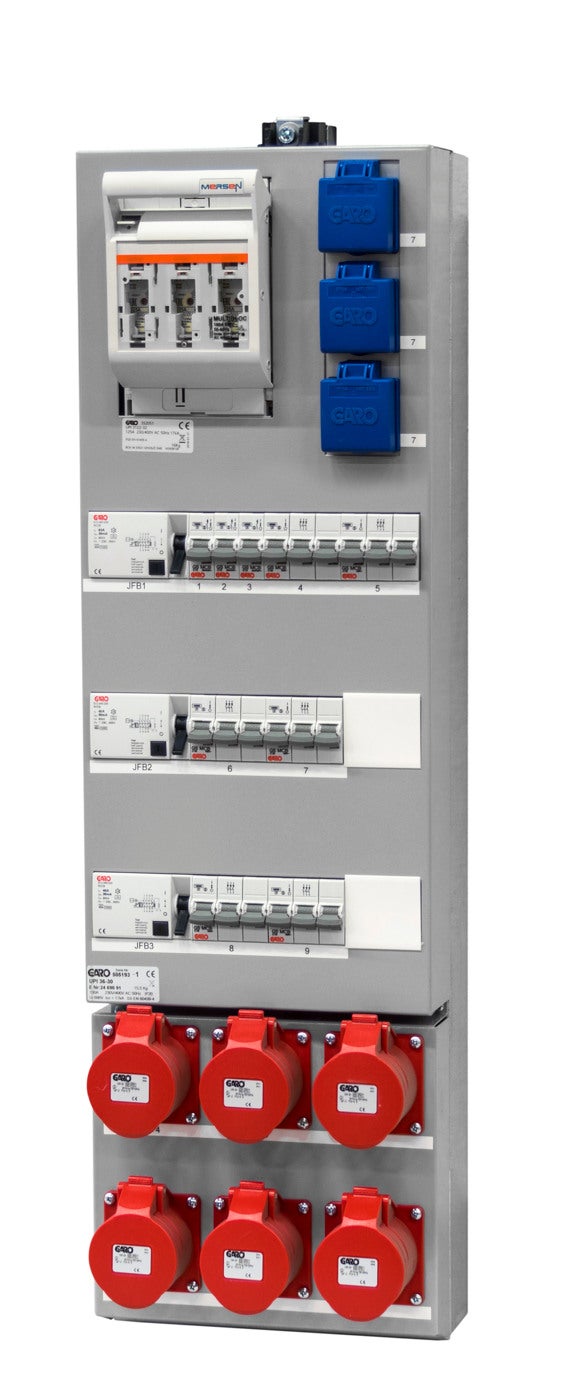

GPI-MODULE 3X13 6X16 E2469091 2469091 UPI 36-3 100A 5 3pcs C113 2pcs 4P 40A 1pcs 4P 63A 250

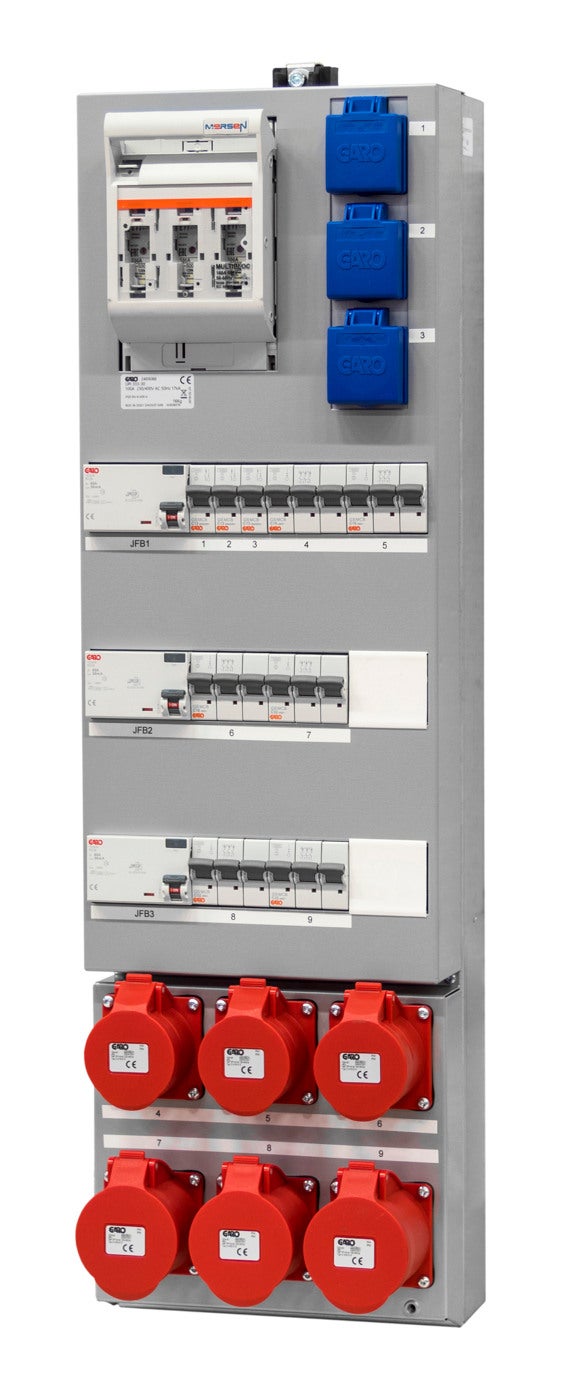

GPI-MODULE 3X13 2X16 4X32 E2469092 2469092 UPI 324-12 100A 5 2pcs 5P 16A 230/400V 3pcs C113 2pcs C316 3pcs 4P 63A 4pcs 5P 32A 230/400V 250

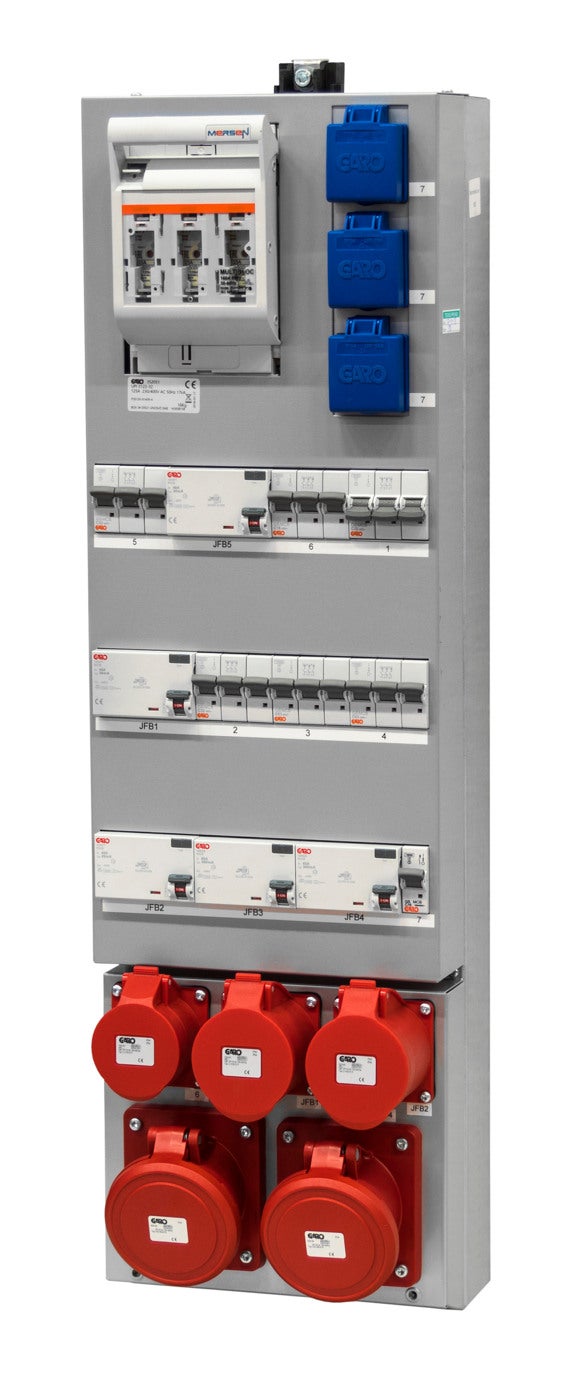

GPI MODULE 3X13 1X16 2X32 2X63 E2466380 352051 UPI 3122-32 125A 5 1pcs 5P 16A 230/400V 3pcs C113 1pcs C316 2pcs C332 3pcs 4P 40A 2pcs 5P 32A 230/400V 2pcs 5P 63A 230/400V 2pcs 4P 63A 300mA 16 250

Accessories for Outlet modules with schuko and outlet sockets

Name E-number Article number Type designation Description
RCCB 4P 63A 10kA 30mA RCCB 4P 63A 10kA 30mA 107978 Residual current circuit breaker 4-poles 63A 10kA 30mA GD
RCCB 4P 63A 10kA 300mA RCCB 4P 63A 10kA 300mA 108029 Residual current circuit breaker 4-poles 63A 10kA 300mA GD
OUTLET SCHUKO 10/16A OUTLET SCHUKO 10/16A E1896880 1896880 UIF 10/16 Outlet schuko 10/16A
MCB C 1P 13A 10kA GS MCB C 1P 13A 10kA GS E2142707 2142707 MCB GS C113 MCB GS C-Characteristic 13A 10kA 1-pole
MCB C 2P 2A 10kA GS MCB C 2P 2A 10kA GS E2142733 2142733 MCB GS C202 MCB GS C-Characteristic 2A 10kA 2-pole
MCB C 3P 32A 10kA GS MCB C 3P 32A 10kA GS E2142756 2142756 MCB GS C332 MCB GS C-Characteristic 32A 10kA 3-pole
SOCKET STRAIGHT 5P 16A 6h SOCKET STRAIGHT 5P 16A 6h E2424909 2424909 UI 416-6 S Socket straight basic 5-poles 16A 6h
SOCKET STRAIGHT 5P 32A 6h SOCKET STRAIGHT 5P 32A 6h E2424930 2424930 UI 432-6 S Socket straight basic 5-poles 32A 6h
SOCKET SLOPING 5P 63A 6h SOCKET SLOPING 5P 63A 6h E2425071 2425071 UIS 463-6 S Socket sloping basic 5-poles 63A 6h
