Enclosure wo metercabinet 500mm

Enclosure wo metercabinet 500mm GPI mini cabinet width=500mm 8modules

E-number
E2469113

Article number
2469113

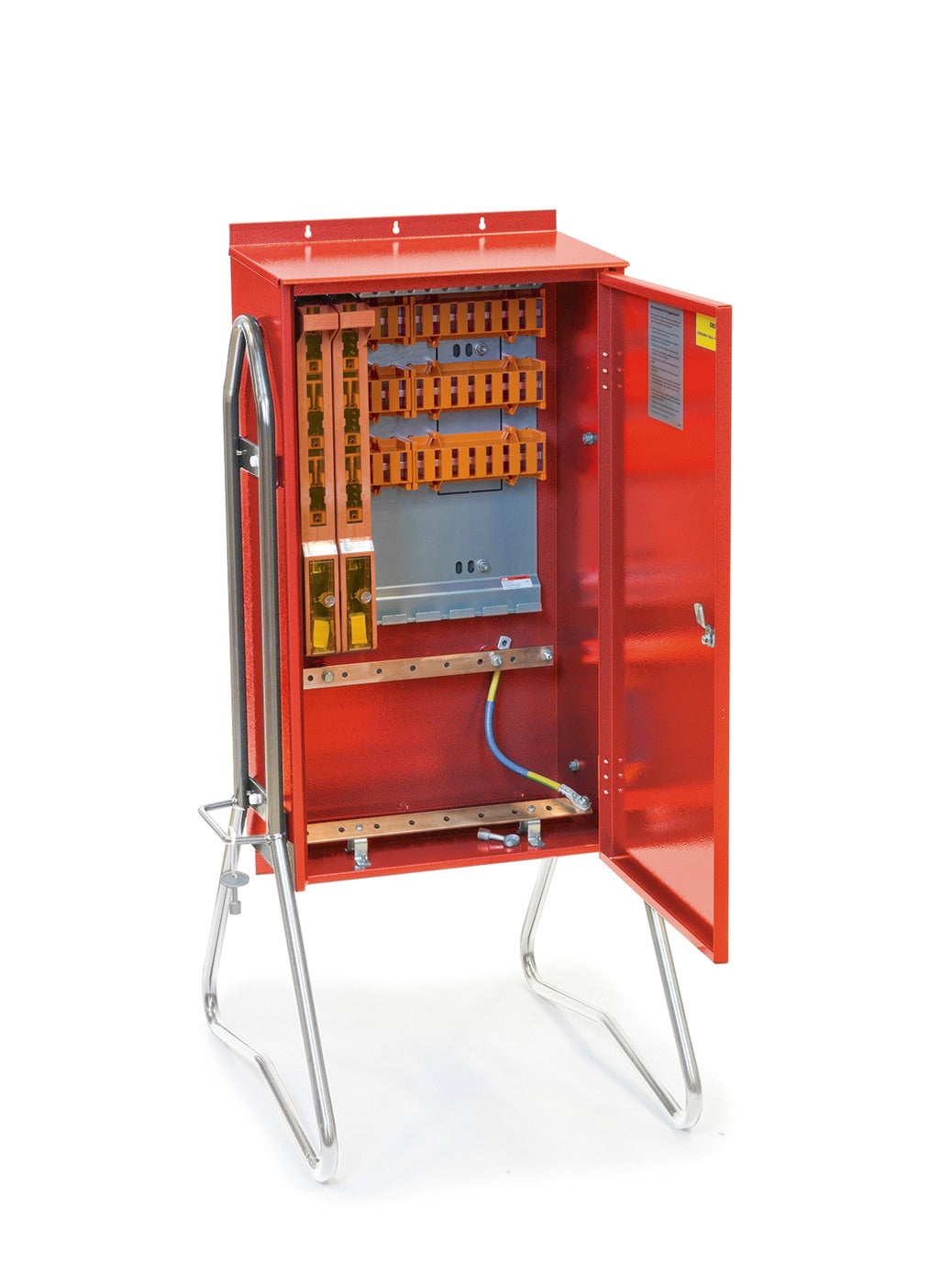

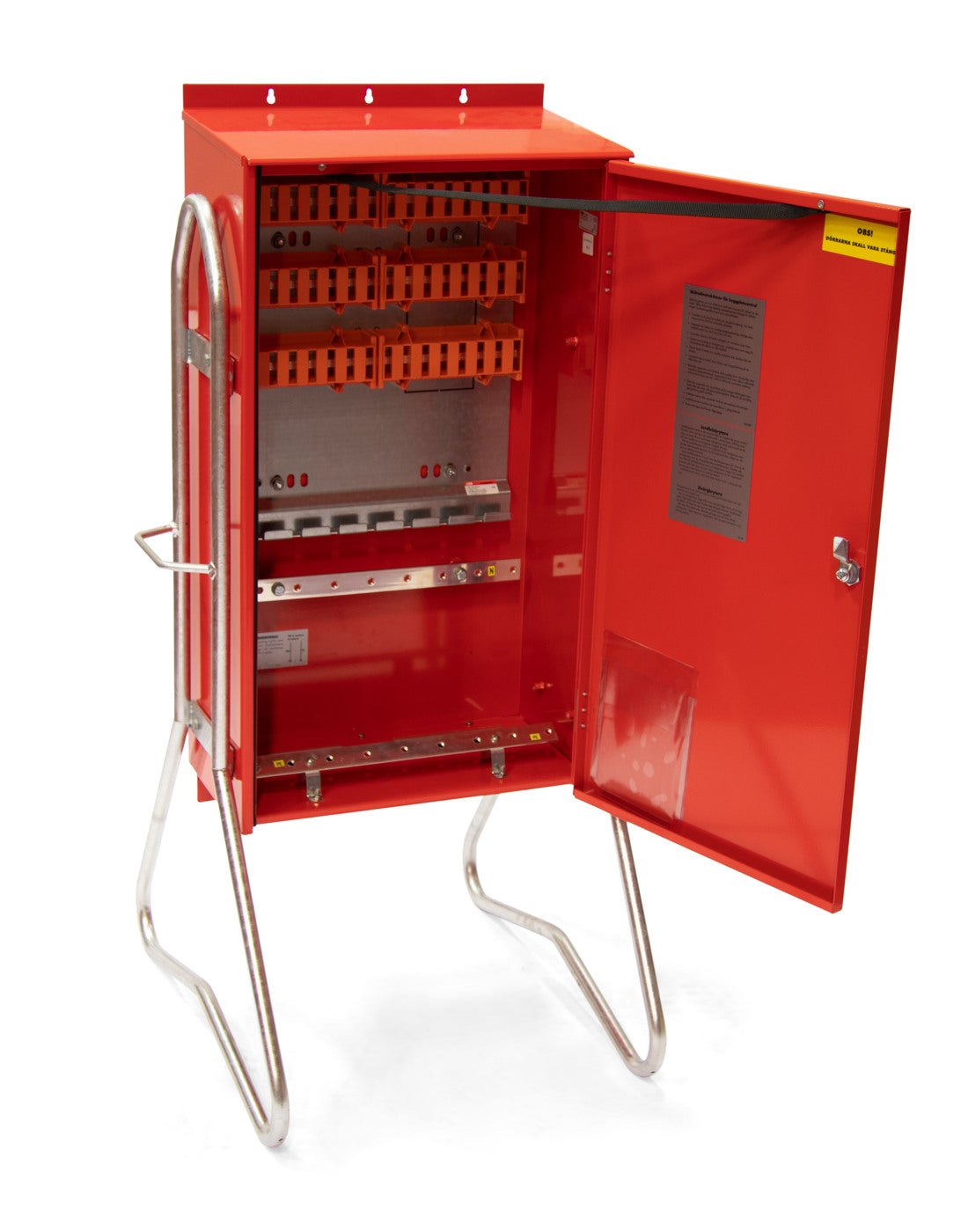

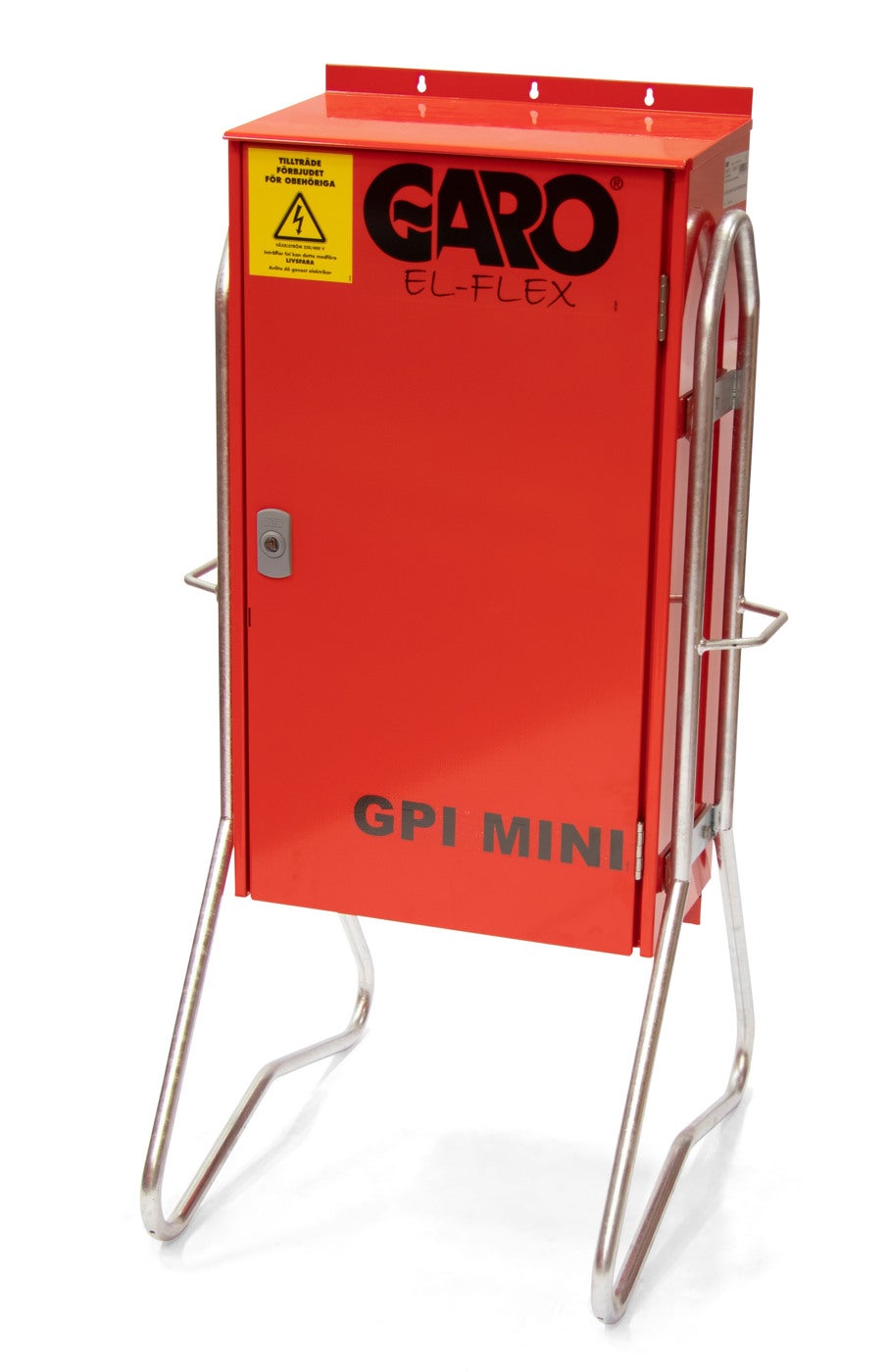

GPI TEMP POWER DISTR 500MM 8

E-number
E2469113

Article number
2469113

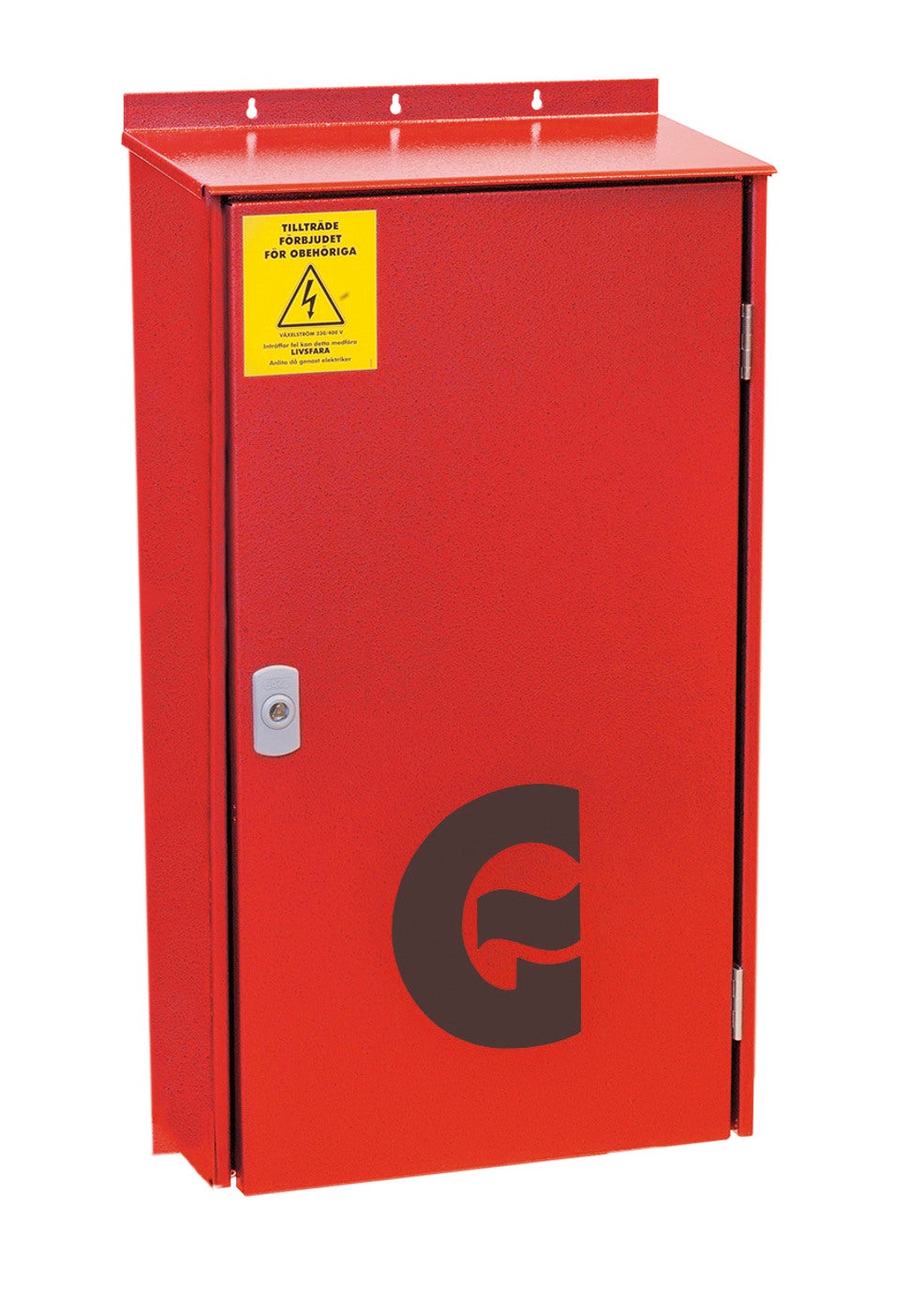

GPI TEMP POWER DISTR 500MM 8NS

E-number
E2469114

Article number
2469114

Standard	EN61439-4
Frequency [Hz]	50Hz
Color	Red
Rated current [A]	400A
Rated voltage [V AC]	230/400V AC
Number of modules	8
Degree of protection [IP]	IP44
NetProductWeight	40
EngineerWidth	525
EngineerHeight	1250
EngineerDepth	650

Name	GPI TEMP POWER DISTR 500MM 8
E-number	E2469113
Article number	2469113
Type designation	GPI 500/8 MINI
Materials	Sheet metal

More variants of Enclosure wo metercabinet 500mm

	E-number	Article number	Type designation	Materials
	E2469113	2469113	GPI 500/8 MINI	Sheet metal
	E2469114	2469114	GPI 500/8 MINI EJ STATIV

Accessories for Enclosure wo metercabinet 500mm

	Name	E-number	Article number	Type designation	Description
	COVER MODULE GPI 1M 50MM	E2469101	2469101	BM-1	Cover module GPI 1 module 50mm
	COVER MODULE GPI 3M 150MM	E2469102	2469102	BM-3	Cover module GPI 3 module 150mm
	COVER MODULE GPI 200MM	E2469103	2469103	BM-4	Cover module GPI 4 modules
	CONTACT KIT PROTECT GPI	E2469104	2469104	BS-GPI	Contact kit protect for hardwire cables
	TRANSPORT SECURITY GPI	E2469107	2469107	TF	Transport security GPI for outletmodule
	DIVISIBLE TERMINAL KIT 10-95	E2466339	351982	PE/N 10-95	Divisible terminal kit PE/N 10-95mm² GPI.
	DIVISIBLE TERMINAL KIT 95-240	E2466340	351983	PE/N 95-240	Divisible terminal kit PE/N 95-240mm²
	SUPPORT INSERT FOR UPI 3M		80793		Protection cover support insert for outlet-modules 3 modules fits GPI-system.
	SUPPORT INSERT FOR UPI 4M		80794		Protection cover support insert for outlet-modules 4 modules fits GPI-system.
	SUPPORT INSERT FOR UPI 5M		80795		Protection cover support insert for outlet-modules 5modules fits GPI-system.
