Enclosure without metercabinet 1300mm

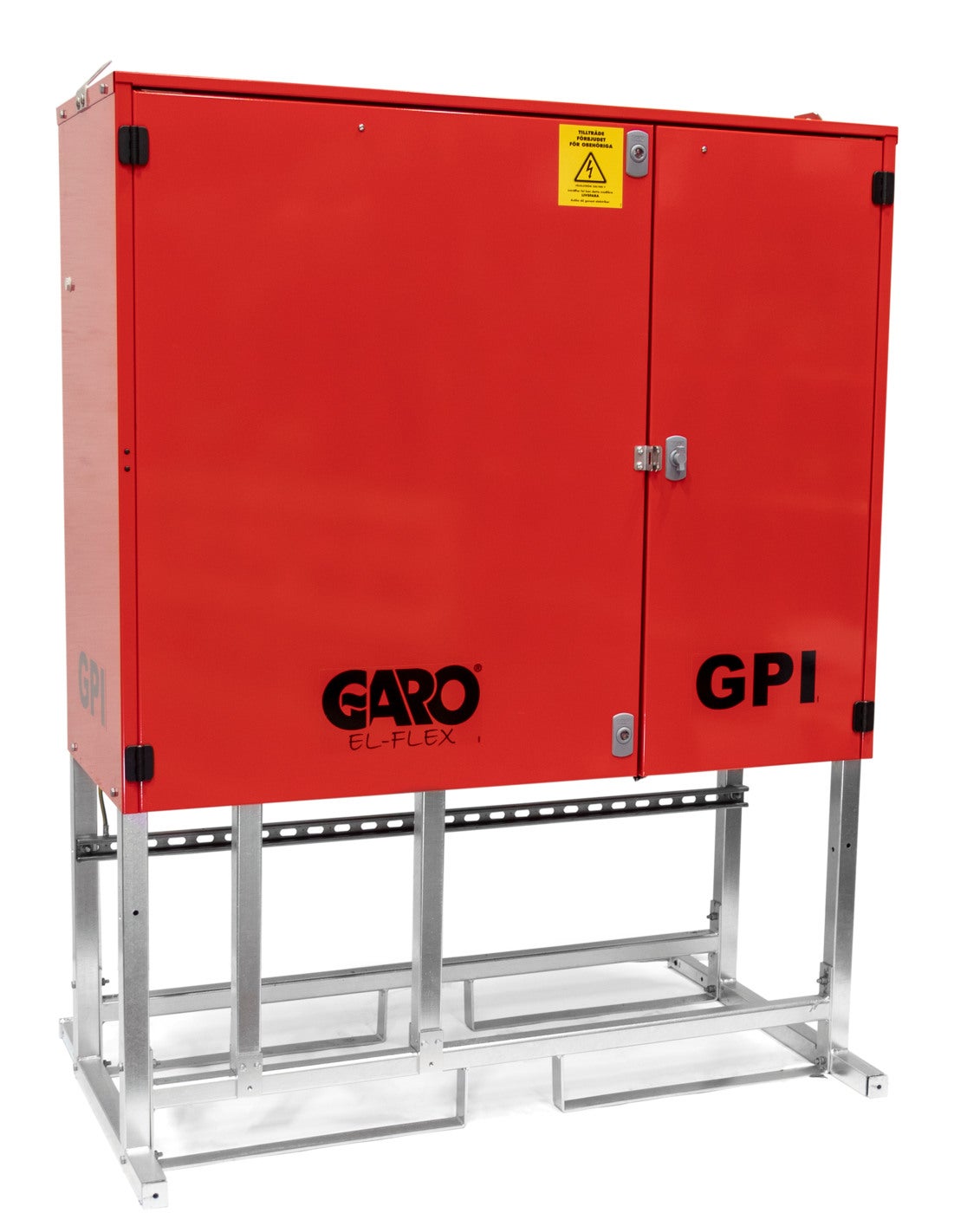

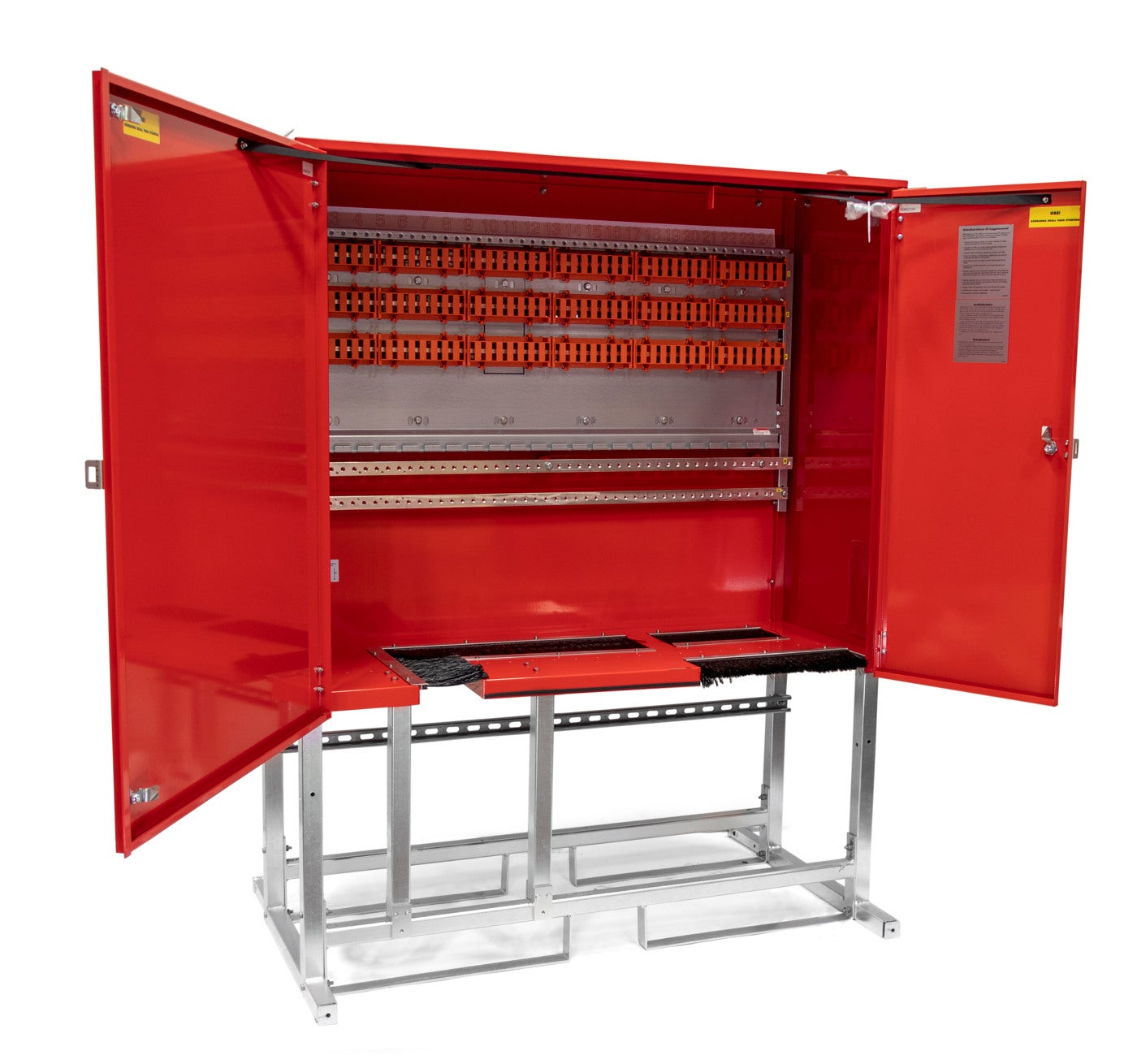

Enclosure without metercabinet 1300mm GPI temporary power distribution board 1300mm 24 modules
E-number
E2469063
Article number
2469063
Support
Type designation GPI 1300/24
Materials Sheet metal
Standard EN61439-4
Frequency [Hz] 50Hz
Color Red
Rated current [A] 630A
Rated voltage [V AC] 230/400V AC
Number of modules 24
Degree of protection [IP] IP44
NetProductWeight 190
EngineerWidth 1300
EngineerHeight 1662
EngineerDepth 506
Name GPI TEMP POWER DISTR 1300MM 24
E-number E2469063
Article number 2469063

Accessories for Enclosure without metercabinet 1300mm

Name E-number Article number Type designation Description
COVER MODULE GPI 1M 50MM COVER MODULE GPI 1M 50MM E2469101 2469101 BM-1 Cover module GPI 1 module 50mm
COVER MODULE GPI 3M 150MM COVER MODULE GPI 3M 150MM E2469102 2469102 BM-3 Cover module GPI 3 module 150mm
COVER MODULE GPI 200MM COVER MODULE GPI 200MM E2469103 2469103 BM-4 Cover module GPI 4 modules
CONTACT KIT PROTECT GPI CONTACT KIT PROTECT GPI E2469104 2469104 BS-GPI Contact kit protect for hardwire cables
TRANSPORT SECURITY GPI TRANSPORT SECURITY GPI E2469107 2469107 TF Transport security GPI for outletmodule
DIVISIBLE TERMINAL KIT 10-95 DIVISIBLE TERMINAL KIT 10-95 E2466339 351982 PE/N 10-95 Divisible terminal kit PE/N 10-95mm² GPI.
DIVISIBLE TERMINAL KIT 95-240 DIVISIBLE TERMINAL KIT 95-240 E2466340 351983 PE/N 95-240 Divisible terminal kit PE/N 95-240mm²
SUPPORT INSERT FOR UPI 3M 80793 Protection cover support insert for outlet-modules 3 modules fits GPI-system.
SUPPORT INSERT FOR UPI 4M 80794 Protection cover support insert for outlet-modules 4 modules fits GPI-system.
SUPPORT INSERT FOR UPI 5M 80795 Protection cover support insert for outlet-modules 5modules fits GPI-system.
