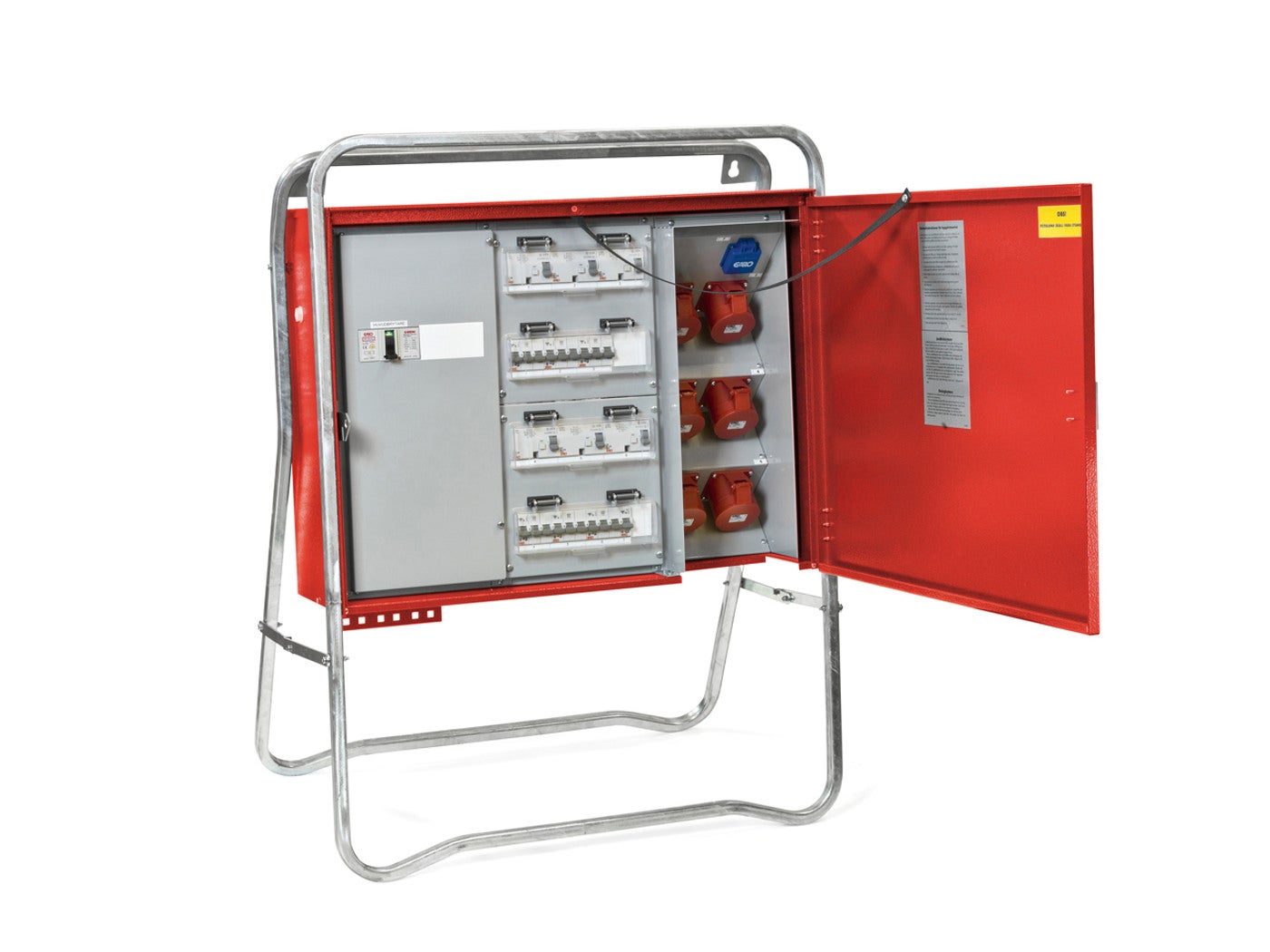

Shed unit 125A
Cabin power distribution panel 125A used to allocate 32A sockets to portable cabins, modular buildings, containers etc. Terminal block connected with earth cable (Type AKKJ) 16-95² via adjustable circuit-breaker (80-125A). Equipped with 6 x 432-6 (32A) sockets with separate residual current device on each socket. Also equipped with 1 service socket (Schuko/230V). Distribution panel permanent connection 125A 7xRCCB 3xschuko 1x16A outlet 6x32A outlet
E-number
E2469111
E2469111
Article number
2469111
2469111
| Type designation | GBEC 125/00/06001-70 |
|---|---|
| Materials | Sheet metal |
| Standard | EN61439-4 |
| Short-circuit current [kA] | 17kA |
| Frequency [Hz] | 50Hz |
| Color | Red |
| Rated current [A] | 125A |
| Rated voltage [V AC] | 230/400V AC |
| Number of MCB 3P (1) | 6pcs C332 |
| Number of Schuko[pcs] | 1pcs |
| Number of RCCB [pcs] 1 | 6pcs 4P 40A |
| CEE socket outlet 32A | 6pcs 5P 32A 230/400V |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 48 |
| EngineerWidth | 790 |
| EngineerHeight | 530 |
| EngineerDepth | 1050 |
| Name | POWER DISTR 125A 7xRCCB |
|---|---|
| E-number | E2469111 |
| Article number | 2469111 |
