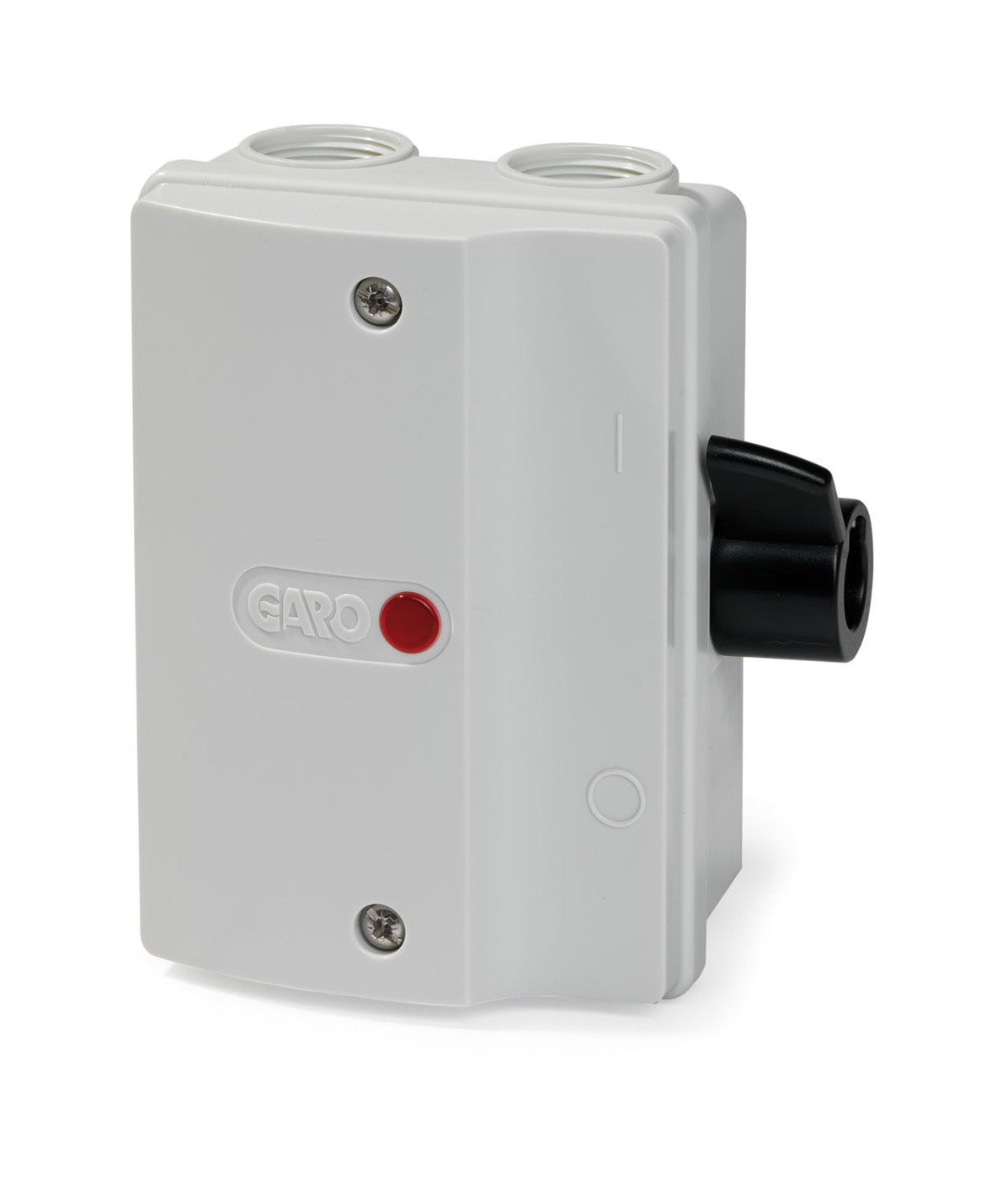

SWITCH 3P 16A GREY LAMP

Switches 3-poles 16A

GARO’s power switch 16A with lamp is available in 3- or 4-pole variants designed for imaginable environments such as industrial, residential and public environments, partly as itis available in either a white or grey finish. All power switches are also approved for agricultural environments. Supplied as standard with connection options for neutral and protective conductors and the neutral pole in the 4-pole switches features delayed opening and an earlier closing operation compared to the phase poles. The p Switch grey 3 pole 16A with lamp
E-number
E3155006
Article number
3155006
Support
Standard EN60947-3
Housing material Plastic
Color Grey
Rated current [A] 16A
Number of poles 3P
Mounting method Floor fastening
Isolation voltage [V] 690V AC
With lighting Yes
Name SWITCH 3P 16A GREY LAMP
E-number E3155006
Article number 3155006
Type designation BGLG 316
RAL-number RAL7035
Degree of protection [IP] IP65
NetProductWeight 0.29
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62

More variants of Switches 3-poles 16A

E-number Article number Type designation RAL-number Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
SWITCH 3P 16A GREY LAMP E3155006 3155006 BGLG 316 RAL7035 IP65 0.29 117 137 62

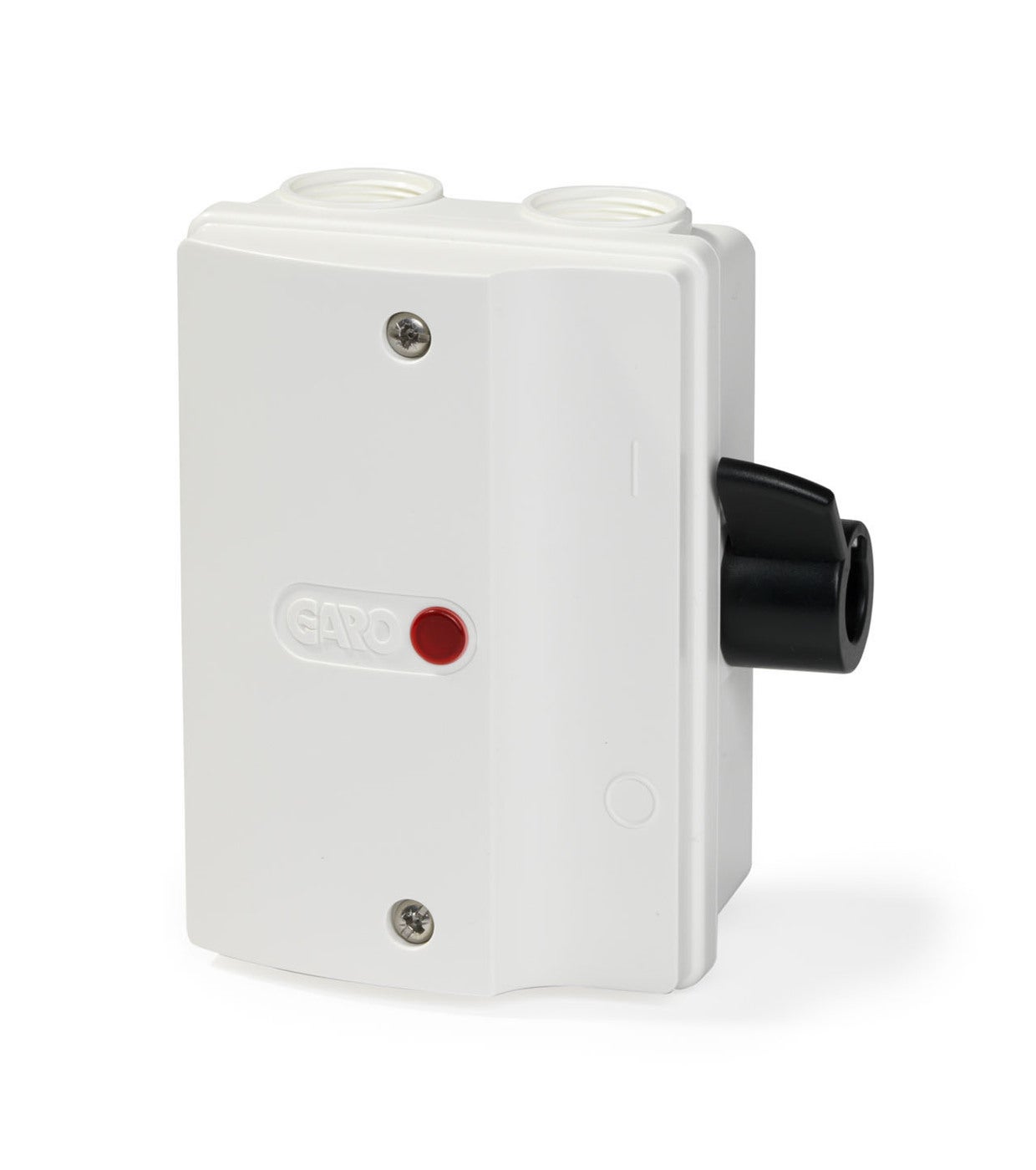

SWITCH 3P 16A WHITE LAMP E3155007 3155007 BGLV 316 RAL9010
