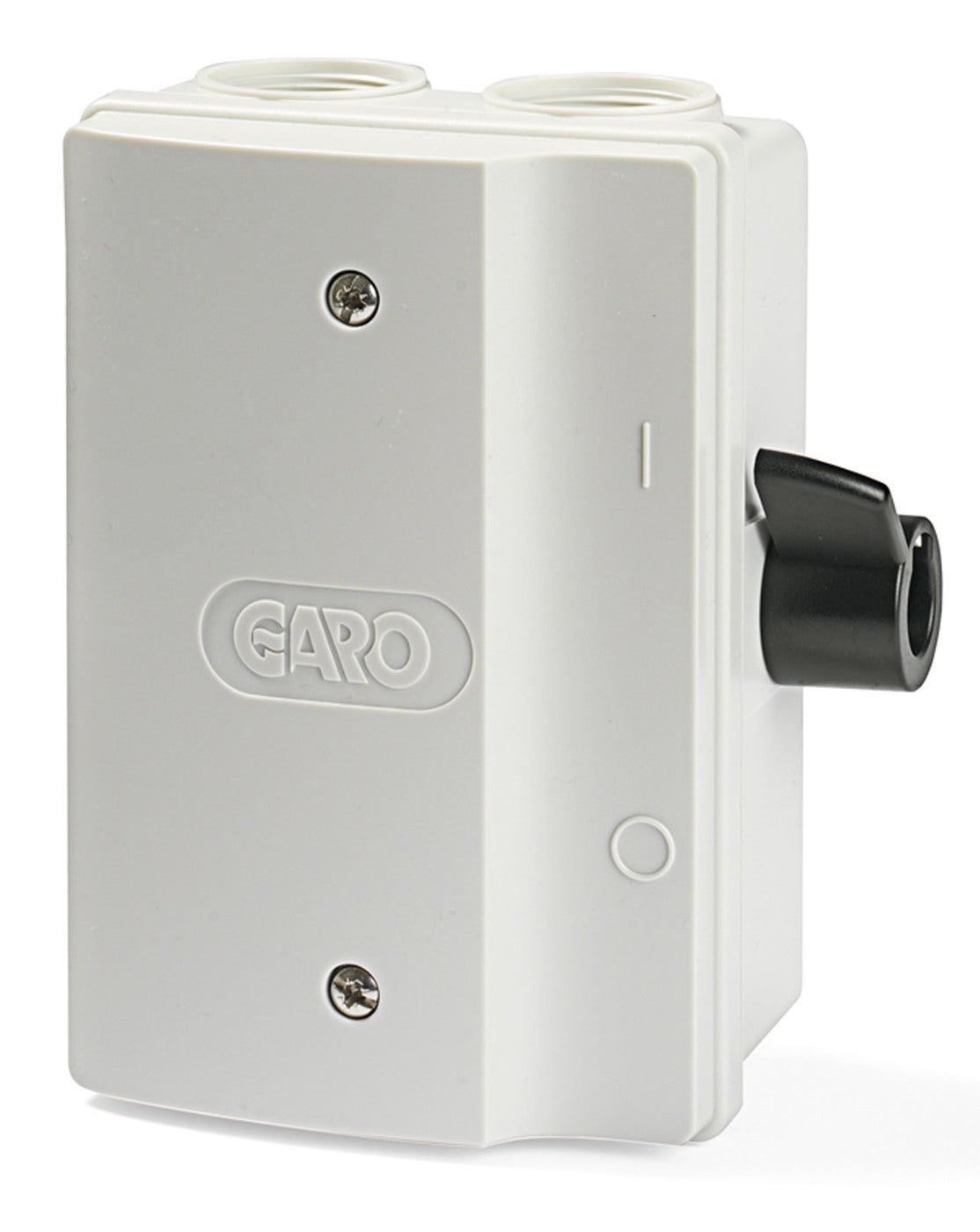

Switches 4-poles 25A
GARO’s power switch 16A is available in 2-, 3- or 4-pole variants designed for imaginable environments such as industrial, residential and public environments, partly as it is available in either a white or grey finish. All power switches are also approved for agricultural environments. Supplied as standard with connection options for neutral and protective conductors and the neutral pole in the 4-pole switches features delayed opening and an earlier closing operation compared to the phase poles. The power Switch grey 4 pole 25A
E-number
E3155012
E3155012
Article number
3155012
3155012
| Standard | EN60947-3 |
|---|---|
| Housing material | Plastic |
| Rated current [A] | 25A |
| Mounting method | Wall mounting |
| Isolation voltage [V] | 690V AC |
| With lighting | No |
| Degree of protection [IP] | IP65 |
| Connection PE [mm²] | 6mm² |
| Connection area | Max Cu 16mm² |
| EngineerWidth | 127 |
| EngineerHeight | 157 |
| EngineerDepth | 71 |
| Name | SWITCH 4P 25A GREY |
|---|---|
| E-number | E3155012 |
| Article number | 3155012 |
| Type designation | BGG 425 |
| Color | Grey |
| RAL-number | RAL7035 |
| NetProductWeight | 0.37 |
