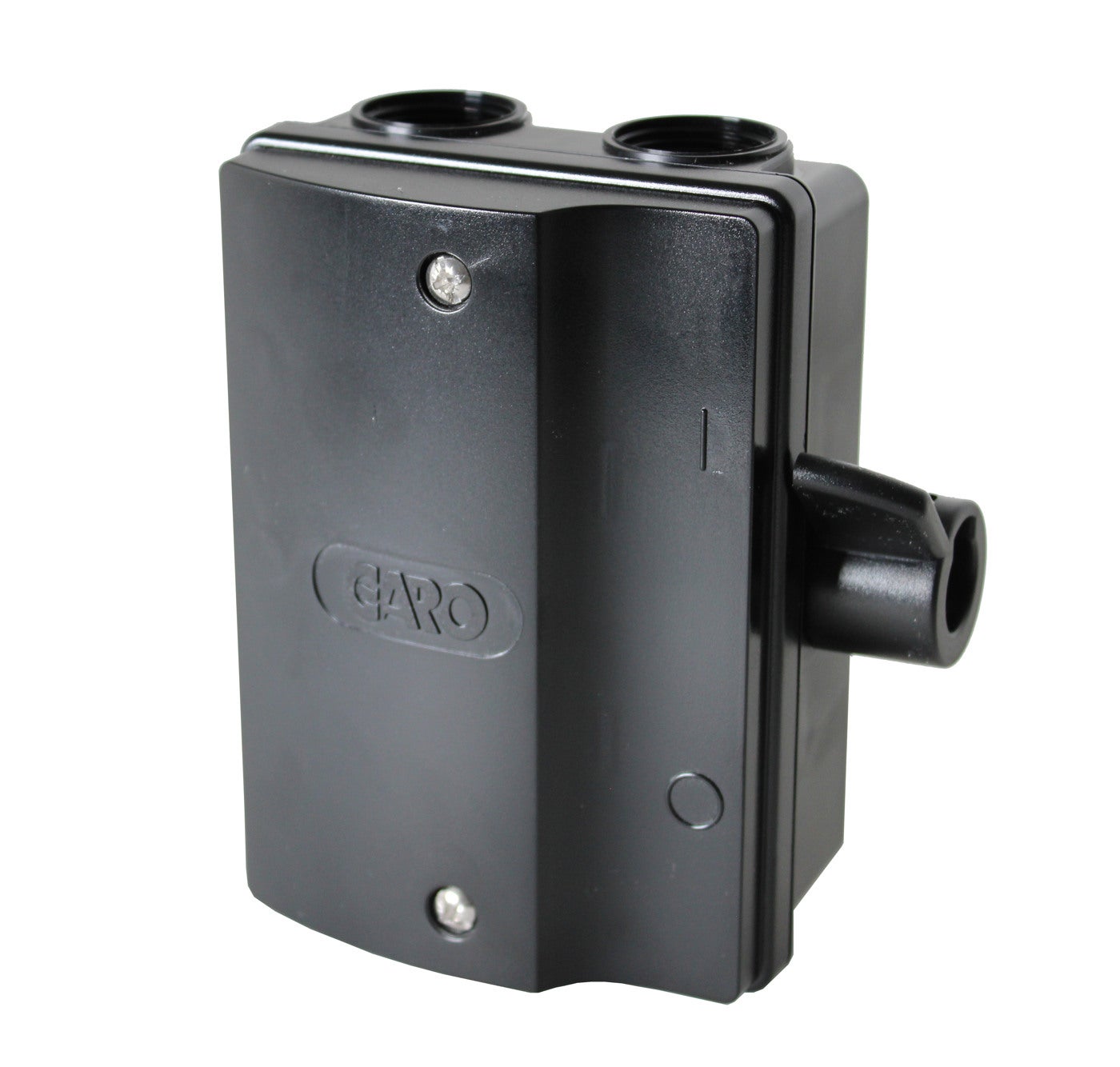

SWITCH 3P 25A BLACK

Switches 3-poles 25A

GARO’s power switch 16A is available in 2-, 3- or 4-pole variants designed for imaginable environments such as industrial, residential and public environments, partly as it is available in either a white or grey finish. All power switches are also approved for agricultural environments. Supplied as standard with connection options for neutral and protective conductors and the neutral pole in the 4-pole switches features delayed opening and an earlier closing operation compared to the phase poles. The power Switch black 3-pole 25A
E-number
E3135618
Article number
354105
Support
Standard EN60947-3
Housing material Plastic
Rated current [A] 25A
Mounting method Floor fastening
Isolation voltage [V] 690V AC
With lighting No
Degree of protection [IP] IP65
EngineerWidth 127
EngineerHeight 157
EngineerDepth 71
Name SWITCH 3P 25A BLACK
E-number E3135618
Article number 354105
Type designation BGS 325
Color Black
RAL-number RAL9005

Manual

More variants of Switches 3-poles 25A

E-number Article number Type designation Color RAL-number Connection N [mm²] Connection PE [mm²] NetProductWeight
SWITCH 3P 25A GREY E3155010 3155010 BGG 325 Grey RAL7035 0.33
SWITCH 3P 25A WHITE E3155011 3155011 BGV 325 White RAL9010 1,5-16mm² 6mm² 0.33
SWITCH 3P 25A RED E3135617 354104 BGR 325 Red RAL3009
SWITCH 3P 25A BLACK E3135618 354105 BGS 325 Black RAL9005
