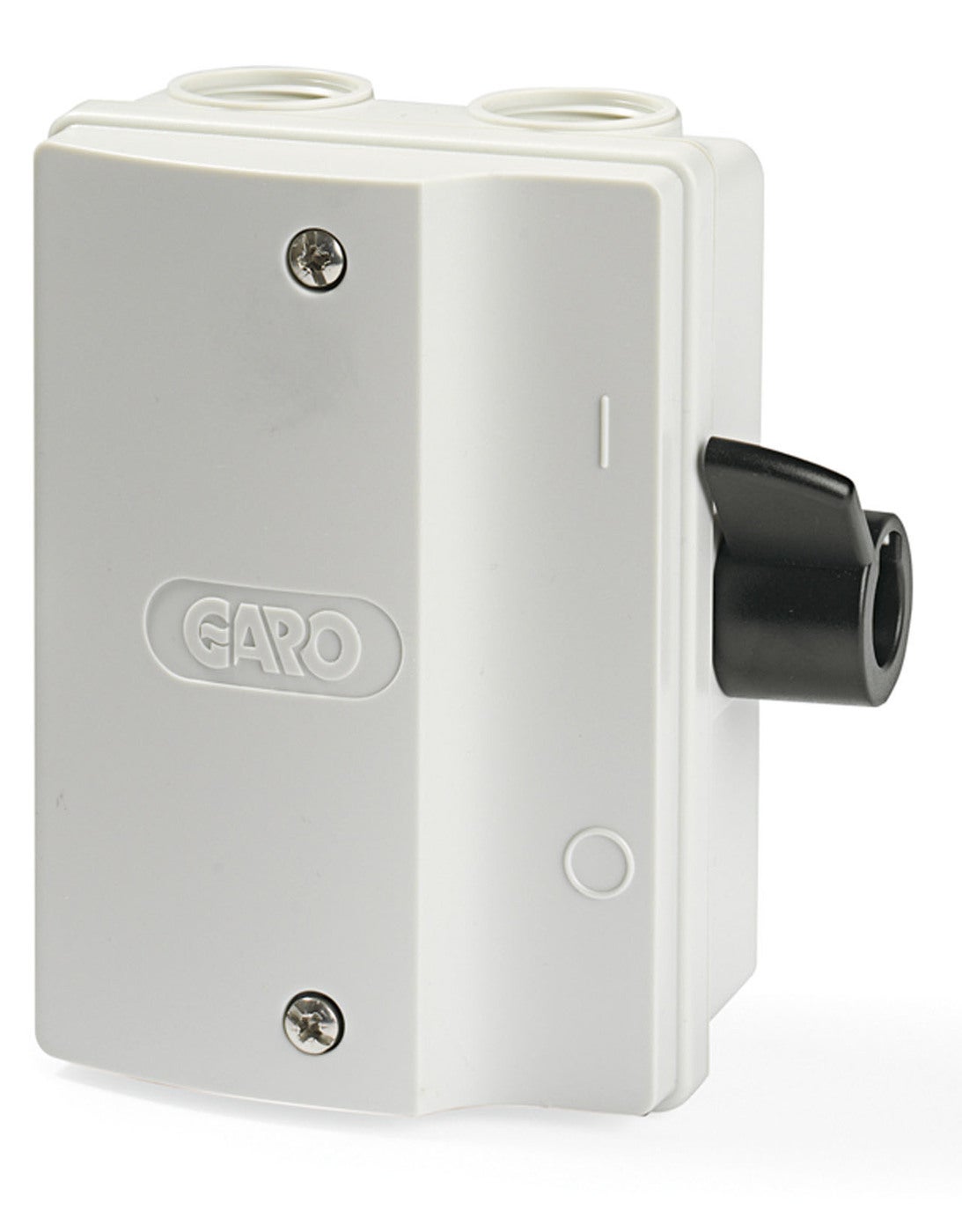

SWITCH 3P 16A GREY

Switches 3-poles 16A

GARO’s power switch 16A is available in 2-, 3- or 4-pole variants designed for imaginable environments such as industrial, residential and public environments, partly as it is available in either a white or grey finish. All power switches are also approved for agricultural environments. Supplied as standard with connection options for neutral and protective conductors and the neutral pole in the 4-pole switches features delayed opening and an earlier closing operation compared to the phase poles. The power Switch grey 3 pole 16A
E-number
E3155002
Article number
3155002
Support
Standard EN60947-3
Housing material Plastic
Rated current [A] 16A
Number of poles 3P
Mounting method Wall mounting
Isolation voltage [V] 690V AC
With lighting No
Degree of protection [IP] IP65
Connection PE [mm²] 6mm²
Connection area Max 16mm²
EngineerWidth 117
EngineerHeight 137
EngineerDepth 62
Name SWITCH 3P 16A GREY
E-number E3155002
Article number 3155002
Type designation BGG 316
Color Grey
RAL-number RAL7035
NetProductWeight 0.29

More variants of Switches 3-poles 16A

E-number Article number Type designation Color RAL-number Connection Cu/Al NetProductWeight
SWITCH 3P 16A GREY E3155002 3155002 BGG 316 Grey RAL7035 0.29

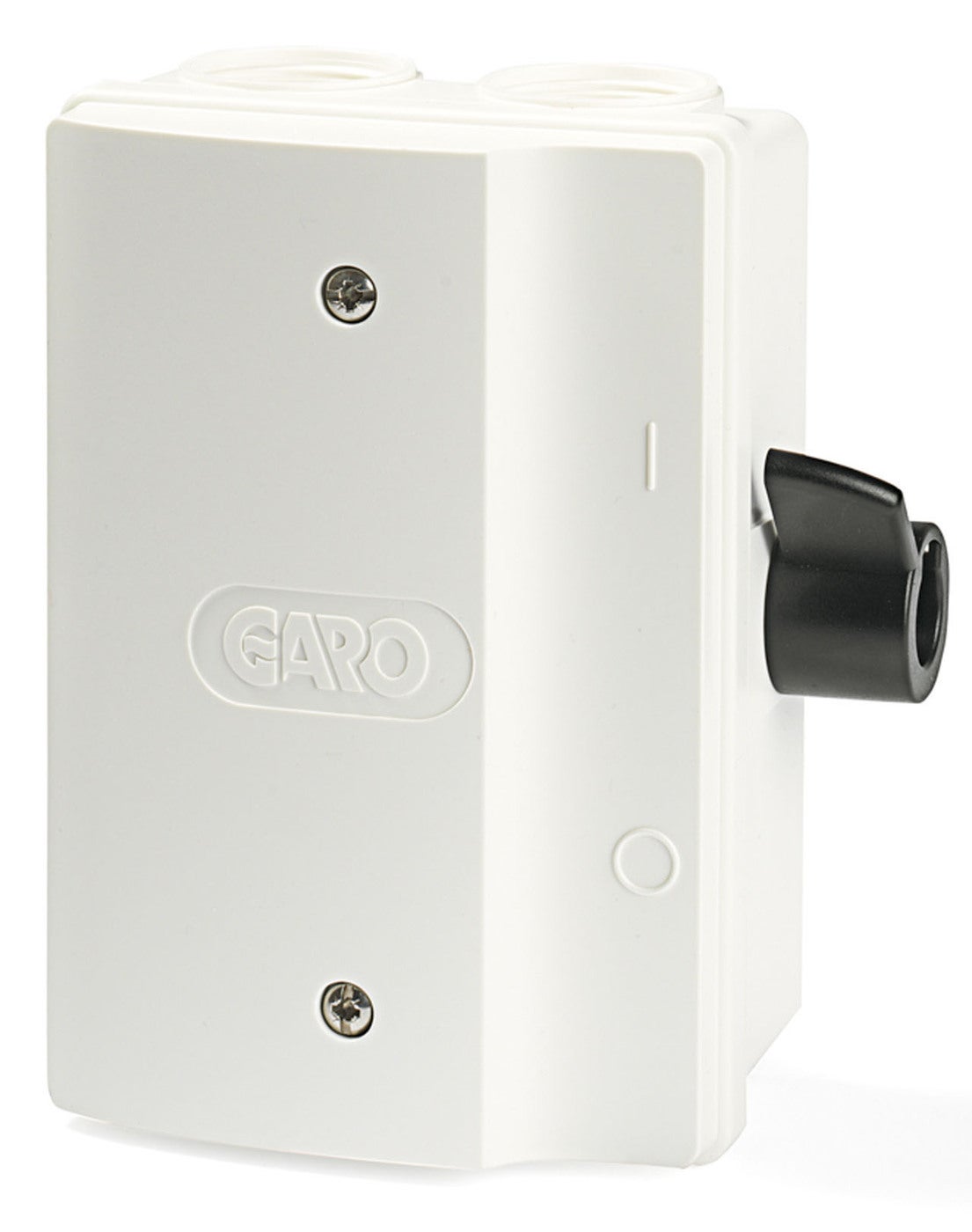

SWITCH 3P 16A WHITE E3155003 3155003 BGV 316 White RAL9010 1,5-16mm² 0.29

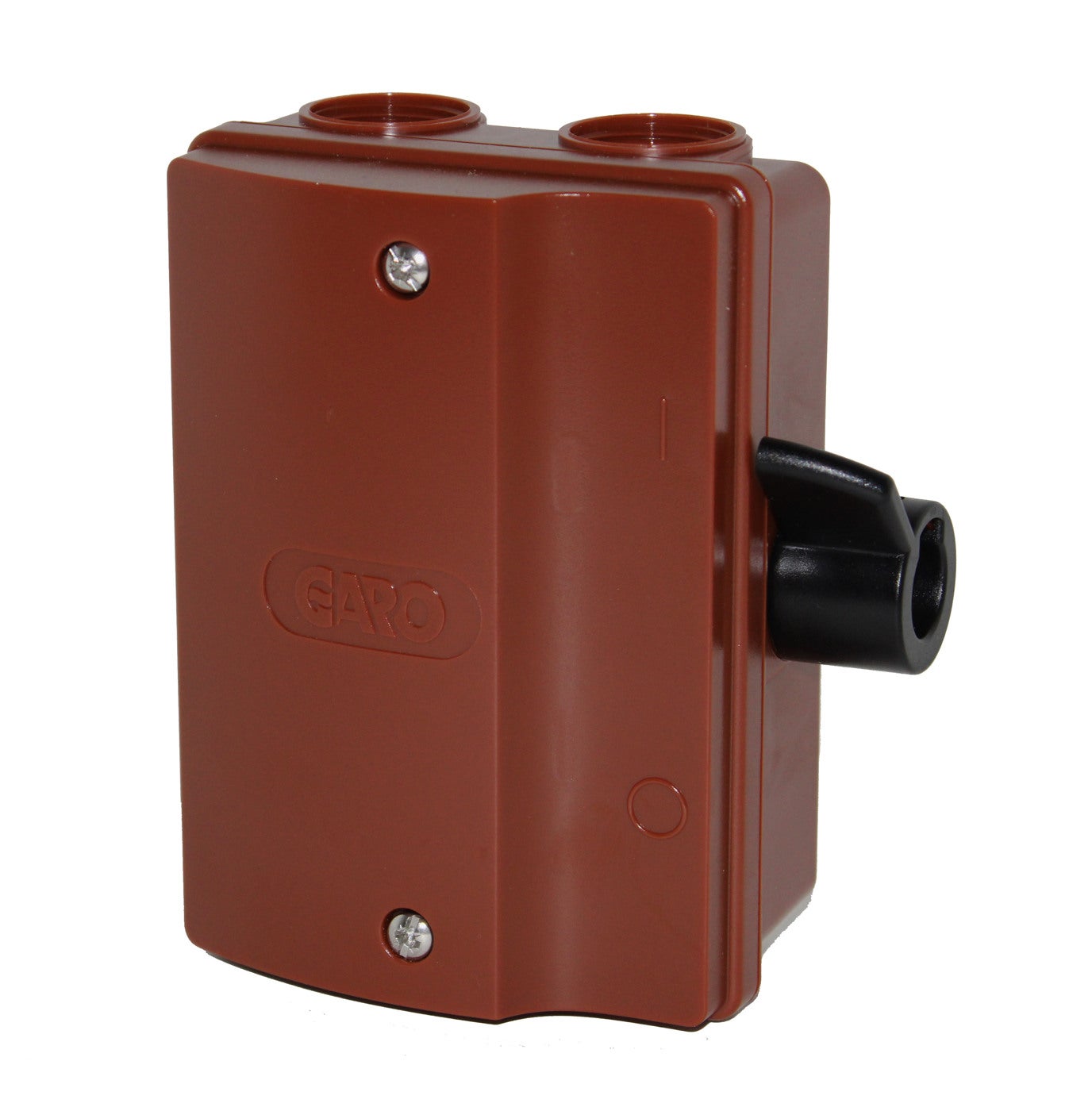

SWITCH 3P 16A RED E3135613 354100 BGR 316 Red RAL3009 1,5-16mm²

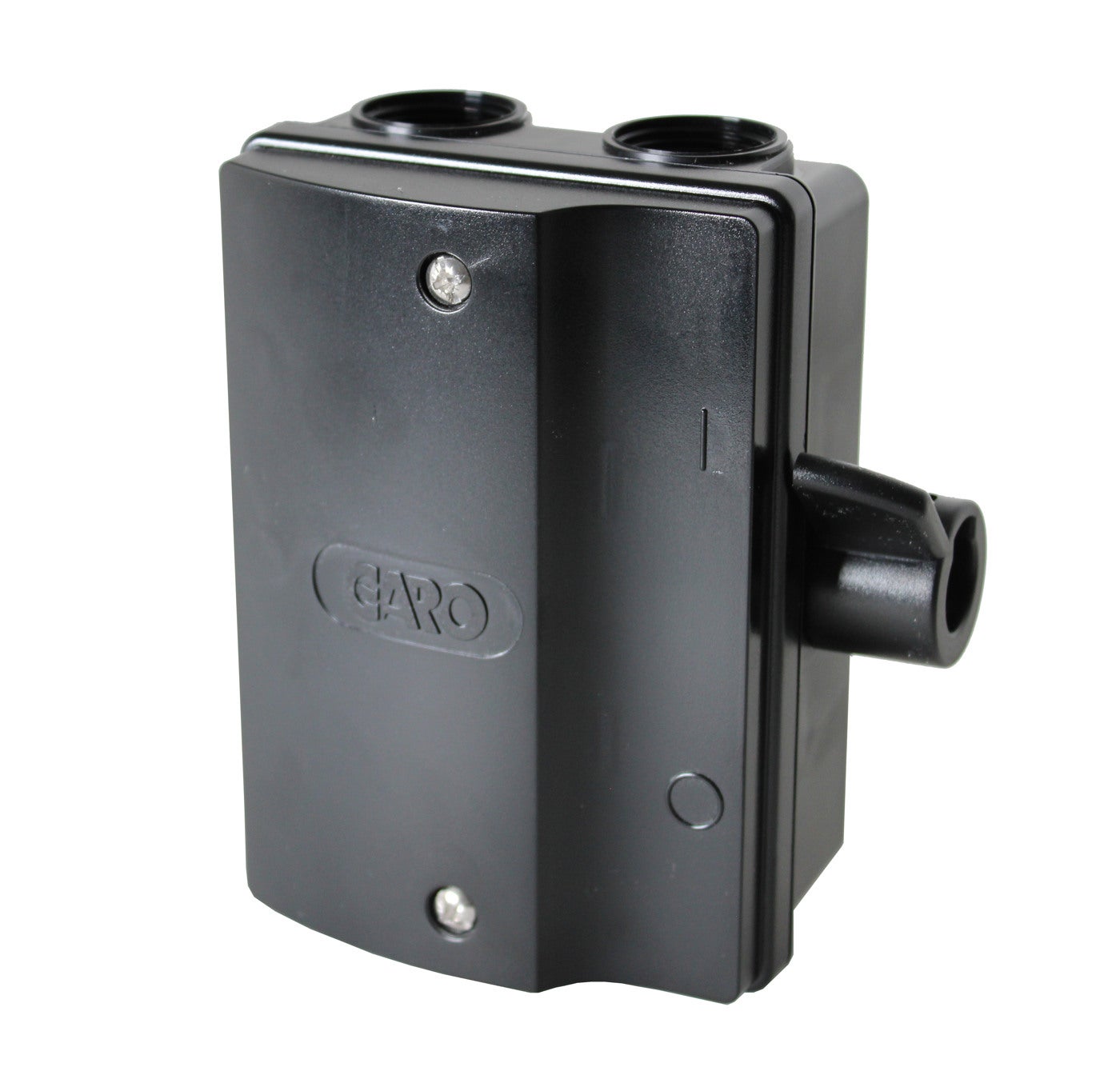

SWITCH 3P 16A BLACK E3135614 354101 BGS 316 Black RAL9005 1,5-16mm²
