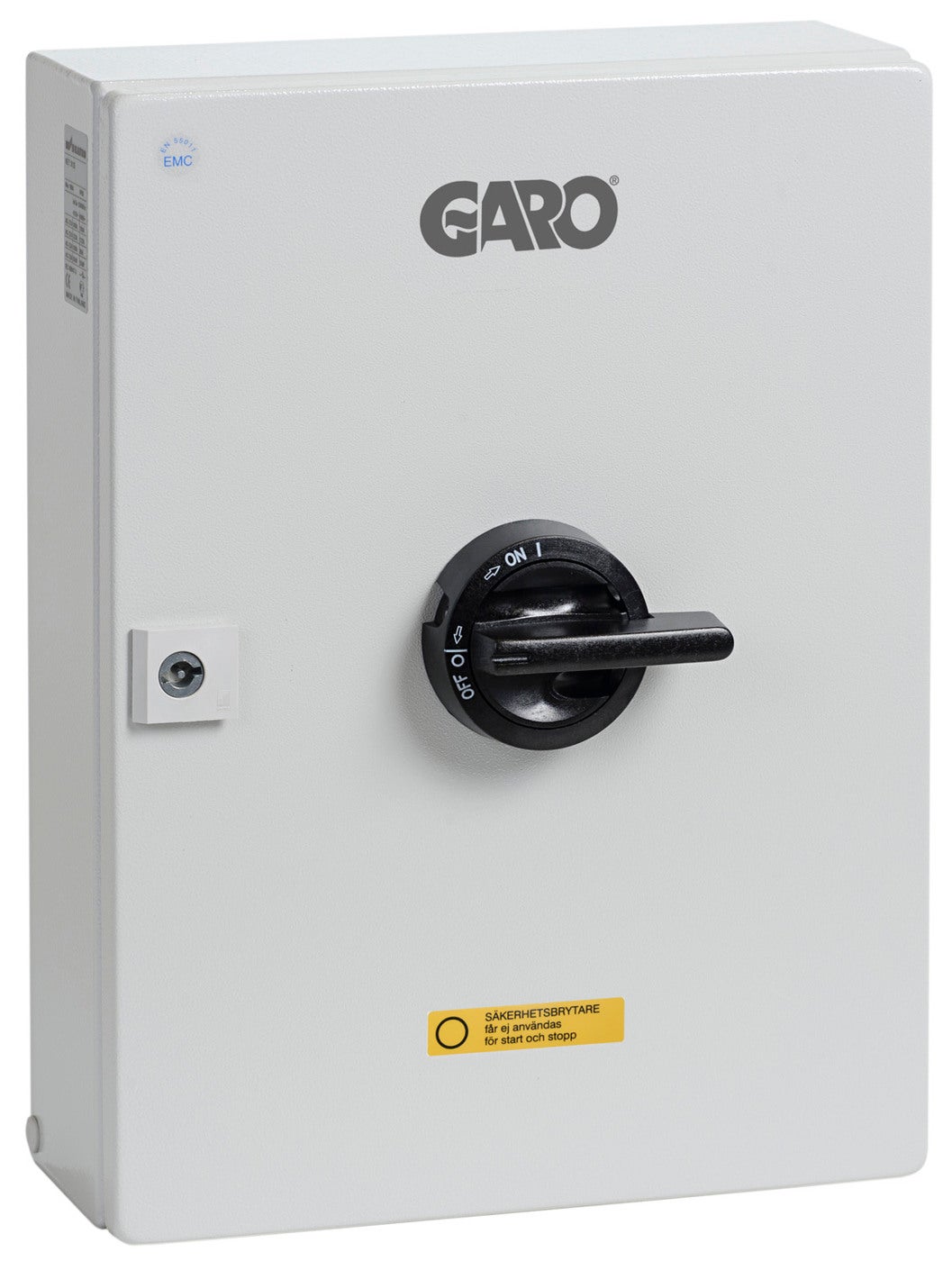

Safety switches metal GKUT EMC 3-pole 125A
Safety switches metal Safety switch 3-pole 125A made of sheet steel. EMC performance IP65
| Type designation | GKUT3125AVT1VEMC |
|---|---|
| Housing material | Sheet metal |
| Color | Grey |
| Number of poles | 3P |
| Mounting method | Wall mounting |
| Power[kW] | 55kW |
| Cable gland | 2xM63+M16 |
| Isolation voltage [V] | 690V AC |
| Rated current AC23 400V [A] | 125A |
| Degree of protection [IP] | IP65 |
| Connection PE [mm²] | 70mm² |
| Connection area | 120 |
| Auxiliary contact | Yes |
| Name | SWITCH SAFETY 3P 125A M EMC |
|---|---|
| E-number | E3134195 |
| Article number | 107619 |
