METAL ENCLOSURE EMPTY 55-4 SP

Enclosures mounting plates

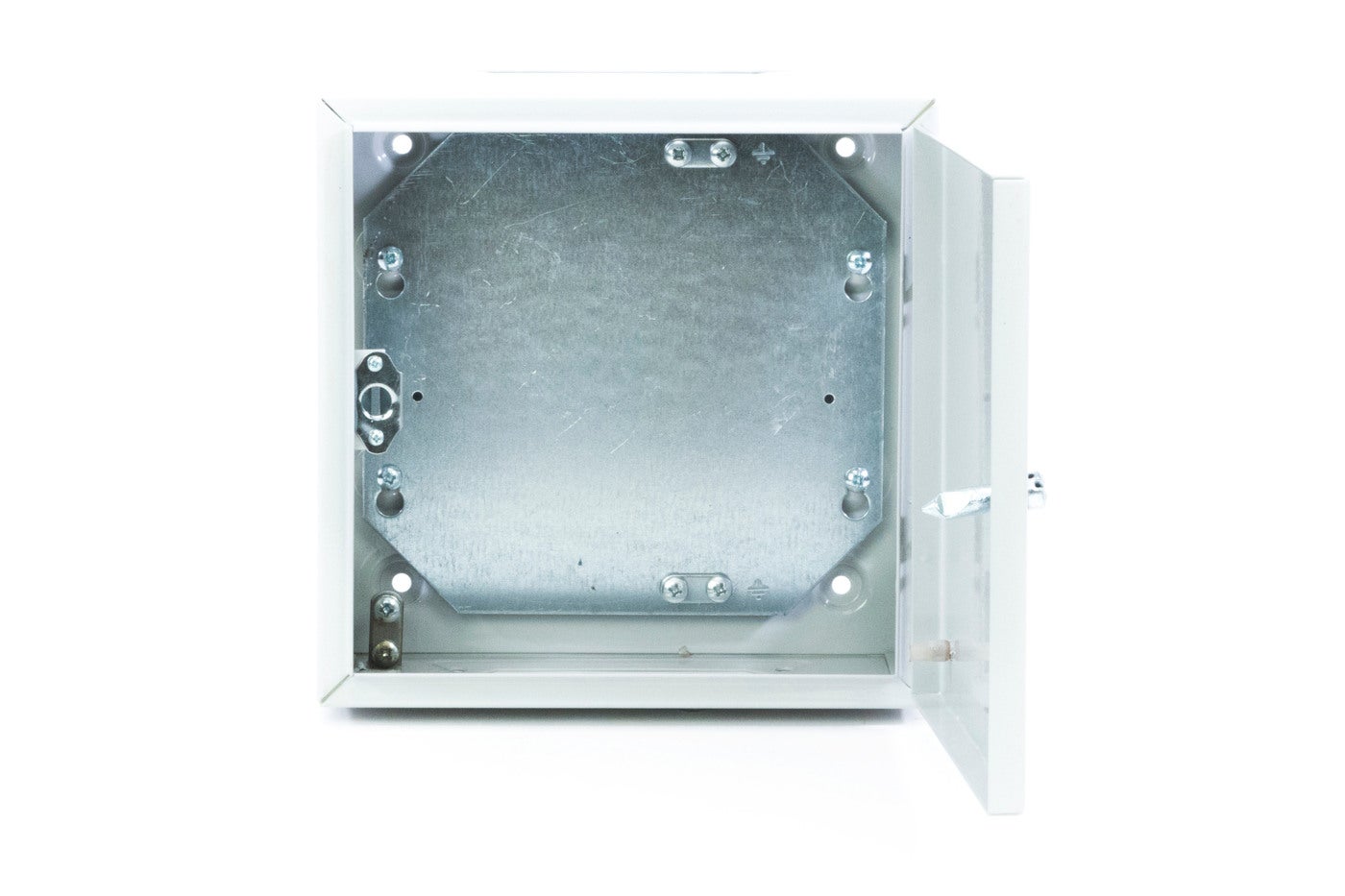

The enclosure is equipped with hinged door and mounting plate that means the internal depth measurement is 15 mm lower than the external. Enclosure 55-4 with mounting plate
E-number
E2384525
Article number
2384525
Support
Name METAL ENCLOSURE EMPTY 55-4 SP
E-number E2384525
Article number 2384525
Type designation TPG 55-4
NetProductWeight 4.5
EngineerWidth 275
EngineerHeight 275
EngineerDepth 175

More variants of Enclosures mounting plates

E-number Article number Type designation NetProductWeight EngineerWidth EngineerHeight EngineerDepth
METAL ENCLOSURE EMPTY 34 SP E2384503 2384503 TPG 34 2.11 215 165 120
METAL ENCLOSURE EMPTY 44-4 SP E2384513 2384513 TPG 44-4 2.4 220 220 120
METAL ENCLOSURE EMPTY 55-4 SP E2384525 2384525 TPG 55-4 4.5 275 275 175
METAL ENCLOSURE EMPTY 64-3 SP E2384537 2384537 TPG 64-3 4.2 220 330 175
METAL ENCLOSURE EMPTY 65-1 SP E2384545 2384545 TPG 65-1 5 275 330 175
METAL ENCLOSURE EMPTY 75 SP E2384553 2384553 TPG 75 5.5 270 360 175
METAL ENCLOSURE EMPTY 68-1 SP E2384565 2384565 TPG 68-1 7.4 440 330 175
METAL ENCLOSURE EMPTY 85 SP E2384569 2384569 TPG 85 10.2 275 440 230
METAL ENCLOSURE EMPTY 610-1 SP E2384575 2384575 TPG 610-1 9.3 550 330 175
