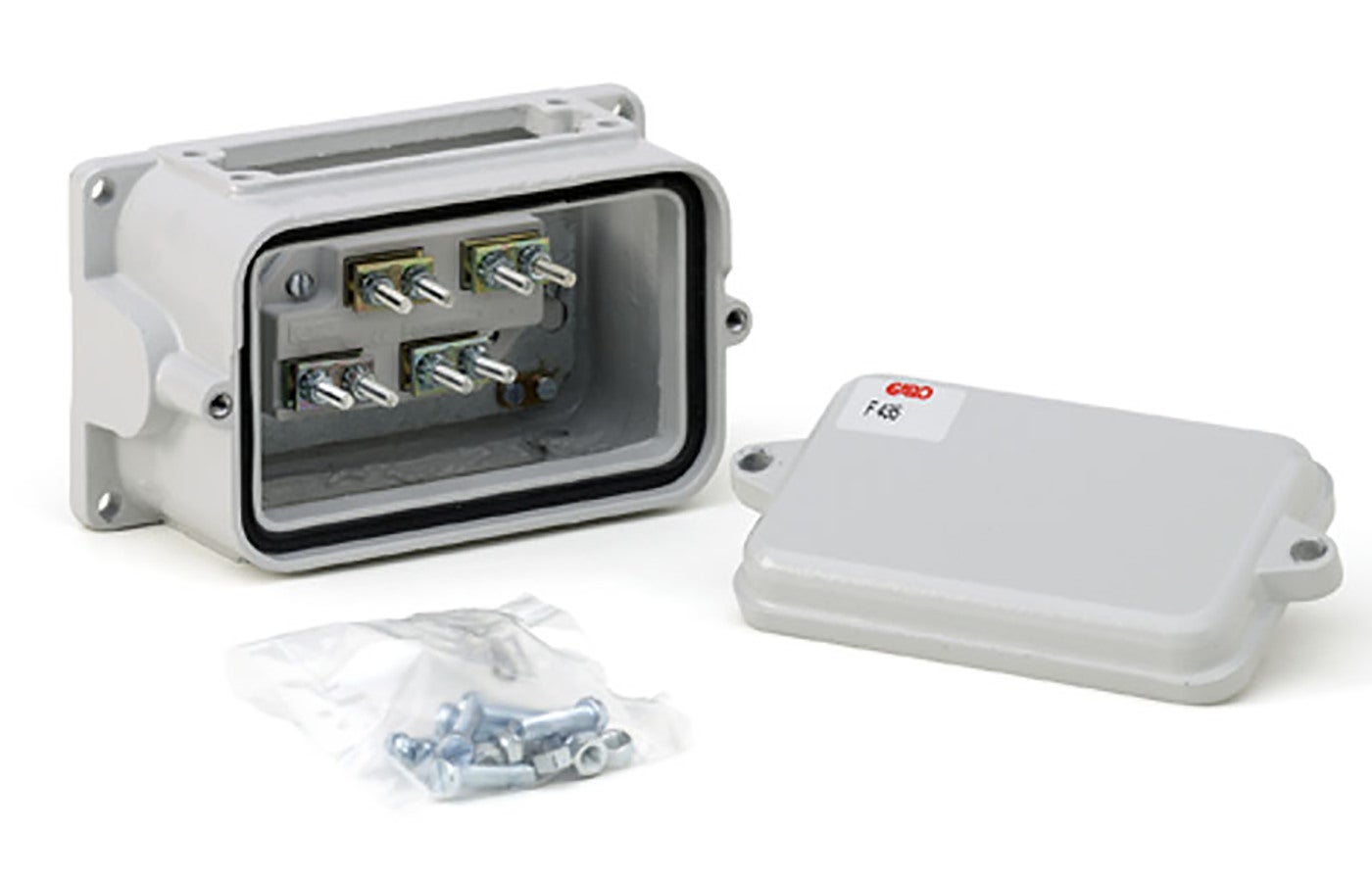

Junction boxes H108
The boxes are equipped with 4-way terminal blocks and earth connection clamp. Height 108mm. Junction box F 435 Alloy
E-number
E2393799
E2393799
Article number
2393799
2393799
| Type designation | F 435 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated voltage [V AC] | 690V AC |
| Number of poles | 4x35 |
| RAL-number | RAL7044 |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 1.35 |
| EngineerWidth | 185 |
| EngineerHeight | 108 |
| EngineerDepth | 100 |
| Name | JUNCTION BOX F 4X35 A LM |
|---|---|
| E-number | E2393799 |
| Article number | 2393799 |
