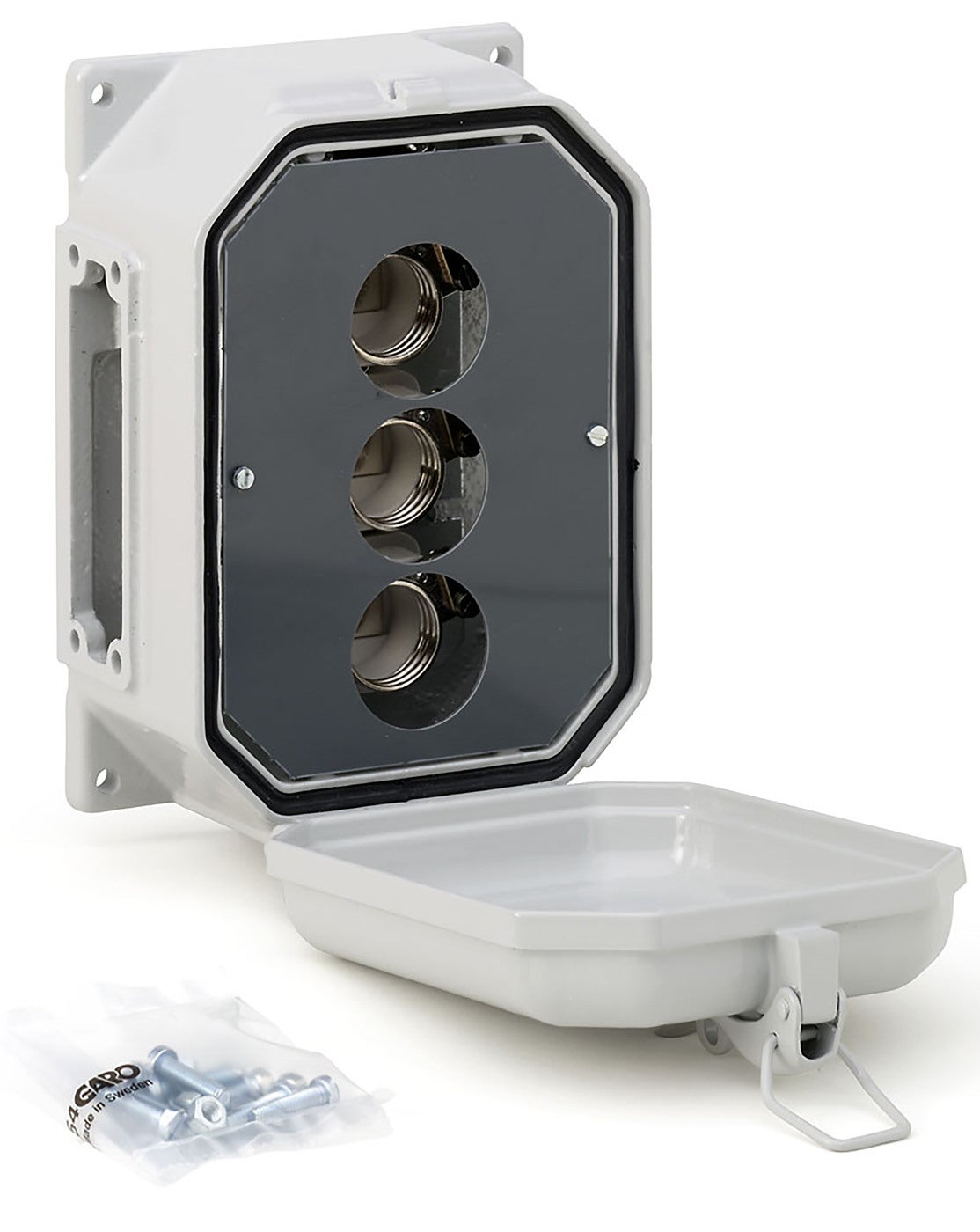

Fuse base boxes L DIII H170
3-pole fuse-protected group with neutral terminal and earth conductor terminal. The box consists of 3-pole screw-base fuse with a front-operated 3-pole switch, which in the ON position prevents the lid from being opened. Height 170mm. Fuse base box SL 63A 3x1phase alloy
E-number
E2392606
E2392606
Article number
2392606
2392606
| Type designation | SL 363 |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 690V AC |
| Number of poles | 3/1 |
| RAL-number | RAL7044 |
| Fuse size | DIII |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 2.8 |
| EngineerWidth | 235 |
| EngineerHeight | 170 |
| EngineerDepth | 120 |
| Name | FUSE BASE BOX -SL63A 3/1 A LM |
|---|---|
| E-number | E2392606 |
| Article number | 2392606 |
