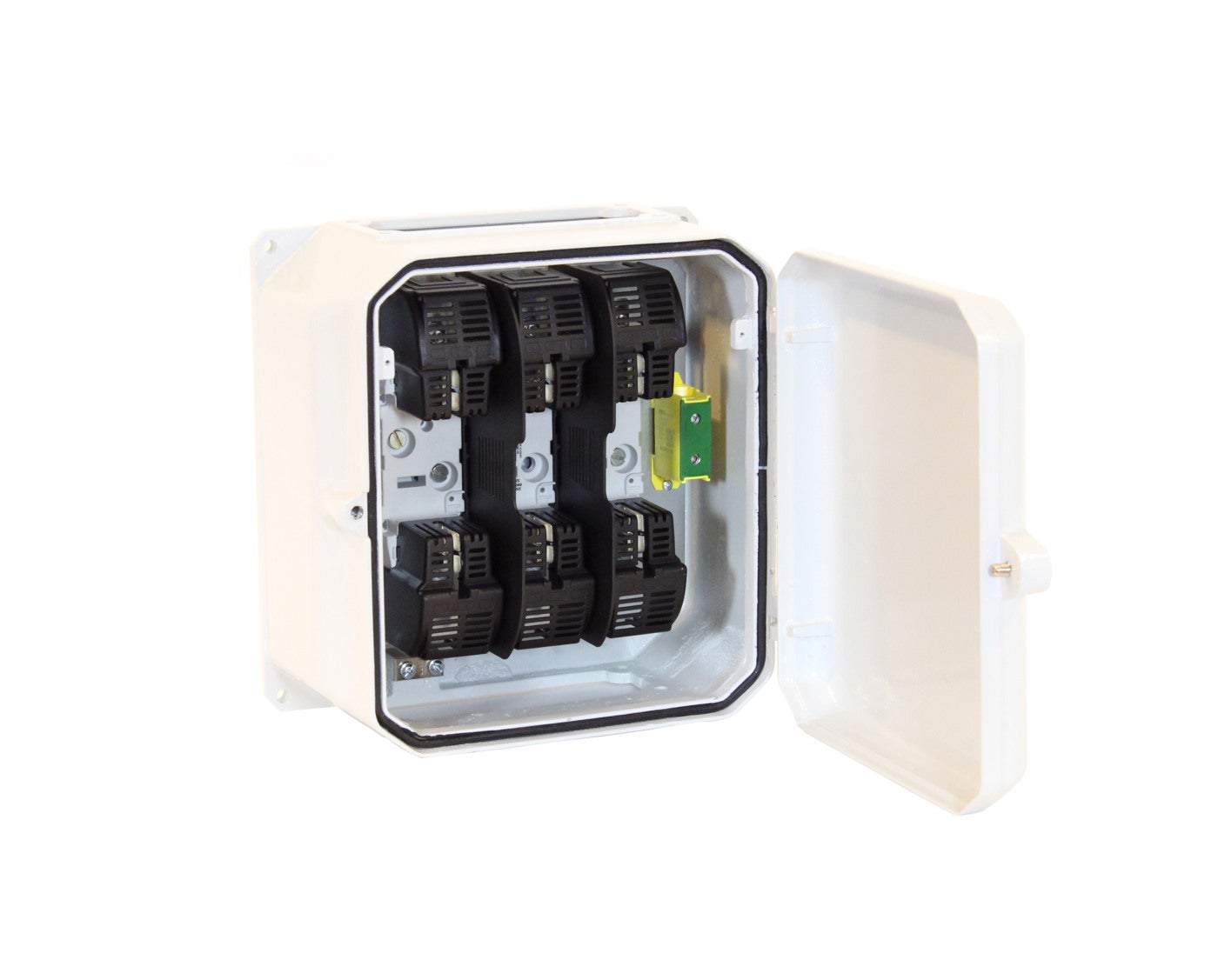

  • FUSE BASE ENCLOSURE 250A 1X3 A LM - 2

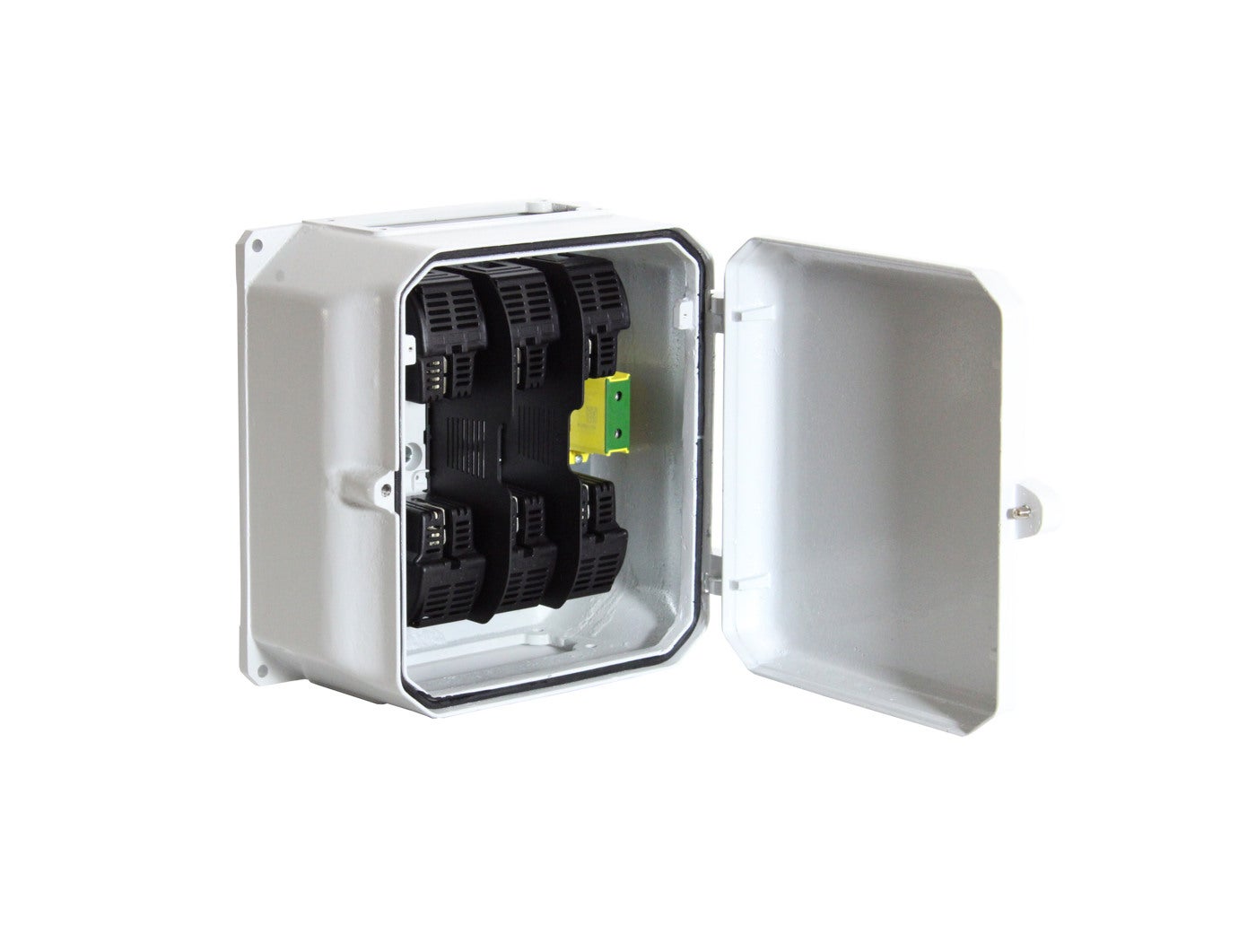

  • FUSE BASE ENCLOSURE 250A 1X3 A LM - 3

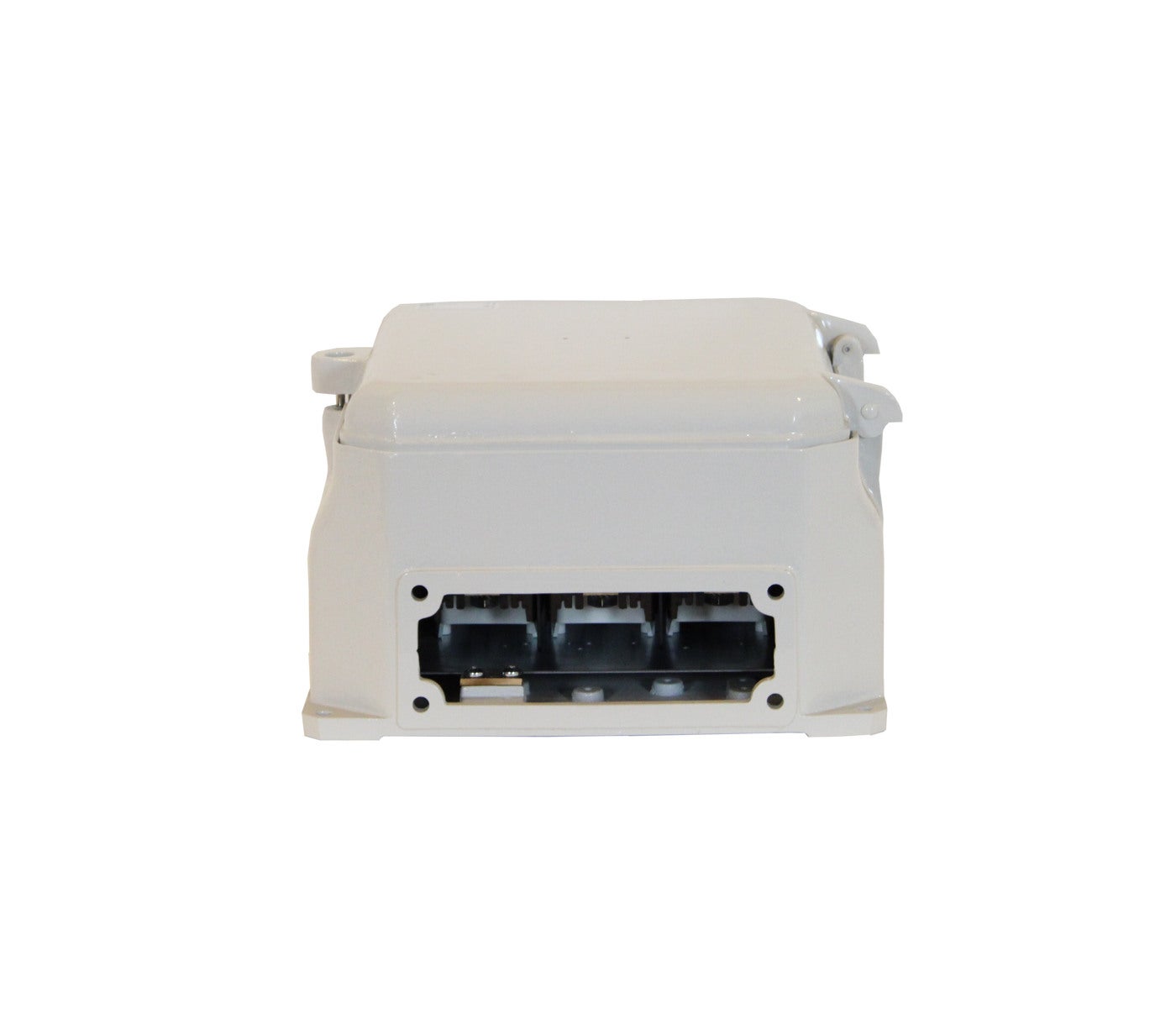

  • FUSE BASE ENCLOSURE 250A 1X3 A LM - 4
  • FUSE BASE ENCLOSURE 250A 1X3 A LM - 5

Enclosure fuse base H333

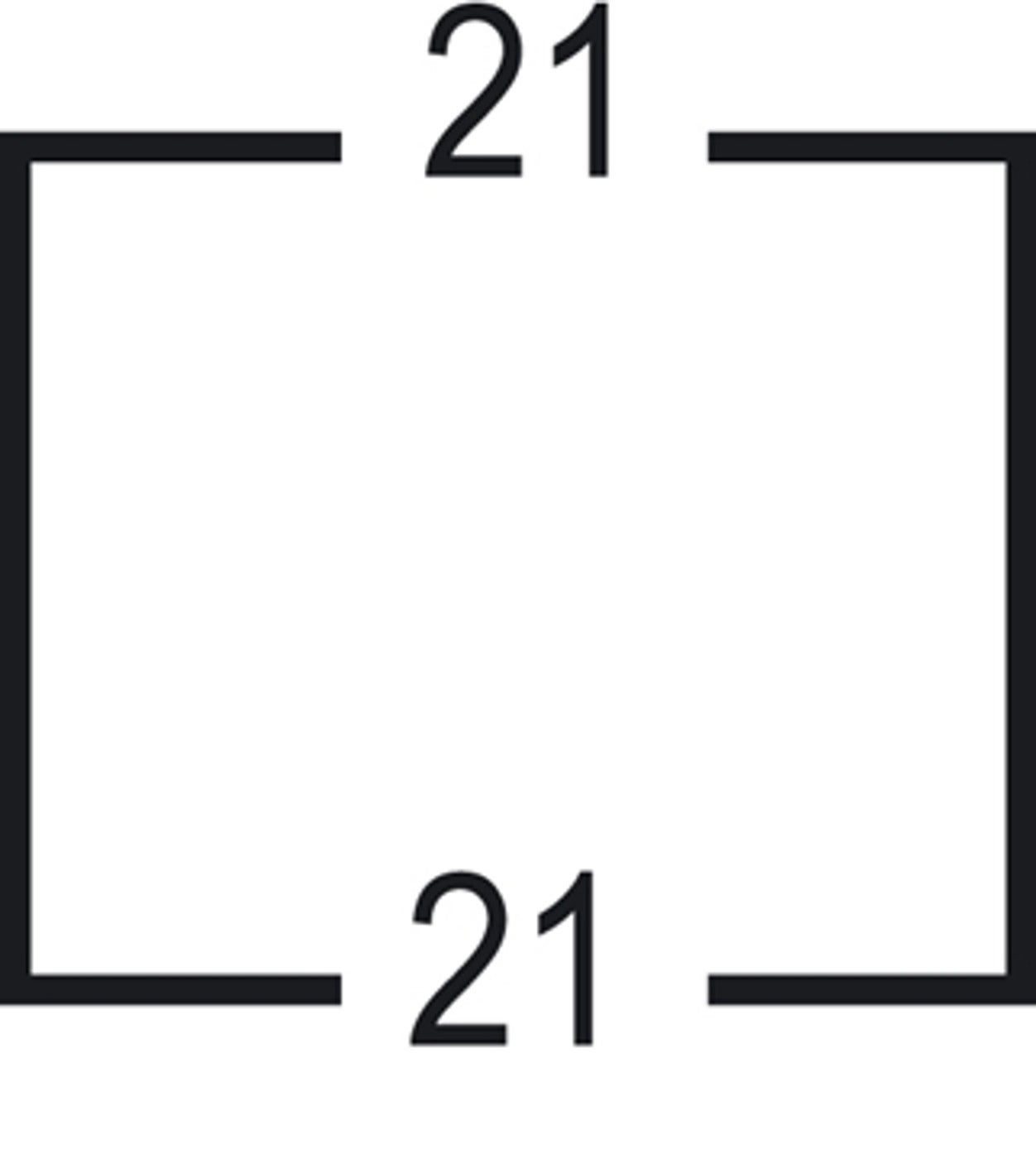

The boxes are equipped with contract protected 3-pole fuse links with shields between the poles, neutral terminal and earth conductor terminal. The cover is designed with a sealed snap-lock. The boxes 3400 and 3630 has a two-piece flange opening. Height 333mm. Fuse base box 250A blade fuse 1, 3-phase flange 21/21 alloy
E-number
E2392932
Article number
2392932
Support
Standard EN61439-3
Frequency [Hz] 50Hz
Housing material Light metal
Rated voltage [V AC] 690V AC
Number of poles 1x3
RAL-number RAL7044
Degree of protection [IP] IP65
EngineerDepth 197
Name FUSE BASE ENCLOSURE 250A 1X3 A LM
E-number E2392932
Article number 2392932
Type designation G 3250
Rated current [A] 250A
Fuse size 1
NetProductWeight 13
EngineerWidth 330
EngineerHeight 330

More variants of Enclosure fuse base H333

E-number Article number Type designation Rated current [A] Fuse size NetProductWeight EngineerWidth EngineerHeight
FUSE BASE ENCLOSURE 160A ll/ll 1X3 A LM E2392913 2392913 G 3160ll/ll 160A 12 333 333
FUSE BASE ENCLOSURE 250A 1X3 A LM E2392932 2392932 G 3250 250A 1 13 330 330
