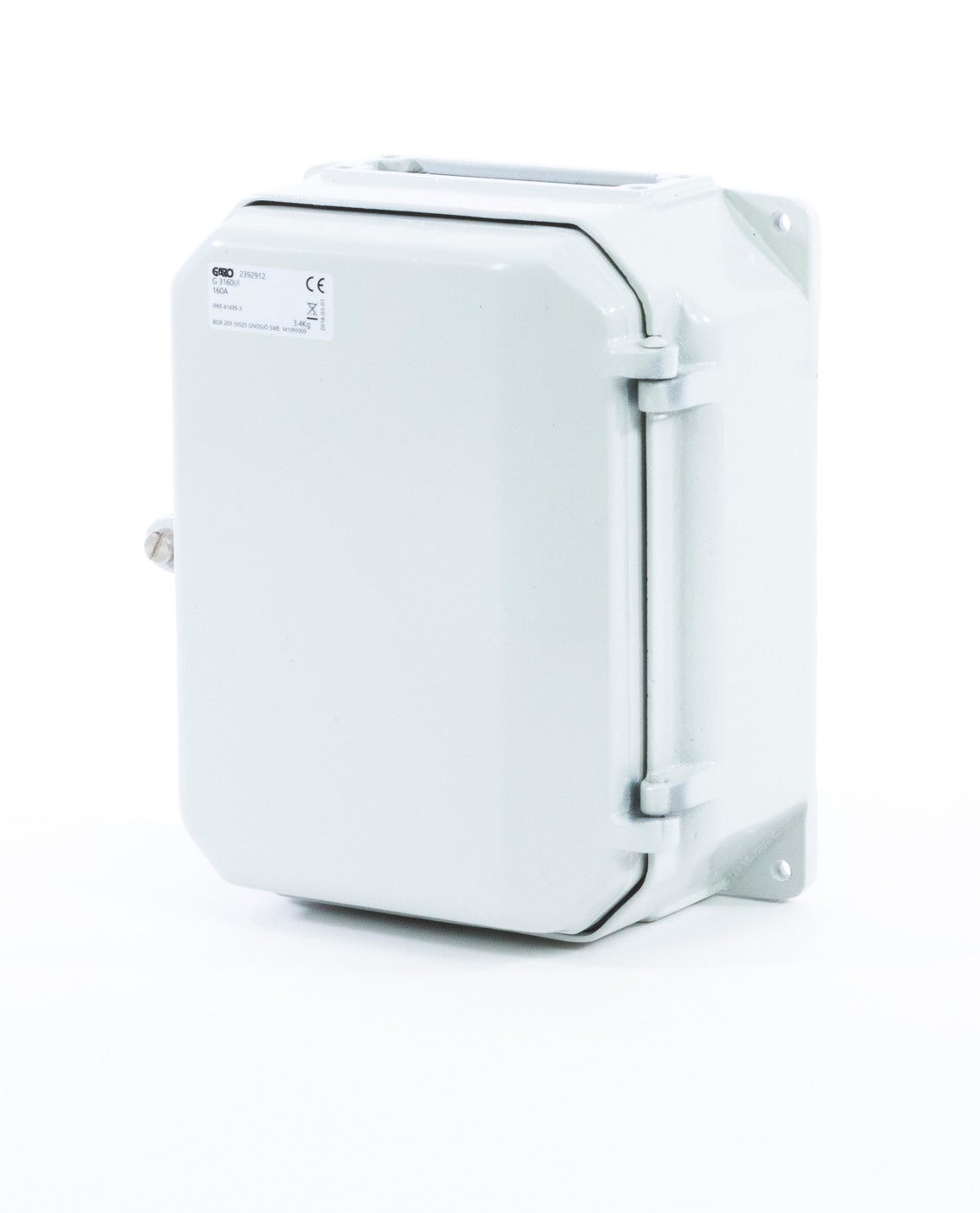

Enclosure fuse base H260

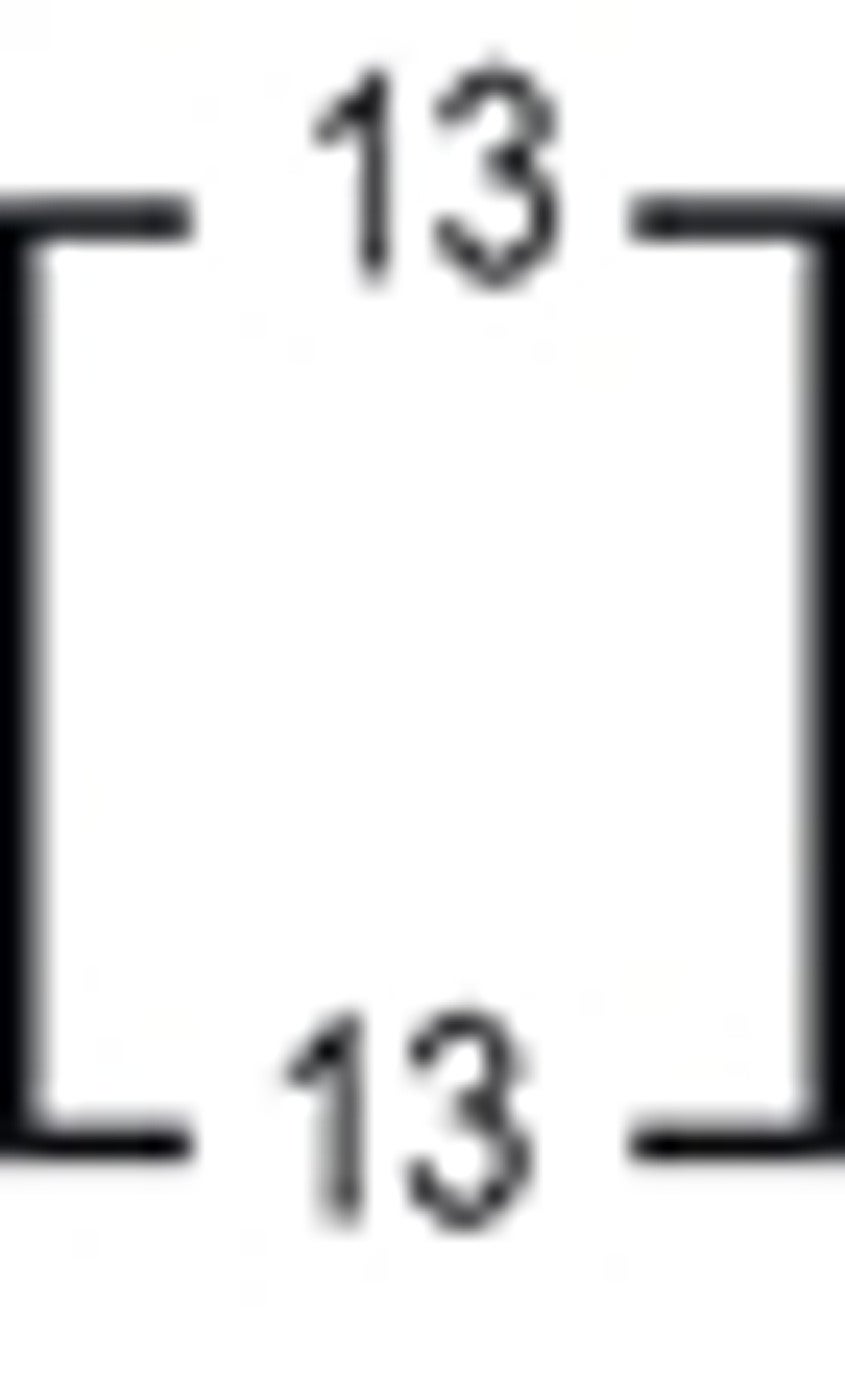

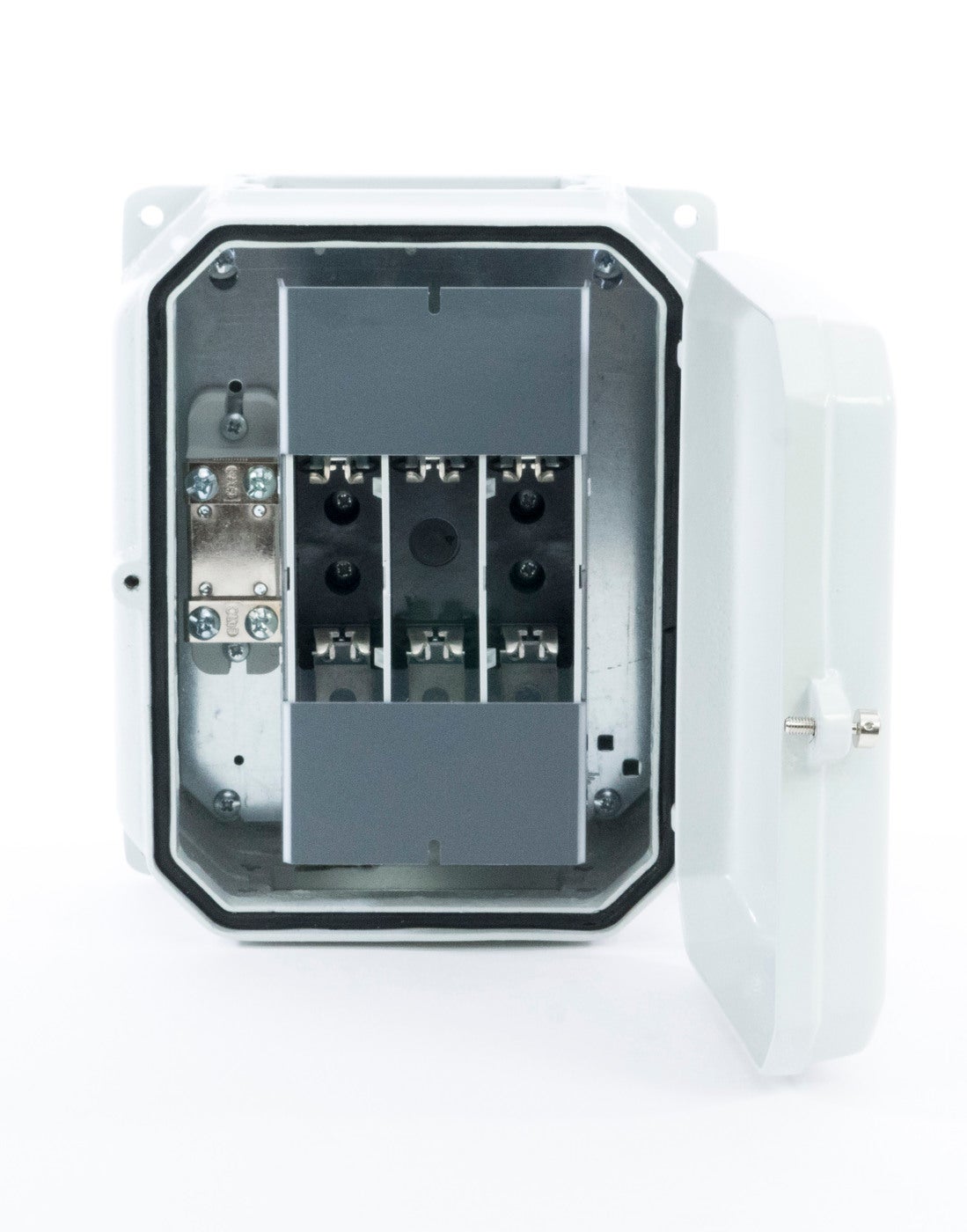

The boxes are equipped with contract protected 3-pole fuse links with shields between the poles, neutral terminal and earth conductor terminal. The cover is designed with a sealed snap-lock. Height 260mm. Fuse base box 160A 3-phase for blade fuse 00, flange 13/13 alloy
E-number
E2392912
E2392912
Article number
2392912
2392912
| Type designation | G 3160l/l |
|---|---|
| Standard | EN61439-3 |
| Frequency [Hz] | 50Hz |
| Housing material | Light metal |
| Rated current [A] | 160A |
| Rated voltage [V AC] | 690V AC |
| Number of poles | 1x3 |
| RAL-number | RAL7044 |
| Degree of protection [IP] | IP65 |
| NetProductWeight | 4.5 |
| EngineerWidth | 210 |
| EngineerHeight | 260 |
| EngineerDepth | 135 |
| Name | FUSE BASE ENCLOSURE 160A l/l 1X3 A LM |
|---|---|
| E-number | E2392912 |
| Article number | 2392912 |
