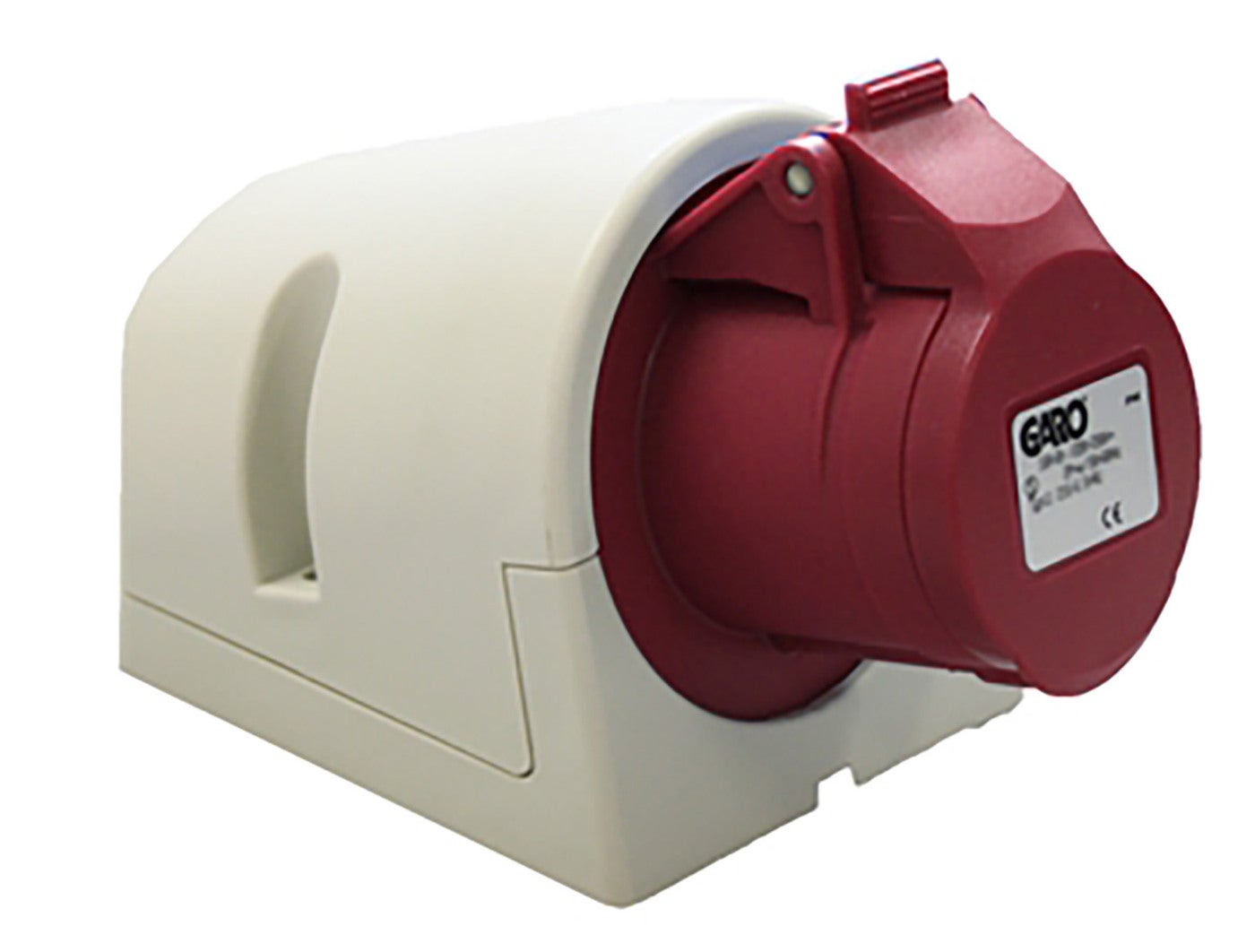

SOCKET WALL 5P 16A 6h Q

Sockets wall Quick 16A IP44

Sockets wall Quick 16A IP44 Wall socket with quick connection 5-poles 16A 6h
E-number
E2425500
Article number
2425500
Support
Frequency [Hz] 50/60Hz
Housing material Plastic
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Quick
Clock hour position [h] 6h
Wire solid [mm²] 1-4mm²
Degree of protection [IP] IP44
Name SOCKET WALL 5P 16A 6h Q
E-number E2425500
Article number 2425500
Type designation UI 416-6 Q+RU
Rated voltage [V AC] 230/400V AC
Number of poles 5/3P+N+E
RAL-number RAL3000

More variants of Sockets wall Quick 16A IP44

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number

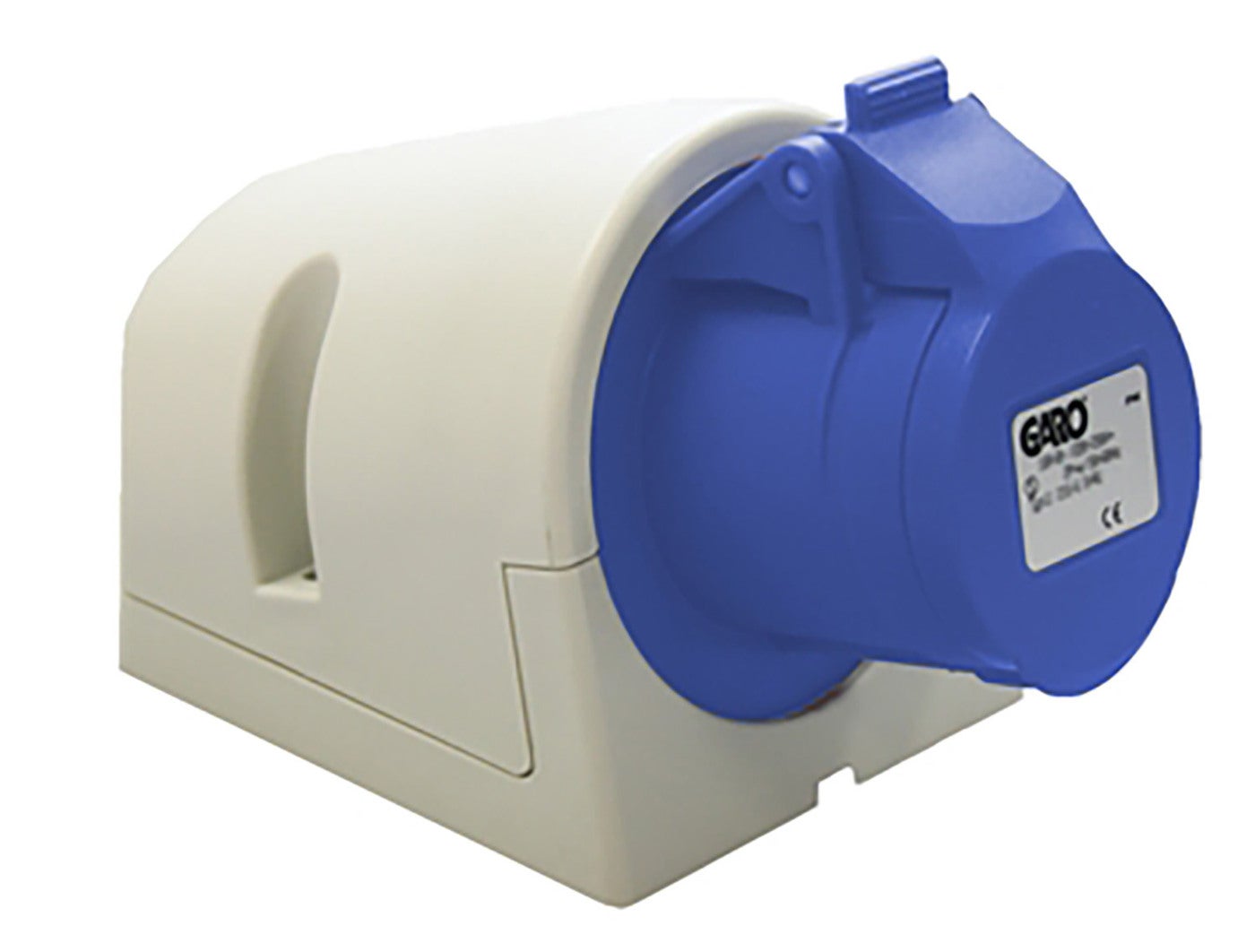

SOCKET WALL 3P 16A 6h Q E2425484 2425484 UI 216-6 Q+RU Blue 200-250V AC 3/2P+E RAL5017
SOCKET WALL 4P 16A 6h Q E2425491 2425491 UI 316-6 Q+RU Red 400V AC 4/3P+E RAL3000
SOCKET WALL 5P 16A 6h Q E2425500 2425500 UI 416-6 Q+RU 230/400V AC 5/3P+N+E RAL3000
