Sockets wall Basic Schuko Terminal 32A IP44

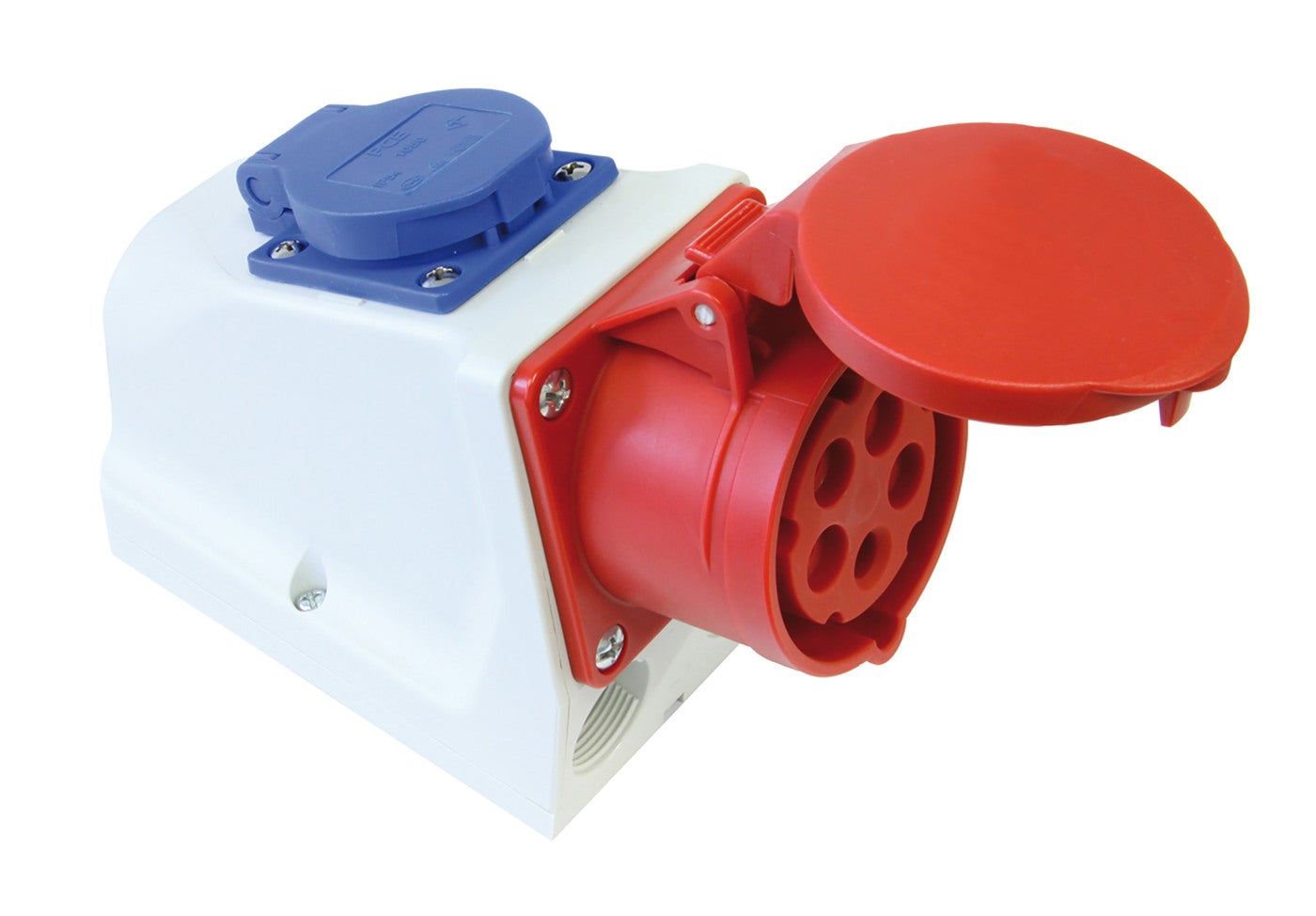

Sockets wall Basic Schuko Terminal 32A IP44 Wall socket basic with schuko-plint 5-poles 32A 6h. Delivered with mounted terminal 5x10mm².Protected by 10A slow fuse.
E-number
E2416025
E2416025
Article number
2416025
2416025
| Type designation | UI 432-6 S+RU/UIF-P |
|---|---|
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Red |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| Wire flexible [mm²] | 2,5-6mm² |
| Modelltype | Basic |
| RAL-number | RAL3000 |
| Clock hour position [h] | 6h |
| Wire solid [mm²] | 2,5-10mm² |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 0.54 |
| EngineerWidth | 80 |
| EngineerHeight | 188 |
| EngineerDepth | 139 |
| Name | WALLSOCKET W SCH GB 3P 16A 6H |
|---|---|
| E-number | E2416025 |
| Article number | 2416025 |
