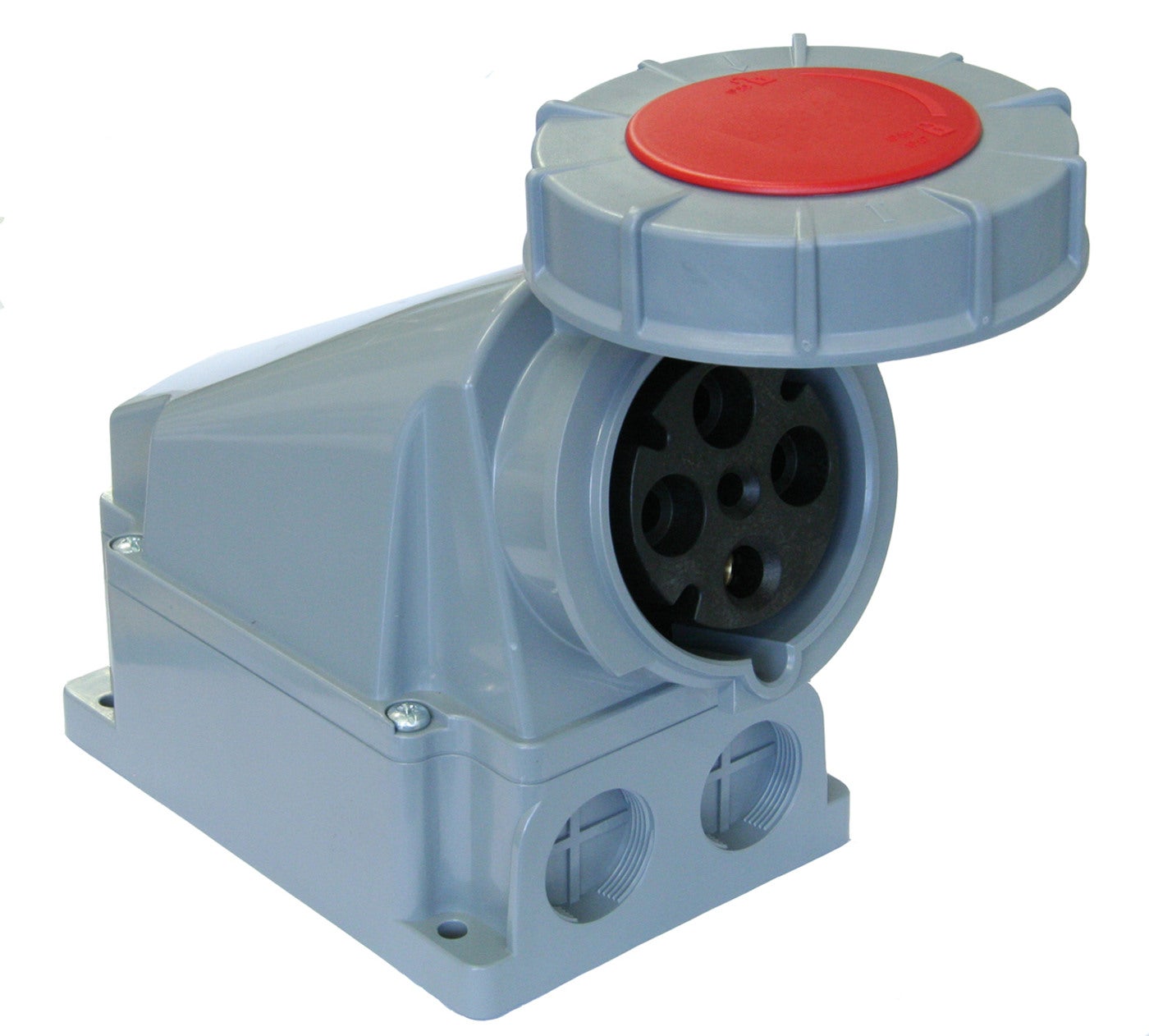

  • WALLSOCKET 5P 63A 6h WT - 2

Sockets wall Basic 63A IP67

Sockets wall Basic 63A IP67 Wallsocket basic 5-poles 63A 6h watertight
E-number
E2424872
Article number
2424872
Support
Housing material Plastic
Wire flexible [mm²] 6-16mm²
Modelltype Basic
Degree of protection [IP] IP67
Name WALLSOCKET 5P 63A 6h WT
E-number E2424872
Article number 2424872
Type designation UIV 463-6 S+RU
Frequency [Hz] 50/60Hz
Color Red
Rated current [A] 63A
Rated voltage [V AC] 230/400V AC
Number of poles 5/3P+N+E
Lock 0
RAL-number RAL3000
Clock hour position [h] 6h
Wire solid [mm²] 6-25mm²
NetProductWeight 0.98
EngineerWidth 190
EngineerHeight 225
EngineerDepth 290

More variants of Sockets wall Basic 63A IP67

WALLSOCKET 3P 63A 4h WT
WALLSOCKET 3P 63A 4h WT
E-number
E2424861
Article number
2424861
Type designation
Frequency [Hz]
50/60Hz
Color
Yellow
Rated current [A]
63A
Rated voltage [V AC]
100-130V AC
Number of poles
3/2P+E
Lock
0
RAL-number
RAL1023
Clock hour position [h]
4h
Wire solid [mm²]
6-25mm²
WALLSOCKET 3P 63A 6h WT
WALLSOCKET 3P 63A 6h WT
E-number
E2424862
Article number
2424862
Type designation
UIV 263-6 S+RU
Frequency [Hz]
50/60Hz
Color
Blue
Rated current [A]
63A
Rated voltage [V AC]
200-250V AC
Number of poles
3/2P+E
Lock
0
RAL-number
RAL5017
Clock hour position [h]
6h
Wire solid [mm²]
6-25mm²
NetProductWeight
0.86
EngineerWidth
190
EngineerHeight
225
EngineerDepth
290
WALLSOCKET 3P 63A 9h WT
WALLSOCKET 3P 63A 9h WT
E-number
E2424863
Article number
2424863
Type designation
Frequency [Hz]
50/60Hz
Color
Red
Rated current [A]
63A
Rated voltage [V AC]
380-415V AC
Number of poles
3/2P+E
Clock hour position [h]
6h
Wire solid [mm²]
6-25mm²
WALLSOCKET 4P 63A 6h WT
WALLSOCKET 4P 63A 6h WT
E-number
E2424866
Article number
2424866
Type designation
UIV 363-6 S+RU
Frequency [Hz]
50/60Hz
Color
Red
Rated current [A]
63A
Rated voltage [V AC]
400V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
6h
Wire solid [mm²]
16-70mm²
NetProductWeight
0.92
EngineerWidth
190
EngineerHeight
225
EngineerDepth
290
WALL SOCKET 4P 63A 7h WT
WALL SOCKET 4P 63A 7h WT
E-number
E2424867
Article number
2424867
Type designation
Frequency [Hz]
50/60Hz
Color
Black
Rated voltage [V AC]
480-500V AC
Number of poles
4/3P+E
Lock
0
RAL-number
RAL9005
Clock hour position [h]
7h
Wire solid [mm²]
6-25mm²
WALL SOCKET 5P 63A 4h WT
WALL SOCKET 5P 63A 4h WT
E-number
E2424871
Article number
2424871
Type designation
Frequency [Hz]
50/60Hz
Color
Yellow
Rated current [A]
63A
Rated voltage [V AC]
100-130V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL1023
Clock hour position [h]
4h
Wire solid [mm²]
6-25mm²
WALLSOCKET 5P 63A 6h WT
WALLSOCKET 5P 63A 6h WT
E-number
E2424872
Article number
2424872
Type designation
UIV 463-6 S+RU
Frequency [Hz]
50/60Hz
Color
Red
Rated current [A]
63A
Rated voltage [V AC]
230/400V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
6h
Wire solid [mm²]
6-25mm²
NetProductWeight
0.98
EngineerWidth
190
EngineerHeight
225
EngineerDepth
290
WALLSOCKET 5P 63A 9h WT
WALLSOCKET 5P 63A 9h WT
E-number
E2424873
Article number
2424873
Type designation
Frequency [Hz]
50/60Hz
Color
Blue
Rated current [A]
63A
Rated voltage [V AC]
208-250V AC
Number of poles
5/3P+N+E
RAL-number
RAL5017
Clock hour position [h]
9h
Wire solid [mm²]
6-25mm²
WALLSOCKET 5P 63A 11h WT
WALLSOCKET 5P 63A 11h WT
E-number
E2424874
Article number
2424874
Type designation
Frequency [Hz]
60Hz
Color
Red
Rated current [A]
63A
Rated voltage [V AC]
440-460V AC
Number of poles
5/3P+N+E
Lock
0
RAL-number
RAL3000
Clock hour position [h]
11h
Wire solid [mm²]
6-25mm²

More variants of Sockets wall Basic 63A IP67

E-number Article number Type designation Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of poles Lock RAL-number Clock hour position [h] Wire solid [mm²] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
WALLSOCKET 3P 63A 4h WT E2424861 2424861 50/60Hz Yellow 63A 100-130V AC 3/2P+E 0 RAL1023 4h 6-25mm²
WALLSOCKET 3P 63A 6h WT E2424862 2424862 UIV 263-6 S+RU 50/60Hz Blue 63A 200-250V AC 3/2P+E 0 RAL5017 6h 6-25mm² 0.86 190 225 290
WALLSOCKET 3P 63A 9h WT E2424863 2424863 50/60Hz Red 63A 380-415V AC 3/2P+E 6h 6-25mm²
WALLSOCKET 4P 63A 6h WT E2424866 2424866 UIV 363-6 S+RU 50/60Hz Red 63A 400V AC 4/3P+E 0 RAL3000 6h 16-70mm² 0.92 190 225 290
WALL SOCKET 4P 63A 7h WT E2424867 2424867 50/60Hz Black 480-500V AC 4/3P+E 0 RAL9005 7h 6-25mm²
WALL SOCKET 5P 63A 4h WT E2424871 2424871 50/60Hz Yellow 63A 100-130V AC 5/3P+N+E 0 RAL1023 4h 6-25mm²
WALLSOCKET 5P 63A 6h WT E2424872 2424872 UIV 463-6 S+RU 50/60Hz Red 63A 230/400V AC 5/3P+N+E 0 RAL3000 6h 6-25mm² 0.98 190 225 290
WALLSOCKET 5P 63A 9h WT E2424873 2424873 50/60Hz Blue 63A 208-250V AC 5/3P+N+E RAL5017 9h 6-25mm²
WALLSOCKET 5P 63A 11h WT E2424874 2424874 60Hz Red 63A 440-460V AC 5/3P+N+E 0 RAL3000 11h 6-25mm²
