• WALLSOCKET 4P 125A 6h WT - 1

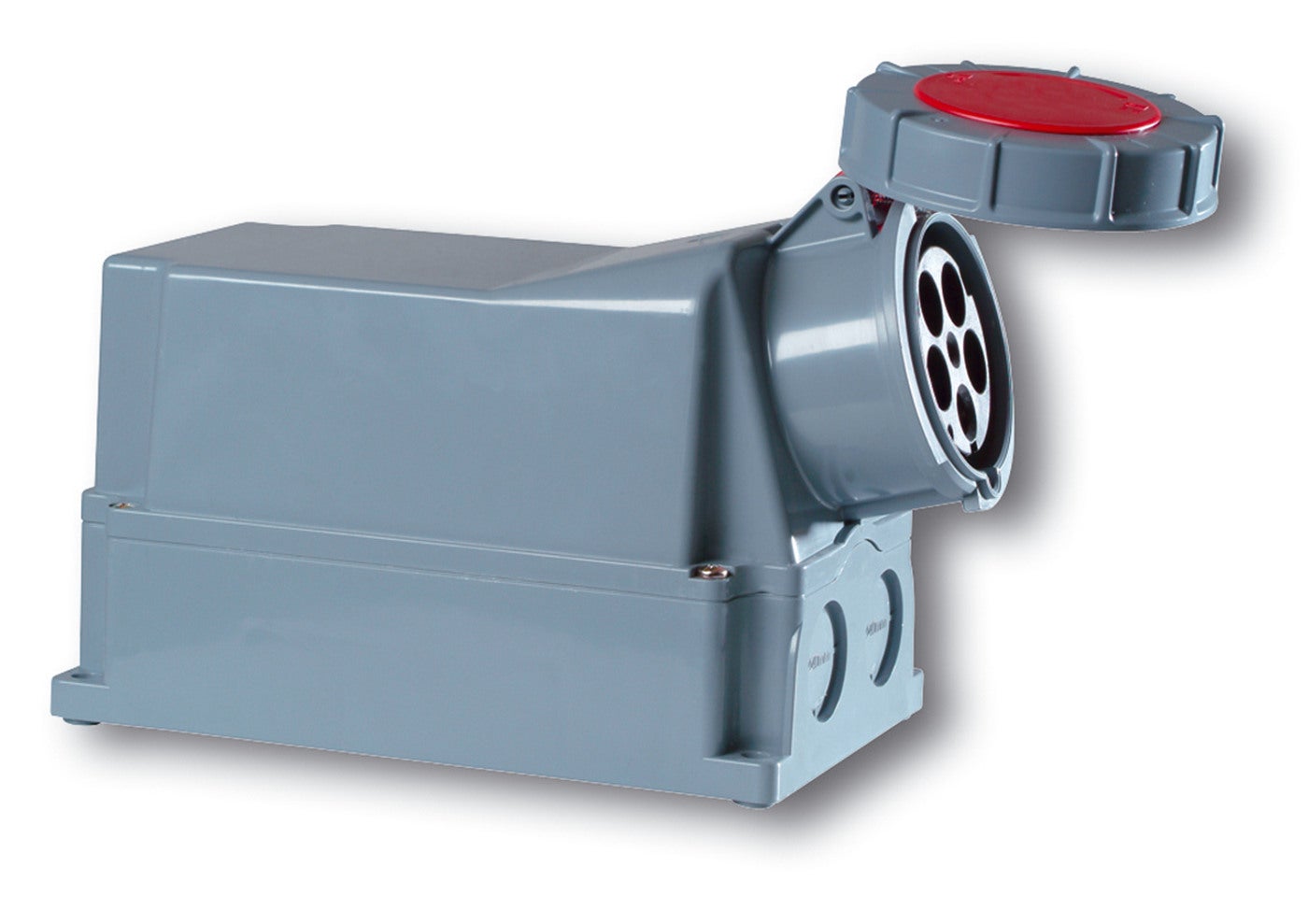

  • WALLSOCKET 4P 125A 6h WT - 2

Sockets wall Basic 125A IP67

Sockets wall Basic 125A IP67 Wallsocket basic 4-poles 125A 6h watertight
E-number
E2424880
Article number
2424880
Support
Housing material Plastic
Rated current [A] 125A
Wire flexible [mm²] 16-50mm²
Modelltype Basic
Degree of protection [IP] IP67
Name WALLSOCKET 4P 125A 6h WT
E-number E2424880
Article number 2424880
Type designation UIV 3125-6 S+RU
Frequency [Hz] 50/60Hz
Color Red
Rated voltage [V AC] 400V AC
Number of poles 4/3P+E
RAL-number RAL3000
Clock hour position [h] 6h
Wire solid [mm²] 6-70mm²
NetProductWeight 1.79
EngineerWidth 260
EngineerHeight 170
EngineerDepth 330

More variants of Sockets wall Basic 125A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] Wire solid [mm²] NetProductWeight EngineerWidth EngineerHeight EngineerDepth

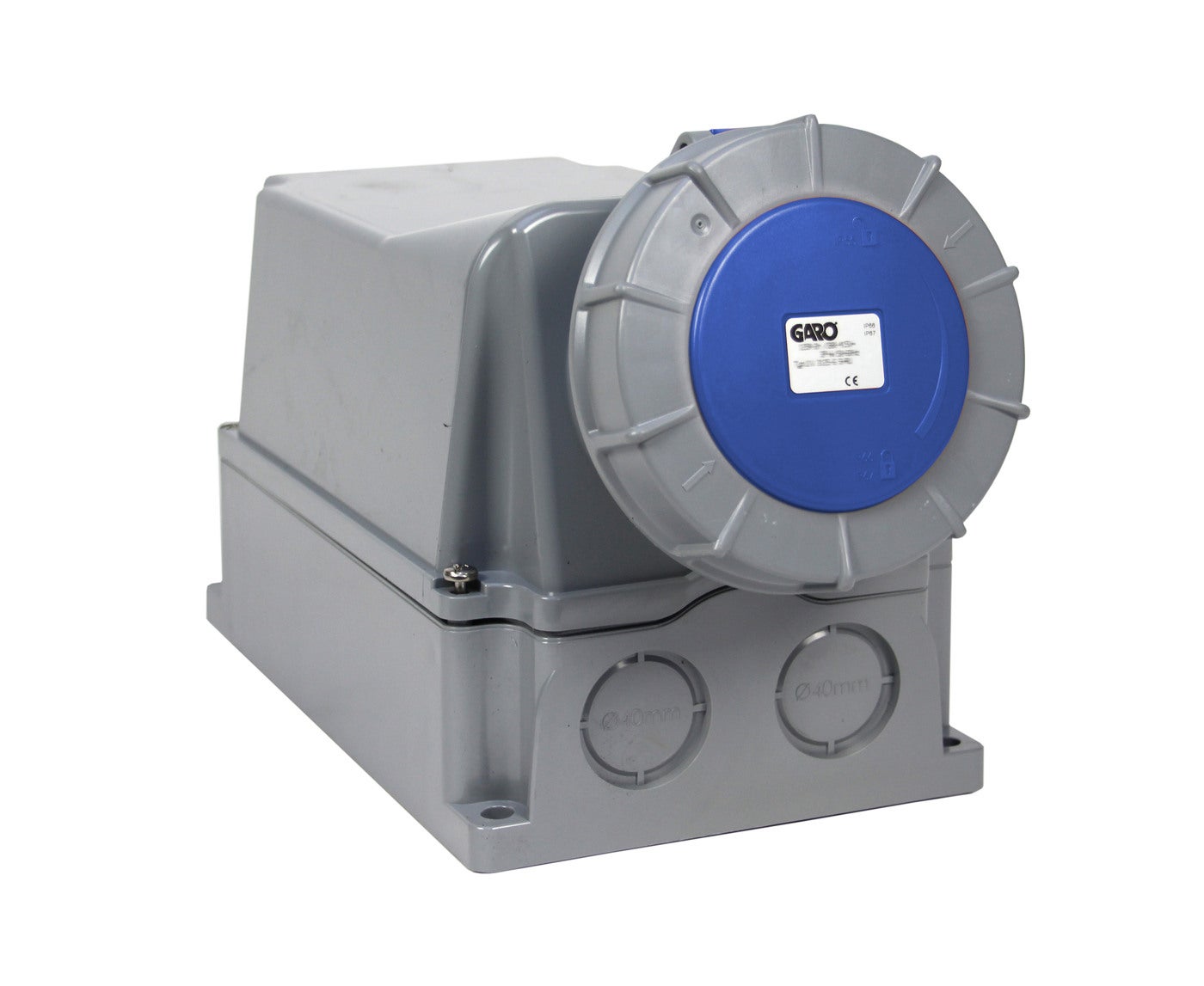

WALLSOCKET 3P 125A 6h WT E2424876 2424876 UIV 2125-6 S+RU 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 16-70mm² 1.7 260 170 330
WALLSOCKET 4P 125A 6h WT E2424880 2424880 UIV 3125-6 S+RU 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 6-70mm² 1.79 260 170 330
WALLSOCKET 4P 125A 11h WT E2424884 2424884 UIV 3125-11 S+RU 60Hz Red 440-460V AC 4/3P+E RAL3000 11h 16-70mm²
WALLSOCKET WT 5P 125A 6h E2424886 2424886 UIV 4125-6 S + RU 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 16-70mm² 2.1 230 170 330
WALLSOCKET 5P 125A 11h WT E2424888 2424888 UIV 4125-11 S+RU 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h 16-70mm²
