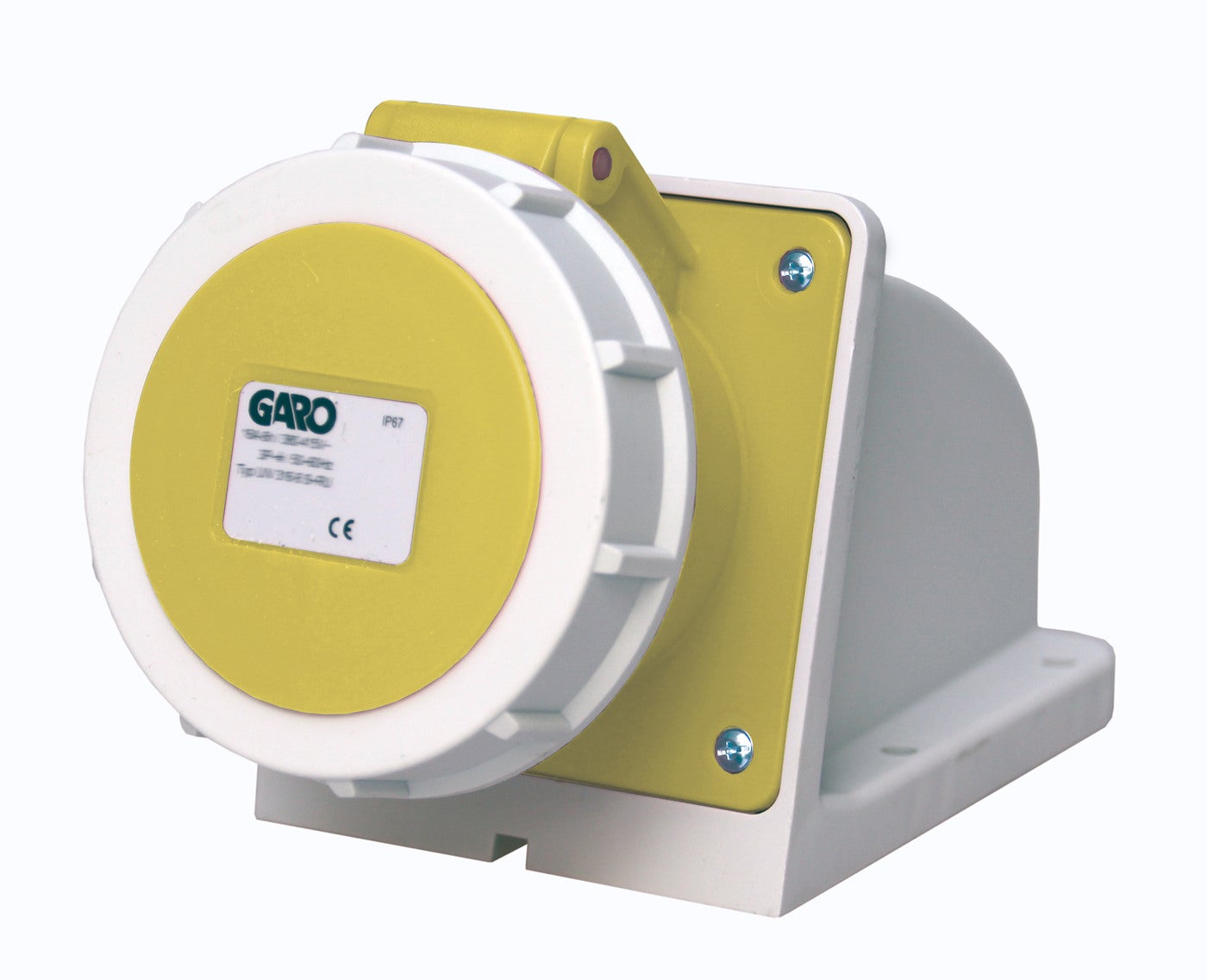

WALLSOCKET 3P 16A 4h WT

Sockets wall Basic 16A IP67

Sockets wall Basic 16A IP67 Wall socket basic 3-poles 16A 4h watertight
E-number
E2424832
Article number
2424832
Support
Housing material Plastic
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Basic
Wire solid [mm²] 1-4mm²
Degree of protection [IP] IP67
Name WALLSOCKET 3P 16A 4h WT
E-number E2424832
Article number 2424832
Type designation UIV 216-4 S+RU
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
RAL-number RAL1023
Clock hour position [h] 4h

More variants of Sockets wall Basic 16A IP67

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
WALLSOCKET 3P 16A 4h WT E2424832 2424832 UIV 216-4 S+RU 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h
WALLSOCKET 3P 16A 6h WT E2424833 2424833 UIV 216-6 S+RU 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.23 190 170 290
WALLSOCKET 3P 16A 9h WT E2424834 2424834 UIV 216-9 S+RU 50/60Hz Red 380-415V AC 3/2P+E 9h

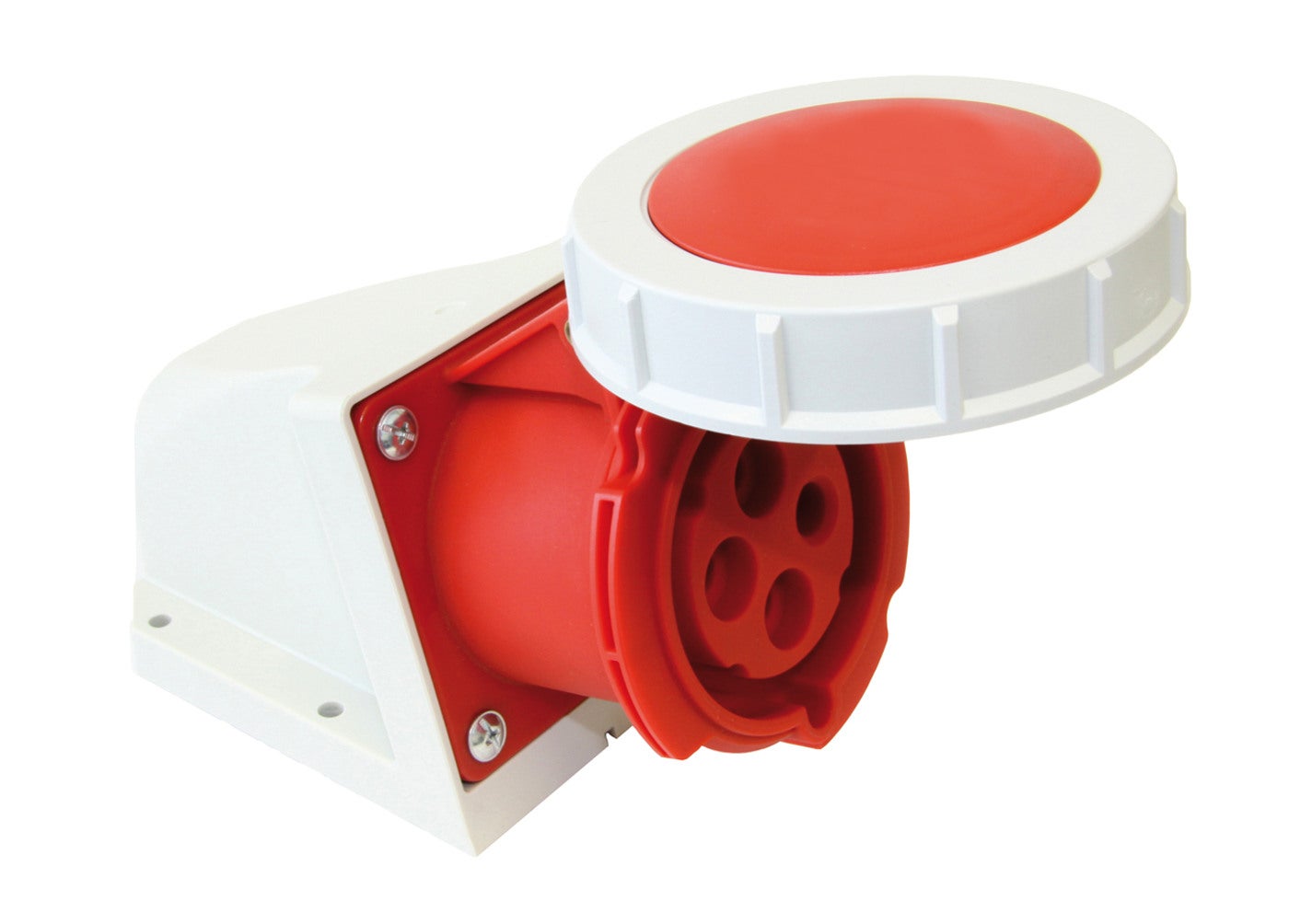

WALLSOCKET 4P 16A 6h WT E2424837 2424837 UIV 316-6 S+RU 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 0.24 190 170 290

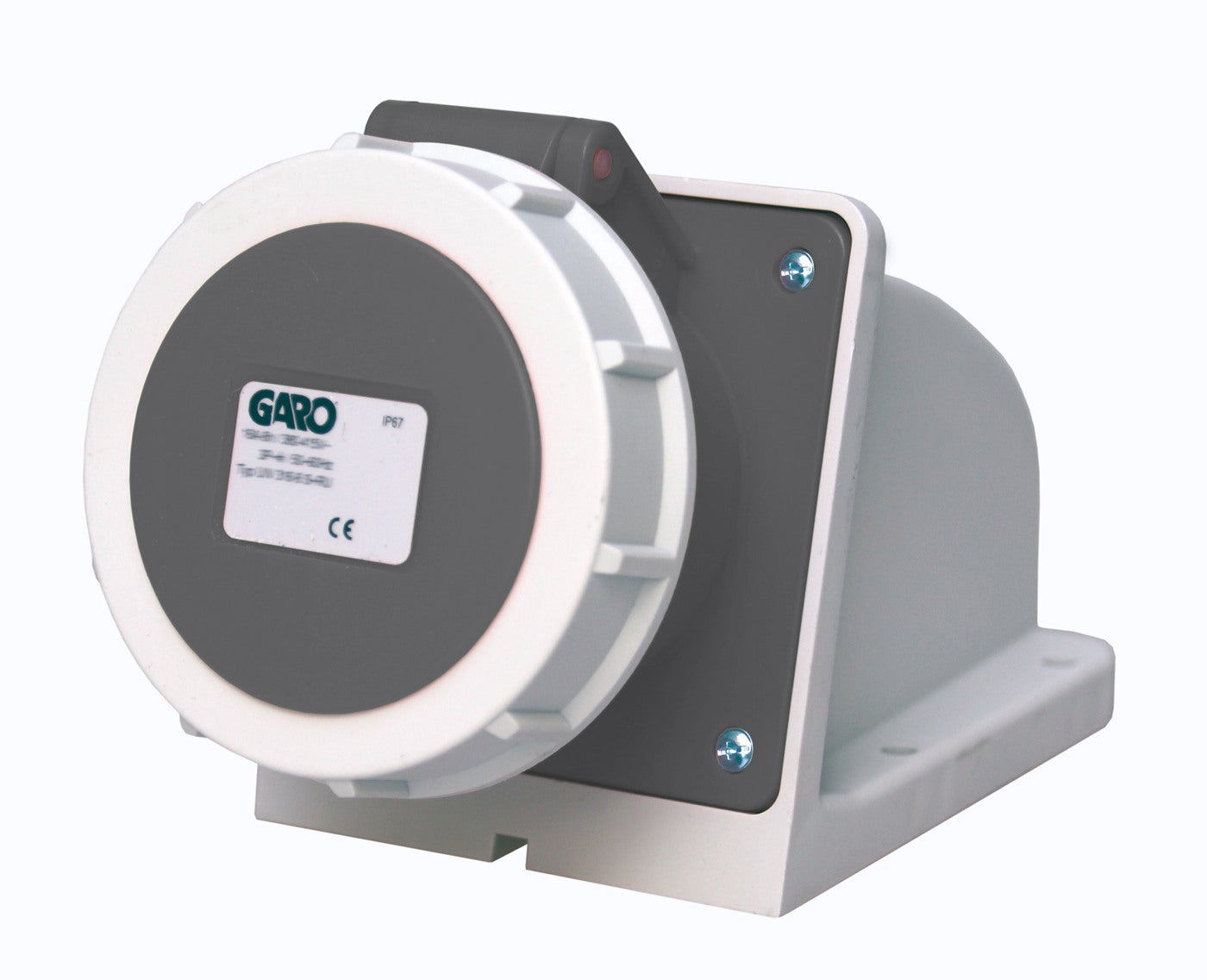

WALLSOCKET 4P 16A 7h WT E2424838 2424838 UIV 316-7 S+RU 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h
WALLSOCKET 4P 16A 9h WT E2424839 2424839 UIV 316-9 S+RU 50/60Hz Blue 230V AC 4/3P+E RAL5017 6h

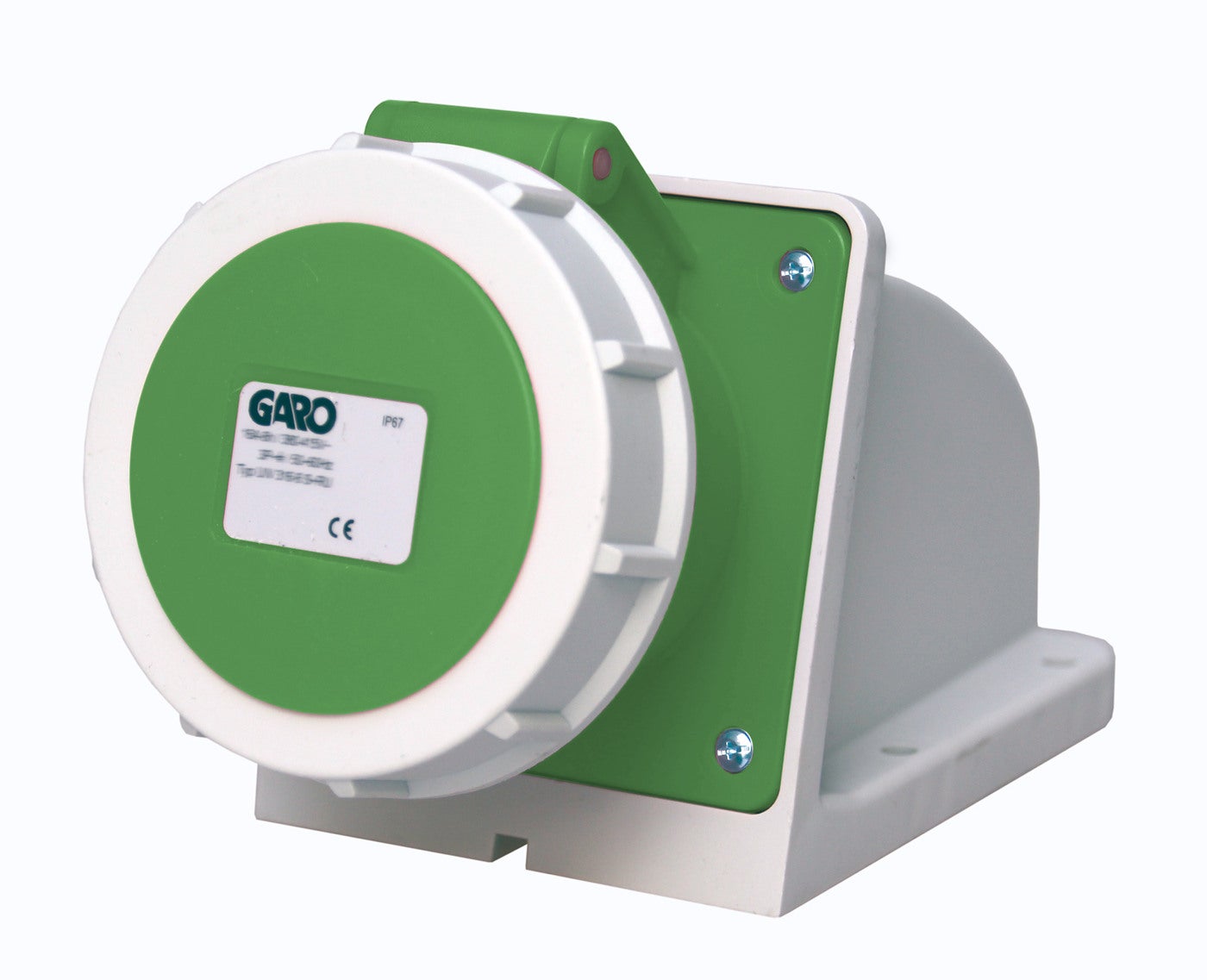

WALLSOCKET 4P 16A 10h WT E2424840 2424840 UIV 316-10 S+RU 100-300Hz Green >50V AC 4/3P+E RAL6010 10h
WALLSOCKET 4P 16A 11h WT E2424841 2424841 UIV 316-11 S+RU 60Hz Red 440-460V AC 4/3P+E RAL3000 11h
WALLSOCKET 5P 16A 4h WT E2424842 2424842 UIV 416-4 S+RU 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h
WALLSOCKET 5P 16A 6h WT E2424843 2424843 UIV 416-6 S+RU 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 0.28 190 170 290
