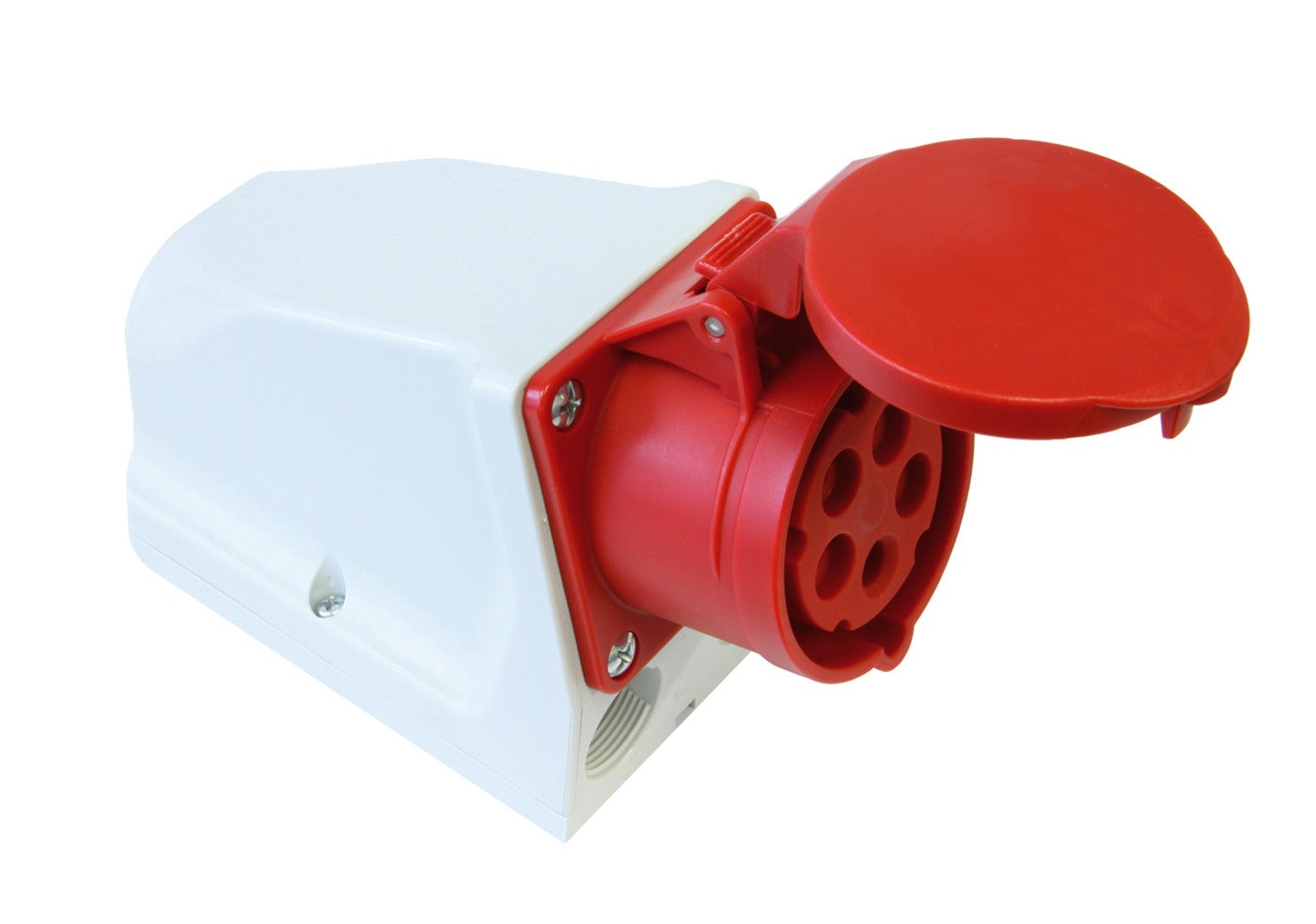

Sockets wall Basic further feed 16A IP44
Basic, our standard range with a screw function. Socket 16A for through wiring, suitable for wall mounting and engine mounting with cable connectivity from both the top and bottom. Wall socket with further feed 5-poles 16A 6h
E-number
E2424756
E2424756
Article number
2424756
2424756
| Type designation | UI 416-6 S+RUV |
|---|---|
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Red |
| Rated current [A] | 16A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| Wire flexible [mm²] | 1-2,5mm² |
| Modelltype | Basic |
| RAL-number | RAL3000 |
| Clock hour position [h] | 6h |
| Wire solid [mm²] | 1-4mm² |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 0.32 |
| EngineerWidth | 190 |
| EngineerHeight | 225 |
| EngineerDepth | 290 |
| Name | WALLSOCKET 5P 16A 6h FF |
|---|---|
| E-number | E2424756 |
| Article number | 2424756 |
