WALLSOCKET 4P 16A 10h

Sockets wallmounting 16A IP44

Basic, our standard range with a screw function. Wall socket 32A in waterproof design, suitable for wall mounting and engine mounting with cable connectivity from the bottom. Wallsocket basic 4-poles 16A 10h
E-number
E2424784
Article number
2424784
Support
Housing material Plastic
Rated current [A] 16A
Wire flexible [mm²] 1-2,5mm²
Modelltype Basic
Wire solid [mm²] 1-4mm²
Degree of protection [IP] IP44
Name WALLSOCKET 4P 16A 10h
E-number E2424784
Article number 2424784
Type designation UI 316-10 S+RU
Frequency [Hz] 100-300Hz
Color Green
Rated voltage [V AC] >50V AC
Number of poles 4/3P+E
RAL-number RAL6010
Clock hour position [h] 10h

More variants of Sockets wallmounting 16A IP44

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
WALLSOCKET 3P 16A 2h E2424770 2424770 UI 216-2 S+RU 300-500Hz Green >50V AC 3/2P+E RAL6010 2h
WALLSOCKET 3P 16A 3h E2424771 2424771 UI 216-3 S+RU DC Grey >50-250V AC 3/2P+E RAL7046 3h

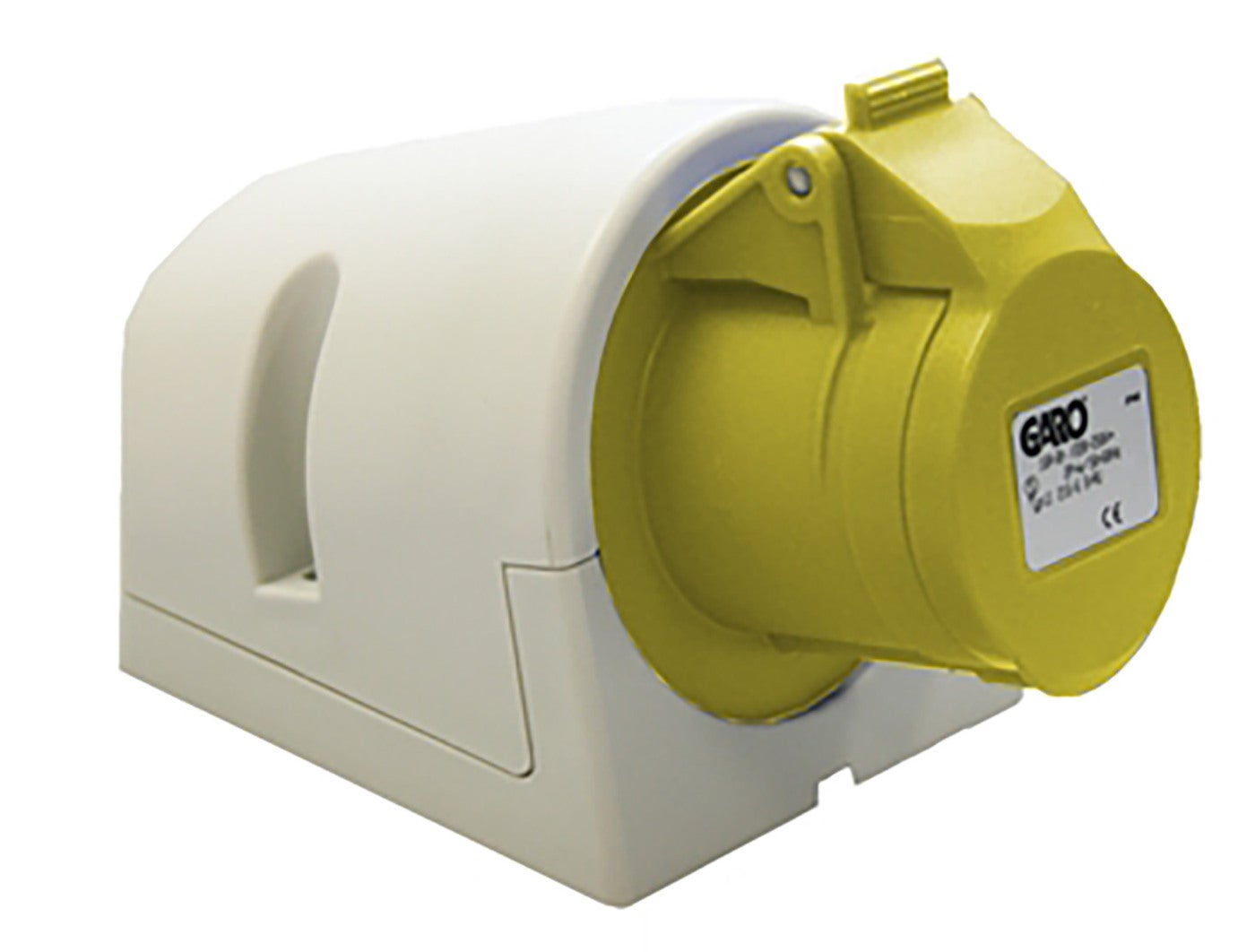

WALLSOCKET 3P 16A 4h E2424772 2424772 UI 216-4 S+RU 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h
WALLSOCKET 3P 16A 5h E2424773 2424773 UI 216-5 S+RU 60Hz Grey 277V AC 3/2P+E RAL7046 5h
WALLSOCKET 3P 16A 6h E2424774 2424774 UI 216-6 S +RU 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 0.22 260 170 330

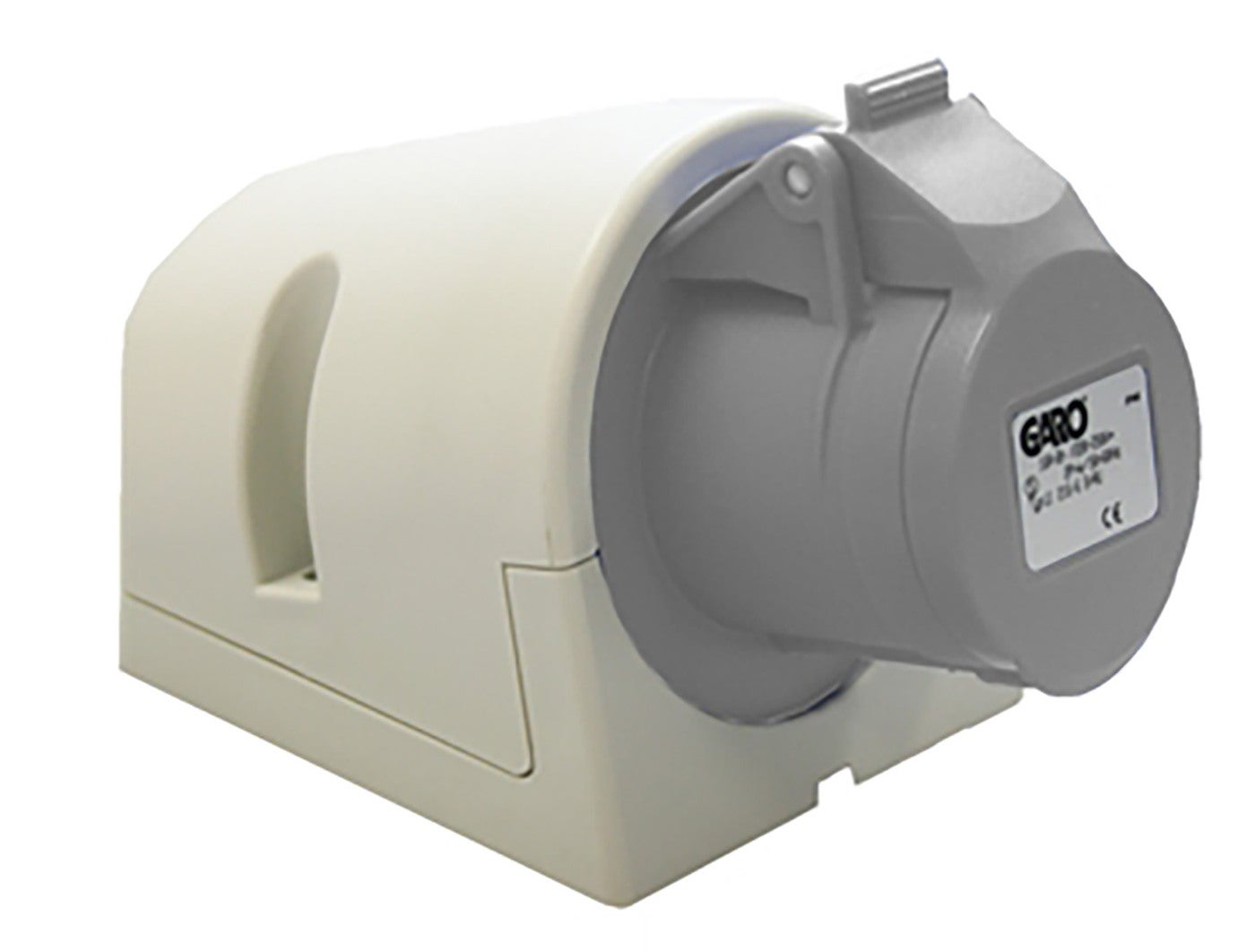

WALLSOCKET 3P 16A 12h E2424776 2424776 UI 216-12 S+RU 50/60Hz Grey After isolating transformerb 3/2P+E RAL7046 12h

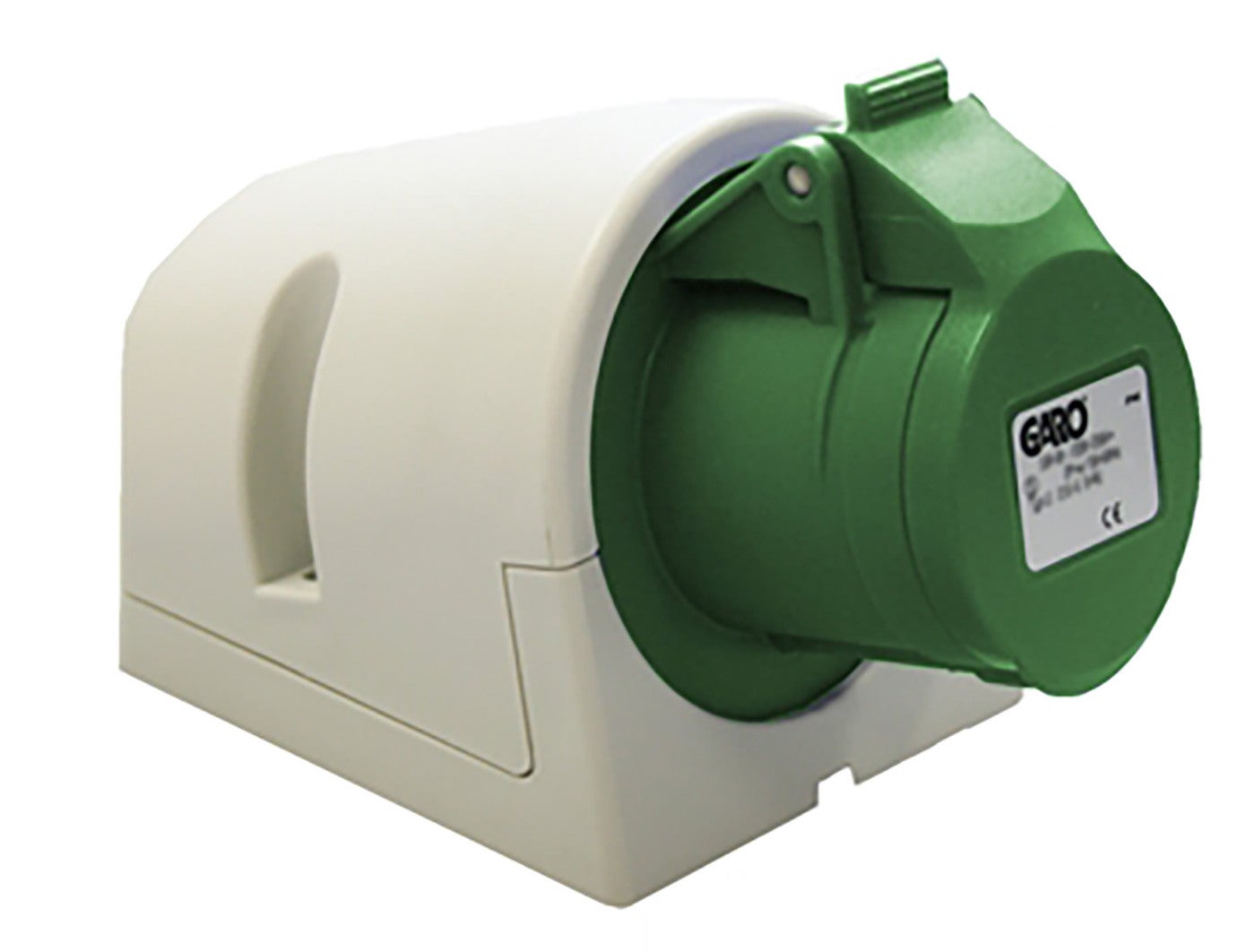

WALLSOCKET 4P 16A 2h E2424777 2424777 UI 316-2 S+RU 300-500Hz Green >50V AC 4/3P+E RAL3000 2h
WALLSOCKET 4P 16A 3h E2424778 2424778 UI 316-3 S+RU 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h
WALLSOCKET 4P 16A 4h 2424779 2424779 UI 316-4 S+RU 50/60Hz Yellow 100-130V AC 4/3P+E RAL3000 4h
WALLSOCKET 4P 16A 6h E2424781 2424781 UI 316-6 S+RU 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 0.24 260 170 330

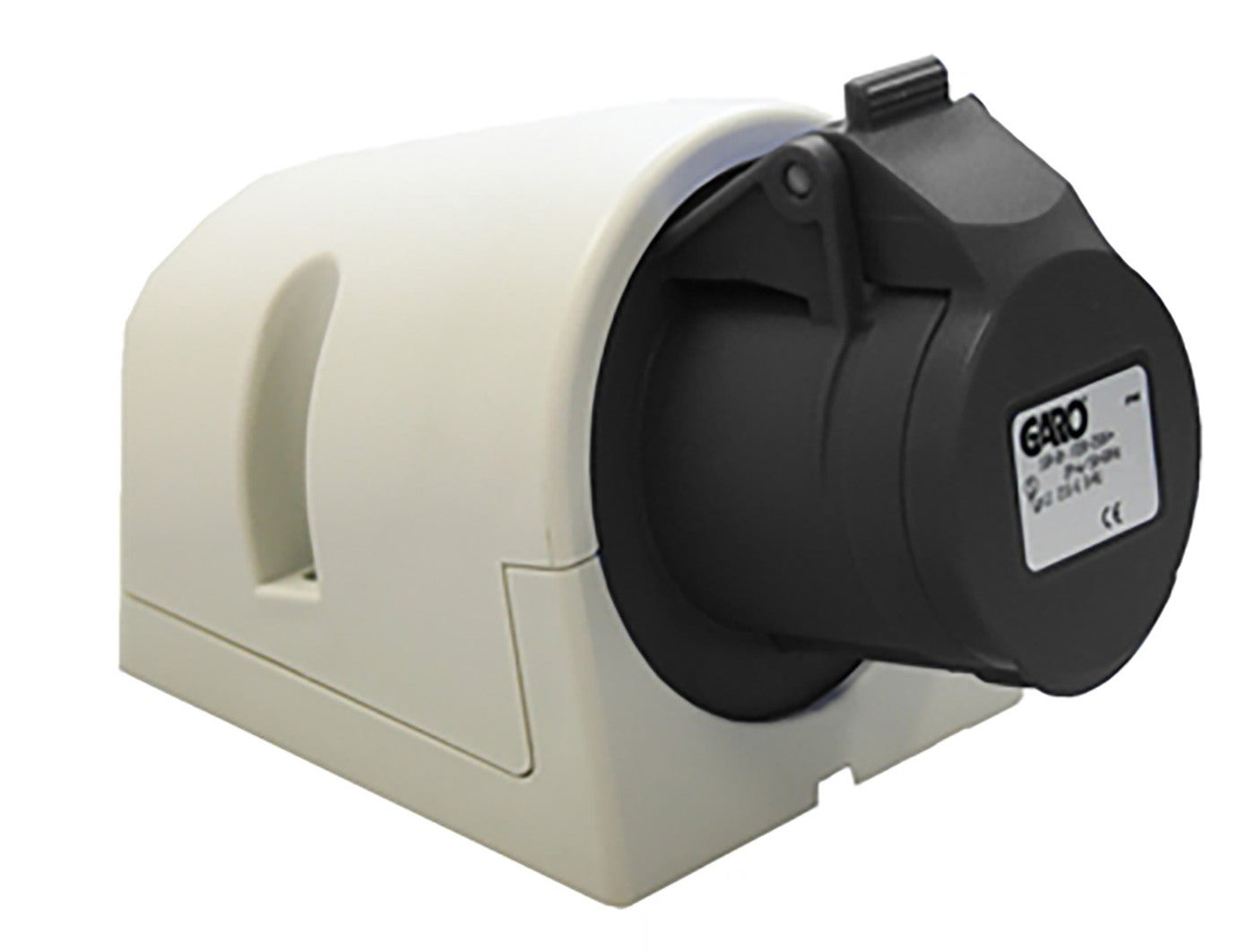

WALLSOCKET 4P 16A 7h E2424782 2424782 UI 316-7 S+RU 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h
WALLSOCKET 4P 16A 9h E2424783 2424783 UI 316-9 S+RU 50/60Hz Blue 230V AC 4/3P+E RAL5017 9h
WALLSOCKET 4P 16A 10h E2424784 2424784 UI 316-10 S+RU 100-300Hz Green >50V AC 4/3P+E RAL6010 10h
WALLSOCKET 5P 16A 3h E2424787 2424787 UI 416-3 S+RU 50-60Hz Red 380-440V AC 5/3P+N+E RAL3000 3h
WALLSOCKET 5P 16A 4h E2424788 2424788 UI 416-4 S+RU 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h
WALLSOCKET 5P 16A 5h E2424789 2424789 UI 416-5 S+RU 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 6h
WALLSOCKET 5P 16A 6h E2424790 2424790 UI 416-6 S+RU 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 0.26 85 144 104
WALLSOCKET 5P 16A 9h E2424792 2424792 UI 416-9 S+RU 50/60Hz Blue 208-250V AC 5/3P+N+E RAL5017 9h

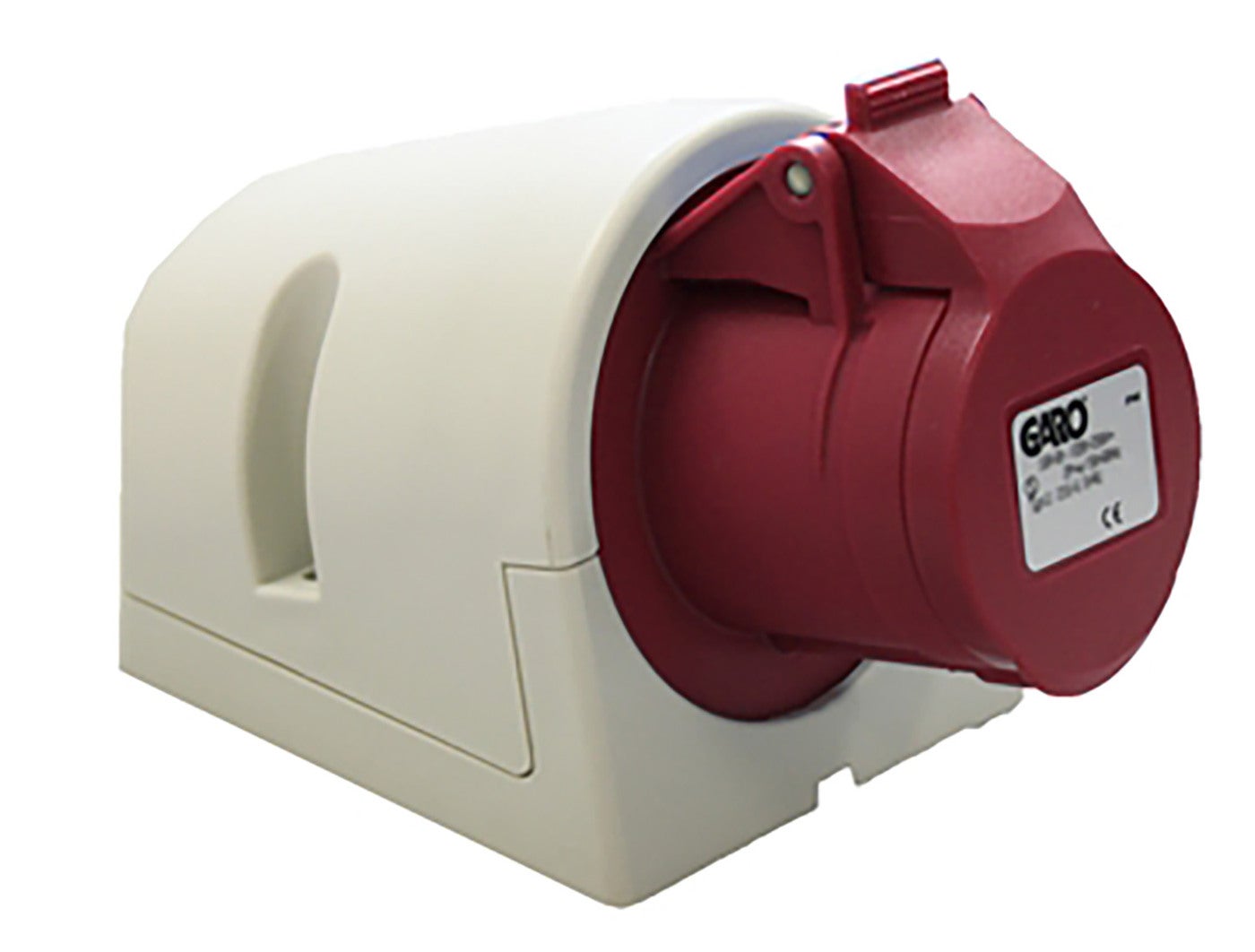

WALLSOCKET 5P 16A 11h E2424793 2424793 UI 416-11 S+RU 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h
