PLUG 5P 32A 4h Q

Plugs 32A IP44 Quick

Plug quick, our screwless range with quick connections that require no tools, just a simple push of the thumb. Plugs quick connection 5-poles 32A 4h
E-number
E2425426
Article number
2425426
Support
Materials Plastic
Rated current [A] 32A
Connection type Screwed terminal
Wire flexible [mm²] 2,5-6mm²
Modelltype Quick
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
Name PLUG 5P 32A 4h Q
E-number E2425426
Article number 2425426
Type designation P 432-4 Q
Standard EN60309-2
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 5/3P+N+E
RAL-number RAL1023
Clock hour position [h] 4h
Voltage according to EN 60309-2 400 V (50+60 Hz) red

More variants of Plugs 32A IP44 Quick

E-number Article number Type designation Standard Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] Voltage according to EN 60309-2
PLUG 3P 32A 3h Q E2425409 2425409 P 232-3 Q EN60309-2 DC Grey >50-250V AC 3/2P+E RAL7046 3h 400 V (50+60 Hz) red

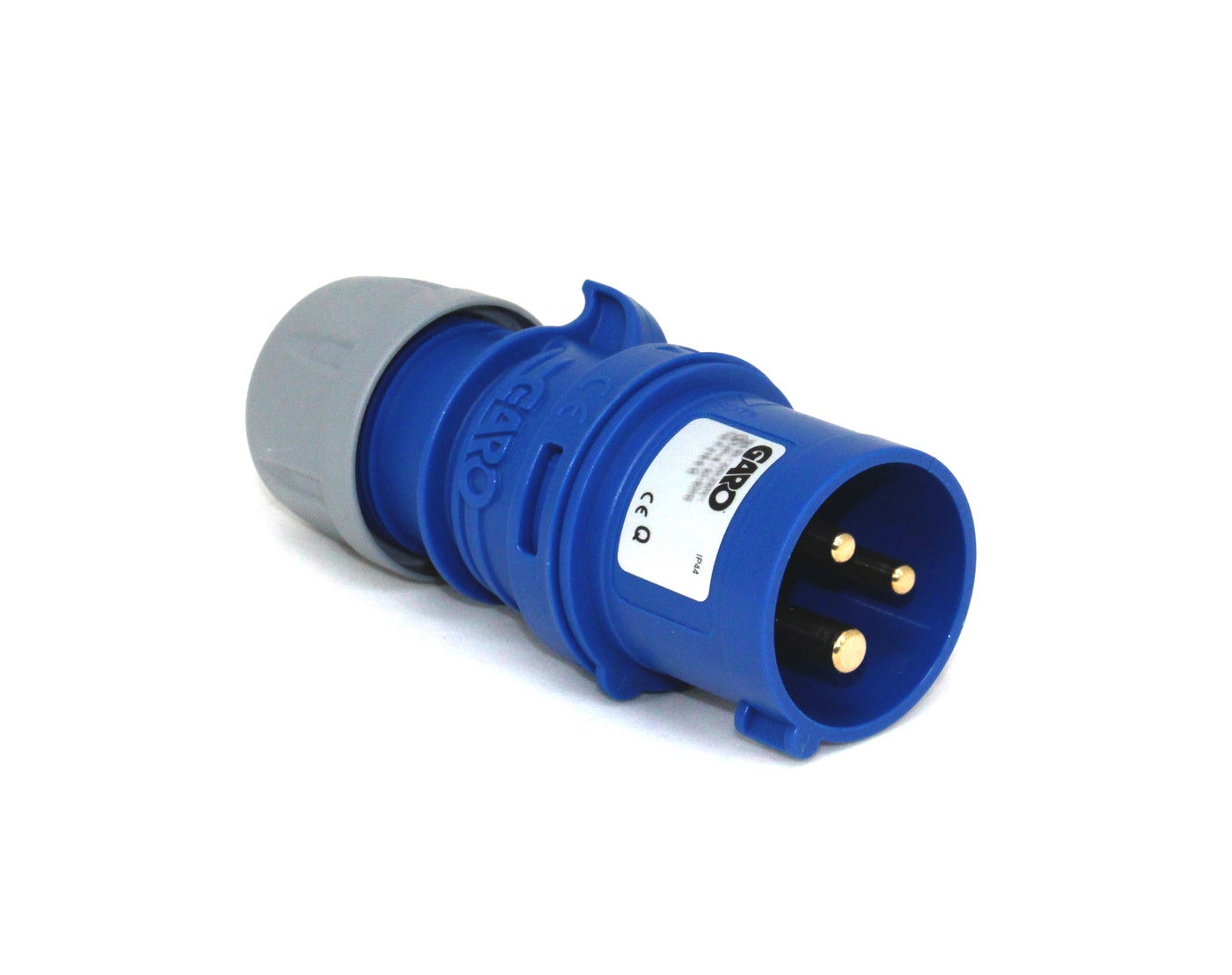

PLUG 3P 32A 6h Q E2425411 2425411 P 232-6 Q EN60309-2 50/60Hz Blue 200-250V AC 3/2P+E RAL5017 6h 400 V (50+60 Hz) red
PLUG 3P 32A 9h Q E2425413 2425413 P 232-9 Q EN60309-2 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h 400 V (50+60 Hz) red

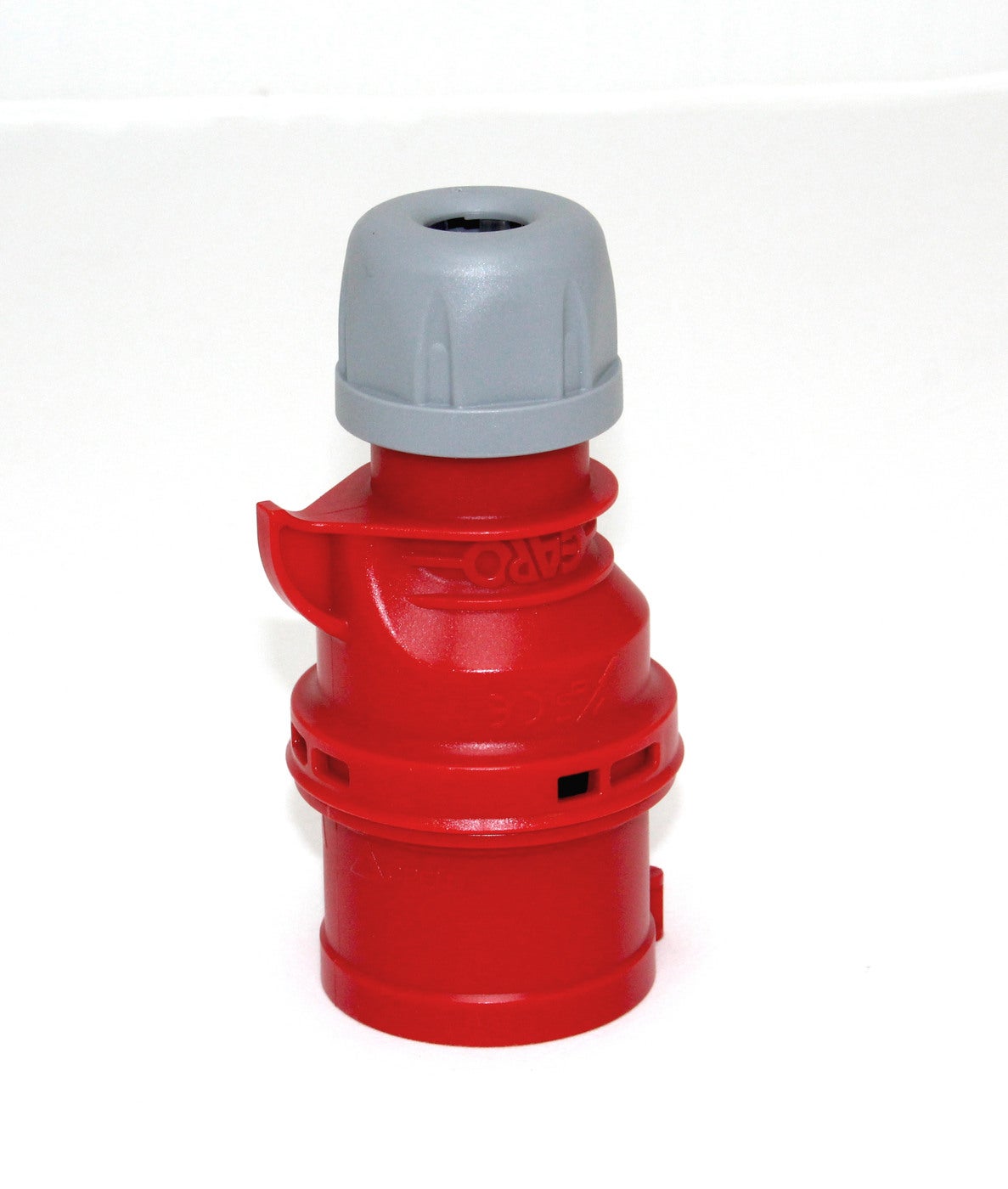

PLUG 4P 32A 3h Q E2425416 2425416 P 332-3 Q EN60309-2 50/60Hz Red 380-440V AC 4/3P+E RAL3000 3h 400 V (50+60 Hz) red

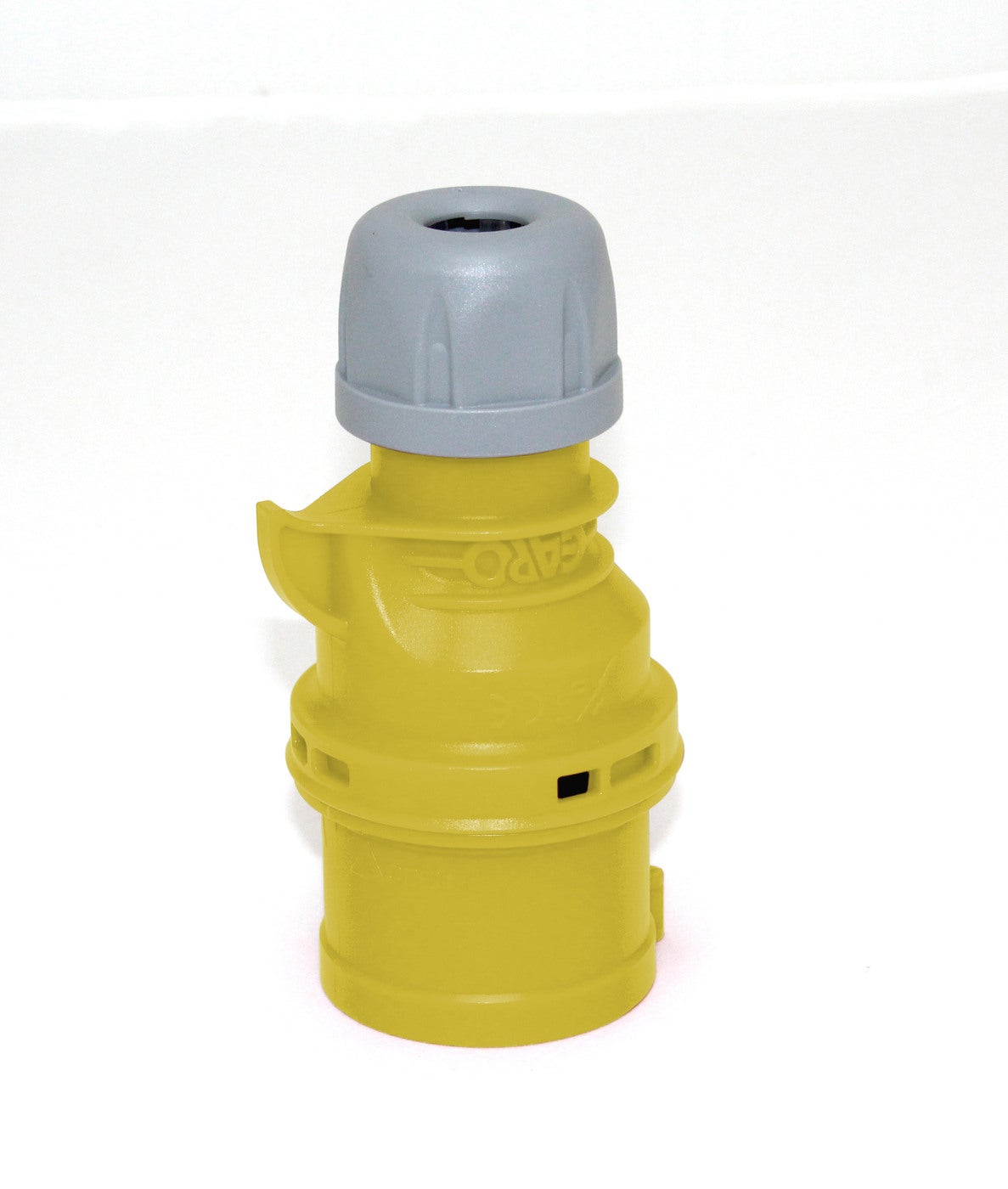

PLUG 4P 32A 4h Q E2425417 2425417 P 332-4 Q EN60309-2 50/60Hz Yellow 100-130V AC 4/3P+E RAL1023 4h 400 V (50+60 Hz) red
PLUG 4P 32A 5h QUICK E2425418 2425418 P 332-5 Q EN60309-2 50/60Hz Black 600-690V AC 4/3P+E RAL9005 5h 400 V (50+60 Hz) red

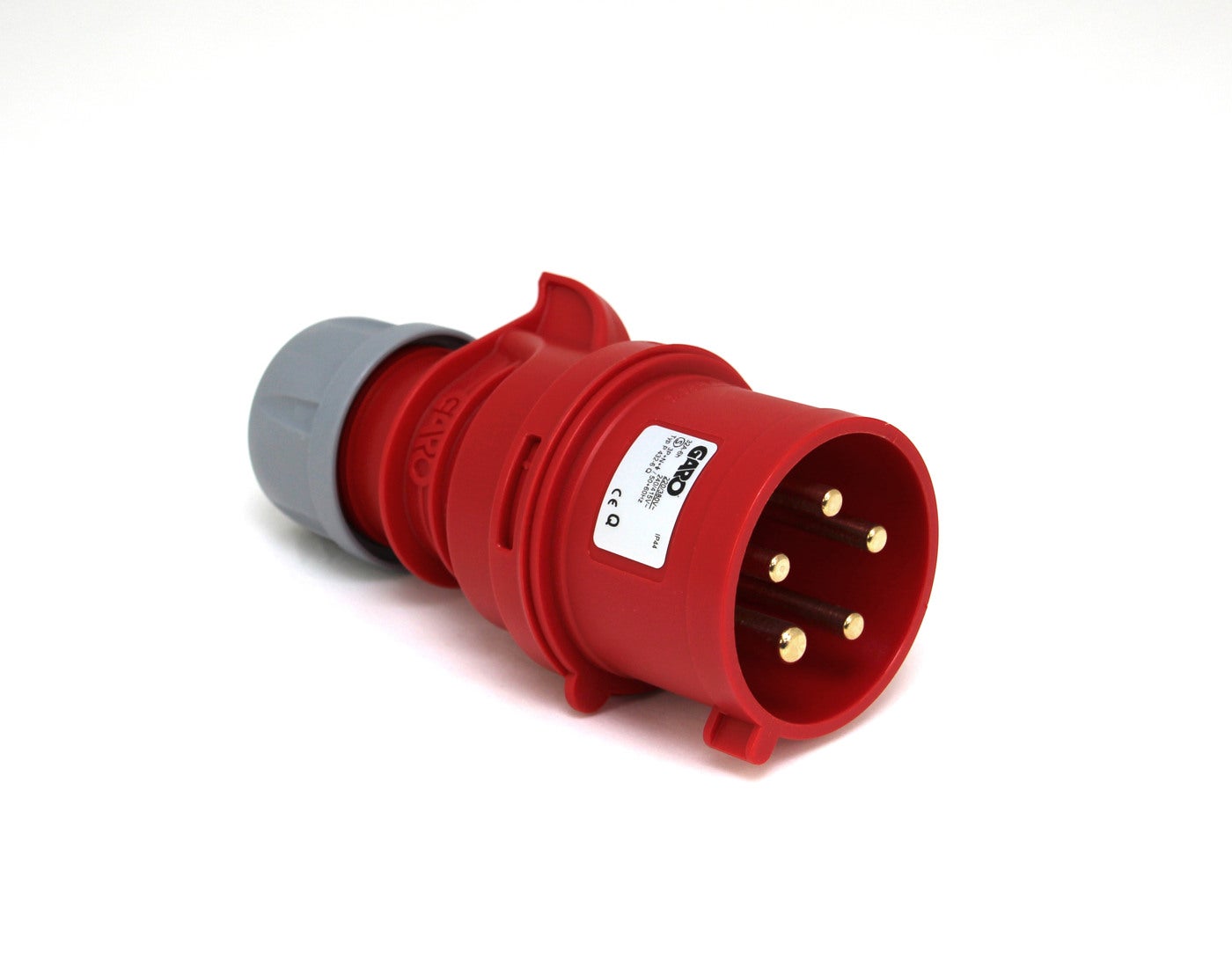

PLUG 4P 32A 6h Q E2425419 2425419 P 332-6 Q EN60309-2 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 400 V (50+60 Hz) red
PLUG 4P 32A 7h Q E2425420 2425420 P 332-7 Q EN60309-2 50/60Hz Black 480-500V AC 4/3P+E RAL9005 7h 400 V (50+60 Hz) red
PLUG 4P 32A 9h Q E2425421 2425421 P 332-9 Q EN60309-2 50/60Hz Red 230V AC 4/3P+E RAL5017 9h 400 V (50+60 Hz) red
PLUG 4P 32A 10h Q E2425422 2425422 P 332-10 Q EN60309-2 100-300Hz Green >50V AC 4/3P+E RAL6010 10h 400 V (50+60 Hz) red

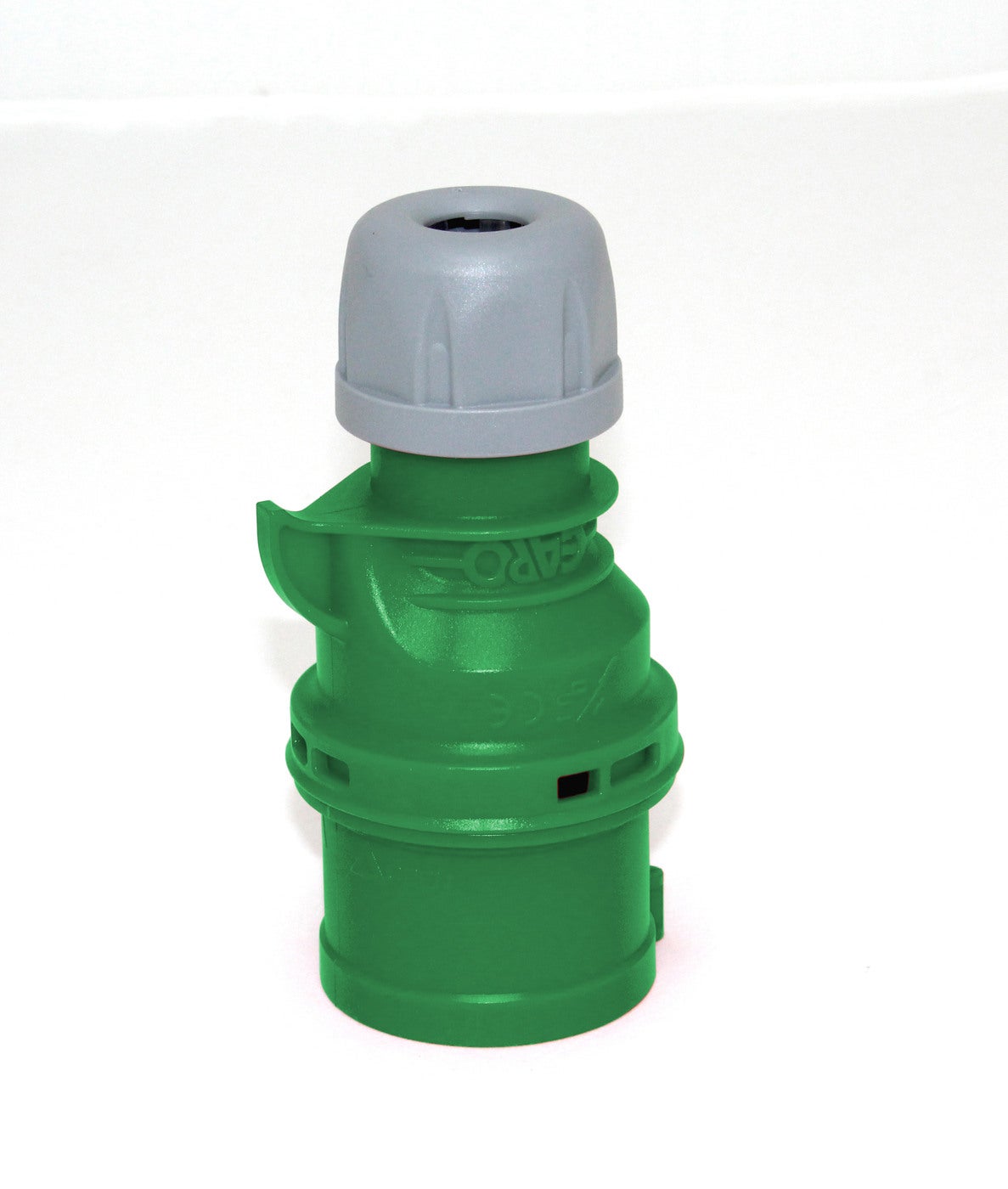

PLUG 5P 32A 2h Q E2425424 2425424 P 432-2 Q Class 1 EN60044-8 300-500Hz Green >50V AC 5/3P+N+E RAL6010 2h
PLUG 5P 32A 3h Q E2425425 2425425 P 432-3 Q Class 1 EN60044-8 50/60Hz Red 380-440V AC 5/3P+N+E RAL3000 3h
PLUG 5P 32A 4h Q E2425426 2425426 P 432-4 Q EN60309-2 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h 400 V (50+60 Hz) red
PLUG 5P 32A 5h Q E2425427 2425427 P 432-5 Q Class 1 EN60044-8 50/60Hz Black 600-690V AC 5/3P+N+E RAL9005 5h
PLUG 5P 32A 6h Q E2425428 2425428 P 432-6 Q Class 1 EN60044-8 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 400 V (50+60 Hz) red
PLUG 5P 32A 7h Q E2425429 2425429 P 432-7 Q EN60309-2 50/60Hz Black 480-500V AC 5/3P+N+E RAL9005 7h
PLUG 5P 32A 11h Q E2425431 2425431 P 432-11 Q Class 1 EN60044-8 60Hz Red 440-460V AC 5/3P+N+E RAL3000 11h 400 V (50+60 Hz) red
