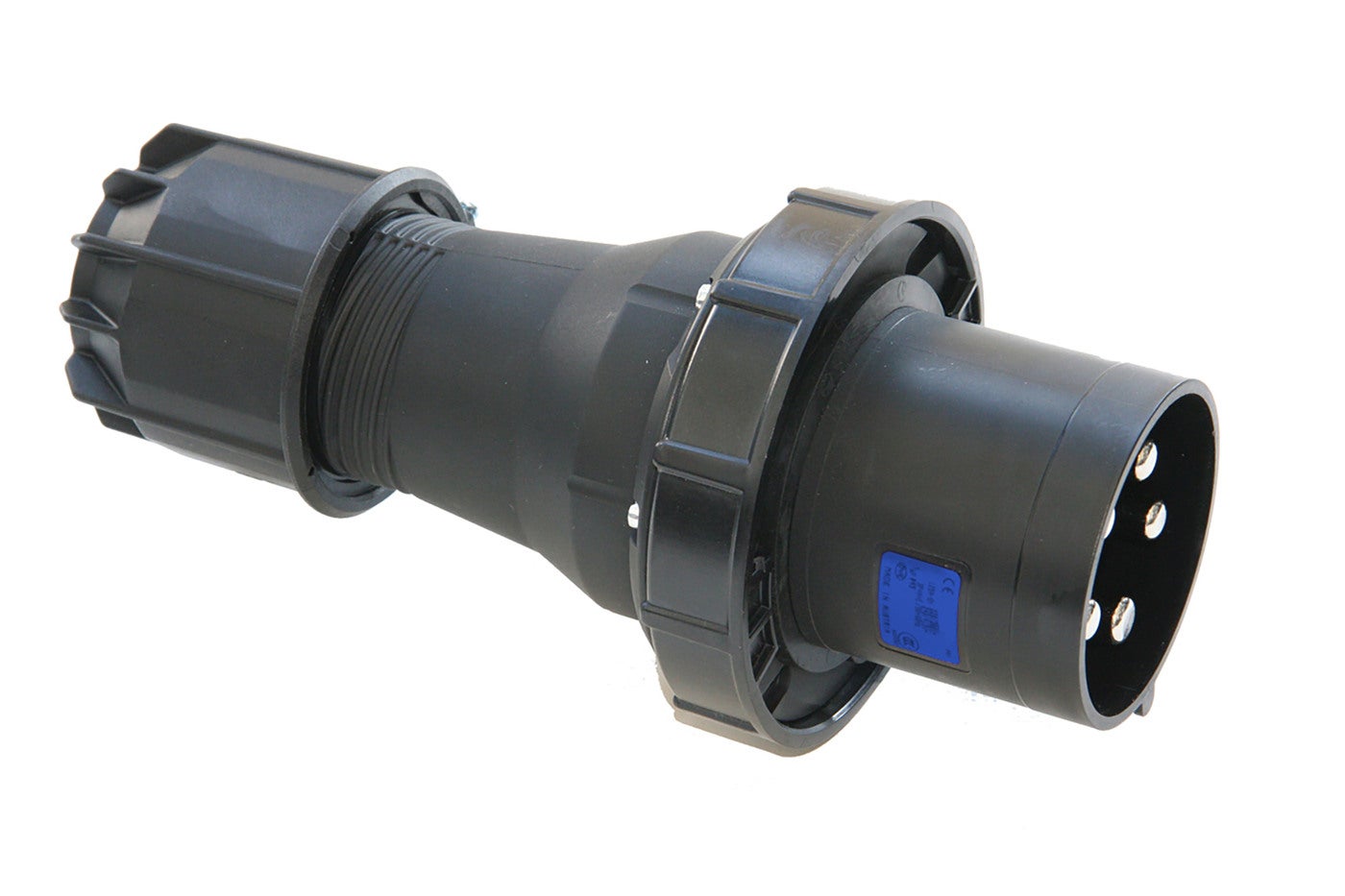

PLUG 3P 63A 6h E

Plugs 63A IP67 Event

Plug Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. Plugs watertight for scene-bandstand & arena 3-poles 63A 6h.
E-number
E2425656
Article number
2425656
Support
Materials Plastic
Standard Class 1 EN60044-8
Frequency [Hz] 50/60Hz
Rated current [A] 63A
Connection type Screwed terminal
Wire flexible [mm²] 6-16mm²
Clock hour position [h] 6h
Cable entry Other
Contact material CuZn
Contact plating Untreated
Name PLUG 3P 63A 6h E
E-number E2425656
Article number 2425656
Type designation PV 263-6 S+B
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
RAL-number RAL5017
Phase inverter No
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP67

More variants of Plugs 63A IP67 Event

E-number Article number Type designation Color Rated voltage [V AC] Number of poles RAL-number Phase inverter Plug angle Pin/Sleeve Degree of protection [IP]
PLUG 3P 63A 6h E E2425656 2425656 PV 263-6 S+B Blue 200-250V AC 3/2P+E RAL5017 No Straight Pin IP67
PLUG 4P 63A 6h E E2425657 2425657 PV 363-6 S+B Red 400V AC 4/3P+E RAL3000 No IP67
PLUG 5P 63A 6h E E2425658 2425658 PV 463-6 S+B Red 230/400V AC 5/3P+N+E RAL3000 IP44
