PLUG 3P 125A 6h E

Plugs 125A IP67 Event

Plug Scen, designed specifically for stages, arenas and different events. An almost invisible connector on a black floor. Plugs watertight for scene-bandstand & arena 3-poles 125A 6h.
E-number
E2425659
Article number
2425659
Support
Standard Class 1 EN60044-8
Frequency [Hz] 50/60Hz
Rated current [A] 125A
Clock hour position [h] 6h
Cable entry Other
Degree of protection [IP] IP67
Name PLUG 3P 125A 6h E
E-number E2425659
Article number 2425659
Type designation PV 2125-6 S+B
Materials Plastic
Color Blue
Rated voltage [V AC] 200-250V AC
Number of poles 3/2P+E
Connection type Screwed terminal
Wire flexible [mm²] 16-50mm²
RAL-number RAL5017
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin

More variants of Plugs 125A IP67 Event

E-number Article number Type designation Materials Color Rated voltage [V AC] Number of poles Connection type Wire flexible [mm²] RAL-number Voltage according to EN 60309-2 Contact material Phase inverter Contact plating Plug angle Pin/Sleeve
PLUG 3P 125A 6h E E2425659 2425659 PV 2125-6 S+B Plastic Blue 200-250V AC 3/2P+E Screwed terminal 16-50mm² RAL5017 400 V (50+60 Hz) red CuZn No Untreated Straight Pin

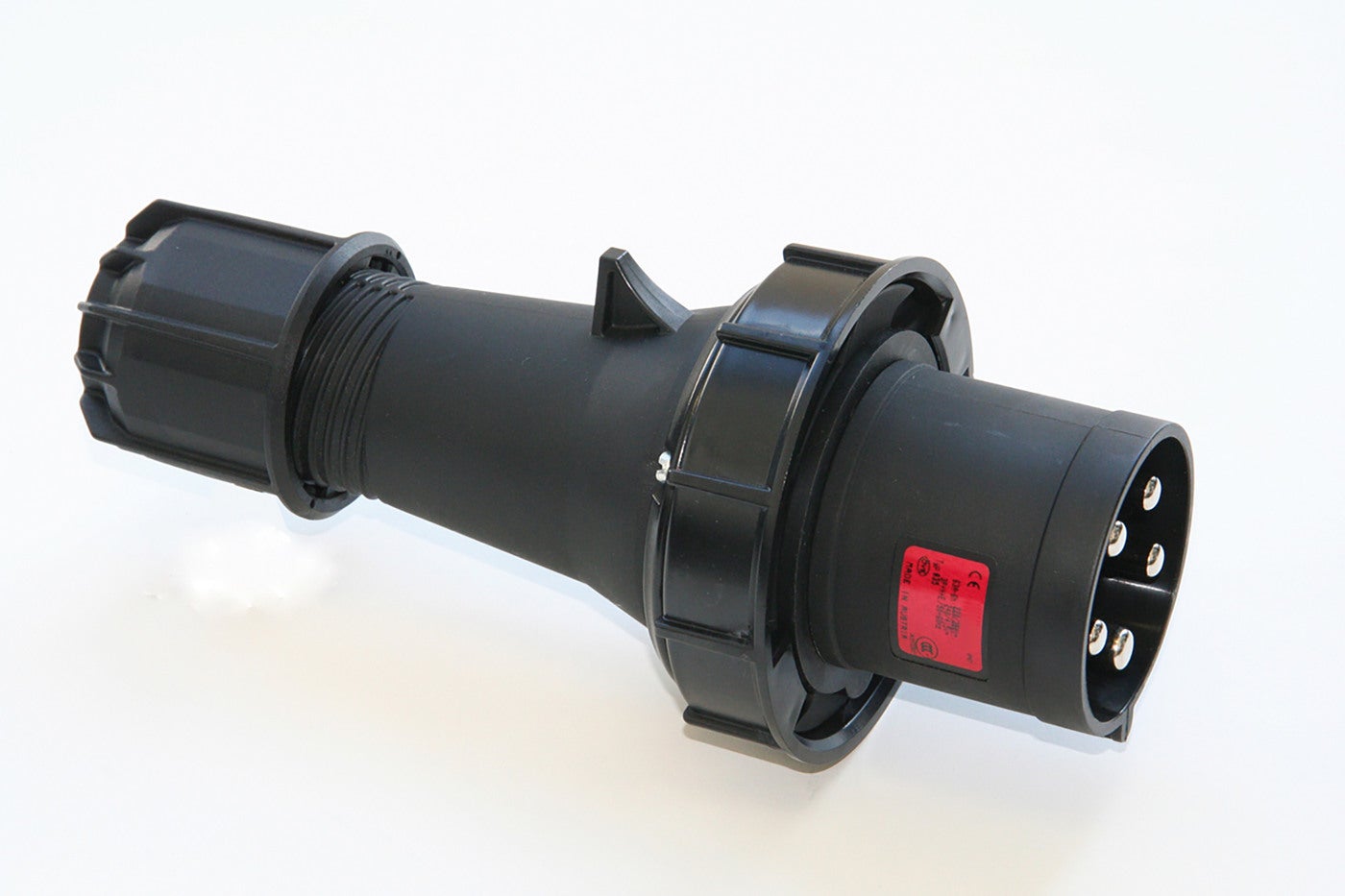

PLUG 4P 125A 6h E E2425660 2425660 PV 3125-6 S+B Red 400V AC 4/3P+E 10-50mm² RAL3000
PLUG 5P 125A 6h E E2425661 2425661 PV 4125-6 S+B Red 230/400V AC 5/3P+N+E 16-50mm² RAL3000
