• PLUG 5P 16A 6h WT - 1

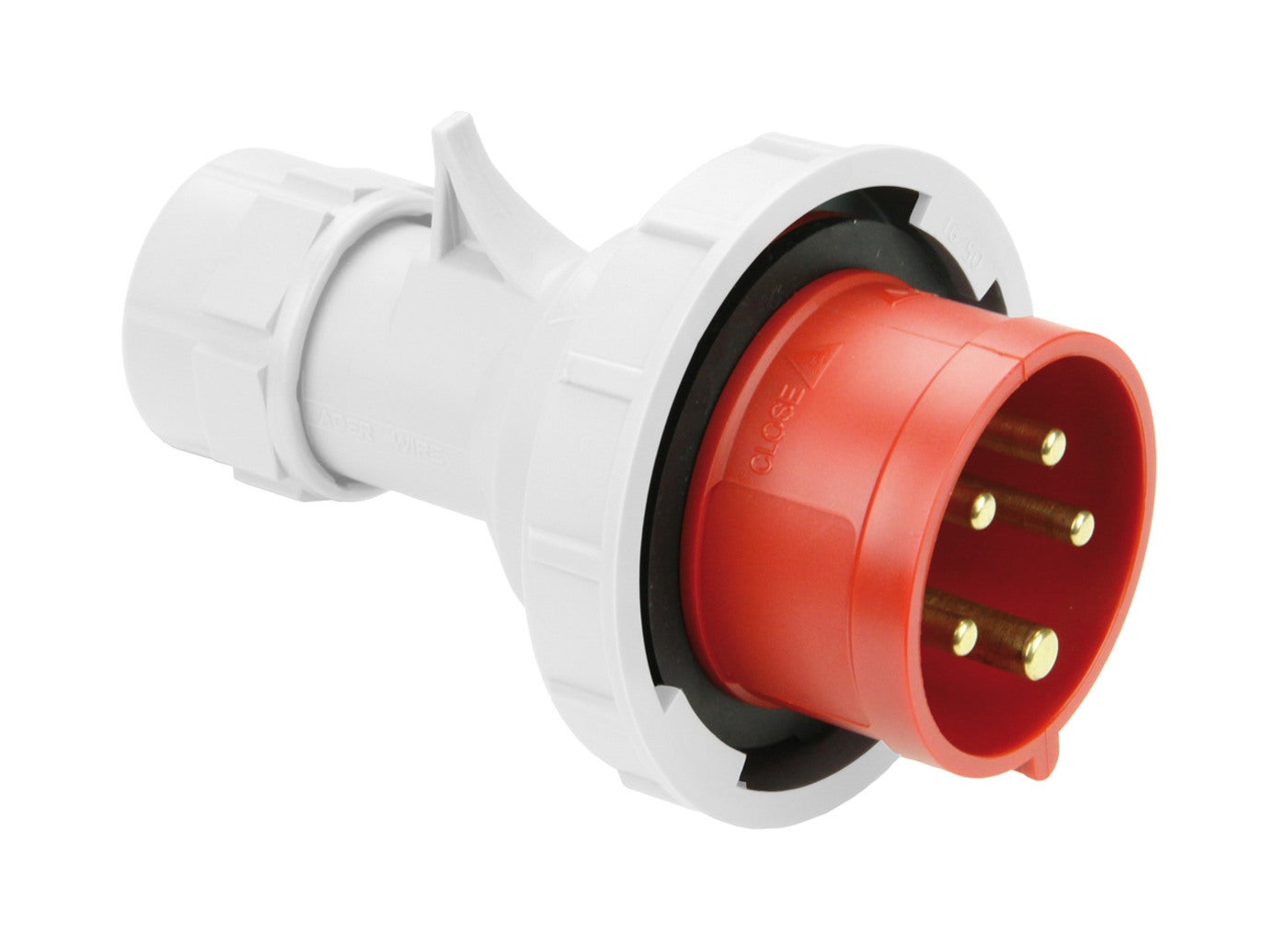

  • PLUG 5P 16A 6h WT - 2

Plugs 16A IP67 Basic

Plug Basic in waterproof design, our standard range with a screw function. Plugs basic 3-poles 16A 6h watertight
E-number
E2424579
Article number
2424579
Support
Materials Plastic
Standard EN60309-2
Connection type Screwed terminal
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Name PLUG 5P 16A 6h WT
E-number E2424579
Article number 2424579
Type designation PV 416-6 S
Frequency [Hz] 50/60Hz
Color Red
Rated current [A] 16A
Rated voltage [V AC] 230/400V AC
Number of poles 5/3P+N+E
Wire flexible [mm²] 1-2,5mm²
RAL-number RAL3000
Clock hour position [h] 6h
Degree of protection [IP] IP67
NetProductWeight 0.17
EngineerWidth 190
EngineerHeight 170
EngineerDepth 290

More variants of Plugs 16A IP67 Basic

E-number Article number Type designation Frequency [Hz] Color Rated current [A] Rated voltage [V AC] Number of poles Wire flexible [mm²] RAL-number Clock hour position [h] Degree of protection [IP] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
PLUG 7P 16A 6h WT E2425910 107750 PV 716-6S 50/60Hz Red 3 2,5-6mm² RAL3020 6h IP44 0.22 87 134 87
PLUG 3P 16A 9h WT E2424570 2424570 PV 216-9 S 50/60Hz Red 16A 380-415V AC 3/2P+E 1-2,5mm² RAL3000 6h IP67 0.13 71 118 38
PLUG 4P 16A 2h WT E2424571 2424571 PV 316-2 S 50/60Hz Green 16A >50V AC 4/3P+E 1-2,5mm² RAL3020 2h IP67 0.15 79 124 38
PLUG 4P 16A 4h WT E2424572 2424572 PV 316-4 S 50/60Hz Yellow 16A 100-130V AC 4/3P+E 1-2,5mm² RAL1023 6h IP67 0.15 79 124 38
PLUG 4P 16A 6h WT E2424573 2424573 PV 316-6 S 50/60Hz Yellow 16A 400V AC 4/3P+E 1-2,5mm² RAL3000 6h IP67 0.15 79 124 38
PLUG 4P 16A 7h WT E2424574 2424574 PV 316-7 S 50/60Hz Black 16A 480-500V AC 4/3P+E 1-2,5mm² RAL9005 7h IP67 0.15 79 124 38
PLUG 4P 16A 9h WT E2424575 2424575 PV 316-9 S 50/60Hz Blue 16A 230V AC 4/3P+E 1-2,5mm² RAL3020 9h IP67 0.15 79 124 38
PLUG 4P 16A 11h WT E2424577 2424577 PV 316-11 S 50/60Hz Red 16A 440-460V AC 4/3P+E 1-2,5mm² RAL3000 11h IP67 0.15 79 124 38
PLUG 5P 16A 4h WT E2424578 2424578 PV 416-4 S 50/60Hz Yellow 16A 100-130V AC 5/3P+N+E 1-2,5mm² RAL1023 4h IP67 0.17 87 131 42
PLUG 5P 16A 6h WT E2424579 2424579 PV 416-6 S 50/60Hz Red 16A 230/400V AC 5/3P+N+E 1-2,5mm² RAL3000 6h IP67 0.17 190 170 290
PLUG 5P 16A 11h WT E2424581 2424581 PV 416-11 S 60Hz Red 16A 440-460V AC 5/3P+N+E 1-2,5mm² RAL3000 11h IP67 0.17 87 131 42
