PLUG 3P 125A 4h WT

Plugs 125A IP67 Basic

Plug Basic in waterproof design, our standard range with a screw function. Plugs basic 3-poles 125A 4h watertight
E-number
E2424612
Article number
2424612
Support
Materials Plastic
Standard EN60309-2
Rated current [A] 125A
Connection type Screwed terminal
Wire flexible [mm²] 16-50mm²
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP67
Name PLUG 3P 125A 4h WT
E-number E2424612
Article number 2424612
Type designation PV 2125-4 S
Frequency [Hz] 50/60Hz
Color Yellow
Rated voltage [V AC] 100-130V AC
Number of poles 3/2P+E
RAL-number RAL1023
Clock hour position [h] 4h
NetProductWeight 0.96
EngineerWidth 131
EngineerHeight 270
EngineerDepth 131

More variants of Plugs 125A IP67 Basic

E-number Article number Type designation Frequency [Hz] Color Rated voltage [V AC] Number of poles RAL-number Clock hour position [h] NetProductWeight EngineerWidth EngineerHeight EngineerDepth
PLUG 3P 125A 4h WT E2424612 2424612 PV 2125-4 S 50/60Hz Yellow 100-130V AC 3/2P+E RAL1023 4h 0.96 131 270 131
PLUG 3P 125A 6h WT E2424613 2424613 PV 2125-6 S 50/60Hz Blue 200-250V AC 3/2P+E RAL3020 6h 0.96 260 170 330

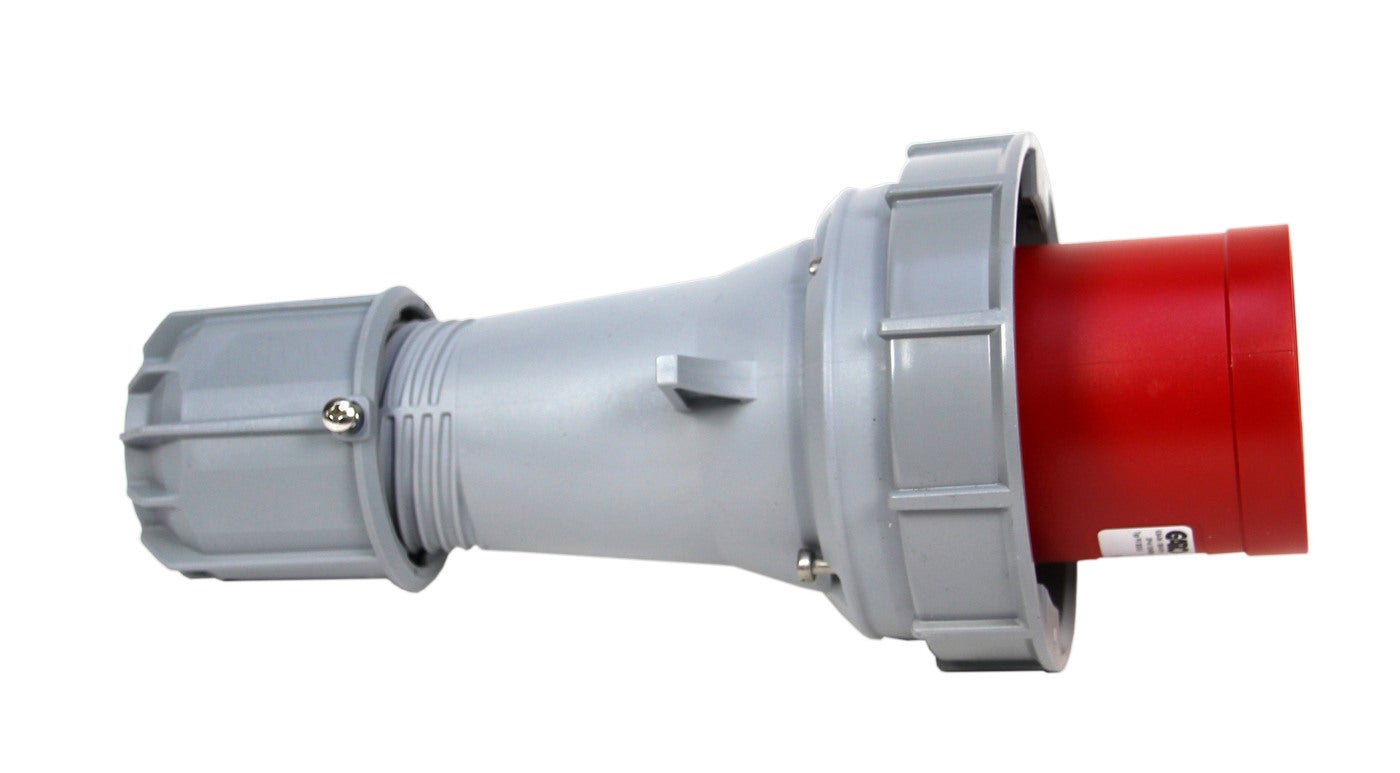

PLUG 3P 125A 9h WT E2424614 2424614 PV 2125-9 S 50/60Hz Red 380-415V AC 3/2P+E RAL3000 9h 0.96 131 270 131

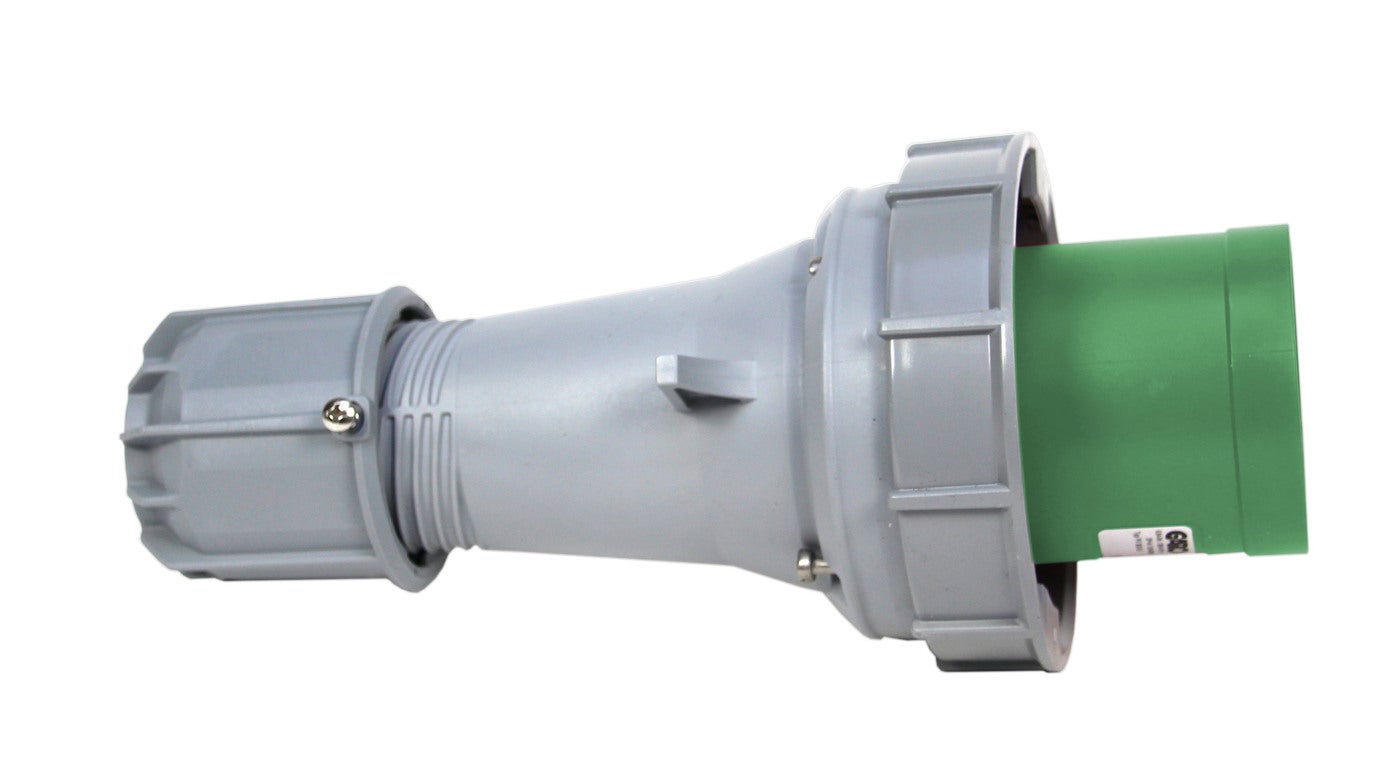

PLUG 4P 125A 2h WT E2424615 2424615 PV 3125-2 S 300-500Hz Green >50V AC 4/3P+E RAL6010 2h 1.07 131 270 131
PLUG 4P 125A 6h WT E2424617 2424617 PV 3125-6 S 50/60Hz Red 400V AC 4/3P+E RAL3000 6h 1.07 260 170 330
PLUG 4P 125A 11h WT E2424621 2424621 PV 3125-11 S 60Hz Red 440-460V AC 4/3P+E RAL3000 11h 1.07 131 270 131

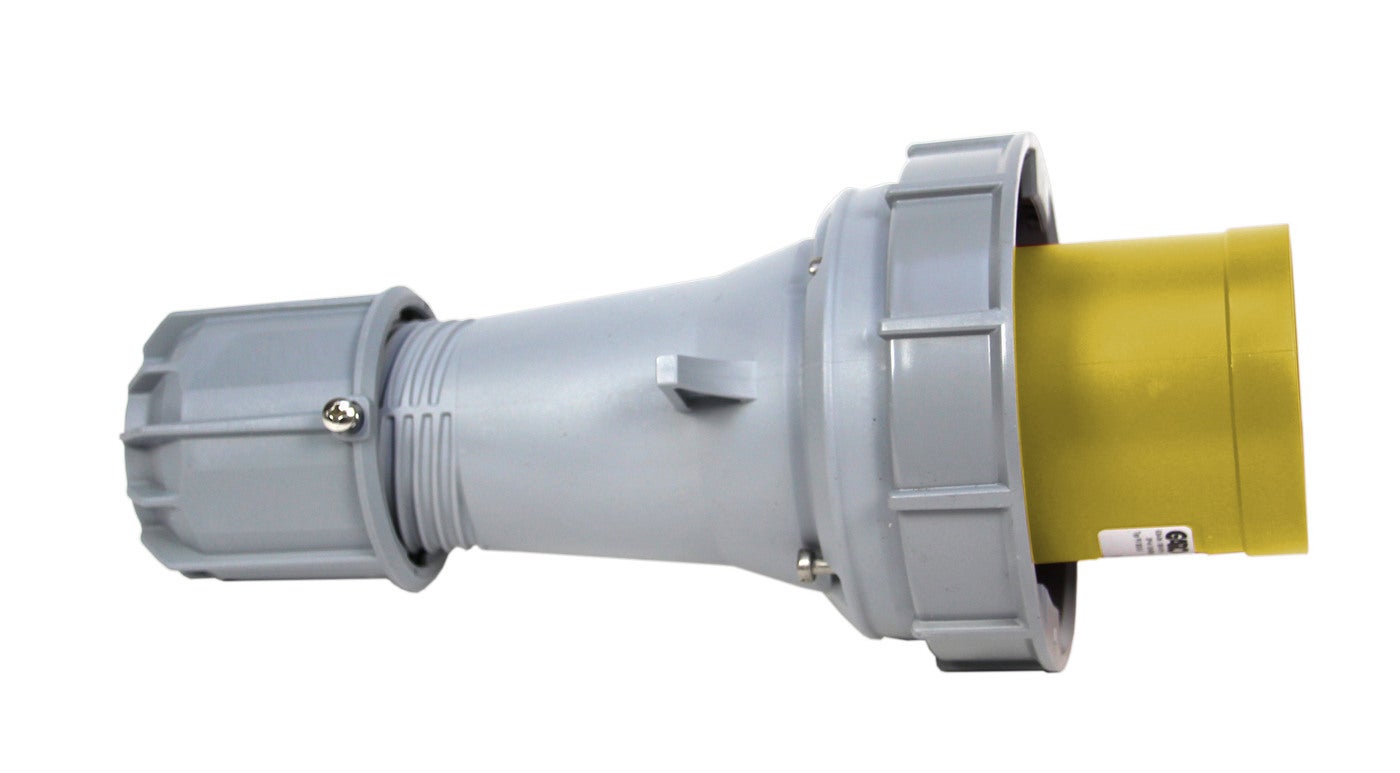

PLUGS WT 5P 125A 4h WT E2424622 2424622 PV 4125-4 S 50/60Hz Yellow 100-130V AC 5/3P+N+E RAL1023 4h 1.17 131 270 131
PLUG 5P 125A 6h WT E2424623 2424623 PV 4125-6 S 50/60Hz Red 230/400V AC 5/3P+N+E RAL3000 6h 1.17 131 270 131
