PLUG PVD 216-6S ANGLE

Plug angle 16A IP44 Basic

Plug angled basic, right angle plug with screw function. Plug angled 2-poles 16A 6h PVD216-6s
E-number
E2468842
Article number
2468842
Support
Materials Plastic
Frequency [Hz] 50/60Hz
Rated current [A] 16A
Connection type Screwed terminal
Clock hour position [h] 6h
Voltage according to EN 60309-2 400 V (50+60 Hz) red
Cable entry Other
Contact material CuZn
Phase inverter No
Contact plating Untreated
Plug angle Straight
Pin/Sleeve Pin
Degree of protection [IP] IP44
Name PLUG PVD 216-6S ANGLE
E-number E2468842
Article number 2468842
Type designation PVD 216-6S
Standard EN60309-2
Color Blue
Rated voltage [V AC] 230V AC
Number of poles 3/2P+E
Wire flexible [mm²] 1,5-2,5mm²
RAL-number RAL5017

More variants of Plug angle 16A IP44 Basic

E-number Article number Type designation Standard Color Rated voltage [V AC] Number of poles Wire flexible [mm²] Modelltype RAL-number NetProductWeight EngineerWidth EngineerHeight EngineerDepth

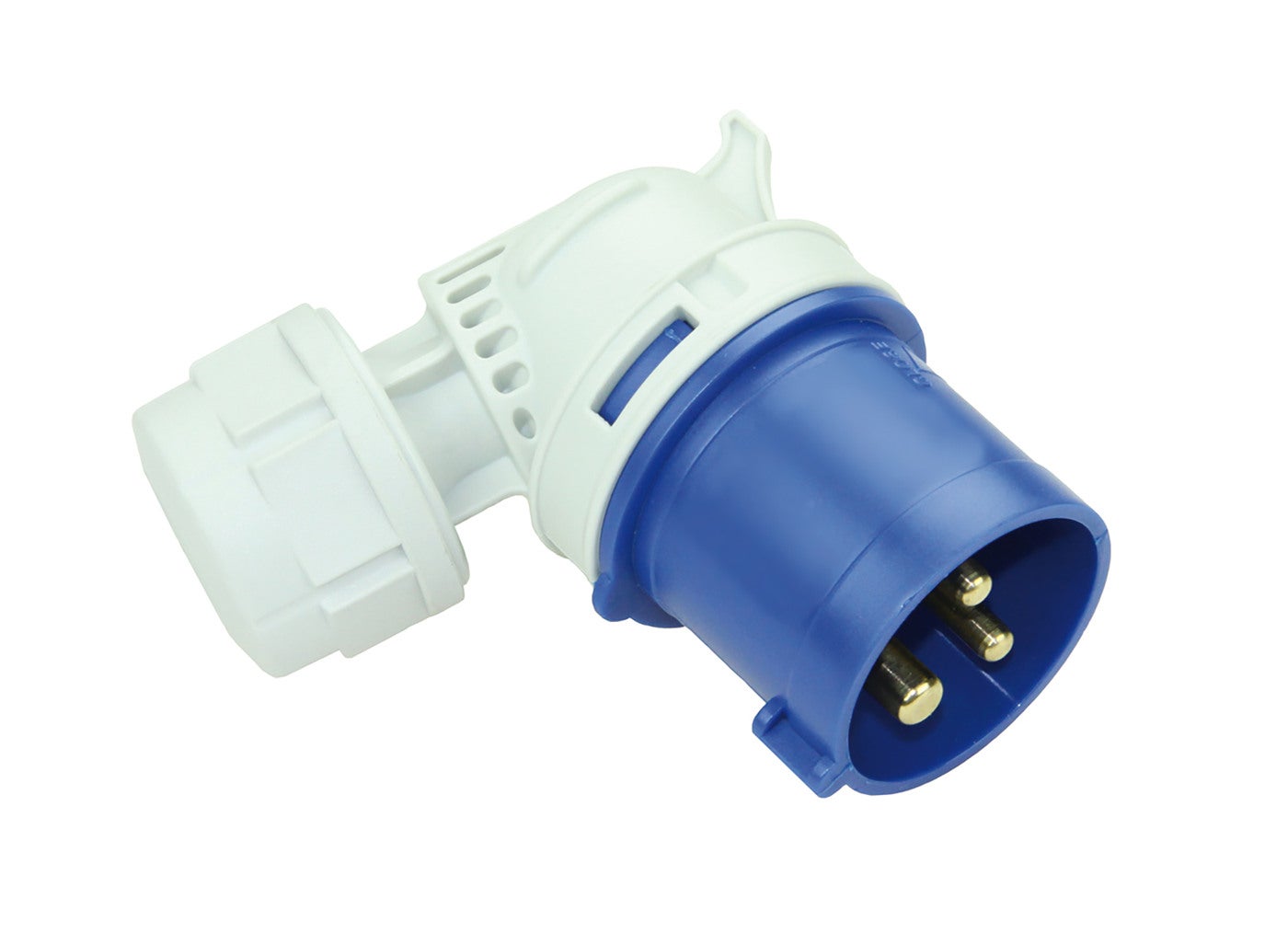

PLUG ANGLE 3P 16A 6h E2424626 2424626 PA 216-6S Class 1 EN60044-8 Blue 200-250V AC 3/2P+E 1-2,5mm² Basic RAL5017 0.15 190 140 290

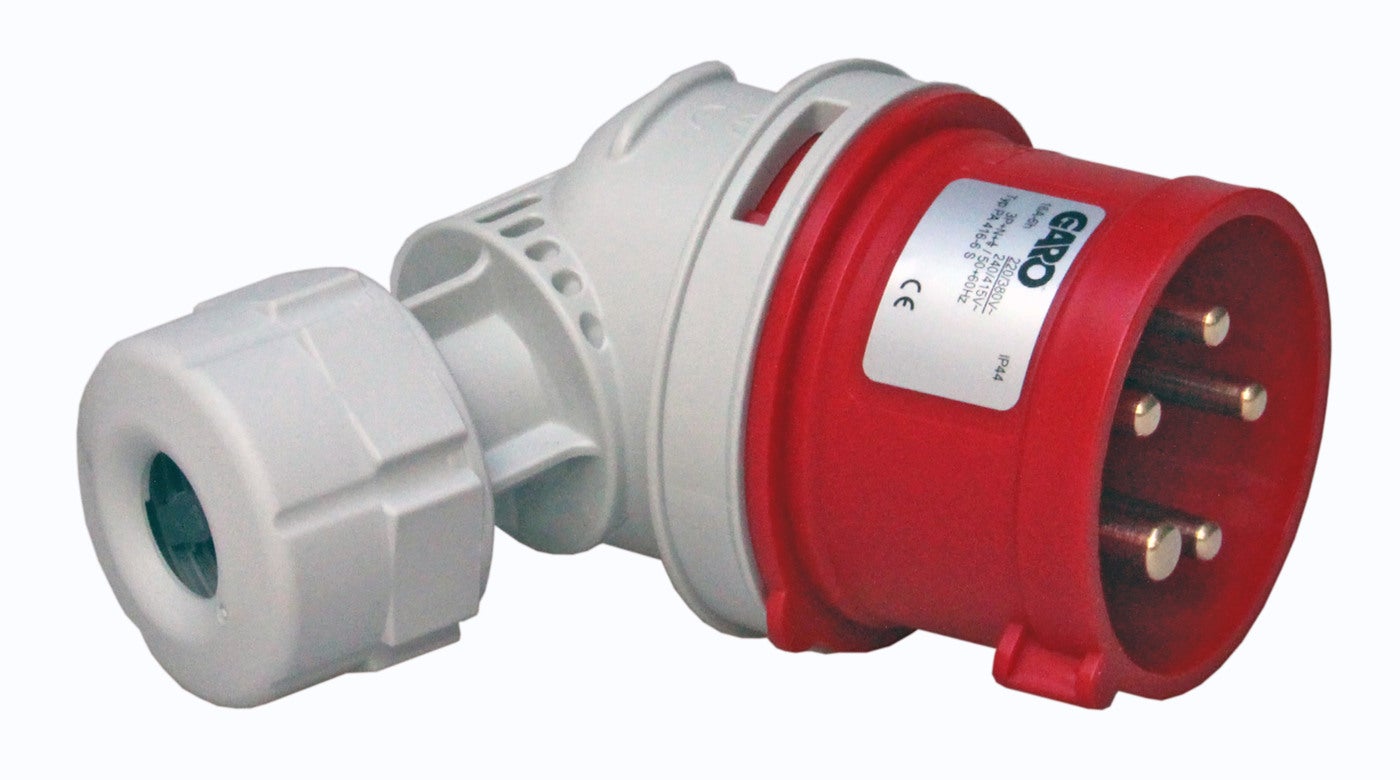

PLUG ANGLE 5P 16A 6h E2424628 2424628 PA 416-6S Class 1 EN60044-8 Red 230/400V AC 5/3P+N+E 1-2,5mm² Basic RAL3000 0.15 190 140 290
PLUG PVD 216-6S ANGLE E2468842 2468842 PVD 216-6S EN60309-2 Blue 230V AC 3/2P+E 1,5-2,5mm² RAL5017
