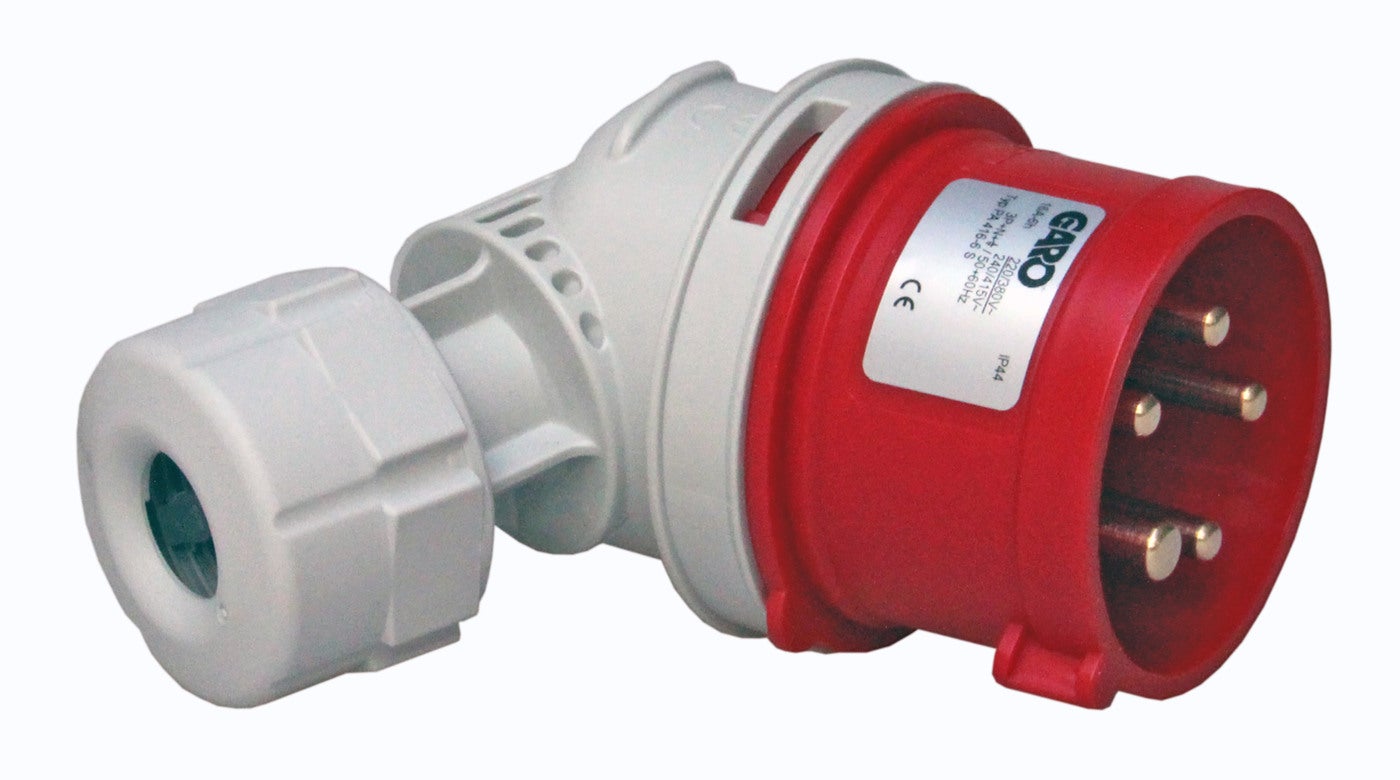

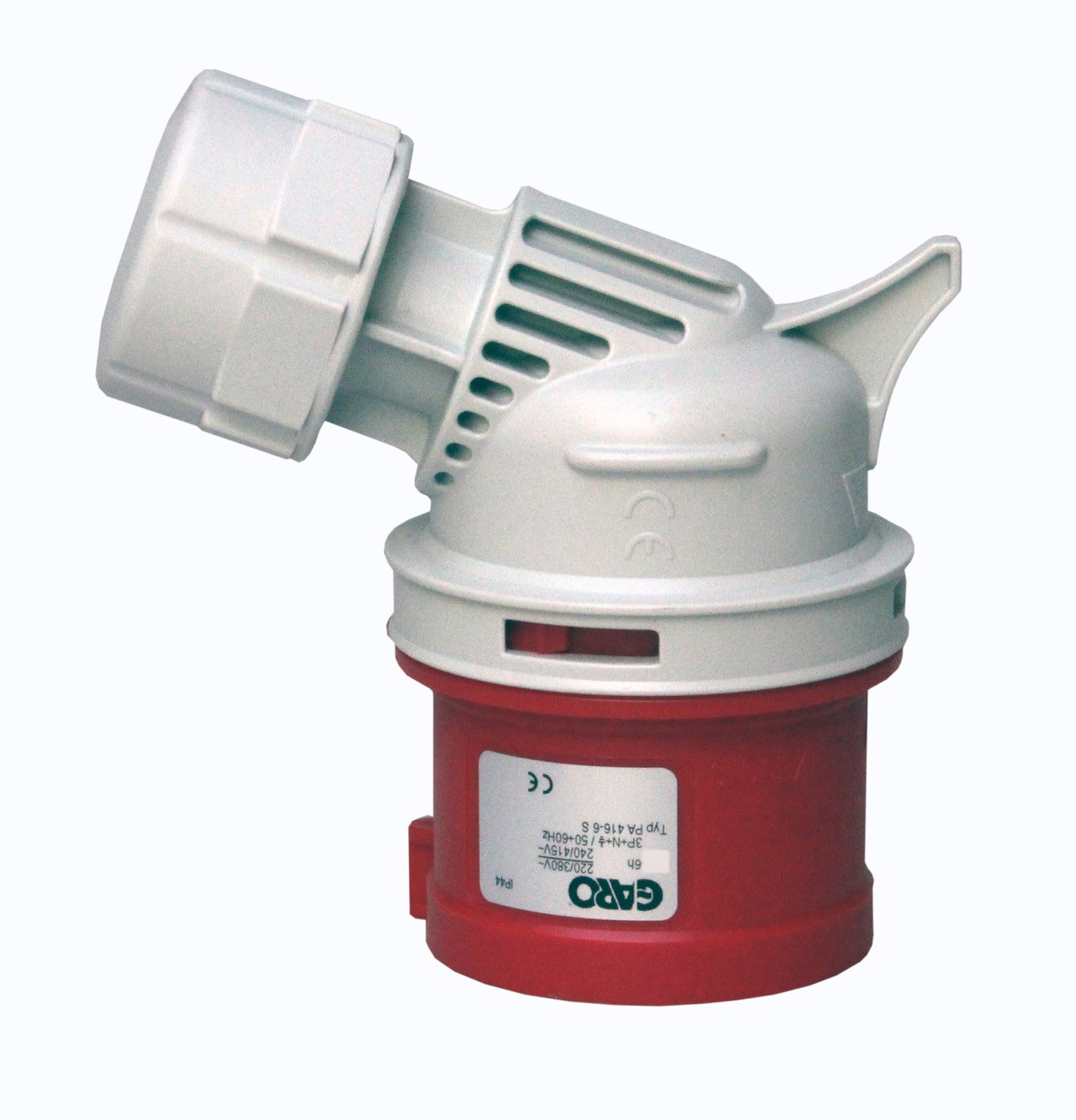

Plug angle 32A IP44 Basic
Plug angled basic, right angle plug with screw function. Plugs basic angled 5-poles 32A 6h
E-number
E2424629
E2424629
Article number
2424629
2424629
| Type designation | PA 432-6S |
|---|---|
| Materials | Plastic |
| Standard | EN60309-2 |
| Frequency [Hz] | 50/60Hz |
| Color | Red |
| Rated current [A] | 32A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| Connection type | Screwed terminal |
| Wire flexible [mm²] | 2,5-6mm² |
| RAL-number | RAL3000 |
| Clock hour position [h] | 6h |
| Voltage according to EN 60309-2 | 400 V (50+60 Hz) red |
| Cable entry | Other |
| Contact material | CuZn |
| Phase inverter | No |
| Contact plating | Untreated |
| Plug angle | Straight |
| Pin/Sleeve | Pin |
| Degree of protection [IP] | IP44 |
| NetProductWeight | 0.23 |
| EngineerWidth | 190 |
| EngineerHeight | 225 |
| EngineerDepth | 290 |
| Name | PLUG ANGLE 5P 32A 6h |
|---|---|
| E-number | E2424629 |
| Article number | 2424629 |
