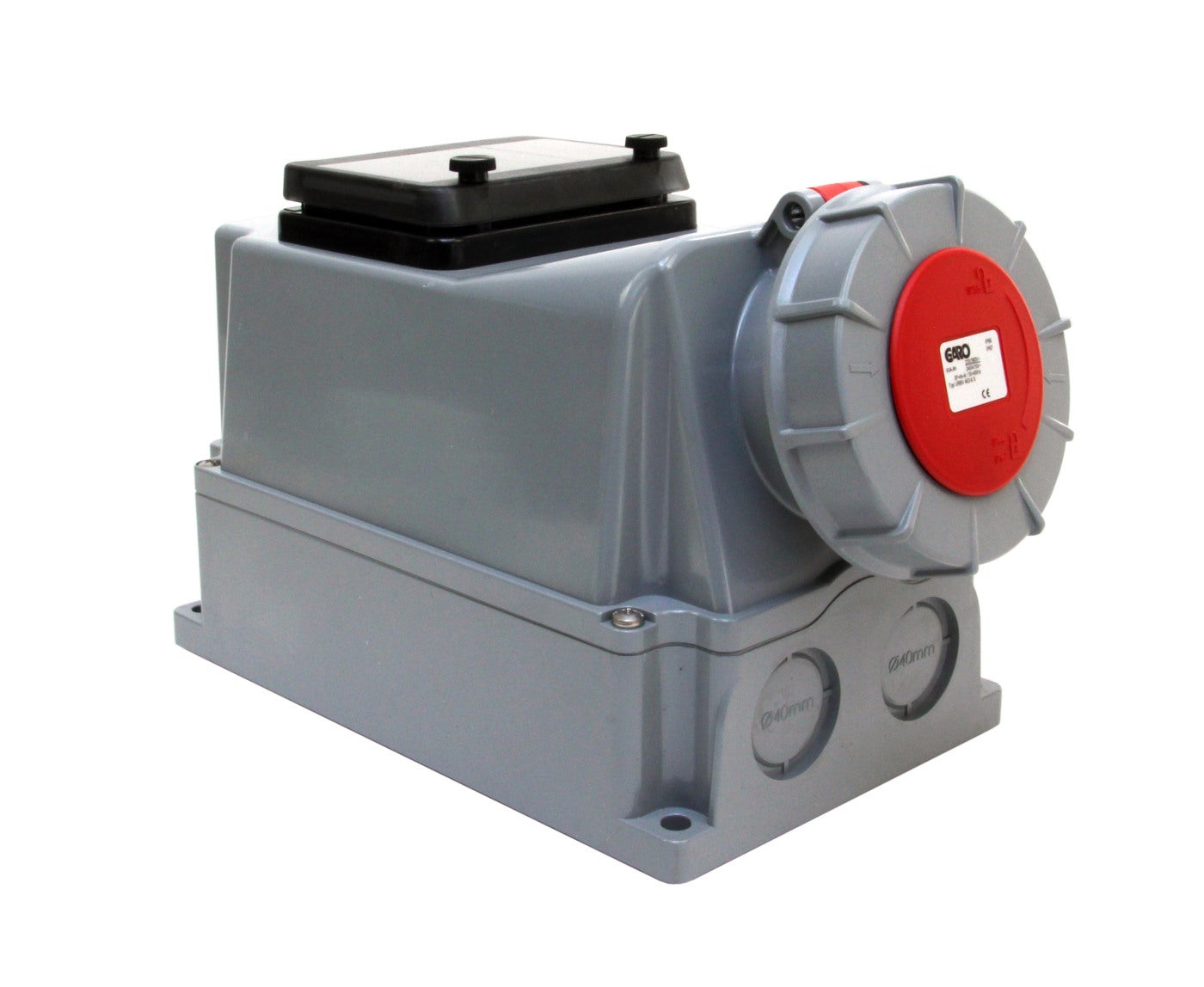

Outlet boxes 63A IP67
Outlet boxes with one IEC/CEE socket on the front. Can be equipped with DIN devices, outlet enclosure supplied empty. Ample connection space and with knockouts in the bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Waterproof. Outlet box tom 5-poles 63A 6h watertight
E-number
E2468748
E2468748
Article number
2468748
2468748
| Type designation | URBV 463-6 S |
|---|---|
| Standard | EN61439-4 |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Red |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| Clock hour position [h] | 6h |
| Earthing terminal block | Yes |
| Knockouts Ø40 Up [pcs] | 2x40 |
| Knockouts Ø40 Down [pcs] | 2x40 |
| Degree of protection [IP] | IP67 |
| Name | OUTLETBOX 5P 63A 6h WT EMP |
|---|---|
| E-number | E2468748 |
| Article number | 2468748 |
