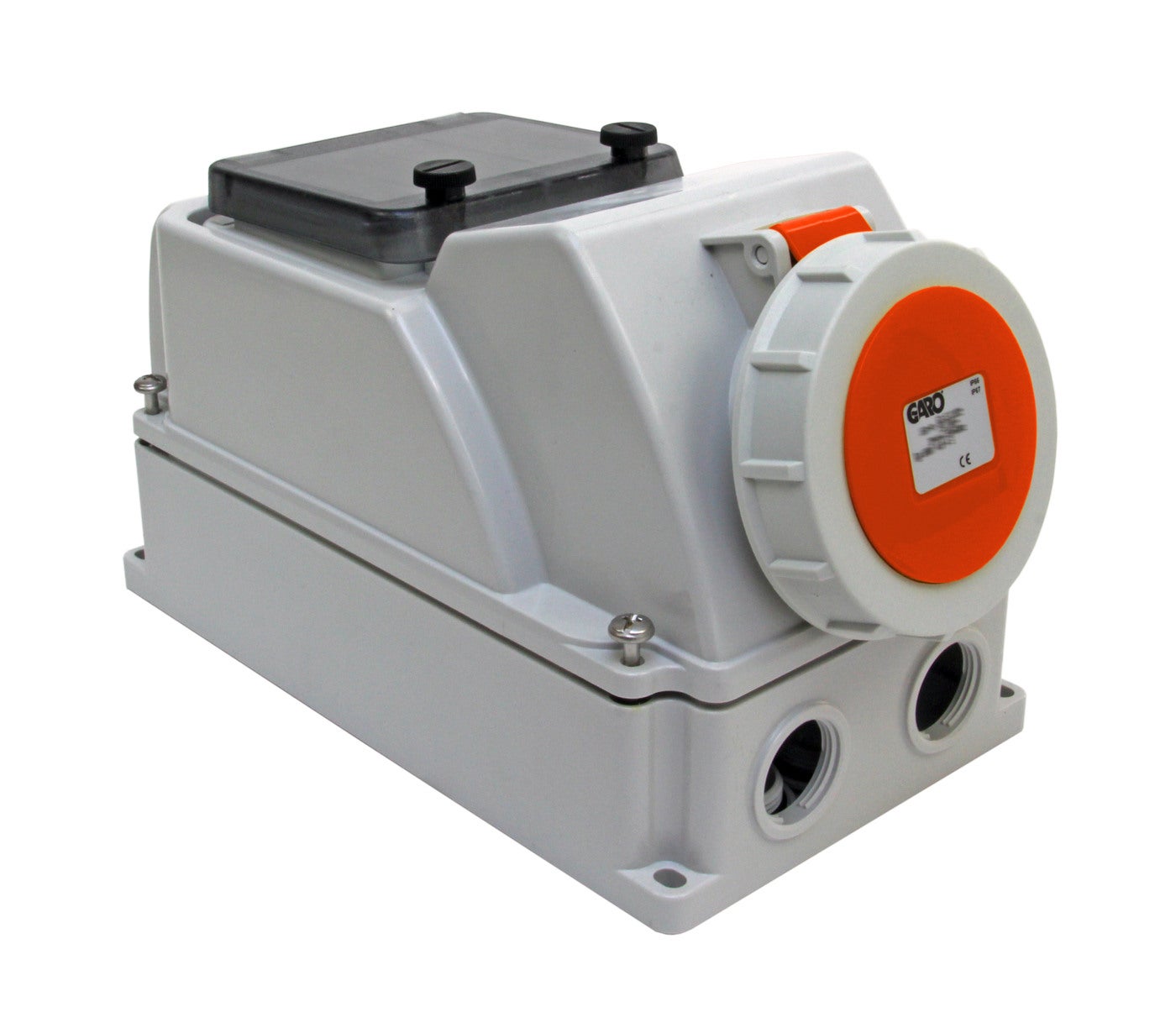

Outlet boxes 32A IP67
Outlet boxes with one IEC/CEE socket on the front. Can be equipped with DIN devices, outlet enclosure supplied empty. Ample connection space and with knockouts in the bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Waterproof. Outlet box tom 3-poles 16A 6h watertight
E-number
E2468731
E2468731
Article number
2468731
2468731
| Standard | EN61439-4 |
|---|---|
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Rated current [A] | 32A |
| Clock hour position [h] | 6h |
| Earthing terminal block | Yes |
| Knockouts Ø25 Down [pcs] | 2x25 |
| Knockouts Ø25 Up [pcs] | 1x25 |
| Degree of protection [IP] | IP67 |
| Name | OUTLETBOX 3P 32A 6h WT EMP |
|---|---|
| E-number | E2468731 |
| Article number | 2468731 |
| Type designation | URBV 232-6 S |
| Color | Blue |
| Rated voltage [V AC] | 200-250V AC |
| Number of poles | 3/2P+E |
