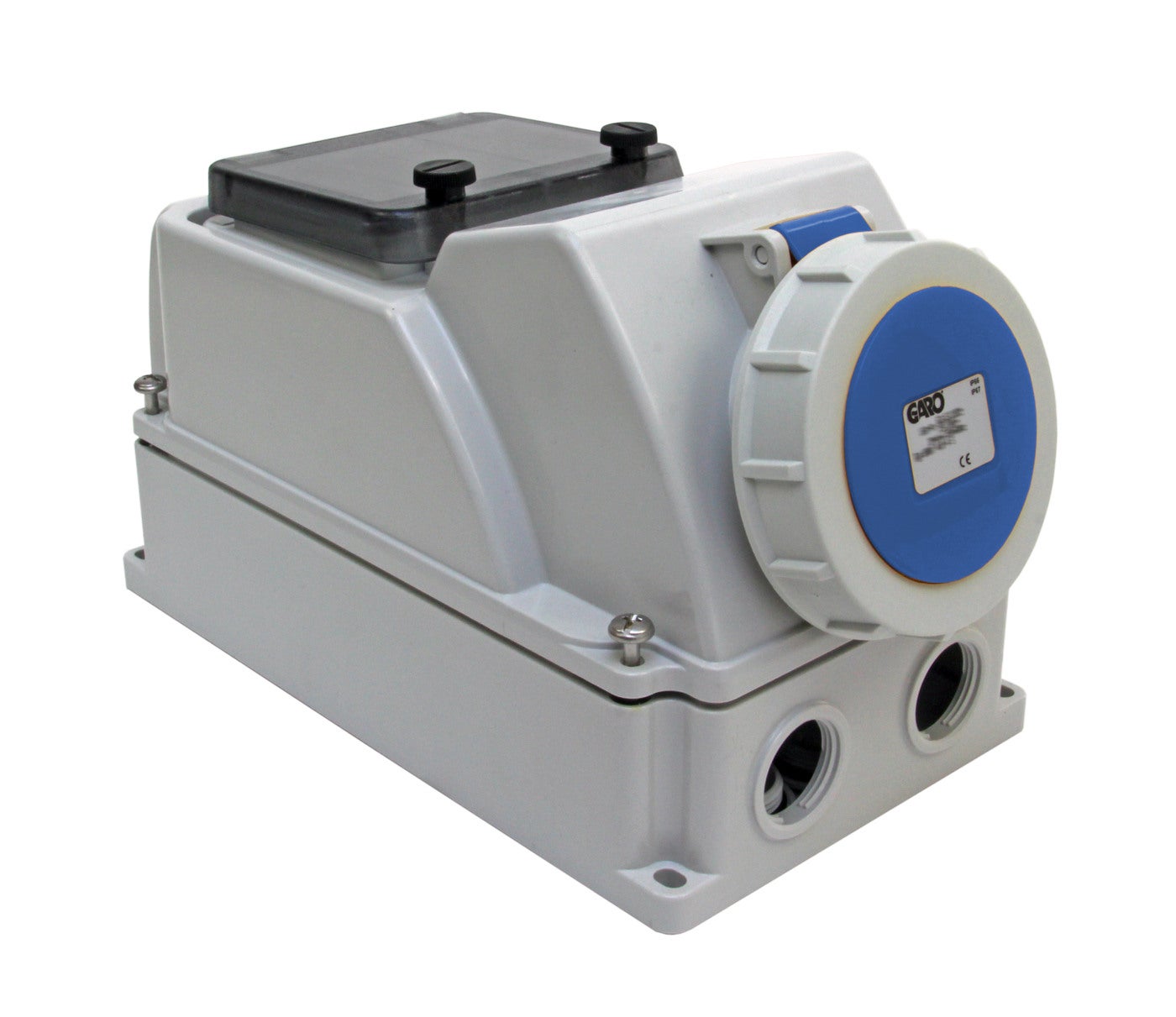

Outlet boxes 16A IP67
Outlet boxes with one IEC/CEE socket on the front. Can be equipped with DIN devices, outlet enclosure supplied empty. Ample connection space and with knockouts in the bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Waterproof. Outlet box watertight tom 3-poles 16A 6h
E-number
E2468721
E2468721
Article number
2468721
2468721
| Standard | EN61439-4 |
|---|---|
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Red |
| Rated current [A] | 16A |
| Clock hour position [h] | 6h |
| Earthing terminal block | Yes |
| Knockouts Ø25 Down [pcs] | 2 |
| Knockouts Ø25 Up [pcs] | 1 |
| Degree of protection [IP] | IP67 |
| Name | OUTLETBOX 3P 16A 6h WT EMP |
|---|---|
| E-number | E2468721 |
| Article number | 2468721 |
| Type designation | URBV 216-6 S |
| Rated voltage [V AC] | 200-250V AC |
| Number of poles | 3/2P+E |
