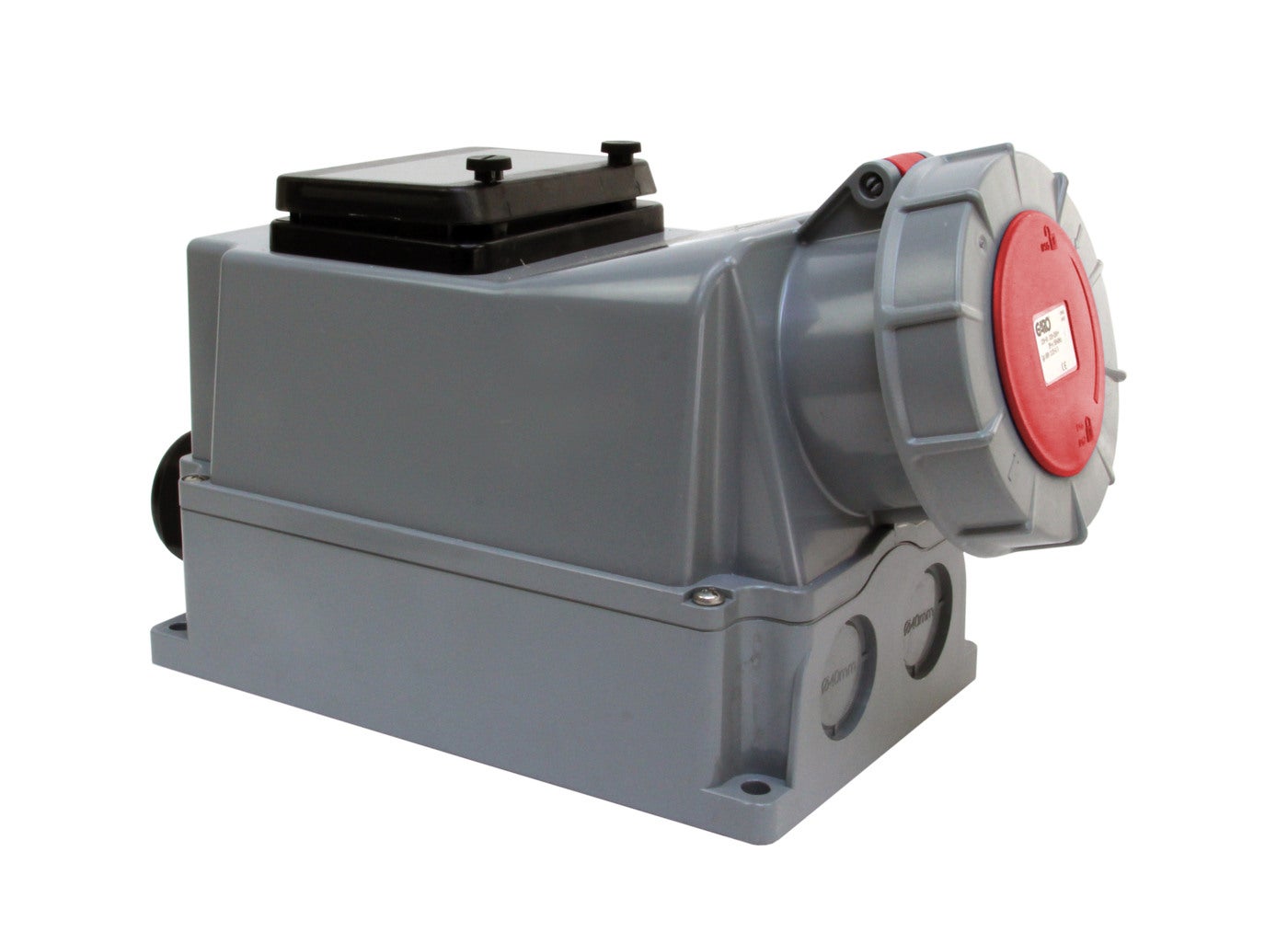

Outlet boxes 63A IP67
Outlet boxes with one IEC/CEE socket on the front. Can be equipped with DIN devices, outlet enclosure supplied empty. Ample connection space and with knockouts in the bottom. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Waterproof. Outlet box tom 3-poles 125A 6h watertight
E-number
E2468751
E2468751
Article number
2468751
2468751
| Standard | EN61439-4 |
|---|---|
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Rated current [A] | 125A |
| Clock hour position [h] | 6h |
| Earthing terminal block | Yes |
| Knockouts Ø40 Up [pcs] | 2x40 |
| Knockouts Ø40 Down [pcs] | 2x40 |
| Degree of protection [IP] | IP67 |
| Name | OUTLETBOX 3P 125A 6h WT EMP |
|---|---|
| E-number | E2468751 |
| Article number | 2468751 |
| Color | Blue |
| Rated voltage [V AC] | 200-250V AC |
| Number of poles | 3/2P+E |
