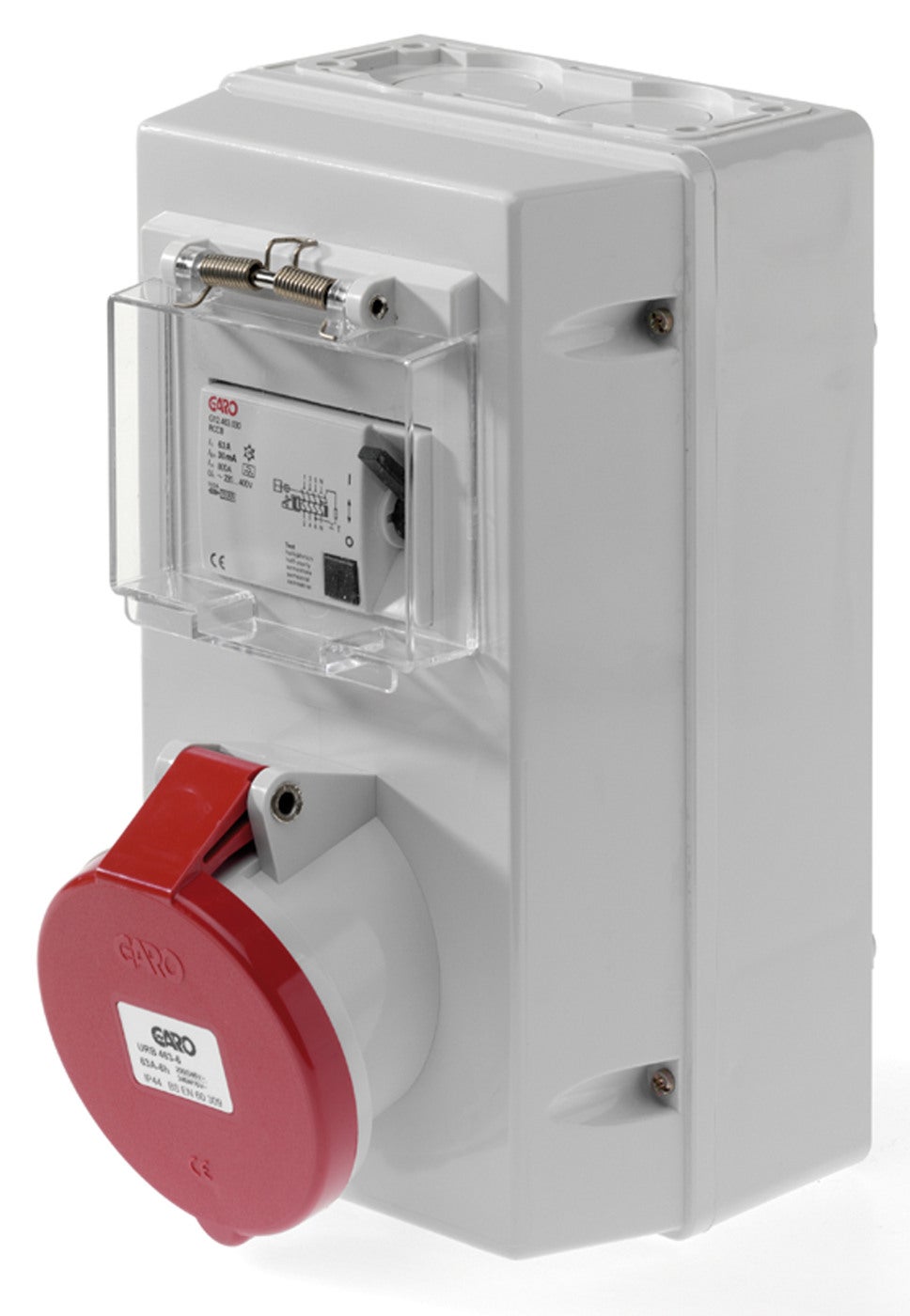

OUTLETBOX 5P 63A 6h URB

Outlet box without Schuko 63A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with RCCB 5-pole 63A 6h URB
E-number
E2468718
Article number
2468718
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Red
Rated current [A] 63A
Rated voltage [V AC] 230/400V AC
Number of poles 5/3P+N+E
Clock hour position [h] 6h
Earthing terminal block Yes
Knockouts Ø40 Up [pcs] 2
Knockouts Ø40 Down [pcs] 2
Degree of protection [IP] IP44
Name OUTLETBOX 5P 63A 6h URB
E-number E2468718
Article number 2468718
Type designation URB 463-6 S
Number of RCCB [pcs] 1 1pcs 4P 63A

More variants of Outlet box without Schuko 63A IP44

E-number Article number Type designation Number of MCB 1P (1) Number of RCCB [pcs] 1
OUTLETBOX 5P 63A 6h URB E2468718 2468718 URB 463-6 S 1pcs 4P 63A

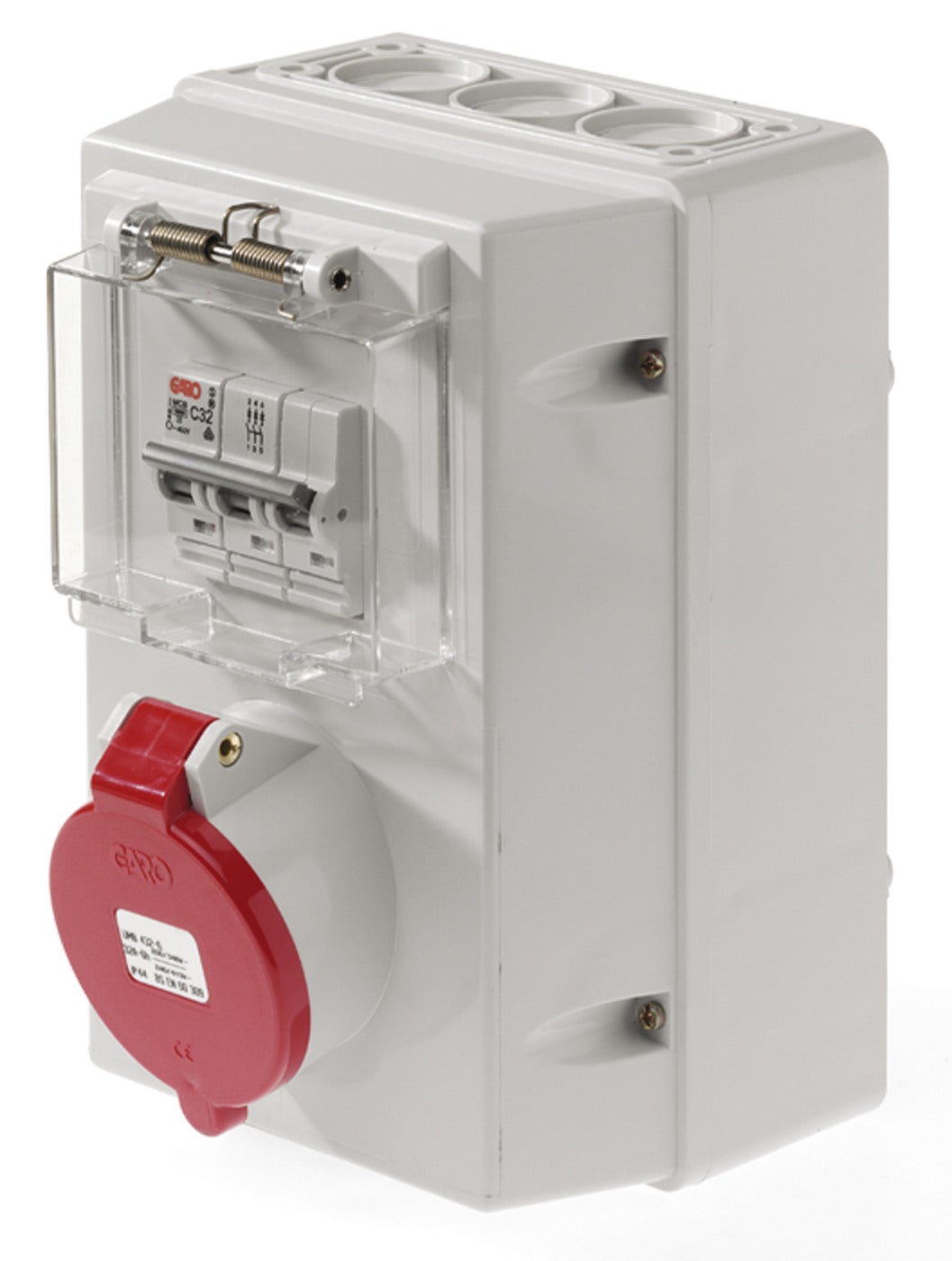

OUTLETBOX 5P 63A 6h UMB E2468781 2468781 UMB 463-6 S 1pcs C363
