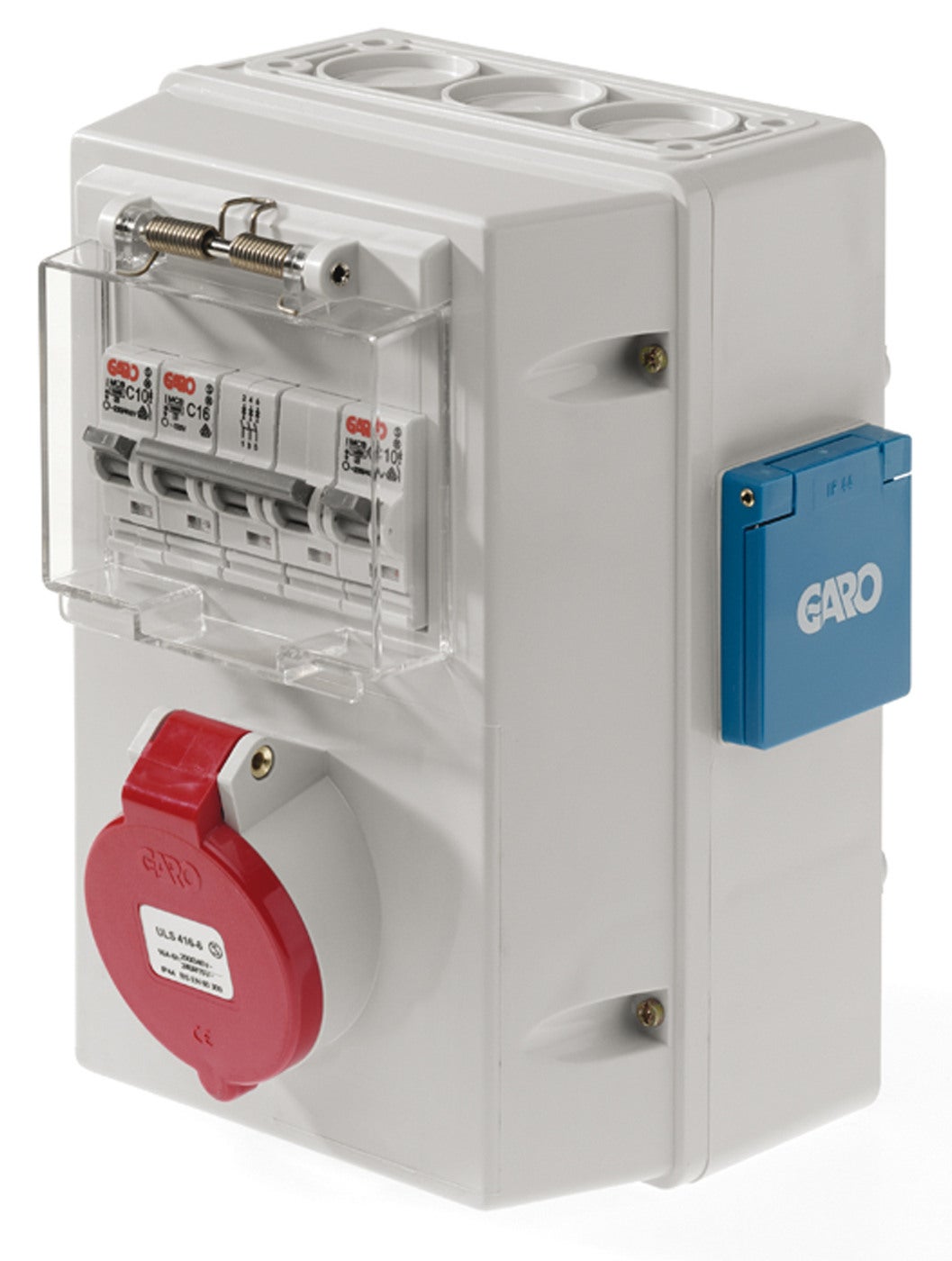

Outlet box with Schuko 63A IP44
Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with two protected schuko 5pole 63A 6h
E-number
E2468791
E2468791
Article number
2468791
2468791
| Type designation | UC UMB 463-6 S |
|---|---|
| Standard | EN61439-4 |
| Frequency [Hz] | 50/60Hz |
| Housing material | Plastic |
| Color | Red |
| Rated current [A] | 63A |
| Rated voltage [V AC] | 230/400V AC |
| Number of poles | 5/3P+N+E |
| Clock hour position [h] | 6h |
| Earthing terminal block | Yes |
| Number of MCB 1P (1) | 2pcs C110 |
| Number of MCB 1P (2) | 1pcs C363 |
| Number of Schuko[pcs] | 2pcs |
| Knockouts Ø40 Up [pcs] | 2 |
| Knockouts Ø40 Down [pcs] | 2 |
| Degree of protection [IP] | IP44 |
| Name | OUTLETBOX 5P 63A 6h UC UMB |
|---|---|
| E-number | E2468791 |
| Article number | 2468791 |
