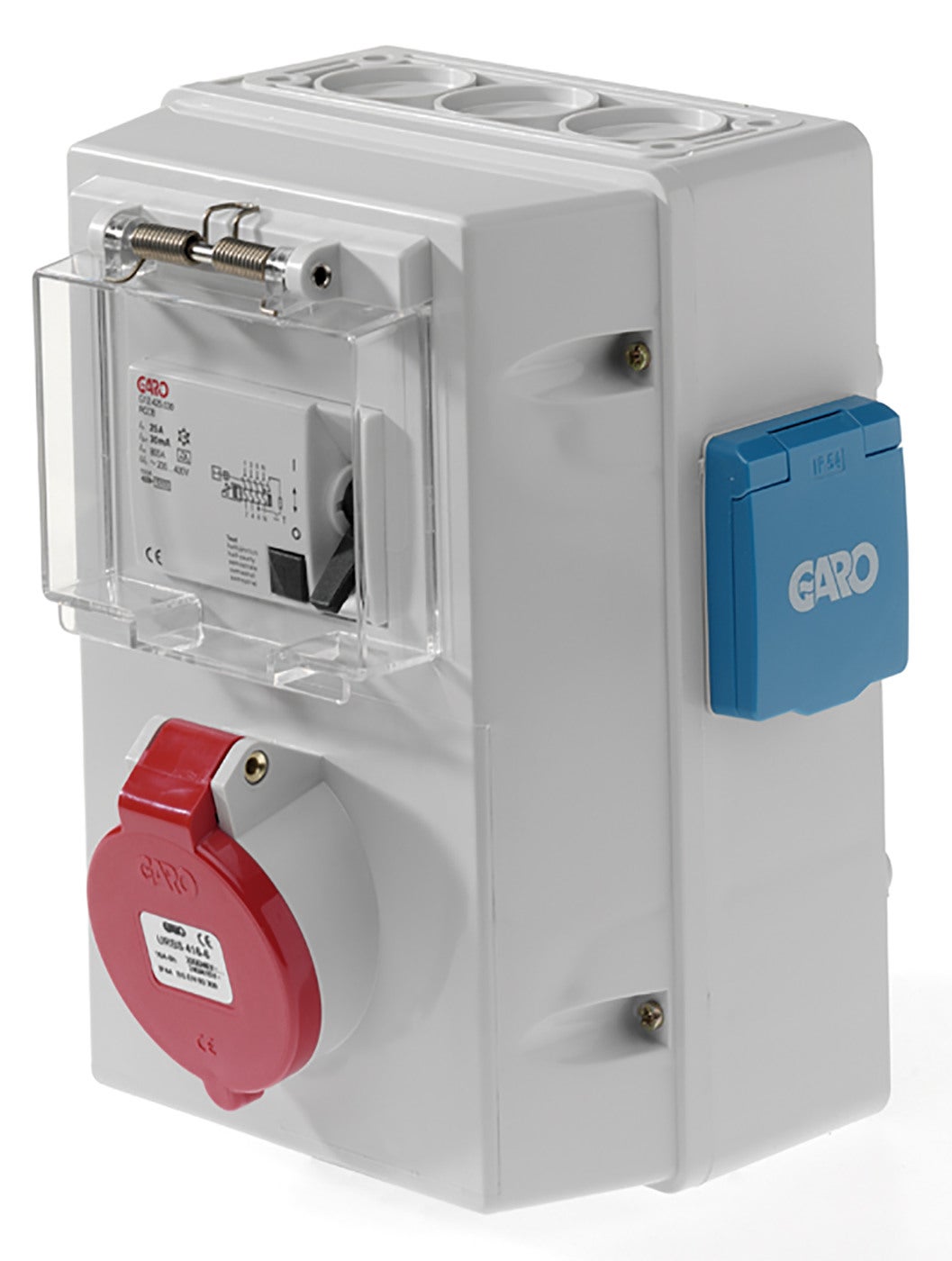

OUTLETBOX 5P 16A 6h URBS

Outlet box with Schuko 16A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with RCCB 5-pole 16A 6h URB
E-number
E2468760
Article number
2468760
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Red
Rated current [A] 16A
Rated voltage [V AC] 230/400V AC
Number of poles 5/3P+N+E
Clock hour position [h] 6h
Earthing terminal block Yes
Degree of protection [IP] IP44
Name OUTLETBOX 5P 16A 6h URBS
E-number E2468760
Article number 2468760
Type designation URBS 416-6 S
Number of RCCB [pcs] 1 1pcs 4P 25A
Number of RCBO [pcs] Yes
Knockouts Ø32 Down [pcs] 3
Knockouts Ø32 Up [pcs] 3

More variants of Outlet box with Schuko 16A IP44

E-number Article number Type designation Number of MCB 1P (1) Number of MCB 1P (2) Number of Schuko[pcs] Number of RCCB [pcs] 1 Number of RCBO [pcs] Knockouts Ø40 Up [pcs] Knockouts Ø40 Down [pcs] Knockouts Ø32 Down [pcs] Knockouts Ø32 Up [pcs] EngineerWidth EngineerHeight EngineerDepth
OUTLETBOX 5P 16A 6h URBS E2468760 2468760 URBS 416-6 S 1pcs 4P 25A Yes 3 3

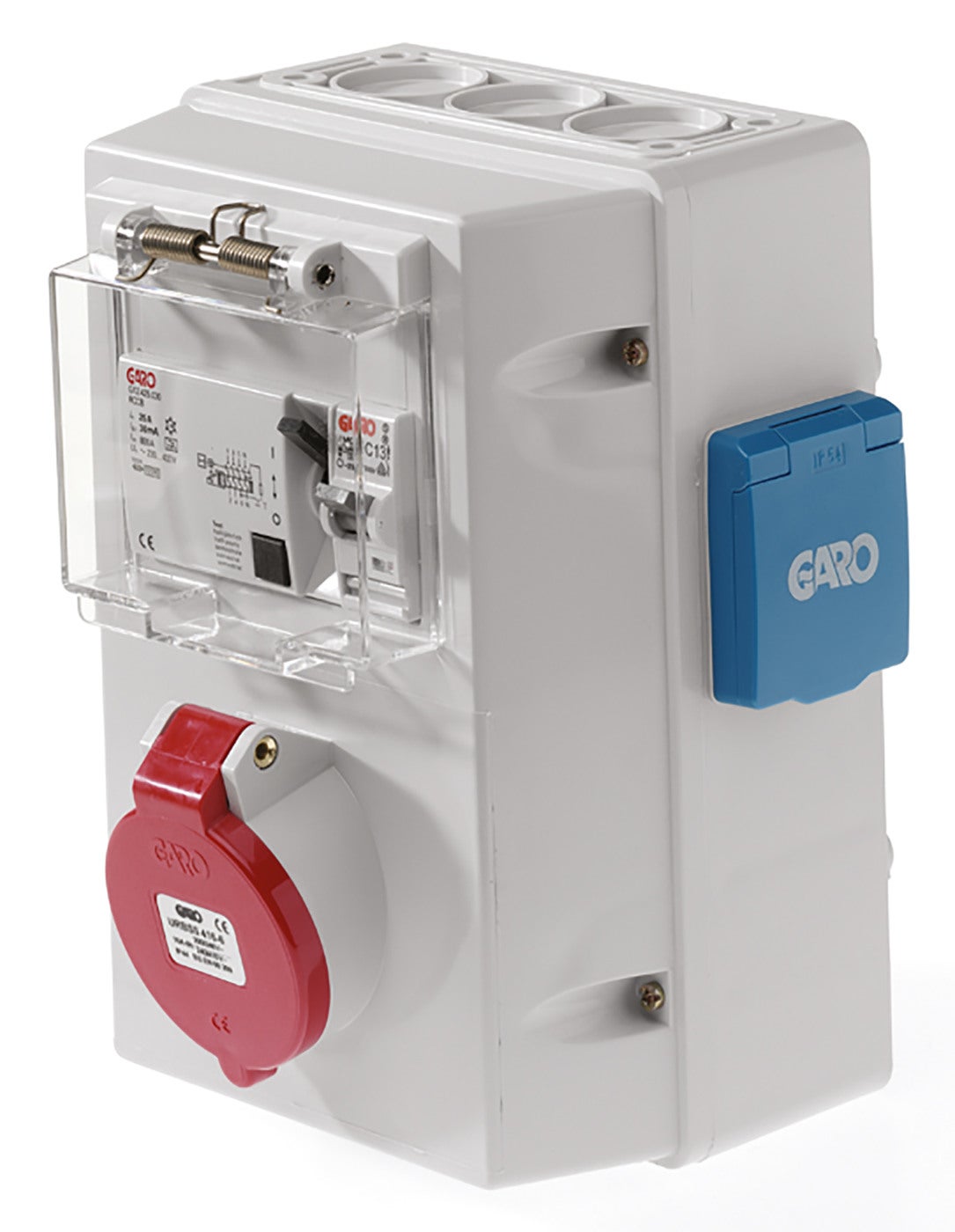

OUTLETBOX 5P 16A 6h URBSS E2468761 2468761 URBSS 416-6 S 1pcs C113 1pcs 4P 25A Yes 3 3

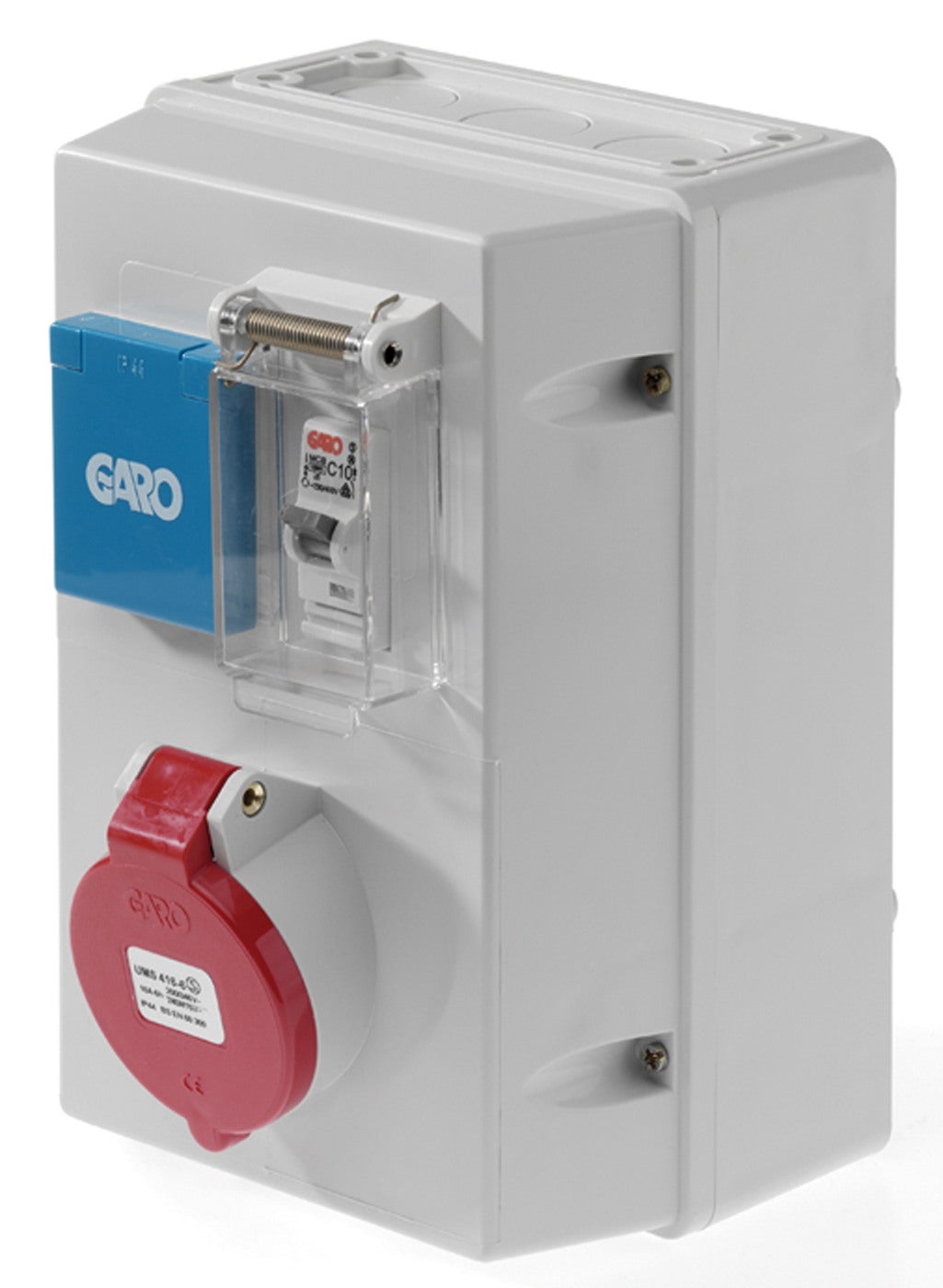

OUTLETBOX 5P 16A 6h UMS E2468783 2468783 UMS 416-6 S 1pcs C110 Yes 3 3

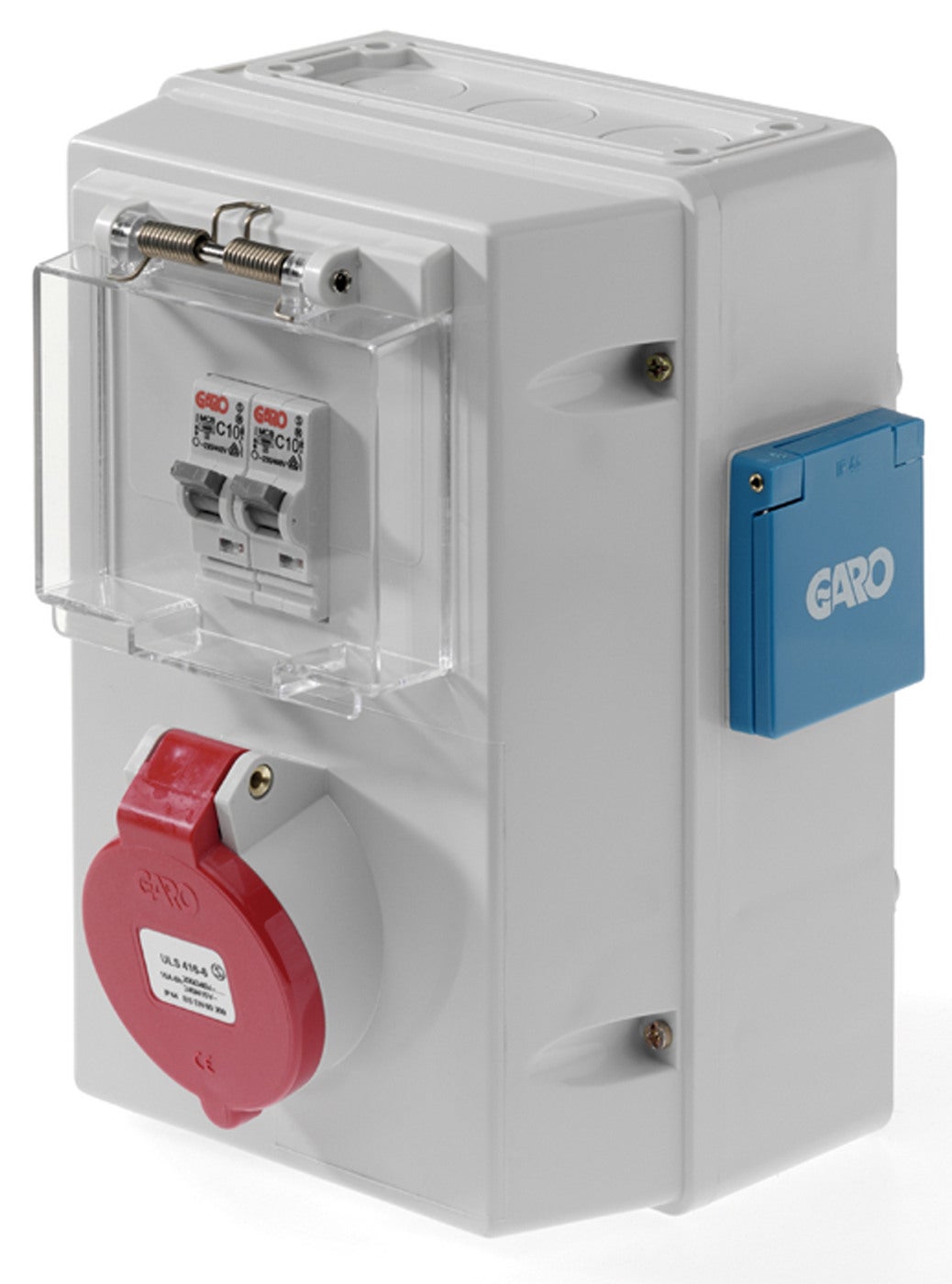

OUTLETBOX 5P 16A 6h ULS E2468785 2468785 ULS 416-6 S 2pcs C110 Yes 3 3

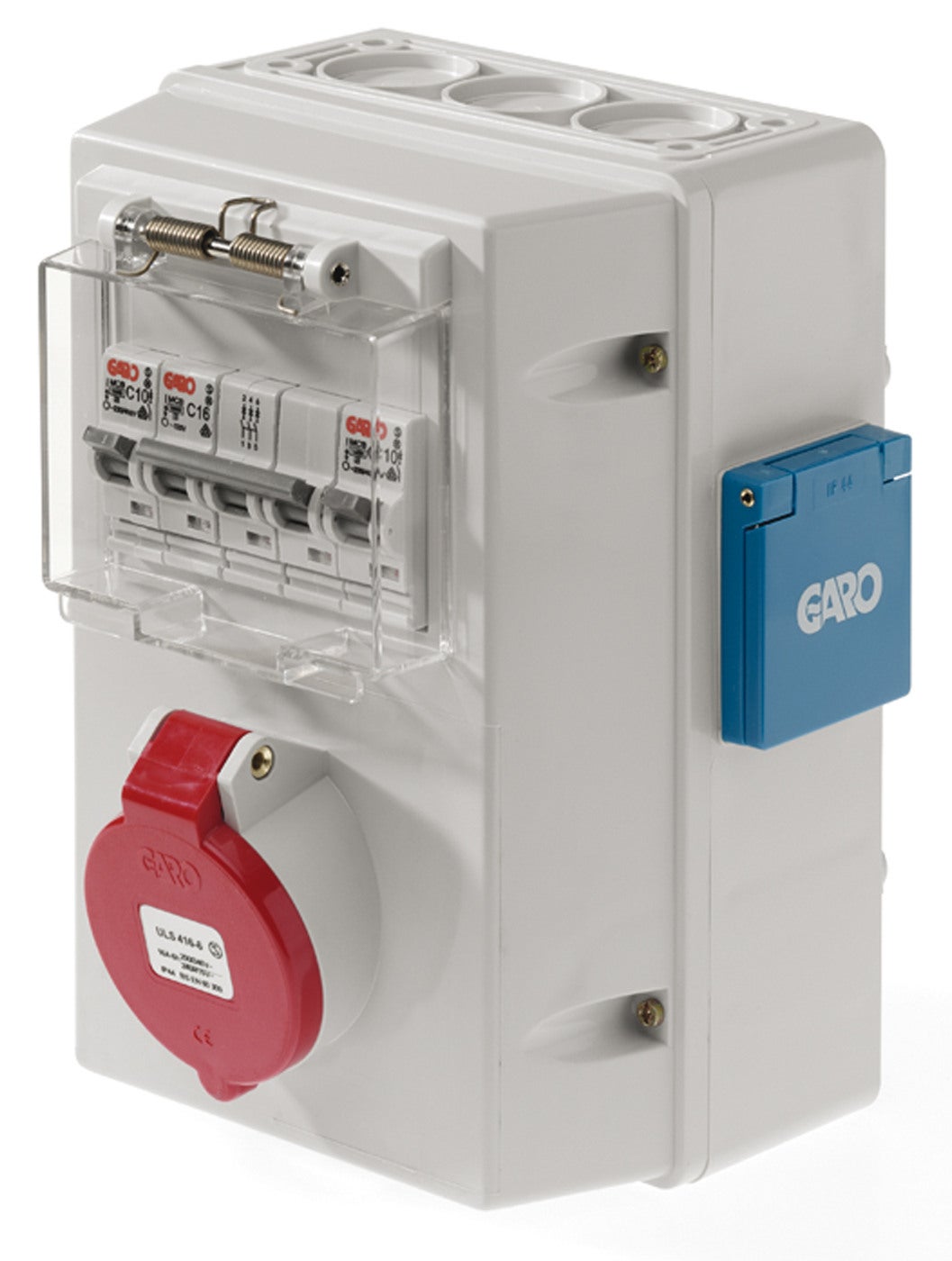

OUTLETBOX 5P 16A 6h UC ULS E2468787 2468787 UC ULS 416-6 S 1pcs C316 2pcs C110 Yes 3 3
OUTLETBOX 5P 16A 6h UC UIS E2468789 2468789 UC UIS 416-6 S 2pcs C110 Yes 2x40 2x40

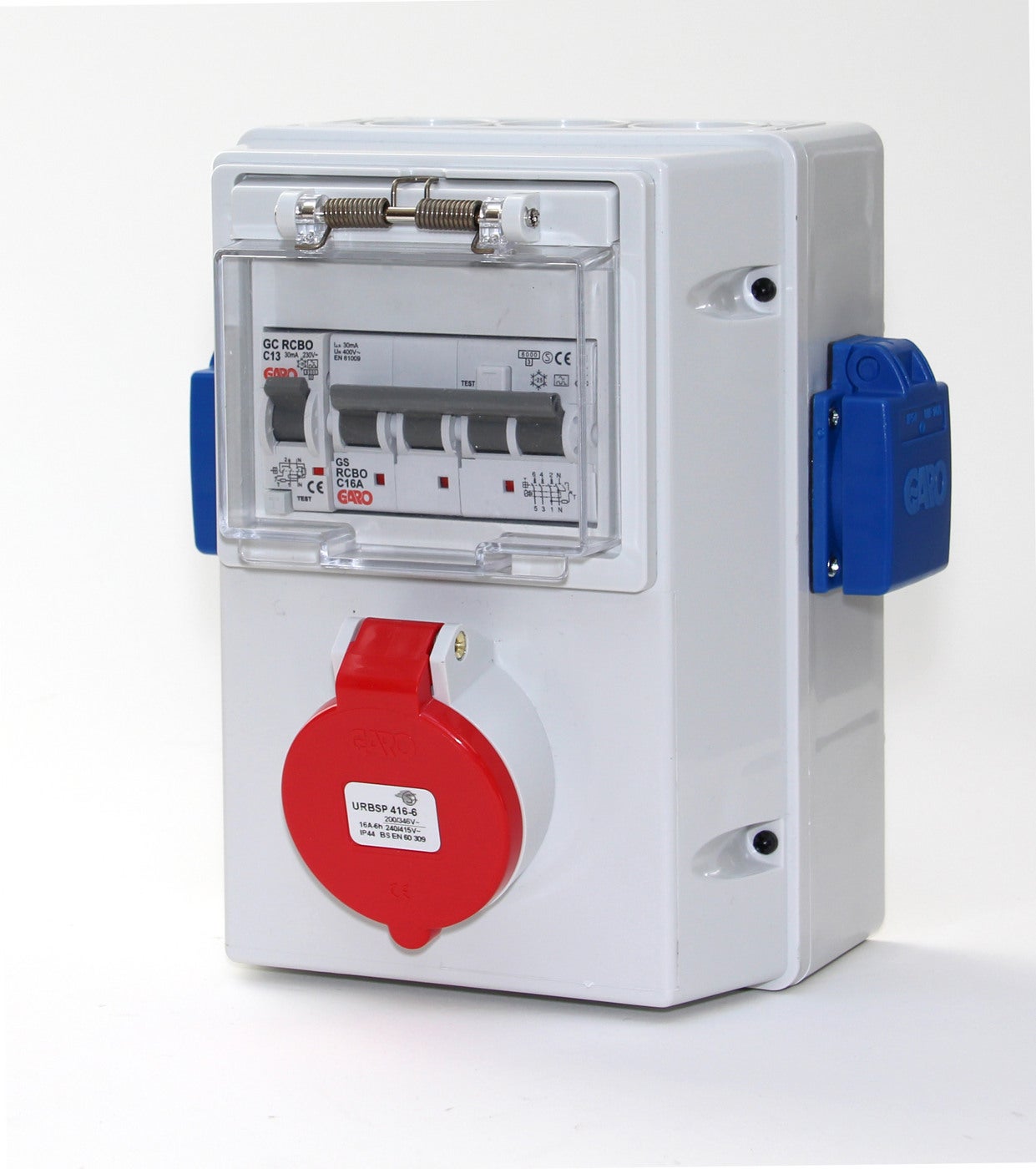

OUTLETBOX 5P 16A 6h 2UIF E2466415 352433 URBSP 416-6S 2pcs 1pcs C4P 16A 3 3 183 220 143
