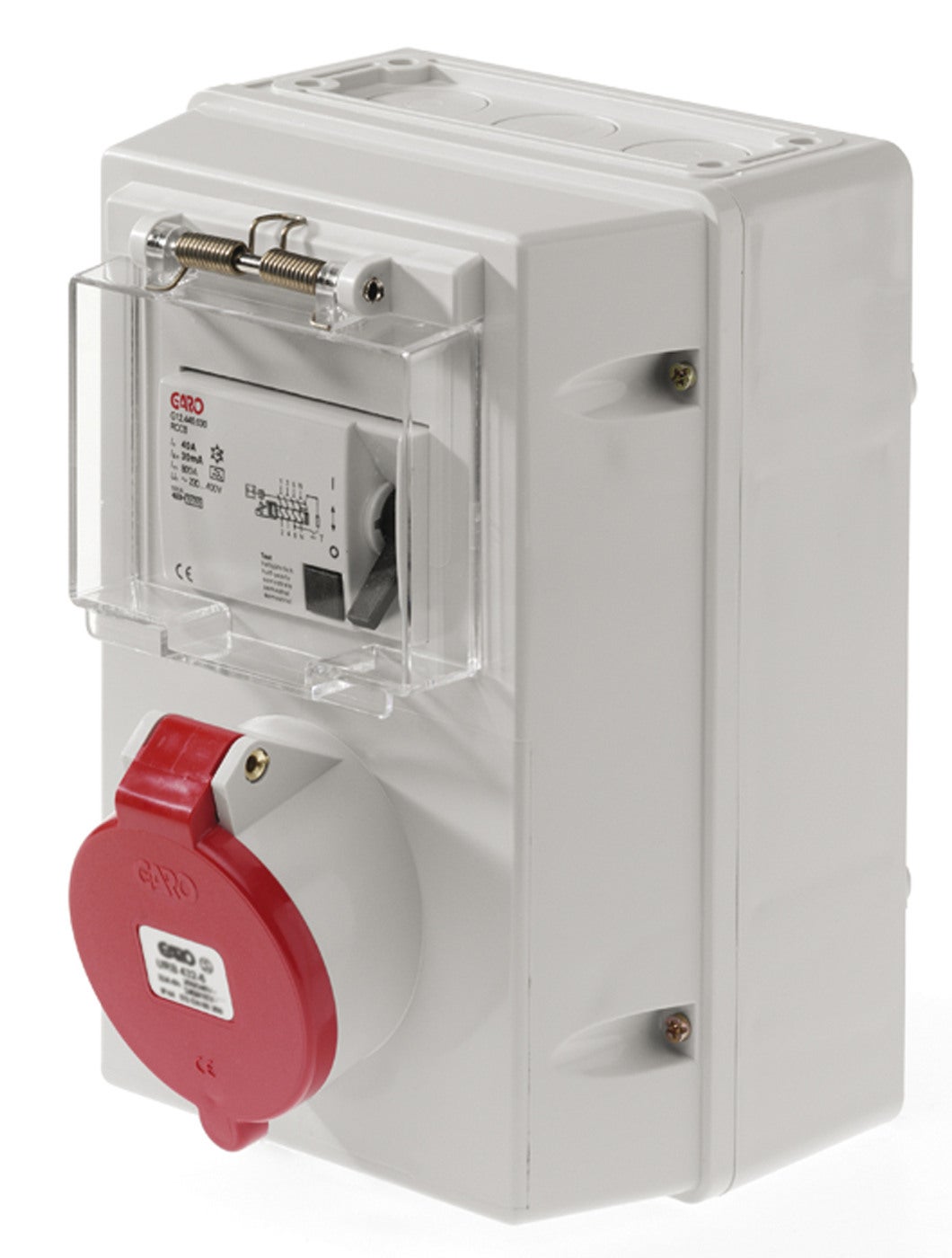

OUTLETBOX 4P 32A 6h URB

Outlet box without Schuko 32A IP44

Outlet boxes with one IEC/CEE socket on the front. Ample connection space. FL13 in the top and bottom combined with knockouts. Supplied with glands adapted to each box. Cable entry options from both the top and bottom. Outlet box with RCCB 4-pole 32A 6h URB
E-number
E2468710
Article number
2468710
Support
Standard EN61439-4
Frequency [Hz] 50/60Hz
Housing material Plastic
Color Red
Rated current [A] 32A
Clock hour position [h] 6h
Earthing terminal block Yes
Knockouts Ø32 Down [pcs] 3
Knockouts Ø32 Up [pcs] 3
Degree of protection [IP] IP44
Name OUTLETBOX 4P 32A 6h URB
E-number E2468710
Article number 2468710
Type designation URB 332-6 S
Rated voltage [V AC] 400V AC
Number of poles 4/3P+E
Number of RCCB [pcs] 1 1pcs 4P 40A

More variants of Outlet box without Schuko 32A IP44

E-number Article number Type designation Rated voltage [V AC] Number of poles Number of MCB 1P (1) Number of RCCB [pcs] 1
OUTLETBOX 4P 32A 6h URB E2468710 2468710 URB 332-6 S 400V AC 4/3P+E 1pcs 4P 40A
OUTLETBOX 5P 32A 6h URB E2468712 2468712 URB 432-6 S 230/400V AC 5/3P+N+E 1pcs 4P 40A

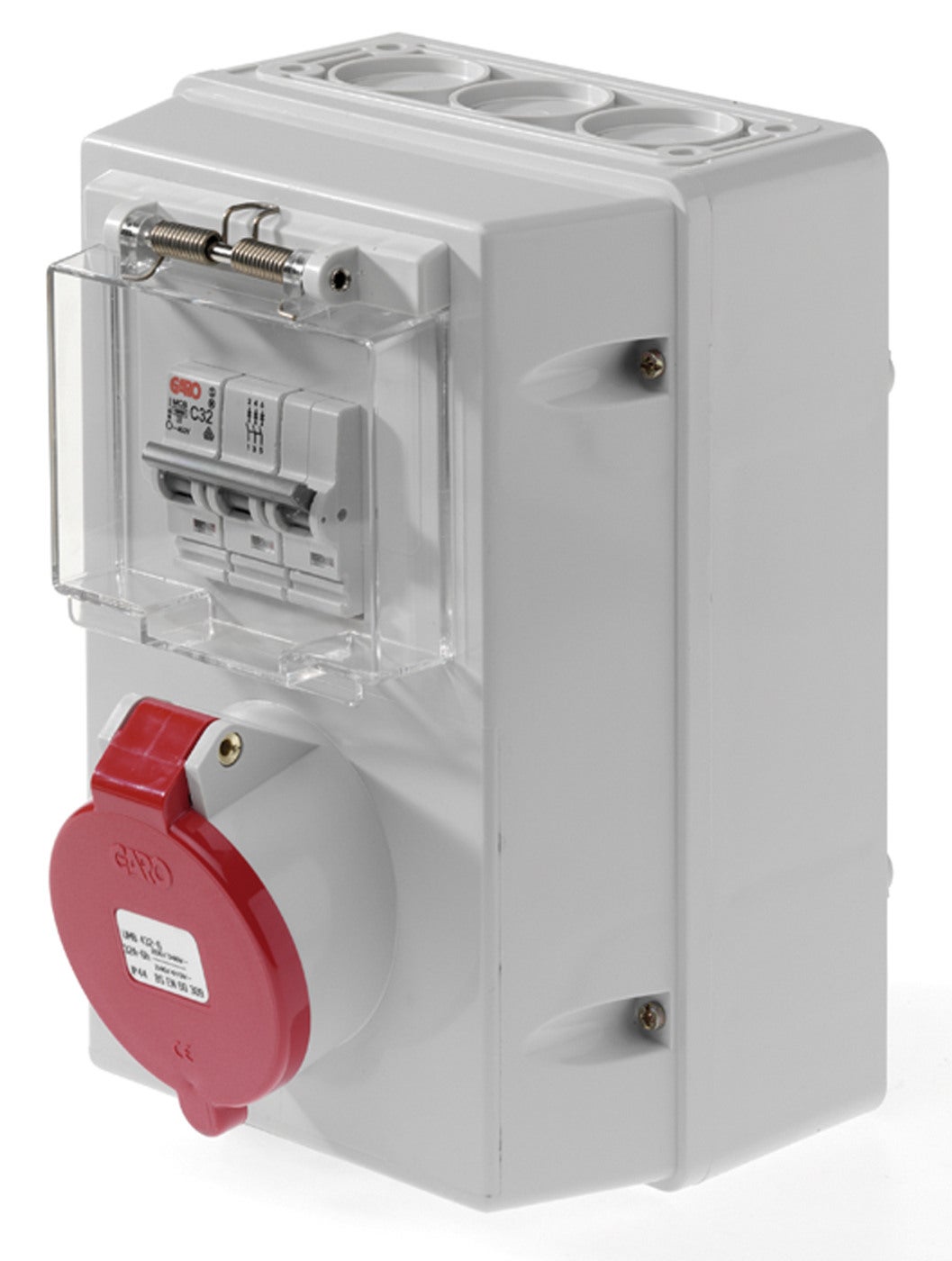

OUTLETBOX 5P 32A 6h UMB E2468775 2468775 UMB 432-6 S 230/400V AC 5/3P+N+E 1pcs C332
